Isuzu WW
▶
TRUCKS
▶
GVR
▶
11581 - GVR CNG(THAILAND)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#133091) — 31 parça
◀

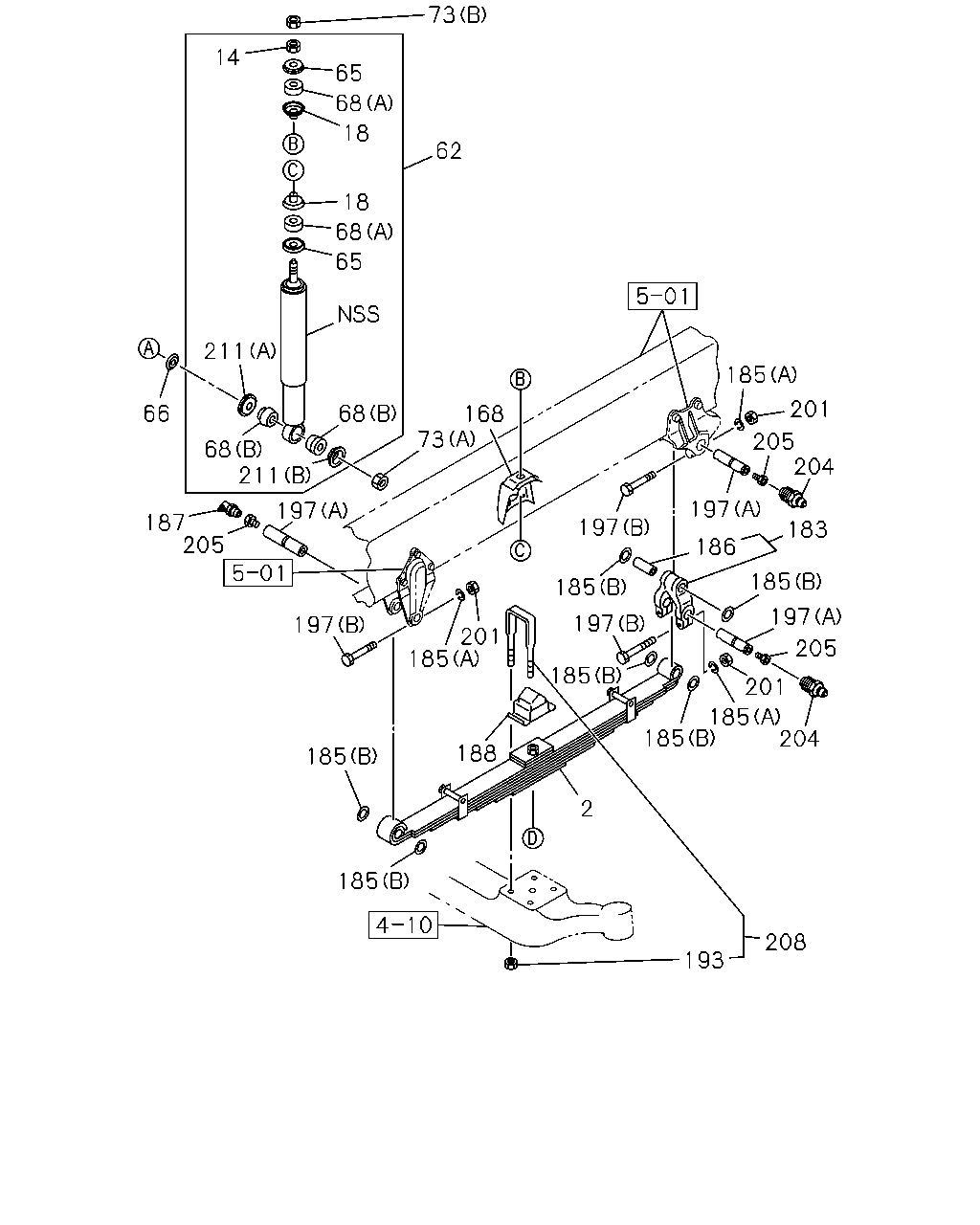

[450A] LEAF SPRING AND SHOCK ABSORBER (27 parça)
[450A] BRACKET;STAB BAR (4 parça)
▶
73
65
68
18
62
18
68
65
14
211
68
168
185
201
205
204
197
183
186
185
197
205
201
204
185
185
73
197
211
197
66
68
187
205
197
185
201
185
185
188
2
185
197
185
208
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA
8-98010-512-0
01
1
1402-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA
8-98136-375-0
01
1
1402-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
1402-
18
WASHER; CENTERING,S/ABS
ID=20.8 THA
9-51631-041-0
04
1
1402-
62
ABSORBER ASM; SHOCK,FRT
THA
8-97924-224-0
02
1
1402-
65
WASHER; S/ABS
ID=16.5 THA
9-51631-040-0
04
1
1402-
66
WASHER; LK,S/ABS SETTING
ID=21
0-91610-520-0
02
1
1402-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
1402-
68
BUSHING; S/ABS
(A) THA
9-51631-039-0
04
1
1402-
73
NUT; BRKT,SHOCK
(A) M20
0-91110-520-0
02
1
1402-
73
NUT; BRKT,SHOCK
(B) M14
0-91111-514-0
02
1
1402-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
1402-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1402-
185
WASHER; LK,PIN
(A) ID=12.2
0-91510-612-0
12
1
1402-
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1402-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1402-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1402-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
THA
8-97948-187-0
02
1
1402-
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1402-
197
PIN; FRT SPR,FRT
(B) M12X80
0-10856-280-0
12
1
1402-
197
PIN; FRT SPR,FRT
(A) THA
8-97948-141-0
06
1
1402-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1402-
204
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
0-90301-410-0
04
1
1402-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1402-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1402-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
1402-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
1402-
140
377
377
138
137
137
377
140
377
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
137
BRACKET; STAB BAR TO FRAME
8-98128-356-1
02
1
1402-
138
NUT; BRKT
M14 THA
0-91110-514-0
06
1
1402-
140
BOLT; BRKT
M14X45
9-92061-445-0
06
1
1402-
377
WASHER; LK,BRKT
ID=15
8-98010-627-1
12
1
1402-
