◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11581 - GVR CNG(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#133089) — 54 parça

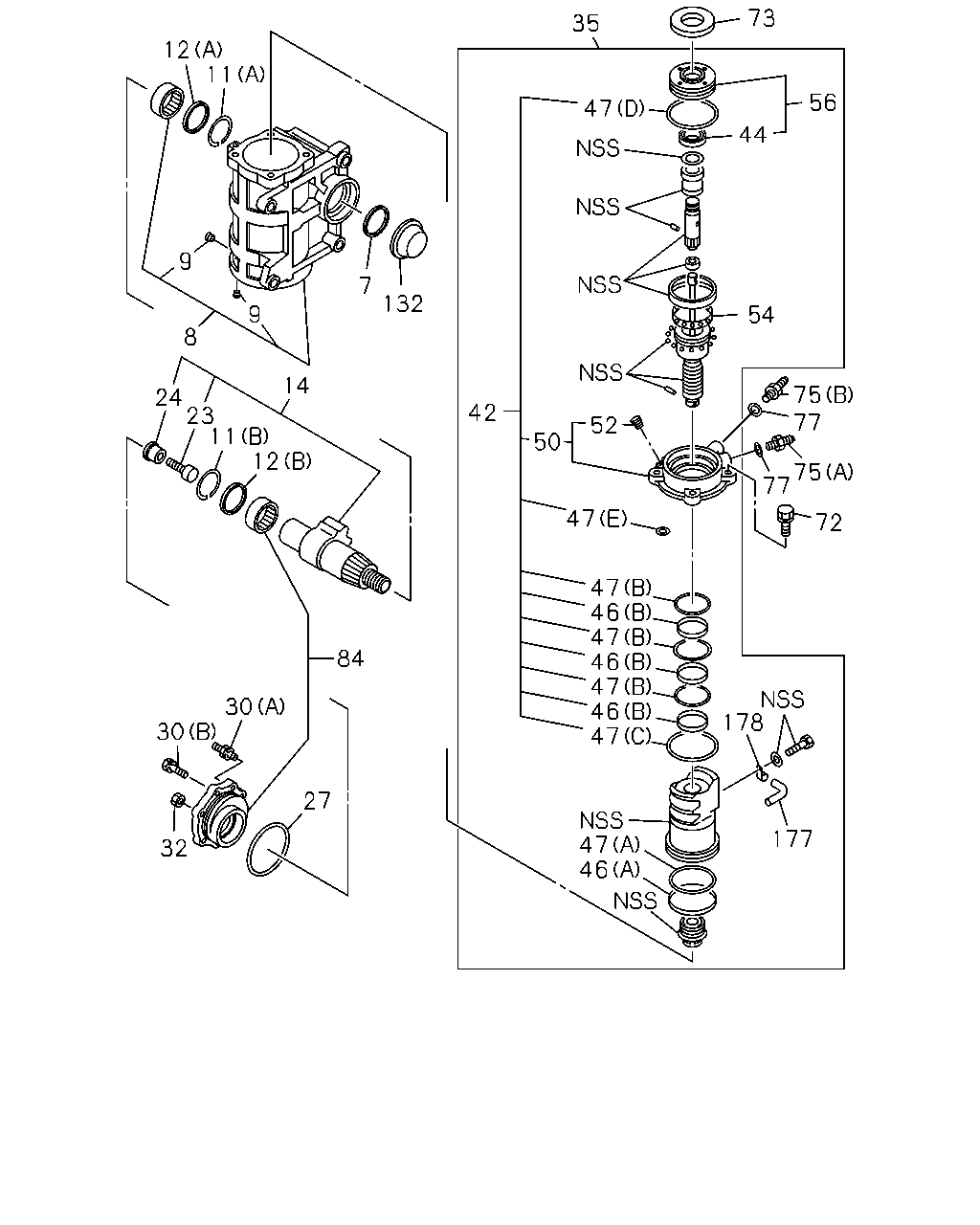

çizim 407221
73 56 44 47 35 11 12 7 9 9 8 132 14 11 12 23 24 84 30 27 30 32 47 46 177 178 72 77 77 75 75 47 47 46 47 46 47 46 47 50 52 42 54
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-836-0 01 1 -
8 BOX ASM; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-840-1 01 1 -
9 PLUG; FILLER,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-830-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-837-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-855-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-838-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-854-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-861-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-859-0 01 1 -
24 RETAINER; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-858-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-853-0 01 1 -
30 BOLT; COVER STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-850-0 03 1 -
30 BOLT; COVER STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-851-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-880-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-835-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-834-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-824-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-819-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-828-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E), THA ASM PART: A = 8-97948-359-1 		8-97948-818-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-820-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C), THA ASM PART: A = 8-97948-359-1 		8-97948-826-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D), THA ASM PART: A = 8-97948-359-1 		8-97948-827-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-829-0 03 1 -
50 HOUSING ASM; VALVE STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-831-0 01 1 -
52 PLUG; HSG STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-830-0 01 1 -
54 CASE; BEARING STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-823-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-825-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-852-0 04 1 -
73 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-847-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-843-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-845-0 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-844-0 02 1 -
84 COVER ASM; STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-856-0 01 1 -
132 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-846-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-822-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-821-0 01 1 -

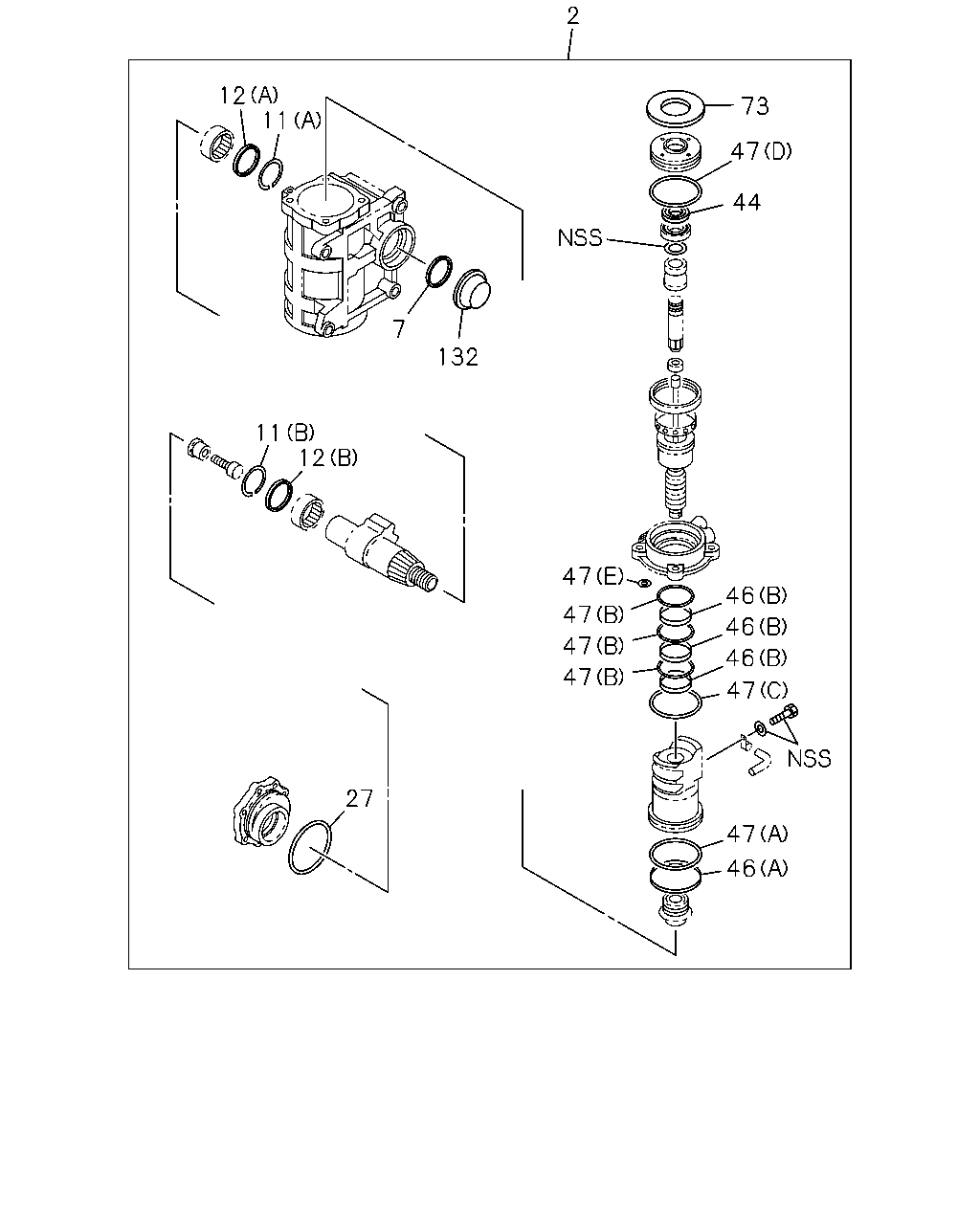

çizim 407703
2 73 47 44 132 7 11 12 11 12 27 46 46 46 46 47 47 47 47 47 47
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
THA ASM PART: A = 8-97948-359-1 		8-97948-842-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-836-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-837-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-855-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-838-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-854-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-853-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-824-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-819-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-828-0 03 1 -
47 GASKET; HSG,STRG UNIT
(E), THA ASM PART: A = 8-97948-359-1 		8-97948-818-0 01 1 -
47 GASKET; HSG,STRG UNIT
(A), THA ASM PART: A = 8-97948-359-1 		8-97948-820-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C), THA ASM PART: A = 8-97948-359-1 		8-97948-826-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D), THA ASM PART: A = 8-97948-359-1 		8-97948-827-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B), THA ASM PART: A = 8-97948-359-1 		8-97948-829-0 03 1 -
73 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-847-0 01 1 -
132 COVER; DUST,STRG UNIT
THA ASM PART: A = 8-97948-359-1 		8-97948-846-0 01 1 -
