4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#133087) — 54 parça

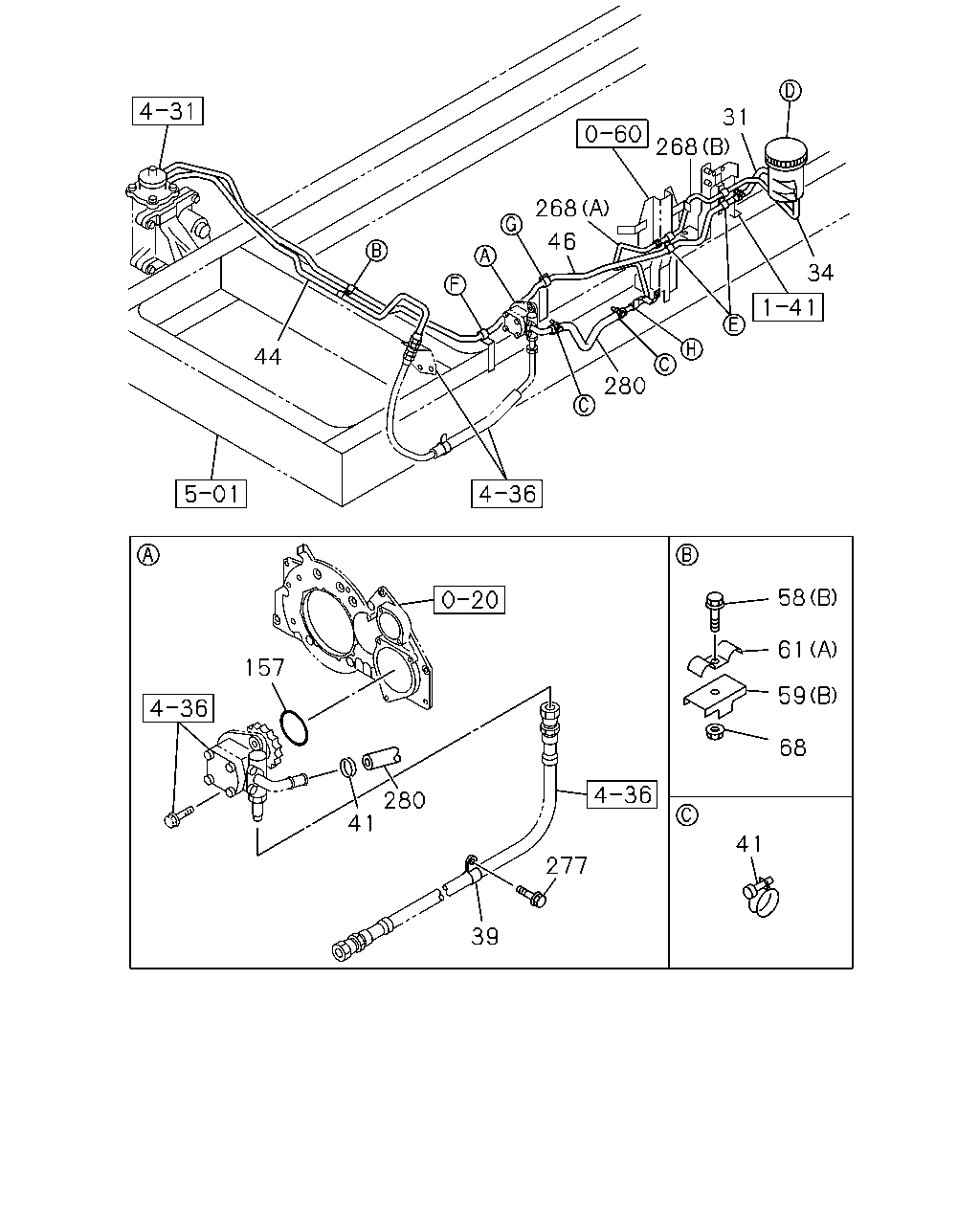

44 268 46 31 268 34 280 157 41 280 277 39 41 58 61 59 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1402-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1402-
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1402-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1402-
44	PIPE; OIL,P/S UNIT TO NIPPLE THA	8-97948-229-0	01	1	1402-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2762 THA	8-97630-435-0	01	1	1402-
58	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
58	BOLT; CLIP (B) M8X40 FLANGE THA	0-28650-840-0	01	1	1402-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1402-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1402-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1402-
61	CLIP; OIL PIPE (C) ID=16 L=20 THA	0-95235-536-0	02	1	1402-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1402-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1402-
68	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	1402-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) THA	8-98090-330-0	01	1	1402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	1402-
277	BOLT; HOSE CLIP M8X16 FLANGE THA	0-28050-816-0	01	1	1402-
280	HOSE; P/S OIL PUMP,INL	8-98081-190-0	01	1	1402-

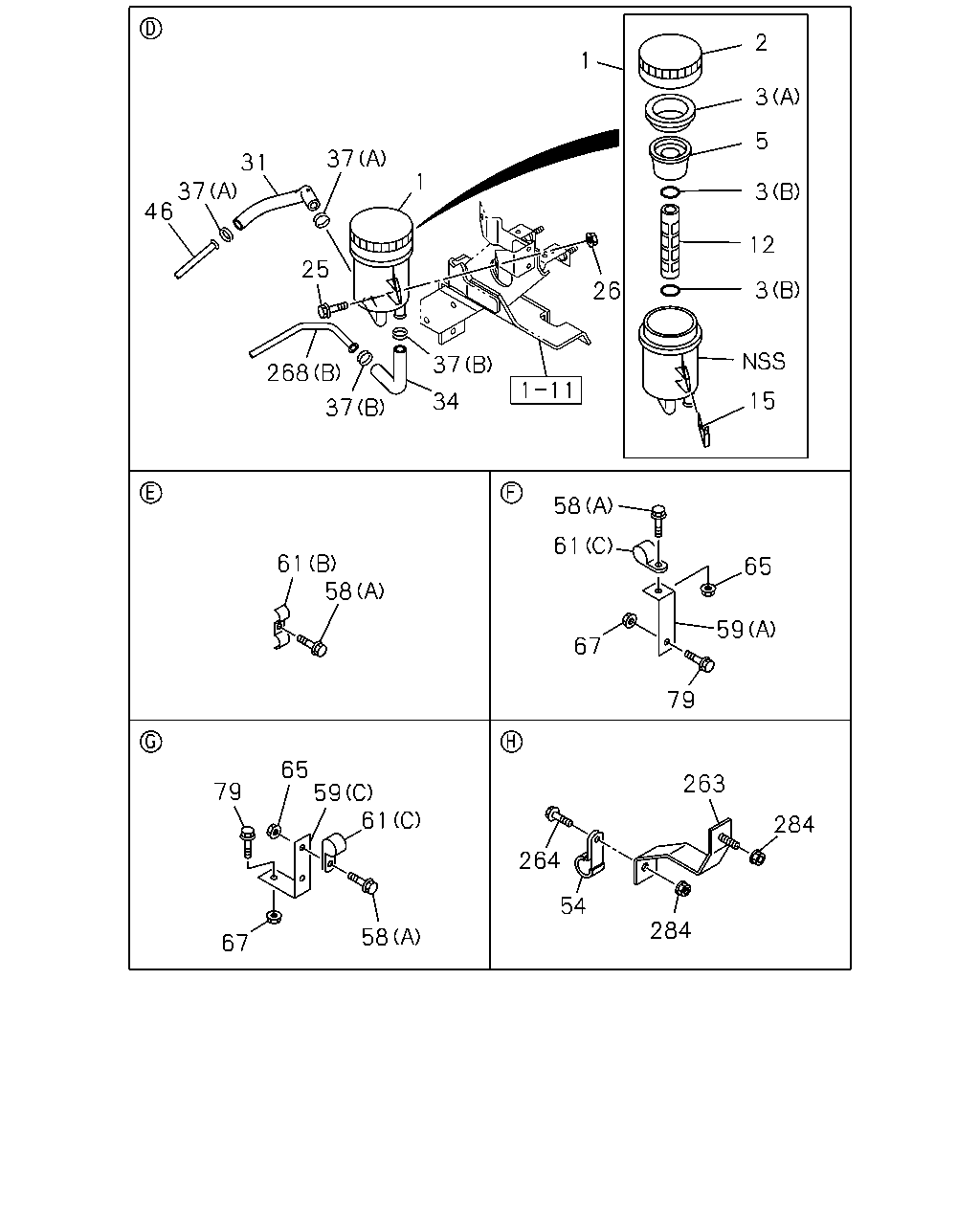

1 2 3 3 5 12 3 15 26 1 37 37 34 268 37 31 37 46 25 61 58 58 61 67 79 65 59 284 263 284 54 264 65 61 79 67 58 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S THA	8-97948-302-2	01	1	1402-
2	CAP; OIL TANK,P/S THA	8-97948-291-0	01	1	1402-
3	GASKET; OIL TANK,P/S (B) THA	8-97948-979-0	02	1	1402-
3	GASKET; OIL TANK,P/S (A) THA	8-97948-295-0	01	1	1402-
5	STRAINER; OIL TANK,P/S THA	8-98246-550-0	01	1	1402-
12	FILTER; MICROBON,OIL TANK,P/S THA	8-97948-300-0	01	1	1402-
15	PLATE; FILTER,OIL TANK THA	8-97948-297-0	02	1	1402-
25	BOLT; OIL TANK BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	1402-
26	NUT; OIL TANK TO BRKT M8 FLANGE THA	0-91180-108-0	02	1	1402-
31	HOSE; P/S OIL TANK,INL	8-98092-730-0	01	1	1402-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1402-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1402-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1402-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2762 THA	8-97630-435-0	01	1	1402-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1402-
58	BOLT; CLIP (A) M8X16 FLANGE THA	0-28050-816-0	02	1	1402-
58	BOLT; CLIP (A) M8X20 FLANGE THA	0-28650-820-0	02	1	1402-
58	BOLT; CLIP (B) M8X40 FLANGE THA	0-28650-840-0	01	1	1402-
59	BRACKET; CLIP,OIL PIPE (C)	1-21464-481-0	01	1	1402-
59	BRACKET; CLIP,OIL PIPE (B)	1-47475-427-1	01	1	1402-
59	BRACKET; CLIP,OIL PIPE (A) L=95	1-82699-085-0	01	1	1402-
61	CLIP; OIL PIPE (C) ID=16 L=20 THA	0-95235-536-0	02	1	1402-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	1402-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	02	1	1402-
65	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1402-
67	NUT; BRKT M8 FLANGE THA	0-91180-108-0	02	1	1402-
79	BOLT; BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	1402-
79	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	1402-
263	BRACKET; P/S PIPE	8-98081-189-0	01	1	1402-
264	BOLT; PIPE BRKT M8X20 FLANGE THA	0-28650-820-0	01	1	1402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (A) THA	8-98090-330-0	01	1	1402-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE (B)	8-98092-722-0	01	1	1402-
284	NUT; PIPE M8 FLANGE THA	0-91180-108-0	02	1	1402-
