4-10 — FRONT AXLE (#133080) — 88 parça

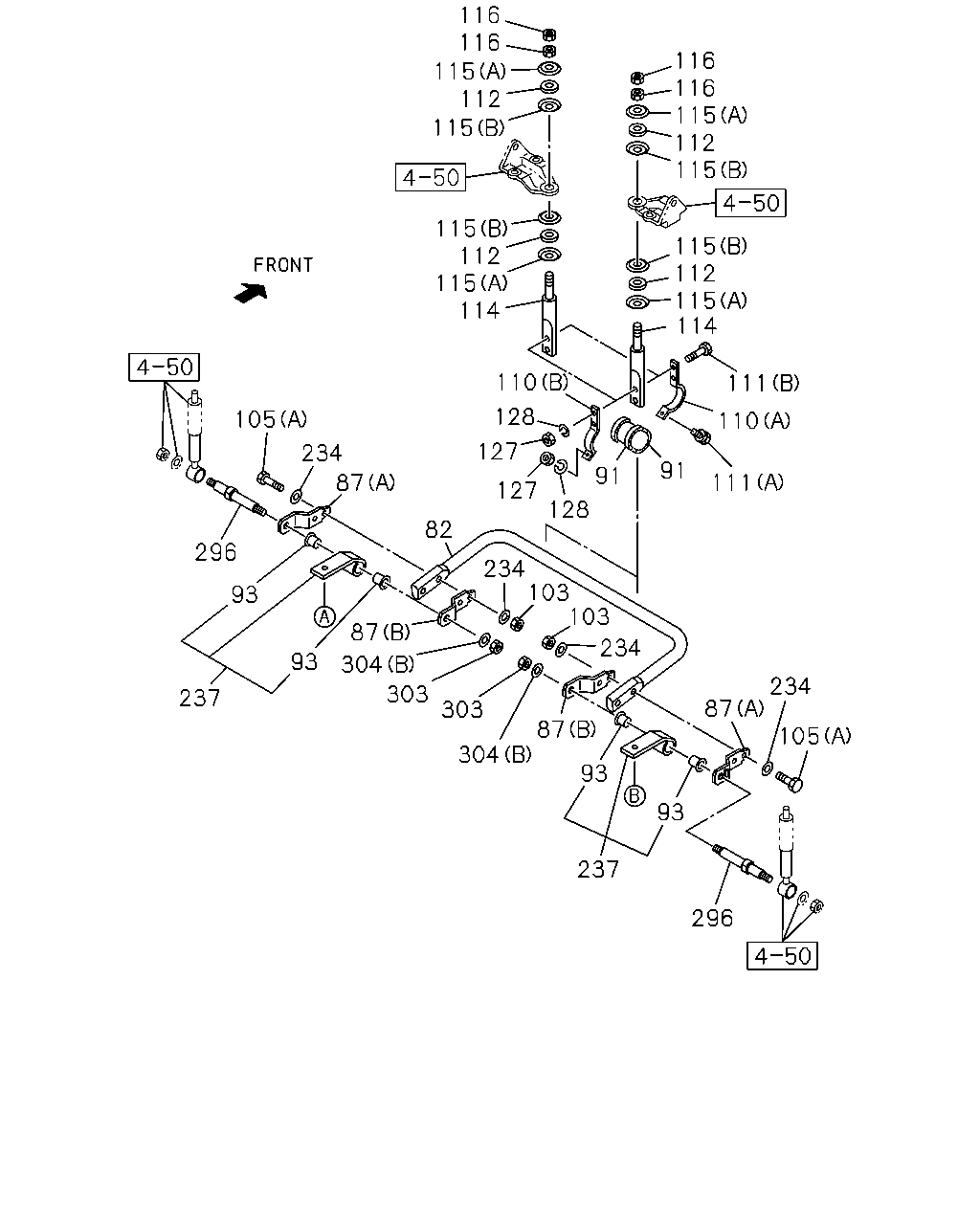

116 116 115 112 115 115 112 115 114 110 127 128 127 128 91 91 111 110 111 114 115 112 115 115 112 115 116 116 87 105 234 234 103 103 234 82 87 234 105 296 93 93 237 87 304 303 303 304 93 237 296 93 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP	8-98012-961-1	01	1	1402-
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1402-
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1402-
91	BUSHING; RUBBER,STAB BAR	1-51779-079-1	04	1	1402-
93	BUSHING; STABILIZER	1-51689-015-3	04	1	1402-
103	NUT; BRKT FIX M14 THA	0-91110-514-0	04	1	1402-
105	BOLT; BRKT FIX (A) M14X70	0-10956-470-0	04	1	1402-
105	BOLT; BRKT FIX (B) M10X25 FLANGE THA	0-28151-025-0	02	1	1402-
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	1402-
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	1402-
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	1402-
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	1402-
112	BUSHING; ROD	9-51631-050-0	04	1	1402-
114	ROD; STAB BAR THA	1-51773-065-0	02	1	1402-
115	WASHER; CENTER,STAB TO FRAME (B) ID=16.8	1-51631-022-0	04	1	1402-
115	WASHER; CENTER,STAB TO FRAME (A) ID=14.5	9-51631-051-0	04	1	1402-
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	1402-
127	NUT; CLAMP M12	0-91110-512-0	06	1	1402-
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1402-
234	WASHER; STAB ID=15	8-98010-627-1	08	1	1402-
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	1402-
296	PIN; STAB	8-98022-874-1	02	1	1402-
303	NUT; PIN M20	0-91110-520-0	02	1	1402-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1402-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	1402-

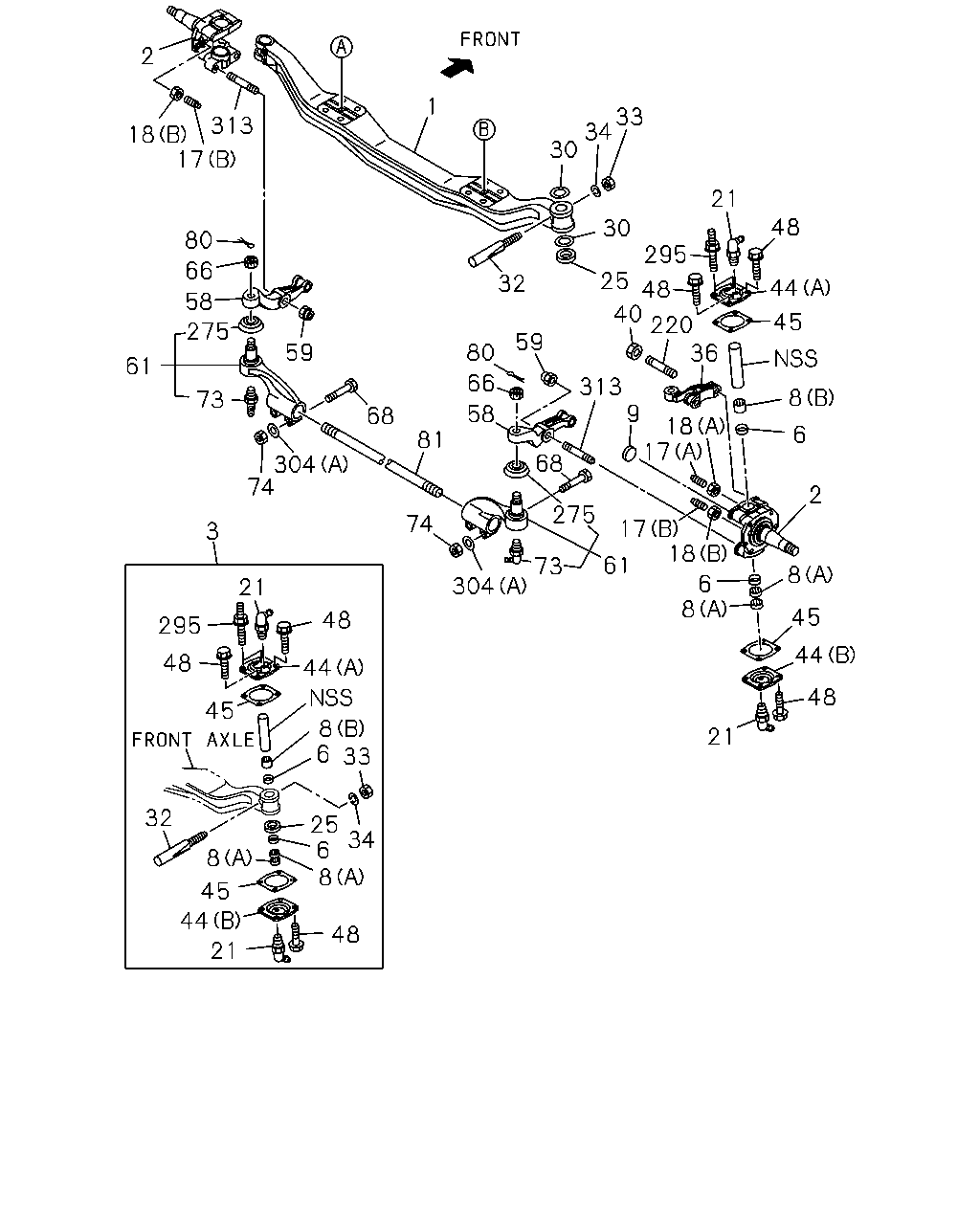

2 313 18 17 80 275 73 61 304 74 3 66 58 59 68 74 304 48 21 295 48 45 32 8 45 44 21 48 8 25 34 6 33 6 44 8 81 32 59 80 68 58 66 313 275 73 61 17 6 8 18 21 45 44 48 8 2 6 8 45 44 48 21 295 40 17 9 36 18 220 48 25 30 33 34 30 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	8-98170-180-2	01	1	1402-
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1402-1412
2	KNUCKLE; FRT AXLE	8-98296-703-0	01	1	1501-
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1402-1412
2	KNUCKLE; FRT AXLE	8-98296-704-0	01	1	1501-
3	KING PIN SET	1-87831-349-2	02	1	1402-
6	SEAL; KING PIN	9-09926-024-0	04	1	1402-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1402-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1402-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	1402-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1402-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1402-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18 THA	0-91110-518-0	02	1	1402-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1402-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1402-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1402-
30	WASHER; THRUST,KING PIN T=4.875 -4.900 THA	1-43171-185-0	AR	1	1402-
30	WASHER; THRUST,KING PIN T=4.900 -4.925 THA	1-43171-186-0	AR	1	1402-
30	WASHER; THRUST,KING PIN T=4.925 -4.950 THA	1-43171-187-0	AR	1	1402-
30	WASHER; THRUST,KING PIN T=4.950 -4.975 THA	1-43171-188-0	AR	1	1402-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1402-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1402-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1402-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1402-
30	WASHER; THRUST,KING PIN T=5.075 -5.100 THA	1-43171-193-0	AR	1	1402-
30	WASHER; THRUST,KING PIN T=5.100 -5.125 THA	1-43171-194-0	AR	1	1402-
30	WASHER; THRUST,KING PIN T=5.125 -5.150 THA	1-43171-195-0	AR	1	1402-
30	WASHER; THRUST,KING PIN T=5.150 -5.175 THA	1-43171-196-0	AR	1	1402-
30	WASHER; THRUST,KING PIN T=5.175 -5.200 THA	1-43171-197-0	AR	1	1402-
30	WASHER; THRUST,KING PIN T=5.200 -5.225 THA	1-43171-198-0	AR	1	1402-
30	WASHER; THRUST,KING PIN T=5.225 -5.250 THA	1-43171-199-0	AR	1	1402-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	1402-
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	1402-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1402-
36	ARM; KNUCKLE	1-43133-073-3	01	1	1402-1412
36	ARM; KNUCKLE	8-98296-710-0	01	1	1501-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1402-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1402-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1402-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1402-
48	BOLT; COVER M10X25 FLANGE THA	0-28751-025-0	12	1	1402-
58	ARM; TIE ROD	1-43134-049-4	01	1	1402-1412
58	ARM; TIE ROD	8-98296-713-0	01	1	1501-
58	ARM; TIE ROD	1-43135-049-4	01	1	1402-1412
58	ARM; TIE ROD	8-98296-714-0	01	1	1501-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1402-
61	ROD END; TIE ROD	8-98228-106-0	01	1	1402-
61	ROD END; TIE ROD	8-98228-107-0	01	1	1402-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1402-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1402-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1402-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1402-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1402-
81	ROD; TIE	8-98171-947-0	01	1	1402-
220	STUD; KNUCKLE ARM	1-09300-127-1	02	1	1402-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1402-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1402-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1402-
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	1402-
313	STUD; TIE ROD ARM	1-09300-127-1	04	1	1402-

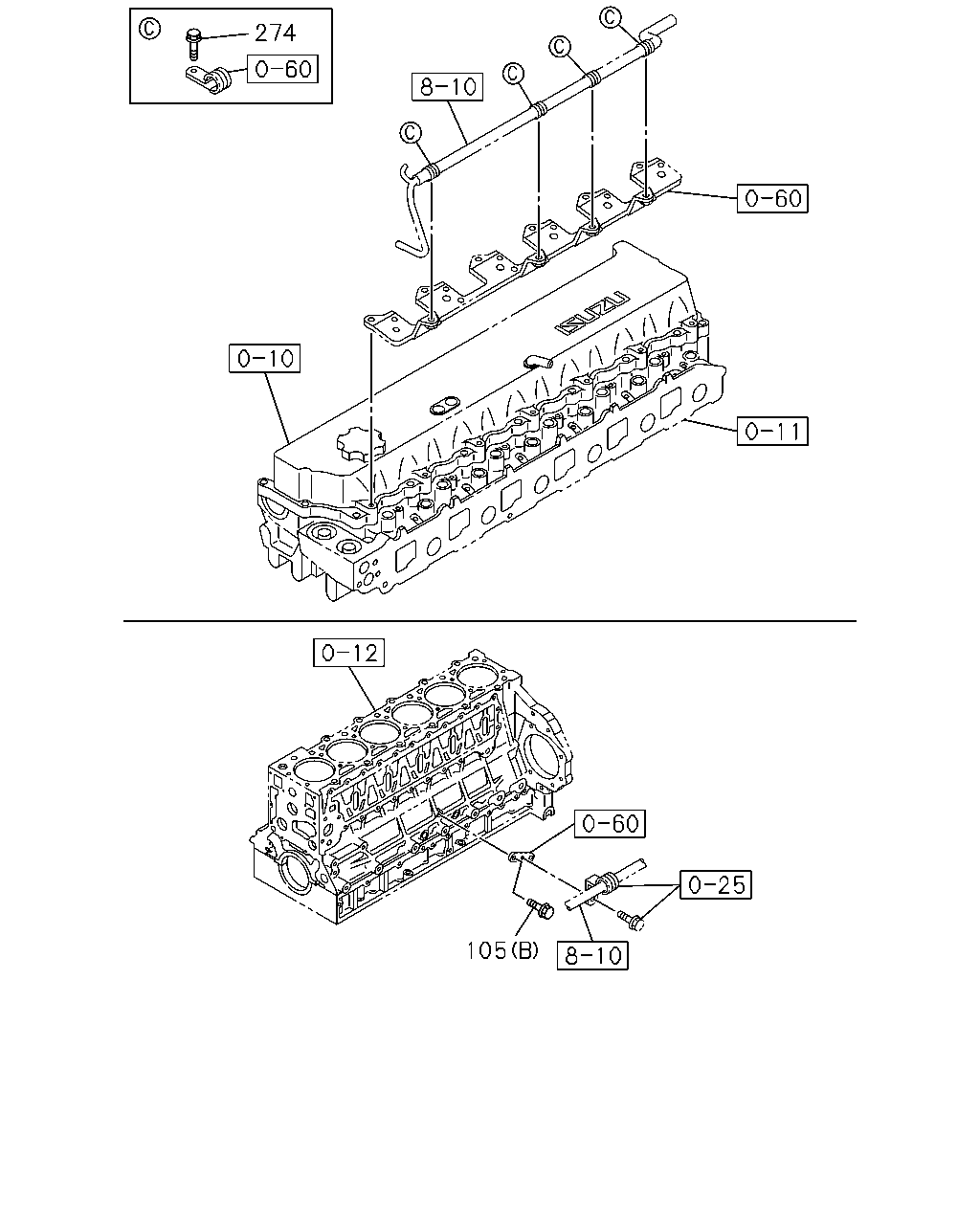

274 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
105	BOLT; BRKT FIX (A) M14X70	0-10956-470-0	04	1	1402-
105	BOLT; BRKT FIX (B) M10X25 FLANGE THA	0-28151-025-0	02	1	1402-
274	BOLT; CLIP M8X20 FLANGE THA	0-28050-820-0	04	1	1402-
