Sayfa 2-01A - Isuzu EPC

2-01A — CLUTCH (#13307) — 245 parça

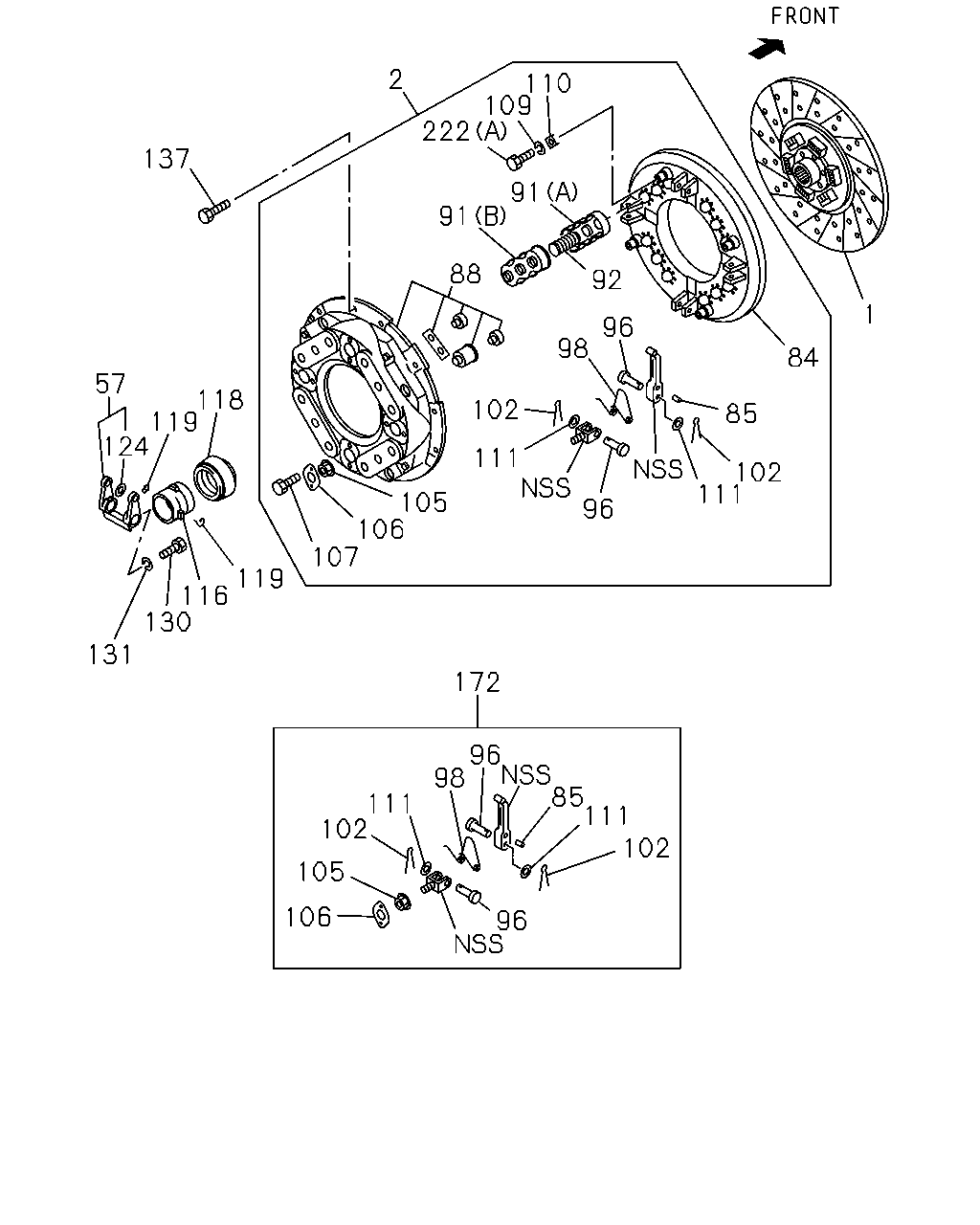

1 110 109 222 2 91 91 88 92 96 84 85 98 102 111 102 111 96 105 106 107 118 119 124 57 119 116 130 131 172 102 111 85 96 98 111 102 105 106 96 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DISC; CLUTCH 10PE1S(60L),10PE1N(61L) 17"	1-31240-897-0	01	1	0105-	●	●	●	●
1	DISC; CLUTCH 6WA1 TC-C(55L),10PE1H(68L) 17"	1-31240-876-0	01	1	0105-	●	●	●	●	●
1	DISC; CLUTCH 17"	1-31240-865-1	01	1	0107-						●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L),10PE1N(61L)	1-31220-277-1	01	1	0105-0308	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L),10PE1H(68L)	1-31220-321-2	01	1	0105-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-335-1	01	1	0107-0211						●
2	PLATE ASM; PRESSURE,CLU	1-31220-401-0	01	1	0212-						●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L),10PE1N(61L)	1-31220-320-2	01	1	0309-	●	●	●	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0105-	●	●	●	●	●
57	FORK; SHIFT,CLU	1-31340-062-0	01	1	0107-						●
84	PLATE; PRESSURE	1-31221-125-0	01	1	0212-						●
84	PLATE; PRESSURE 10PE1S(60L),10PE1N(61L)	1-31221-041-0	01	1	0105-0308	●	●	●	●
84	PLATE; PRESSURE 6WA1 TC-C(55L),10PE1H(68L)	1-31221-083-1	01	1	0105-0206	●	●	●	●	●
84	PLATE; PRESSURE 6WA1 TC-C(55L),10PE1H(68L) 17"	1-31221-128-0	01	1	0207-0308	●	●	●	●	●
84	PLATE; PRESSURE 17"	1-31221-128-0	01	1	0309-	●	●	●	●	●
84	PLATE; PRESSURE	1-31221-125-0	01	1	0107-0211						●
85	BUSHING; RELEASE LEVER 10PE1S(60L),10PE1N(61L)	1-31239-003-0	08	1	0105-0308	●	●	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-C(55L),10PE1H(68L)	1-31239-053-0	08	1	0105-0205	●	●	●	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-C(55L),10PE1H(68L)	1-31239-053-0	08	1	0206-0308	●	●	●	●	●
85	BUSHING; RELEASE LEVER 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L)	1-31239-053-0	08	1	0309-	●	●	●	●	●
88	COVER SUB ASM; CLU 10PE1S(60L),10PE1N(61L)	1-31210-024-0	01	1	0206-0206	●	●	●	●
88	COVER SUB ASM; CLU	1-31210-024-0	01	1	0207-	●	●	●	●	●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	0105-0205	●	●	●	●	●
88	COVER SUB ASM; CLU 6WA1 TC-C(55L),10PE1H(68L)	1-31210-008-0	01	1	0206-0206	●	●	●	●	●
91	SEAT; SPR (A)	1-31219-032-0	04	1	0105-	●	●	●	●	●
91	SEAT; SPR (B)	1-31219-033-0	04	1	0105-	●	●	●	●	●
92	SPRING; CLU	1-31239-052-0	01	1	0212-						●
92	SPRING; CLU 10PE1S(60L),10PE1N(61L)	1-09580-579-0	12	1	0206-	●	●	●	●
92	SPRING; CLU 10PE1S(60L),10PE1N(61L)	1-09580-297-0	12	1	0105-0205	●	●	●	●
92	SPRING; CLU 6WA1 TC-C(55L),10PE1H(68L)	1-31214-040-0	12	1	0105-	●	●	●	●	●
92	SPRING; CLU	1-31239-052-0	01	1	0107-0211						●
96	PIN; RELEASE LEVER	1-31239-055-0	03	1	0212-						●
96	PIN; RELEASE LEVER 10PE1S(60L),10PE1N(61L) L=77	1-31232-010-0	08	1	0105-0308	●	●	●	●
96	PIN; RELEASE LEVER 6WA1 TC-C(55L),10PE1H(68L)	1-31232-017-0	08	1	0105-0308	●	●	●	●	●
96	PIN; RELEASE LEVER 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L)	1-31232-017-0	08	1	0309-	●	●	●	●	●
96	PIN; RELEASE LEVER	1-31239-055-0	03	1	0107-0211						●
98	SPRING; RETURN 10PE1S(60L),10PE1N(61L)	1-31233-001-0	04	1	0105-0308	●	●	●	●
98	SPRING; RETURN 6WA1 TC-C(55L),10PE1H(68L)	1-31233-007-0	04	1	0105-0106	●	●	●	●	●
98	SPRING; RETURN 6WA1 TC-C(55L),10PE1H(68L)	1-31233-007-0	04	1	0107-0308	●	●	●	●	●
98	SPRING; RETURN 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L)	1-31233-007-0	04	1	0309-	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0105-0106	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0107-0308	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) OD=2.7 L=22	9-08113-022-0	08	1	0309-	●	●	●	●	●
105	NUT; SUPPORT 10PE1S(60L),10PE1N(61L)	9-31235-061-0	04	1	0105-0205	●	●	●	●
105	NUT; SUPPORT 6WA1 TC-C(55L),10PE1H(68L)	1-31235-009-0	04	1	0105-0206	●	●	●	●	●
105	NUT; SUPPORT 10PE1S(60L),10PE1N(61L)	1-31235-014-0	04	1	0206-0206	●	●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0207-0308	●	●	●	●	●
105	NUT; SUPPORT 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L)	1-31235-014-0	04	1	0309-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-042-0	01	1	0212-						●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0105-0106	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0107-0308	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L)	1-31239-019-0	04	1	0309-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-042-0	01	1	0107-0211						●
107	BOLT; LK PLATE 10PE1S(60L),10PE1N(61L)	1-31239-061-0	08	1	0206-0206	●	●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0207-0308	●	●	●	●	●
107	BOLT; LK PLATE 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L)	1-31239-061-0	08	1	0309-	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0105-0106	●	●	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0107-0205	●	●	●	●	●
107	BOLT; LK PLATE 6WA1 TC-C(55L),10PE1H(68L) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0206-0206	●	●	●	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0105-0106	●	●	●	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0107-0308	●	●	●	●	●
109	WASHER; LK,STRAP 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) ID=12.2	9-09150-512-0	04	1	0309-0603	●	●	●	●	●
109	WASHER; LK,STRAP 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) ID=12.2	0-91510-512-0	04	1	0604-	●	●	●	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0105-0106	●	●	●	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0107-0308	●	●	●	●	●
110	WASHER; SPECIAL,STRAP 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L) ID=12	1-31229-006-0	04	1	0309-	●	●	●	●	●
111	WASHER; PL,STRAP ID=13	1-31239-038-0	04	1	0212-						●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	0105-	●	●	●	●	●
111	WASHER; PL,STRAP ID=13	1-31239-038-0	04	1	0107-0211						●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	0105-	●	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0111-0111				●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0112-	●	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0105-0110	●	●	●	●	●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0111-0111	●	●	●		●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	0105-	●	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	0105-	●	●	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0105-0106	●	●	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0107-	●	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0105-0106	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0107-0512	●	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0105-0106	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0107-0603	●	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0105-0512	●	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●	●	●
137	BOLT; CLU COVER M12X30	0-28781-230-0	12	1	0107-0512						●
137	BOLT; CLU COVER M12X30 FLANGE	0-28751-230-0	12	1	0601-						●
172	LEVER KIT; RELEASE,CLU 10PE1S(60L),10PE1N(61L)	1-87830-526-1	01	1	0105-0205	●	●	●	●
172	LEVER KIT; RELEASE,CLU 10PE1S(60L),10PE1N(61L)	1-87831-118-0	01	1	0206-0303	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-C(55L),10PE1H(68L)	1-87830-885-2	01	1	0105-0303	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-885-2	01	1	0304-0403	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-182-0	01	1	0404-	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87831-114-0	01	1	0206-0306						●
172	LEVER KIT; RELEASE,CLU CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-87831-164-1	01	1	0307-						●
222	BOLT; STRAP (B)	1-31239-037-0	04	1	0212-						●
222	BOLT; STRAP 10PE1S(60L),10PE1N(61L) (A) M12X30	1-09040-016-0	04	1	0105-0106	●	●	●	●
222	BOLT; STRAP 10PE1S(60L),10PE1N(61L) (A) M12X30	1-09040-016-0	04	1	0107-0308	●	●	●	●
222	BOLT; STRAP 6WA1 TC-C(55L),10PE1H(68L) (A)	1-09040-102-0	04	1	0105-0308	●	●	●	●	●
222	BOLT; STRAP (A)	1-09040-102-0	04	1	0309-	●	●	●	●	●
222	BOLT; STRAP (B)	1-31239-037-0	04	1	0107-0211						●

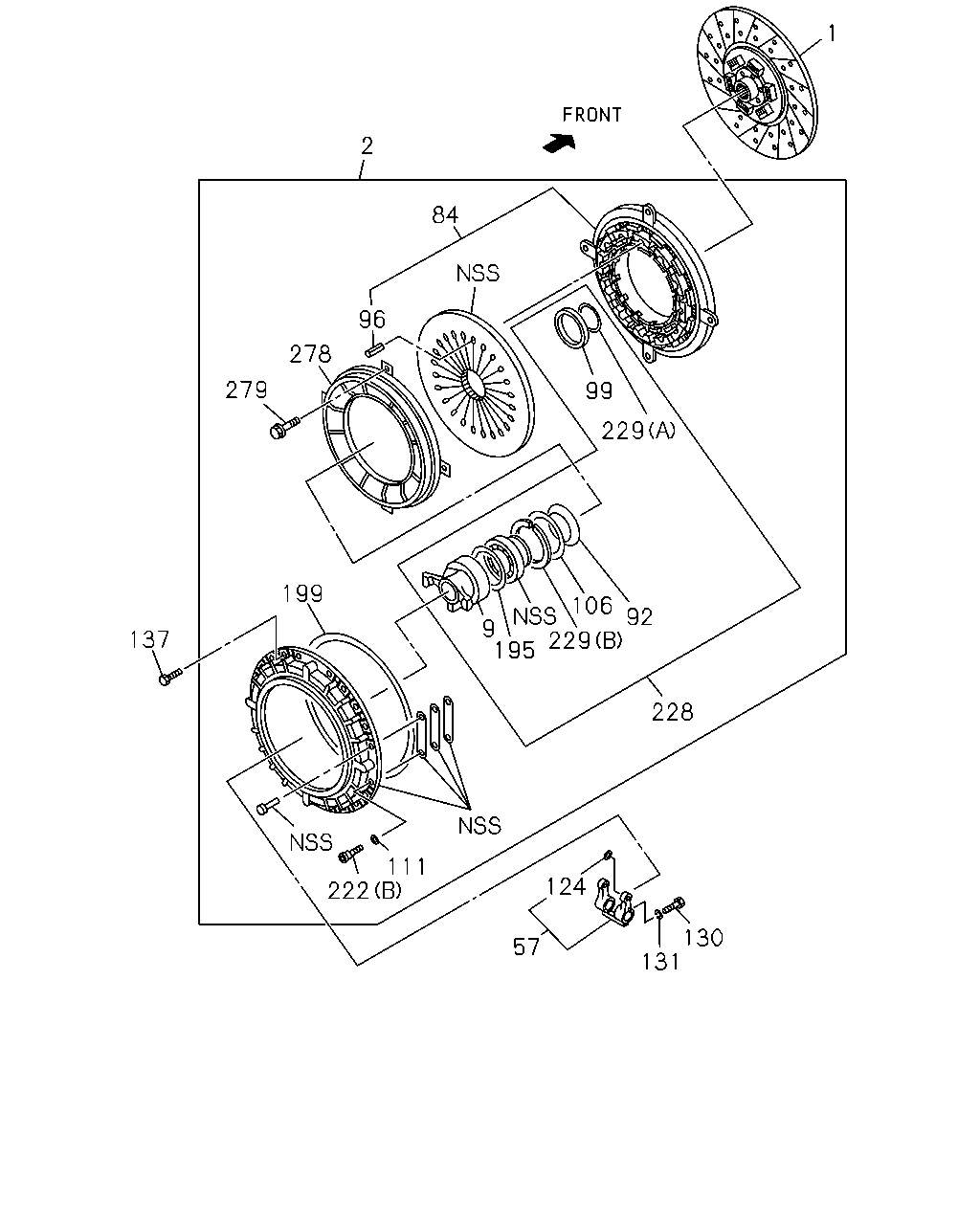

1 2 84 99 229 96 278 279 92 228 106 229 195 9 199 137 111 222 124 130 131 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DISC; CLUTCH 10PE1S(60L),10PE1N(61L) 17"	1-31240-897-0	01	1	0105-	●	●	●	●
1	DISC; CLUTCH 6WA1 TC-C(55L),10PE1H(68L) 17"	1-31240-876-0	01	1	0105-	●	●	●	●	●
1	DISC; CLUTCH 17"	1-31240-865-1	01	1	0107-						●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L),10PE1N(61L)	1-31220-277-1	01	1	0105-0308	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L),10PE1H(68L)	1-31220-321-2	01	1	0105-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU	1-31220-335-1	01	1	0107-0211						●
2	PLATE ASM; PRESSURE,CLU	1-31220-401-0	01	1	0212-						●
2	PLATE ASM; PRESSURE,CLU 10PE1S(60L),10PE1N(61L)	1-31220-320-2	01	1	0309-	●	●	●	●
9	HOUSING; CLU,W/BUSHING	1-31319-003-0	01	1	0107-0211						●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0105-	●	●	●	●	●
57	FORK; SHIFT,CLU	1-31340-062-0	01	1	0107-						●
84	PLATE; PRESSURE	1-31221-125-0	01	1	0212-						●
84	PLATE; PRESSURE 10PE1S(60L),10PE1N(61L)	1-31221-041-0	01	1	0105-0308	●	●	●	●
84	PLATE; PRESSURE 6WA1 TC-C(55L),10PE1H(68L)	1-31221-083-1	01	1	0105-0206	●	●	●	●	●
84	PLATE; PRESSURE 6WA1 TC-C(55L),10PE1H(68L) 17"	1-31221-128-0	01	1	0207-0308	●	●	●	●	●
84	PLATE; PRESSURE 17"	1-31221-128-0	01	1	0309-	●	●	●	●	●
84	PLATE; PRESSURE	1-31221-125-0	01	1	0107-0211						●
92	SPRING; CLU	1-31239-052-0	01	1	0212-						●
92	SPRING; CLU 10PE1S(60L),10PE1N(61L)	1-09580-579-0	12	1	0206-	●	●	●	●
92	SPRING; CLU 10PE1S(60L),10PE1N(61L)	1-09580-297-0	12	1	0105-0205	●	●	●	●
92	SPRING; CLU 6WA1 TC-C(55L),10PE1H(68L)	1-31214-040-0	12	1	0105-	●	●	●	●	●
92	SPRING; CLU	1-31239-052-0	01	1	0107-0211						●
96	PIN; RELEASE LEVER	1-31239-055-0	03	1	0212-						●
96	PIN; RELEASE LEVER 10PE1S(60L),10PE1N(61L) L=77	1-31232-010-0	08	1	0105-0308	●	●	●	●
96	PIN; RELEASE LEVER 6WA1 TC-C(55L),10PE1H(68L)	1-31232-017-0	08	1	0105-0308	●	●	●	●	●
96	PIN; RELEASE LEVER 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L)	1-31232-017-0	08	1	0309-	●	●	●	●	●
96	PIN; RELEASE LEVER	1-31239-055-0	03	1	0107-0211						●
99	PLATE; RELEASE LEVER	1-31239-065-0	01	1	0212-						●
99	PLATE; RELEASE LEVER	1-31239-032-0	01	1	0107-0206						●
99	PLATE; RELEASE LEVER	1-31239-063-0	01	1	0207-0211						●
106	PLATE; LK,LEVER SUPPORT	1-31239-042-0	01	1	0212-						●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0105-0106	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0107-0308	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 6WA1 TC-C(55L),10PE1S(60L),10PE1N(61L), 10PE1H(68L)	1-31239-019-0	04	1	0309-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-042-0	01	1	0107-0211						●
111	WASHER; PL,STRAP ID=13	1-31239-038-0	04	1	0212-						●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	0105-	●	●	●	●	●
111	WASHER; PL,STRAP ID=13	1-31239-038-0	04	1	0107-0211						●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0105-0106	●	●	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0107-	●	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0105-0106	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0107-0512	●	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0105-0106	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0107-0603	●	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0105-0512	●	●	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●	●	●
137	BOLT; CLU COVER M12X30	0-28781-230-0	12	1	0107-0512						●
137	BOLT; CLU COVER M12X30 FLANGE	0-28751-230-0	12	1	0601-						●
195	SPRING; RETURN	1-31239-051-0	01	1	0107-0211						●
199	RING; WIRE,DIAPH,CLU	1-31239-036-0	01	1	0212-						●
199	RING; WIRE,DIAPH,CLU	1-31239-036-0	01	1	0107-0211						●
222	BOLT; STRAP (B)	1-31239-037-0	04	1	0212-						●
222	BOLT; STRAP 10PE1S(60L),10PE1N(61L) (A) M12X30	1-09040-016-0	04	1	0105-0106	●	●	●	●
222	BOLT; STRAP 10PE1S(60L),10PE1N(61L) (A) M12X30	1-09040-016-0	04	1	0107-0308	●	●	●	●
222	BOLT; STRAP 6WA1 TC-C(55L),10PE1H(68L) (A)	1-09040-102-0	04	1	0105-0308	●	●	●	●	●
222	BOLT; STRAP (A)	1-09040-102-0	04	1	0309-	●	●	●	●	●
222	BOLT; STRAP (B)	1-31239-037-0	04	1	0107-0211						●
228	BEARING; RELEASE	1-31310-014-0	01	1	0212-						●
228	BEARING; RELEASE	1-31310-005-0	01	1	0107-0206						●
228	BEARING; RELEASE	1-31310-015-0	01	1	0207-0211						●
229	RING (A)	1-31239-064-0	01	1	0304-						●
229	RING (B)	1-31239-044-0	01	1	0107-0211						●
229	RING (A)	1-31239-054-0	01	1	0107-0211						●
278	WHEEL; AIR	1-31239-056-0	01	1	0212-						●
278	WHEEL; AIR	1-31239-056-0	01	1	0107-0211						●
279	BOLT; AIR WHEEL	1-31239-057-0	04	1	0212-						●
279	BOLT; AIR WHEEL	1-31239-057-0	04	1	0107-0211						●

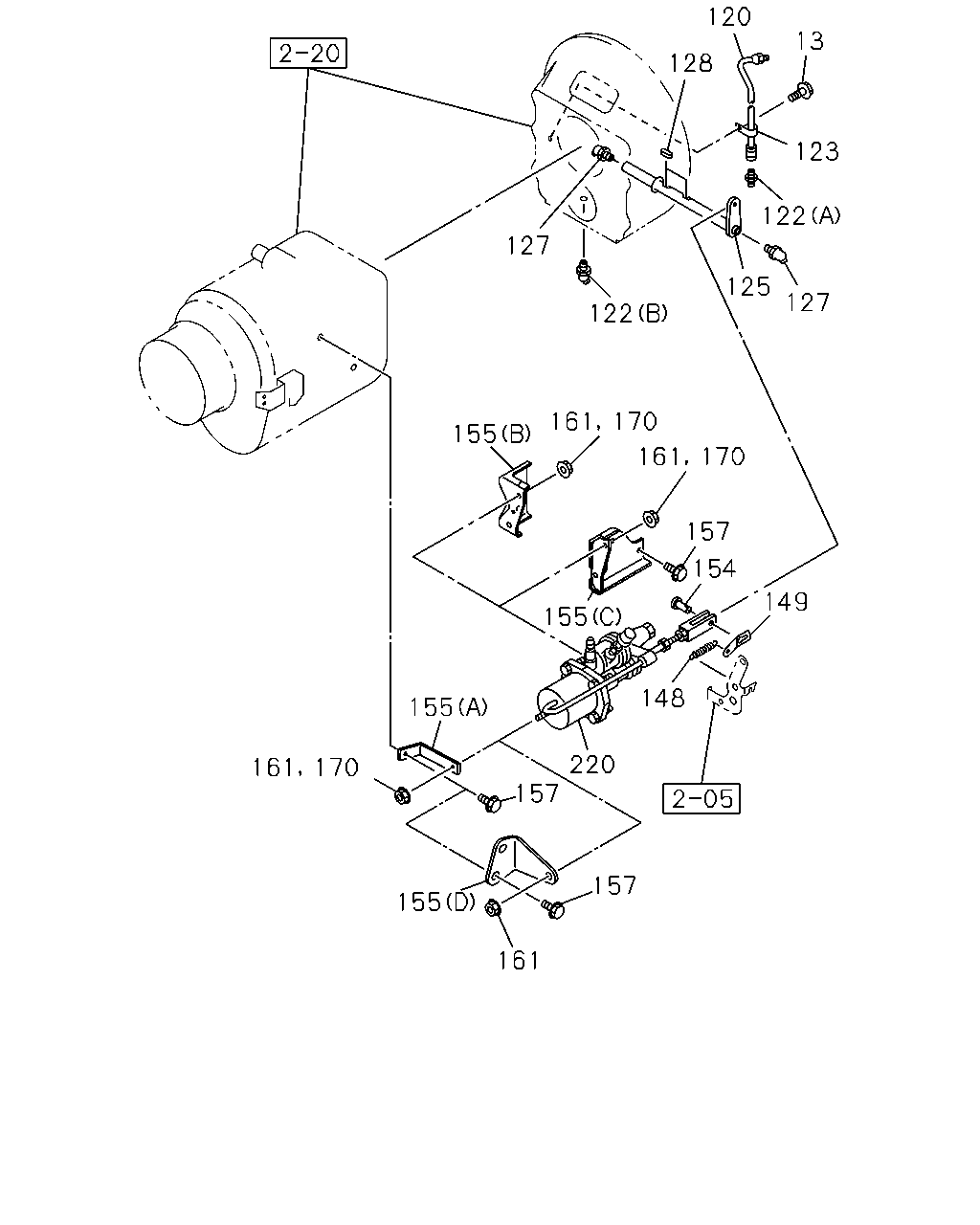

120 128 13 123 122 125 127 122 127 170 170 161 161 155 157 154 149 155 148 220 157 157 155 170 161 155 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0105-0512	●	●	●	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0105-	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=500	1-09364-651-0	01	1	0107-						●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0105-	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0105-0512	●	●	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0105-	●	●	●	●	●
125	SHAFT; CLU	1-31342-305-0	01	1	0105-	●	●	●	●	●
125	SHAFT; CLU	1-31342-290-1	01	1	0107-						●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0105-0106	●	●	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0107-0512	●	●	●	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0105-0106	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0107-	●	●	●	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0105-0106	●	●	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0107-	●	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-052-0	01	1	0105-0106	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-052-0	01	1	0107-	●	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0105-0106	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0107-	●	●	●	●	●	●
155	BRACKET; MINIPACK (A)	1-31429-345-0	01	1	0105-			●	●
155	BRACKET; MINIPACK (B)	1-31429-443-1	01	1	0105-			●	●
155	BRACKET; MINIPACK (A)	1-31429-289-1	01	1	0105-	●	●
155	BRACKET; MINIPACK (C)	1-31429-402-0	01	1	0105-	●	●			●
155	BRACKET; MINIPACK (D)	1-31429-350-0	01	1	0105-0106					●
155	BRACKET; MINIPACK (D)	1-31429-350-0	01	1	0107-					●	●
155	BRACKET; MINIPACK (E)	1-31429-391-0	01	1	0107-						●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0105-0309	●	●	●	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0310-	●	●	●	●
157	BOLT; BRKT M10X25 FLANGE	0-28781-025-0	03	1	0107-0309						●
157	BOLT; BRKT M10X25 FLANGE	0-28781-025-0	03	1	0310-0512					●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0601-					●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	0105-0106	●	●			●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	0107-0602	●	●			●	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0603-	●	●			●	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	0105-0602			●	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91180-210-0	03	1	0603-			●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-466-0	01	1	0105-0106	●	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-466-1	01	1	0107-	●	●	●	●	●	●

128 125 127 127 20 158 120 161 155 157 154 149 148 220 157 155 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
20	NIPPLE; GREASE PT1/8 STRAIGHT	9-09031-010-0	01	1	0107-0512						●
20	NIPPLE; GREASE PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-						●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0105-	●	●	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=500	1-09364-651-0	01	1	0107-						●
125	SHAFT; CLU	1-31342-305-0	01	1	0105-	●	●	●	●	●
125	SHAFT; CLU	1-31342-290-1	01	1	0107-						●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0105-0106	●	●	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0107-0512	●	●	●	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0105-0106	●	●	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0107-	●	●	●	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0105-0106	●	●	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0107-	●	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-052-0	01	1	0105-0106	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-052-0	01	1	0107-	●	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0105-0106	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0107-	●	●	●	●	●	●
155	BRACKET; MINIPACK (A)	1-31429-345-0	01	1	0105-			●	●
155	BRACKET; MINIPACK (B)	1-31429-443-1	01	1	0105-			●	●
155	BRACKET; MINIPACK (A)	1-31429-289-1	01	1	0105-	●	●
155	BRACKET; MINIPACK (C)	1-31429-402-0	01	1	0105-	●	●			●
155	BRACKET; MINIPACK (D)	1-31429-350-0	01	1	0105-0106					●
155	BRACKET; MINIPACK (D)	1-31429-350-0	01	1	0107-					●	●
155	BRACKET; MINIPACK (E)	1-31429-391-0	01	1	0107-						●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0105-0309	●	●	●	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0310-	●	●	●	●
157	BOLT; BRKT M10X25 FLANGE	0-28781-025-0	03	1	0107-0309						●
157	BOLT; BRKT M10X25 FLANGE	0-28781-025-0	03	1	0310-0512					●	●
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	0601-					●	●
158	CLIP; FLEX HOSE	9-09917-576-0	01	1	0107-						●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	0105-0106	●	●			●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	0107-0602	●	●			●	●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0603-	●	●			●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-466-0	01	1	0105-0106	●	●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-466-1	01	1	0107-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
