Isuzu WW
▶
TRUCKS
▶
GVR
▶
11581 - GVR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-45 - LOAD SENSING PROPORTIONING VALVE
▶
3-45 — LOAD SENSING PROPORTIONING VALVE
(#133068) — 23 parça
◀

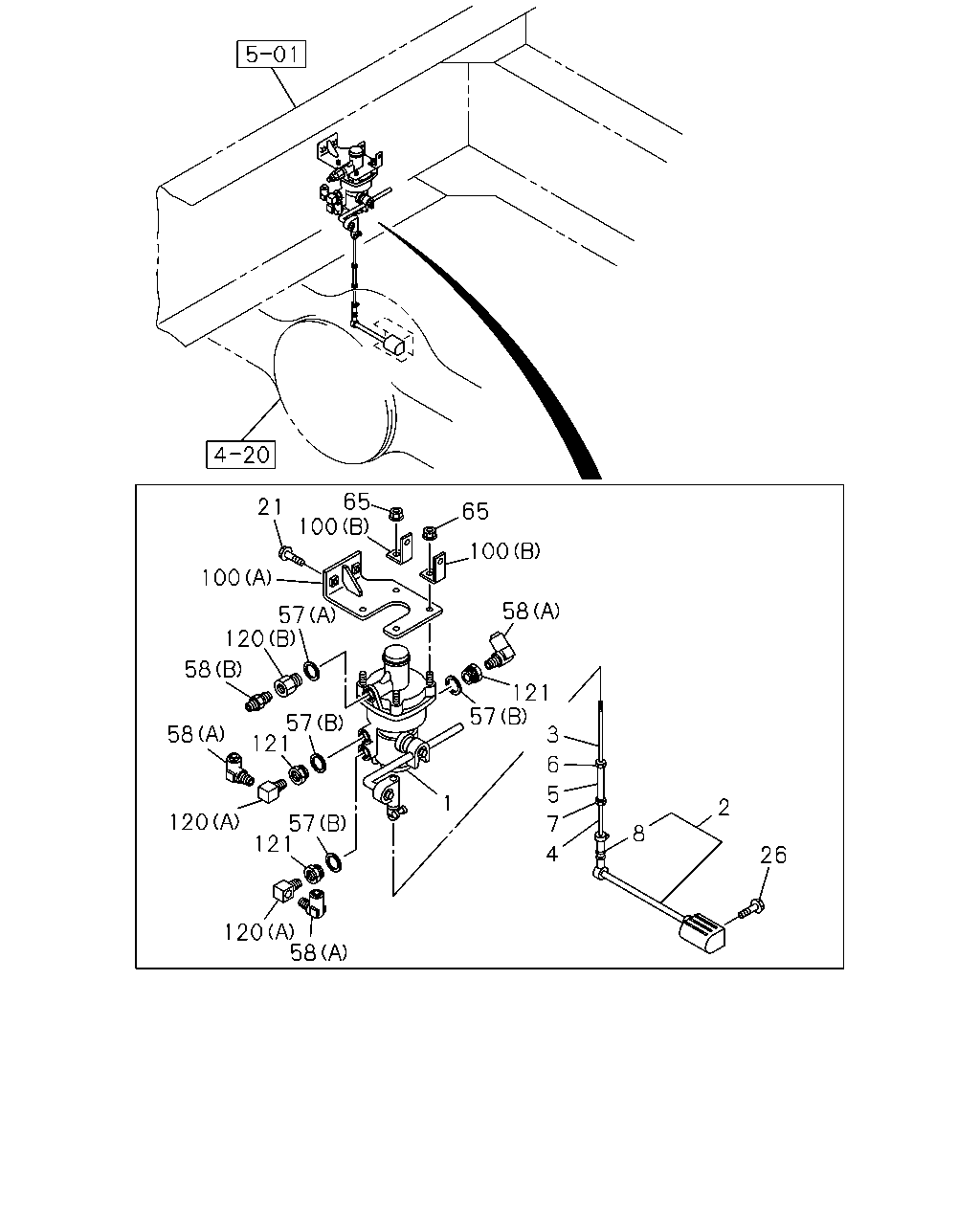

[345A] FIXING (20 parça)

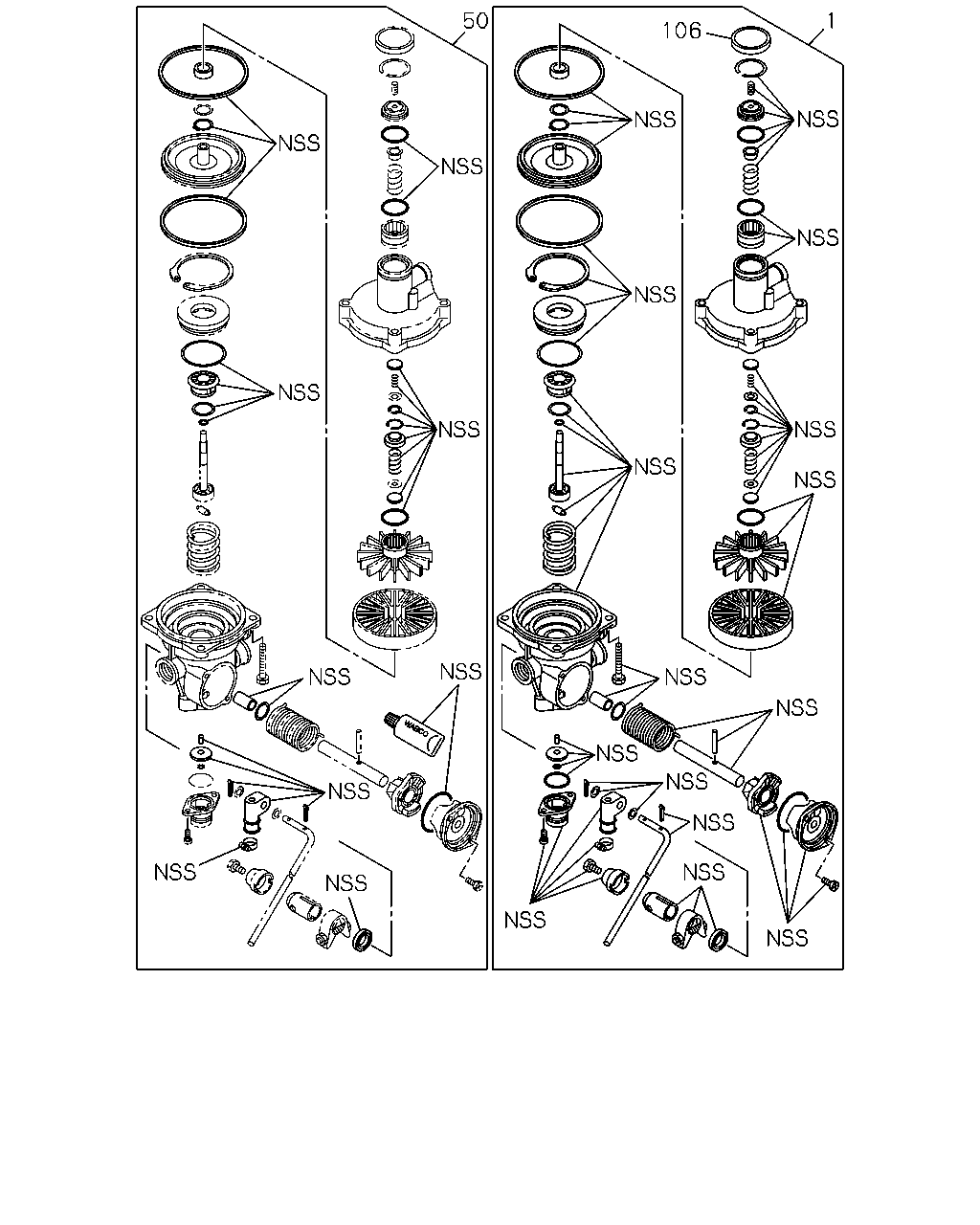

[345A] COMPONENT AND REPAIR KIT (3 parça)
▶
65
65
100
58
121
57
3
6
5
7
4
2
8
1
57
121
57
58
100
21
57
120
120
121
120
58
100
26
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
1-47720-153-0
01
1
1402-
2
DAMPER
1-47725-012-0
01
1
1402-
3
ROD; UPR
1-09765-290-0
01
1
1402-
4
ROD; LWR
1-09765-283-0
01
1
1402-
5
JOINT
1-09768-091-0
01
1
1402-
6
NUT; LK,UPR
M8
0-91111-508-0
01
1
1402-
7
NUT; LK,LWR
LH THREAD
1-09409-002-0
01
1
1402-
8
ROD END
1-47723-001-0
02
1
1402-
21
BOLT; BRKT
M8X30 FLANGE THA
0-28650-830-0
02
1
1402-
26
BOLT; DAMPER
M8X12 FLANGE THA
0-28050-812-0
02
1
1402-
57
GASKET; CONNECTOR
(A) ID=16.2 OD=24 THA
9-09571-416-0
01
1
1402-
57
GASKET; CONNECTOR
(B) ID=22.5
9-09571-422-0
03
1
1402-
58
CONNECTOR; LSPV
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
03
1
1402-
58
CONNECTOR; LSPV
(B) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1402-
65
NUT; LSPV
M8 FLANGE THA
0-91180-108-0
04
1
1402-
100
BRACKET; LSPV
(B)
1-47477-694-0
02
1
1402-
100
BRACKET; LSPV
(A) THA
8-98085-133-0
01
1
1402-
120
CONNECTOR
(A) PT3/8 ELBOW
1-09660-696-0
02
1
1402-
120
CONNECTOR
(B)
1-09661-044-0
01
1
1402-
121
ADAPTER
INNER PT3/8,OUTER M22
1-09650-494-1
03
1
1402-
50
106
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE ASM; LOAD SENSING PROPORTIONING
1-47720-153-0
01
1
1402-
50
REPAIR KIT; LSPV
1-85576-393-0
01
1
1402-
106
COVER; PISTON
1-47729-001-0
01
1
1402-
