Isuzu WW
▶
TRUCKS
▶
GVR
▶
11581 - GVR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶

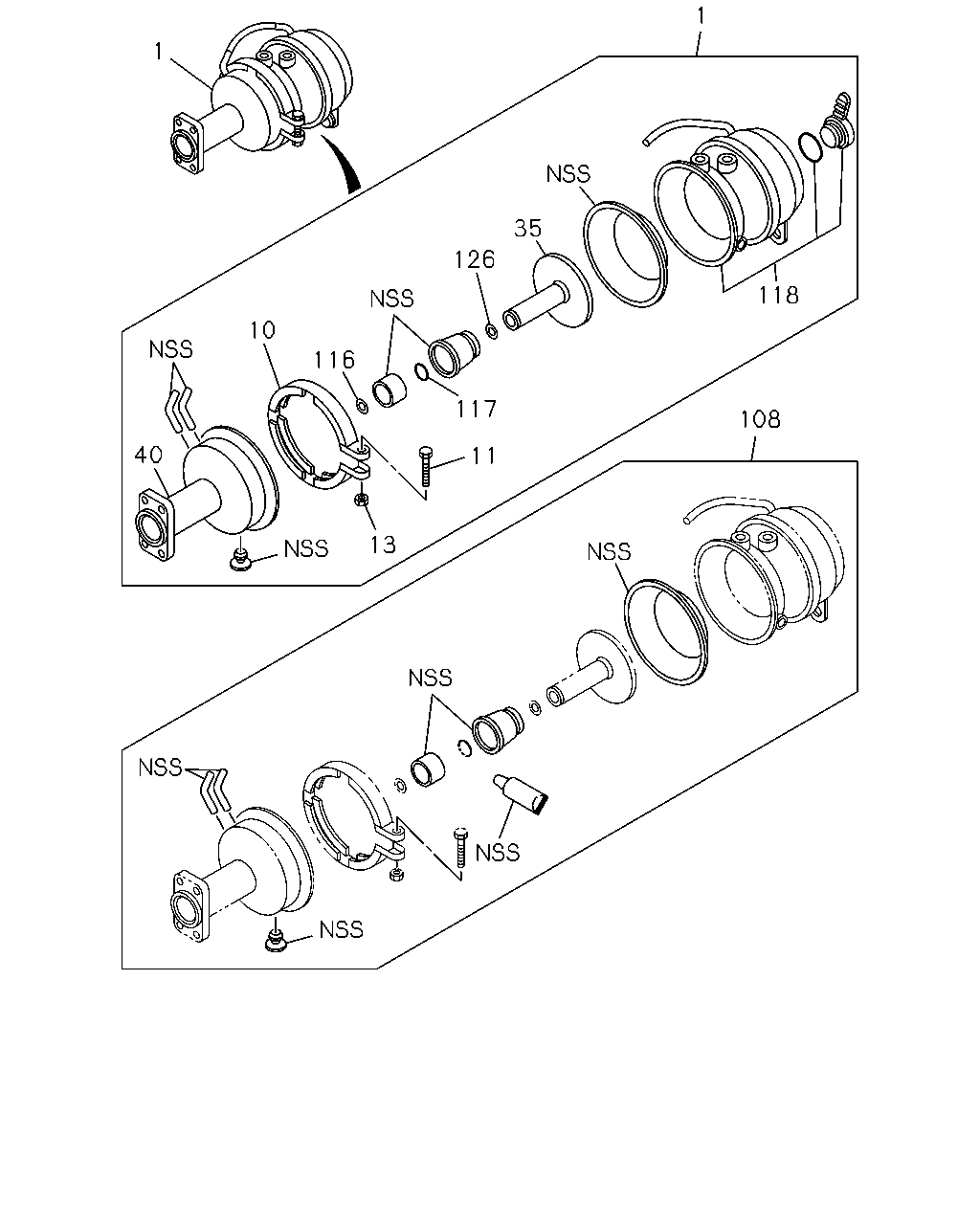

3-41 — REAR BRAKE POWER CHAMBER
(#133067) — 15 parça
◀
[341A] NO.2 (1 parça)
[341A] NO.1 (14 parça)
▶

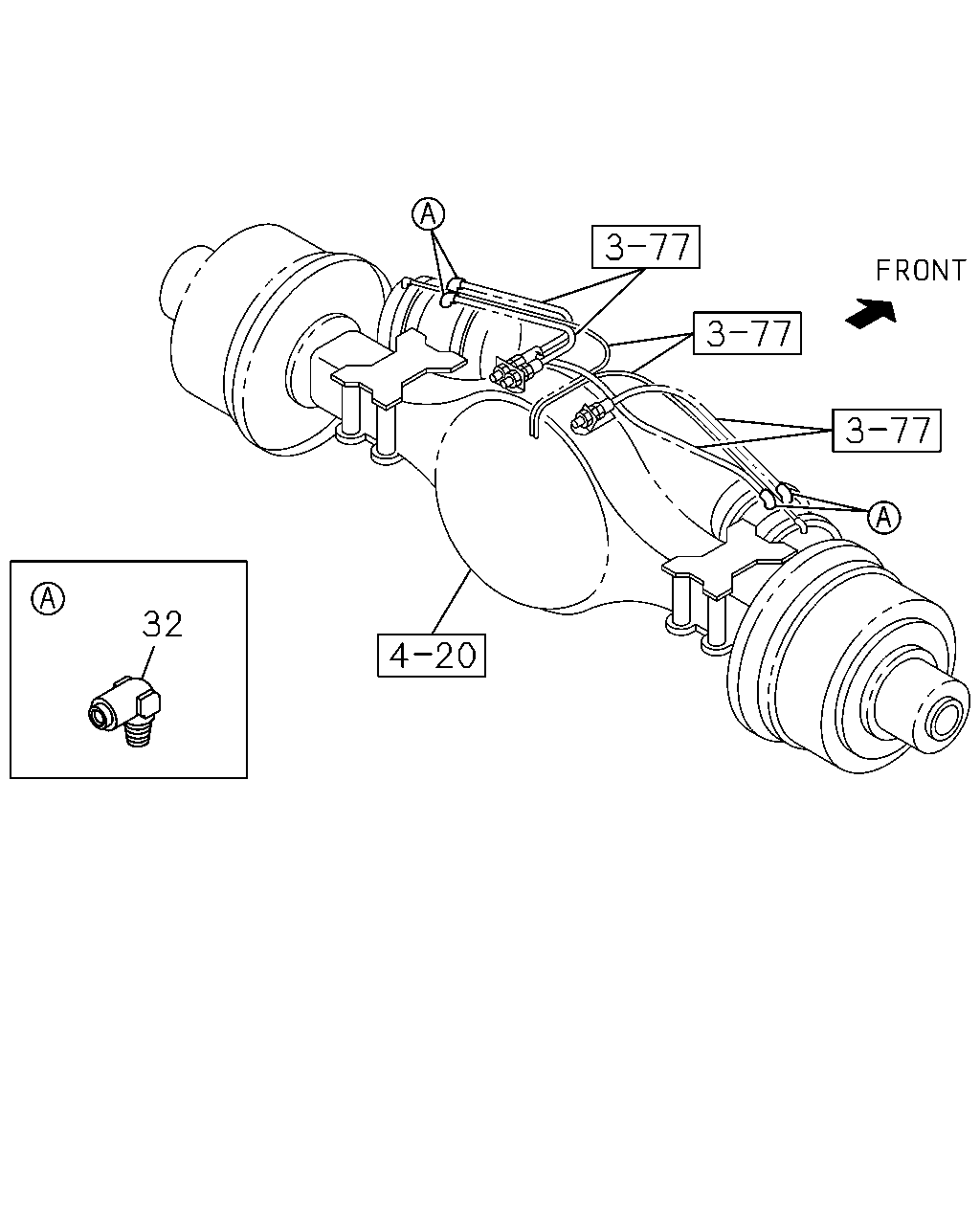

32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1402-
1
1
10
117
118
11
116
40
13
108
35
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
THA
1-87412-463-0
01
1
1402-
1
CHAMBER ASM; SPRING
THA
1-87412-464-0
01
1
1402-
10
RING; CLAMP,SPR CHAMBER
THA
1-48269-256-0
02
1
1402-
11
BOLT; CLAMP RING
THA
1-48269-257-0
02
1
1402-
13
NUT; CLAMP RING
THA
1-48269-147-0
02
1
1402-
35
PLATE; ROD END,SPR CHAMBER
THA
8-98146-974-0
02
1
1402-
40
COVER ASM; LWR,SPR CHAMBER
THA
1-48251-140-1
01
1
1402-
40
COVER ASM; LWR,SPR CHAMBER
THA
1-48251-141-1
01
1
1402-
108
REPAIR KIT; SPR CHAMBER
THA
8-98146-982-0
02
1
1402-
116
GUIDE; SPR CHAMBER
THA
8-98146-963-0
02
1
1402-
117
RING; SPR CHAMBER
THA
8-98146-966-0
02
1
1402-
118
CHAMBER; PIGGY BACK
THA
1-87412-113-0
01
1
1402-
118
CHAMBER; PIGGY BACK
THA
1-87412-114-0
01
1
1402-
126
SHIM
THA
8-98146-965-0
AR
1
1402-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
