Isuzu WW
▶
TRUCKS
▶
GVR
▶
11581 - GVR CNG(THAILAND)
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶
3-20 — AIR TANK
(#133062) — 48 parça
◀
[320A] NO.2 (24 parça)
[320A] NO.4 (2 parça)
[320A] NO.1 (3 parça)
[320A] NO.3 (19 parça)
▶

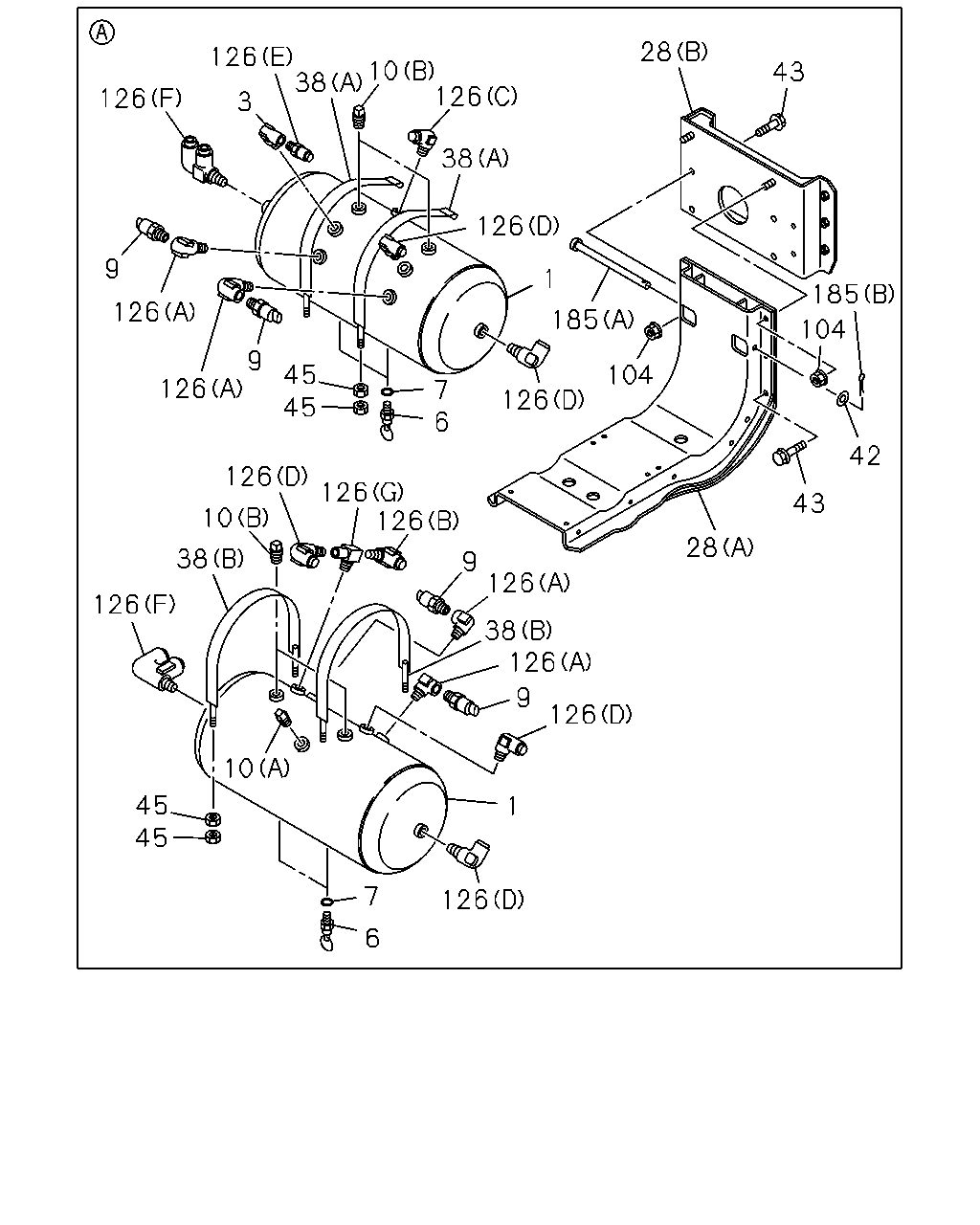

28
42
43
104
185
43
28
126
38
126
185
104
126
6
7
45
126
126
45
126
126
10
38
126
126
9
126
38
126
126
9
1
126
7
6
45
10
45
1
10
38
126
126
3
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
THA
8-98202-945-0
02
1
1402-
3
VALVE; CHECK,AIR TANK
1-48320-031-1
01
1
1402-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
06
1
1402-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
06
1
1402-
9
SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5
8-97609-249-0
04
1
1402-
10
PLUG; AIR TANK
(A) PT3/8
9-09204-517-0
01
1
1402-
10
PLUG; AIR TANK
(B) PT3/4
9-09204-526-0
04
1
1402-
28
BRACKET; AIR TANK
(A) THA
8-98048-199-0
01
1
1402-
28
BRACKET; AIR TANK
(B) THA
8-98048-200-2
01
1
1402-
38
BAND; AIR TANK
(A)
1-48317-108-2
02
1
1402-
38
BAND; AIR TANK
(B)
1-48317-109-2
02
1
1402-
42
WASHER; PL
ID=10.5
0-91614-510-0
01
1
1402-
43
BOLT; STAY,AIR TANK,MAIN
M12X35 FLANGE THA
0-28651-235-0
04
1
1402-
45
NUT; AIR TANK,MAIN
M8
0-91110-508-0
12
1
1402-
104
NUT; BRKT
M12 FLANGE THA
0-91180-212-0
02
1
1402-
126
CONNECTOR; ELBOW
(A) PT1/4 2WAY
1-09660-693-0
04
1
1402-
126
CONNECTOR; ELBOW
(B) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1402-
126
CONNECTOR; ELBOW
(C) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1402-
126
CONNECTOR; ELBOW
(D) DIN12 & R3/8 ELBOW
1-09660-959-0
05
1
1402-
126
CONNECTOR; ELBOW
(E) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1402-
126
CONNECTOR; ELBOW
(F) DIN12X2 & PT3/8 DOUBLE ELBOW
1-09661-026-0
02
1
1402-
126
CONNECTOR; ELBOW
(G)
8-98166-127-0
01
1
1402-
185
PIN; SNAP
(A)
1-09744-068-0
01
1
1402-
185
PIN; SNAP
(B) L=32.6
8-98062-280-0
01
1
1402-

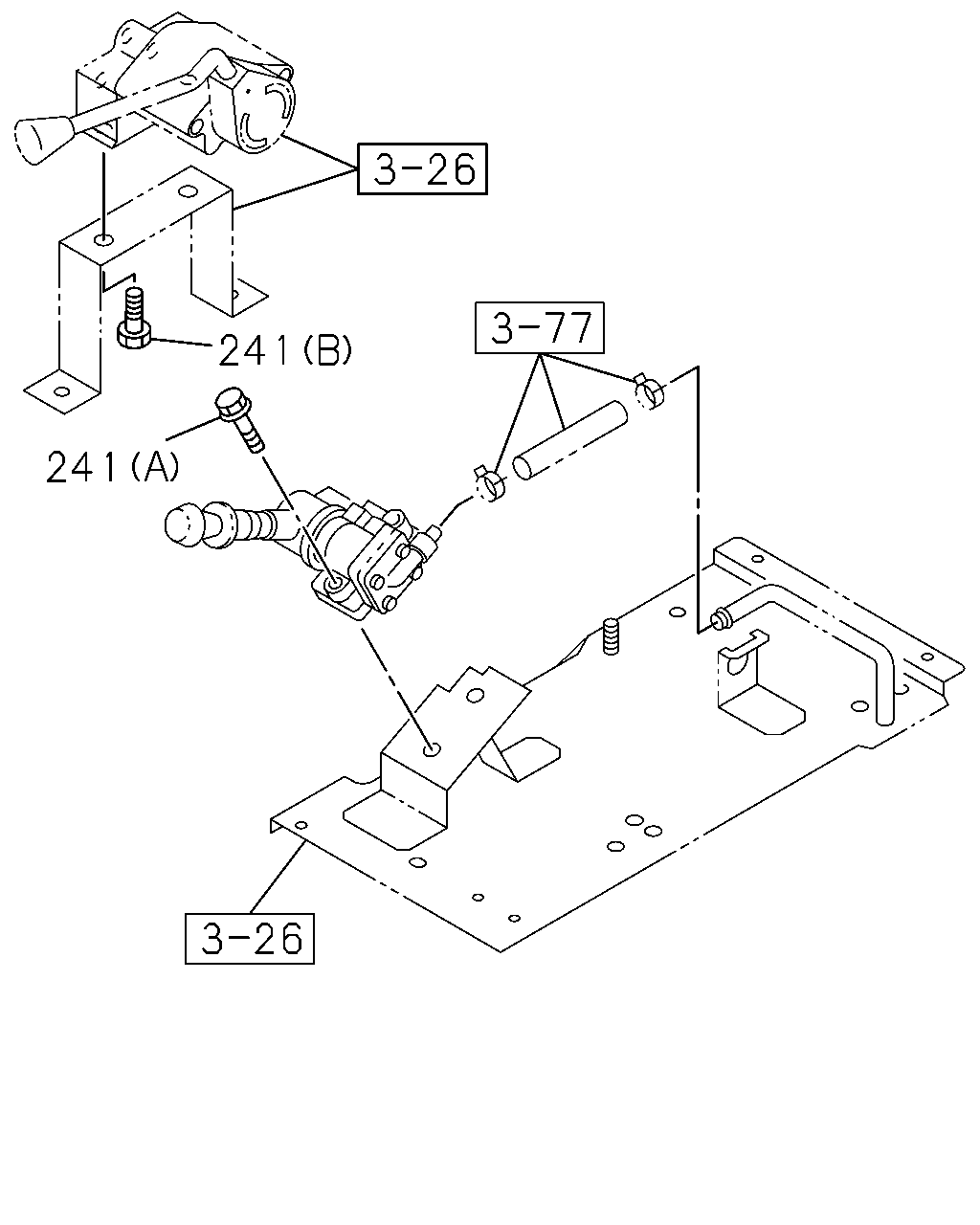

241
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
BOLT; SET,CONT VLV
(A) M8X70 FLANGE THA
0-28050-870-0
02
1
1402-
241
BOLT; SET,CONT VLV
(B) M10X20 FLANGE THA
0-28051-020-0
02
1
1402-

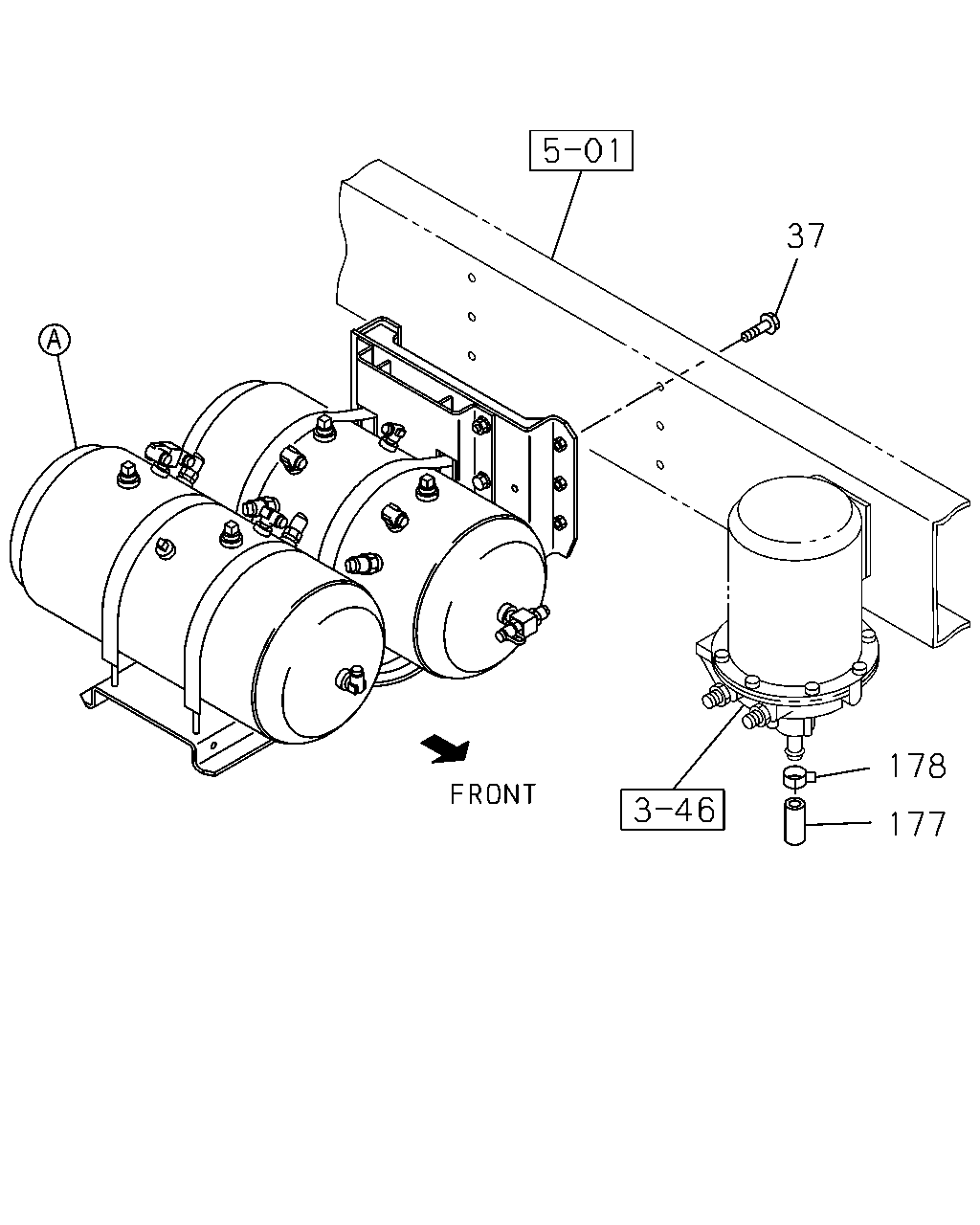

177
178
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
BOLT; AIR TANK
M12X40 FLANGE
0-28651-240-0
06
1
1402-
177
HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000
0-03566-300-0
01
1
1402-
178
CLIP; HOSE
ID=22
8-94382-401-0
01
1
1402-

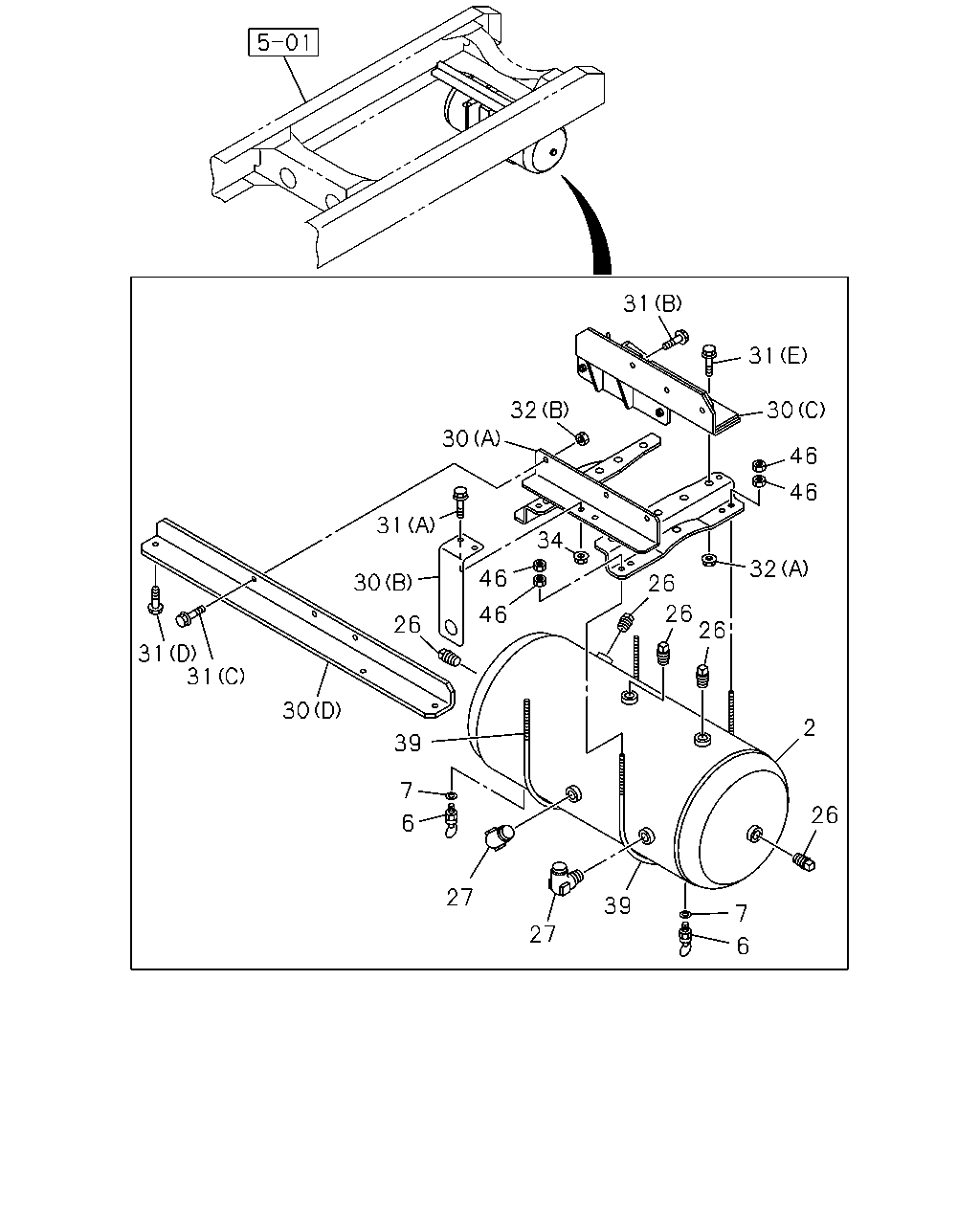

2
26
7
6
39
27
27
6
39
7
30
31
31
30
26
31
30
32
31
31
30
46
34
46
46
26
26
26
32
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
TANK; AIR
THA
8-97948-042-0
01
1
1402-
6
COCK; DRAIN,AIR TANK
1-48312-015-0
06
1
1402-
7
GASKET; DRAIN COCK
ID=14
1-09630-145-0
06
1
1402-
26
PLUG; SUB AIR TANK
PT3/8
9-09204-517-0
05
1
1402-
27
UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1402-
30
BRACKET; AIR TANK,SUB
(C) THA
8-97634-148-0
01
1
1402-
30
BRACKET; AIR TANK,SUB
(D) THA
8-97634-149-0
01
1
1402-
30
BRACKET; AIR TANK,SUB
(A)
8-97634-150-0
01
1
1402-
30
BRACKET; AIR TANK,SUB
(B) THA
8-97948-683-0
01
1
1402-
31
BOLT; BRKT TO FRAME
(A) M8X20 FLANGE THA
0-28650-820-0
02
1
1402-
31
BOLT; BRKT TO FRAME
(B) M8X30 FLANGE THA
0-28650-830-0
03
1
1402-
31
BOLT; BRKT TO FRAME
(C) M10X30 FLANGE THA
0-28651-030-0
03
1
1402-
31
BOLT; BRKT TO FRAME
(D) M10X35 FLANGE THA
0-28651-035-0
02
1
1402-
31
BOLT; BRKT TO FRAME
(E) M12X30 FLANGE THA
0-28651-230-0
02
1
1402-
32
NUT; BRKT TO FRAME
(A) M8 FLANGE THA
0-91180-108-0
03
1
1402-
32
NUT; BRKT TO FRAME
(B) M10 FLANGE THA
0-91180-210-0
02
1
1402-
34
NUT; BRKT,AIR TANK
M8 FLANGE THA
0-91180-108-0
02
1
1402-
39
U-BOLT; AIR TANK
L=303
1-48317-087-2
02
1
1402-
46
NUT; U-BOLT
M8
0-91110-508-0
08
1
1402-
