1-56B — EXHAUST BRAKE SYSTEM (#13306) — 53 parça

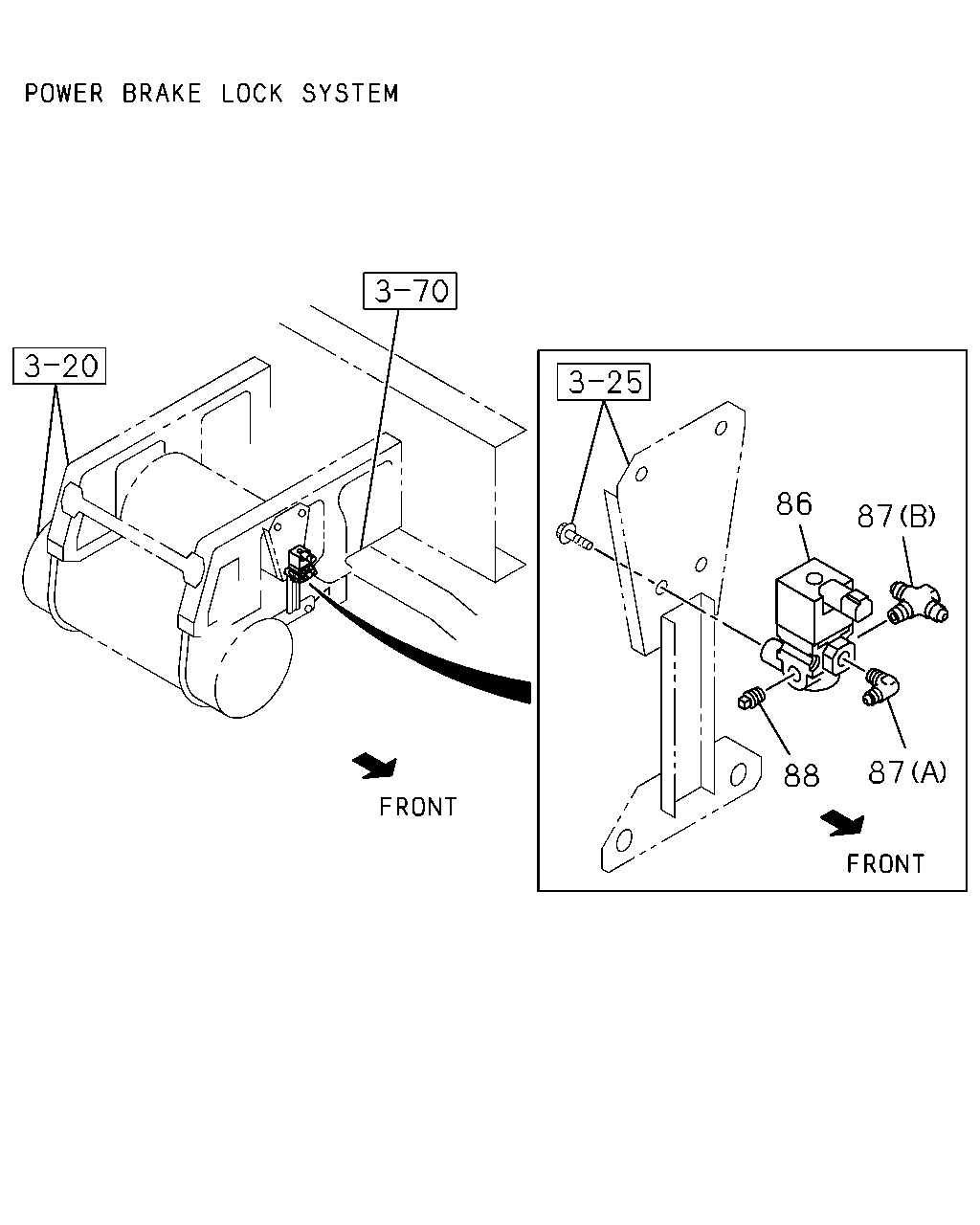

çizim 77505
86 87 87 88
BalonParca AdiParca NoAdetTipApplied Date A B C
86 VALVE; MAG,EXH BRK
POWER BRAKE LOCK SYSTEM(J50) 		1-82563-871-1 01 1 0105-0106 ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-1 01 1 0105-0106 ● ● ●
86 VALVE; MAG,EXH BRK
POWER BRAKE LOCK SYSTEM(J50) 		1-82563-871-2 01 1 0107-0508 ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0107-0508 ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0509- ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0509- ● ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105-0106 ● ● ●
87 CONNECTOR
POWER BRAKE LOCK SYSTEM(J50) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0107-0508 ● ● ●
87 CONNECTOR
POWER BRAKE LOCK SYSTEM(J50) (B) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0105-0508 ● ● ●
87 CONNECTOR
(C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0105-0106 ● ● ●
87 CONNECTOR
(C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0107- ● ● ●
87 CONNECTOR
(D) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0105- ● ● ●
88 PLUG
POWER BRAKE LOCK SYSTEM(J50) PT1/4 		9-99204-513-0 01 1 0105-0106 ● ● ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0105-0106 ● ● ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0107-0508 ● ● ●
88 PLUG
POWER BRAKE LOCK SYSTEM(J50) PT1/4 		9-99204-513-0 01 1 0107-0508 ● ● ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0509- ● ● ●
çizim 77542
92 17 10 94 88 86 87 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 01 1 0105-0106 ● ● ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ● ● ●
10 NUT; BRKT,EXH BRAKE
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
10 NUT; BRKT,EXH BRAKE
M10 FLANGE 		0-91150-210-0 01 1 0105-0106 ● ● ●
10 NUT; BRKT,EXH BRAKE
M10 FLANGE 		0-91150-210-0 01 1 0107-0206 ● ● ●
10 NUT; BRKT,EXH BRAKE
M10 FLANGE 		0-91150-210-0 01 1 0207-0602 ● ● ●
10 NUT; BRKT,EXH BRAKE
M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106 ● ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512 ● ● ●
17 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ●
17 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 01 1 0105-0106 ● ● ●
17 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 01 1 0107-0512 ● ● ●
17 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 01 1 0601- ● ● ●
86 VALVE; MAG,EXH BRK
POWER BRAKE LOCK SYSTEM(J50) 		1-82563-871-1 01 1 0105-0106 ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-1 01 1 0105-0106 ● ● ●
86 VALVE; MAG,EXH BRK
POWER BRAKE LOCK SYSTEM(J50) 		1-82563-871-2 01 1 0107-0508 ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0107-0508 ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0509- ● ● ●
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0509- ● ● ●
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0105-0106 ● ● ●
87 CONNECTOR
POWER BRAKE LOCK SYSTEM(J50) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0107-0508 ● ● ●
87 CONNECTOR
POWER BRAKE LOCK SYSTEM(J50) (B) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0105-0508 ● ● ●
87 CONNECTOR
(C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0105-0106 ● ● ●
87 CONNECTOR
(C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0107- ● ● ●
87 CONNECTOR
(D) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0105- ● ● ●
88 PLUG
POWER BRAKE LOCK SYSTEM(J50) PT1/4 		9-99204-513-0 01 1 0105-0106 ● ● ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0105-0106 ● ● ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0107-0508 ● ● ●
88 PLUG
POWER BRAKE LOCK SYSTEM(J50) PT1/4 		9-99204-513-0 01 1 0107-0508 ● ● ●
88 PLUG
PT1/4 		9-99204-513-0 01 1 0509- ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE 		0-28680-825-0 02 1 0105-0512 ● ● ●
92 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-277-2 01 1 0105-0106 ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-277-2 01 1 0107- ● ● ●
