◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11581 - GVR CNG(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#133049) — 54 parça

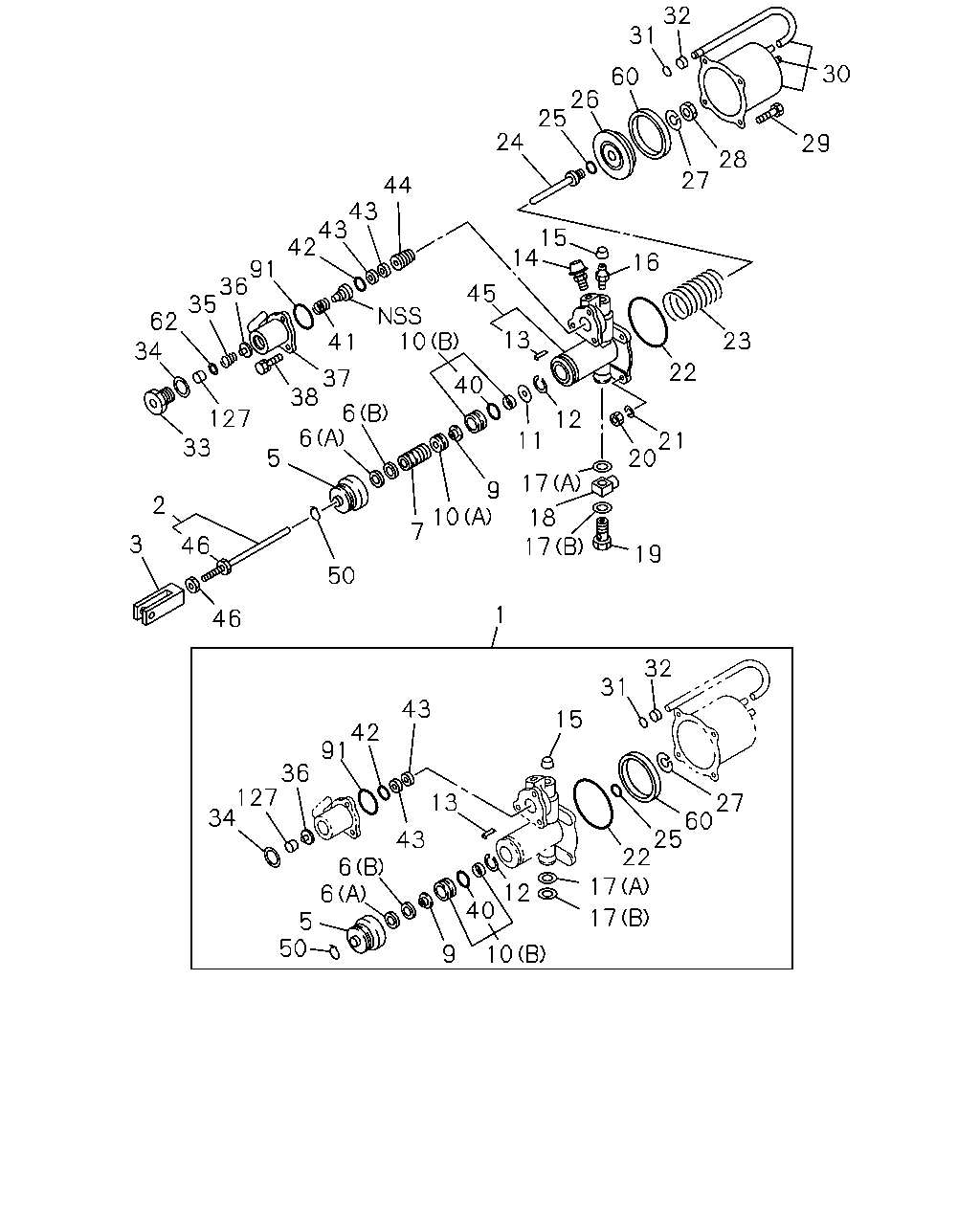

çizim 406943
30 29 28 27 32 31 60 26 25 24 44 43 43 42 91 36 35 62 34 33 127 38 37 41 10 45 14 15 22 23 16 13 40 11 12 10 9 17 20 21 19 17 18 15 1 7 50 46 46 2 3 5 6 6 43 42 91 36 127 34 6 5 50 6 13 43 40 10 9 12 17 17 22 25 60 27 32 31
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-611-0 01 1 1402-1412
1 REPAIR KIT; CLU BOOSTER 1-31829-606-0 01 1 1501-
2 ROD; PUSH,CLU BOOSTER 1-31824-248-0 01 1 1402-1412
2 ROD; PUSH,CLU BOOSTER 1-31824-240-0 01 1 1501-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1402-
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1402-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-032-0 01 1 1402-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-033-0 01 1 1402-
7 PISTON; CLU BOOSTER 1-31821-064-0 01 1 1402-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1402-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1402-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1402-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1402-
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1402-
13 PIN; SPR 1-31829-109-0 01 1 1402-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1402-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1402-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1402-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1402-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1402-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1402-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1402-
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1402-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1402-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 1402-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1402-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1402-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1402-
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 1402-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1402-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1402-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1402-
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 1402-
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1402-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1402-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1402-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1402-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1402-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1402-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1402-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1402-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1402-1412
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1402-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1402-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1402-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1402-
45 PLATE; END,CLU BOOSTER 1-31811-150-0 01 1 1402-1412
45 PLATE; END,CLU BOOSTER 1-31811-149-0 01 1 1501-
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1402-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1402-
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 1402-
62 RETAINER; POPPET 1-31829-489-0 01 1 1402-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1402-
127 FILTER; POPPET 1-31829-495-0 01 1 1402-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
