2-05 — CLUTCH PIPING (#133048) — 36 parça

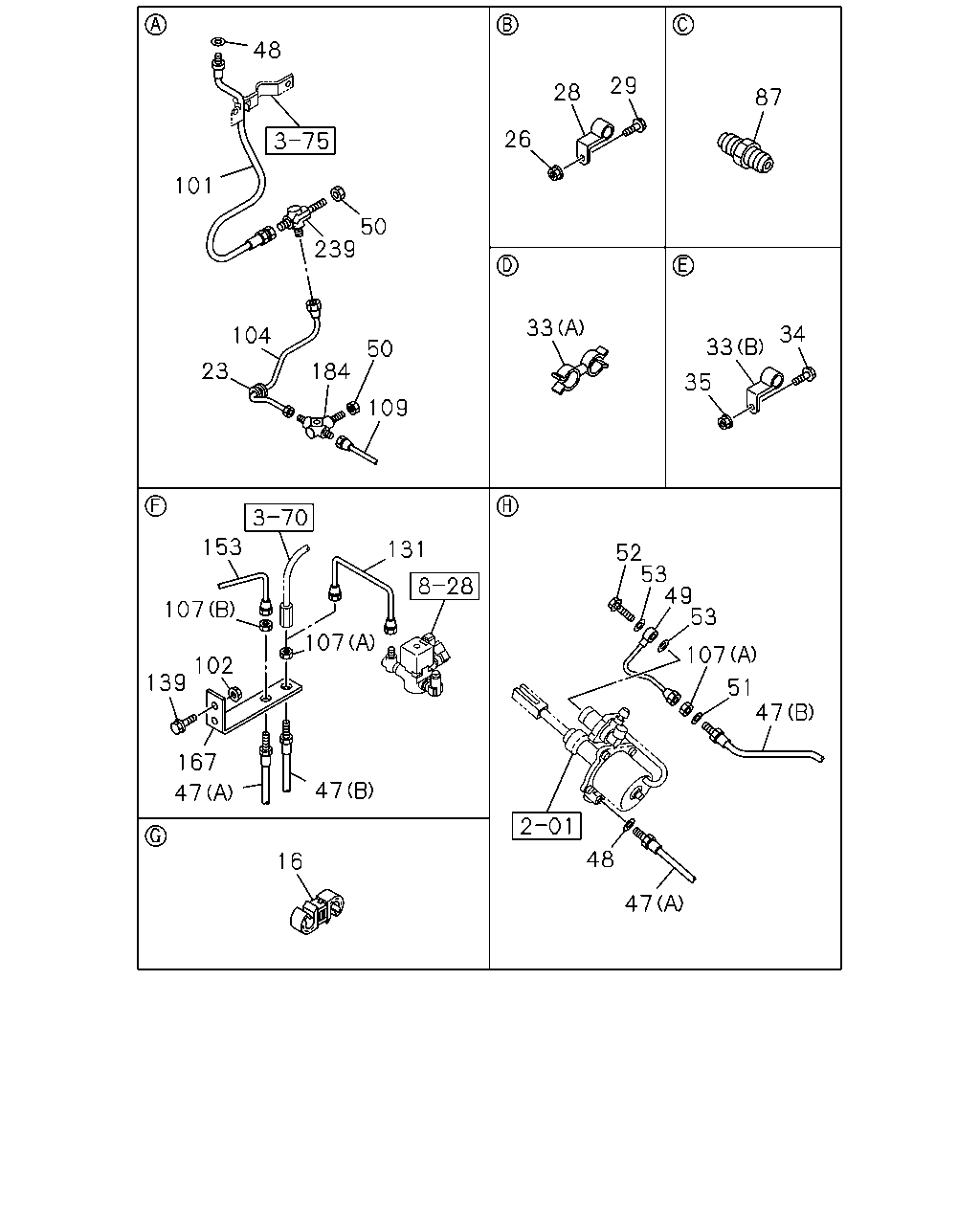

çizim 406867
87 29 28 26 33 35 33 34 52 53 49 53 107 51 47 47 48 47 16 47 167 139 107 153 102 107 131 184 50 104 23 109 239 50 101 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1402-
23 GROMMET; CLU PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1402-
26 NUT; CLIP,OIL PIPE
M8 FLANGE THA 		0-91180-108-0 03 1 1402-
28 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 03 1 1402-
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE THA 		0-28650-825-0 03 1 1402-
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 04 1 1402-
33 CLIP; OIL PIPE
(A) ID=8.3 & 10 		8-94176-792-0 01 1 1402-
34 BOLT; PIPE CLIP
M8X30 FLANGE THA 		0-28650-830-0 04 1 1402-
35 NUT; PIPE CLIP
M8 FLANGE THA 		0-91180-108-0 04 1 1402-
47 HOSE; FLEX,CLU CONT
(B) L=560 		1-09363-689-0 01 1 1402-
47 HOSE; FLEX,CLU CONT
(A) L=520 		1-09364-583-0 01 1 1402-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 THA 		9-09571-410-0 02 1 1402-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=232 THA 		8-97948-222-0 01 1 1402-
50 NUT; UNION
M12 		0-91111-512-0 01 1 1402-
50 NUT; UNION
M12 		0-91111-512-0 01 1 1402-
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 1402-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 1402-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1402-
87 UNION; OIL PIPE
M14 STRAIGHT 		0-92113-008-0 01 1 1402-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1402-
102 NUT; FLEX HOSE,CLU CONT
M8 FLANGE THA 		0-91180-108-0 02 1 1402-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=542 SERVICED BY L=550 		1-47428-753-0 01 1 1402-
107 NUT; UNION,OIL PIPE
(B) M14 		0-91111-514-0 01 1 1402-
107 NUT; UNION,OIL PIPE
(A) M12 		9-09840-280-0 02 1 1402-
109 PIPE; AIR,UNION TO UNION
L=1407 SERVICED BY L=1550 		1-47428-766-0 01 1 1402-
131 PIPE; AIR,UNION TO FLEX HOSE
L=275 THA 		8-98140-710-0 01 1 1402-
139 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 02 1 1402-
153 PIPE ASM; CLU,UNION TO FLEX
L=2332 SERVICED BY L=2400 		1-47428-771-0 01 1 1402-
167 BRACKET; UNION 8-98077-571-0 01 1 1402-
184 UNION; FLEX HOSE
M14 2WAY 		1-09654-176-2 01 1 1402-
239 UNION; CLU HOSE 8-98107-850-0 01 1 1402-

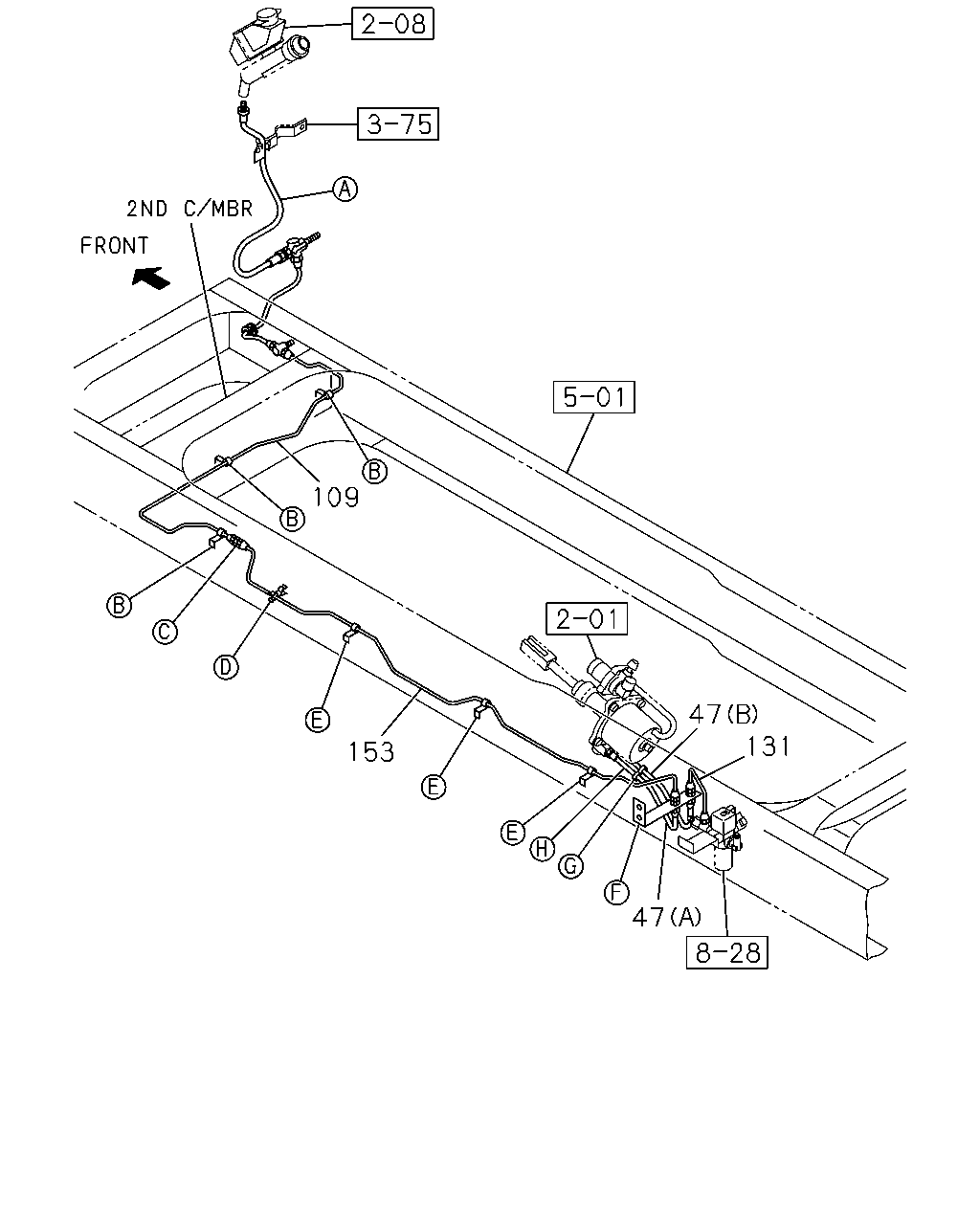

çizim 407278
109 153 47 47 131
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
(B) L=560 		1-09363-689-0 01 1 1402-
47 HOSE; FLEX,CLU CONT
(A) L=520 		1-09364-583-0 01 1 1402-
109 PIPE; AIR,UNION TO UNION
L=1407 SERVICED BY L=1550 		1-47428-766-0 01 1 1402-
131 PIPE; AIR,UNION TO FLEX HOSE
L=275 THA 		8-98140-710-0 01 1 1402-
153 PIPE ASM; CLU,UNION TO FLEX
L=2332 SERVICED BY L=2400 		1-47428-771-0 01 1 1402-
