◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GVR ▶ 11581 - GVR CNG(THAILAND) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#133043) — 111 parça

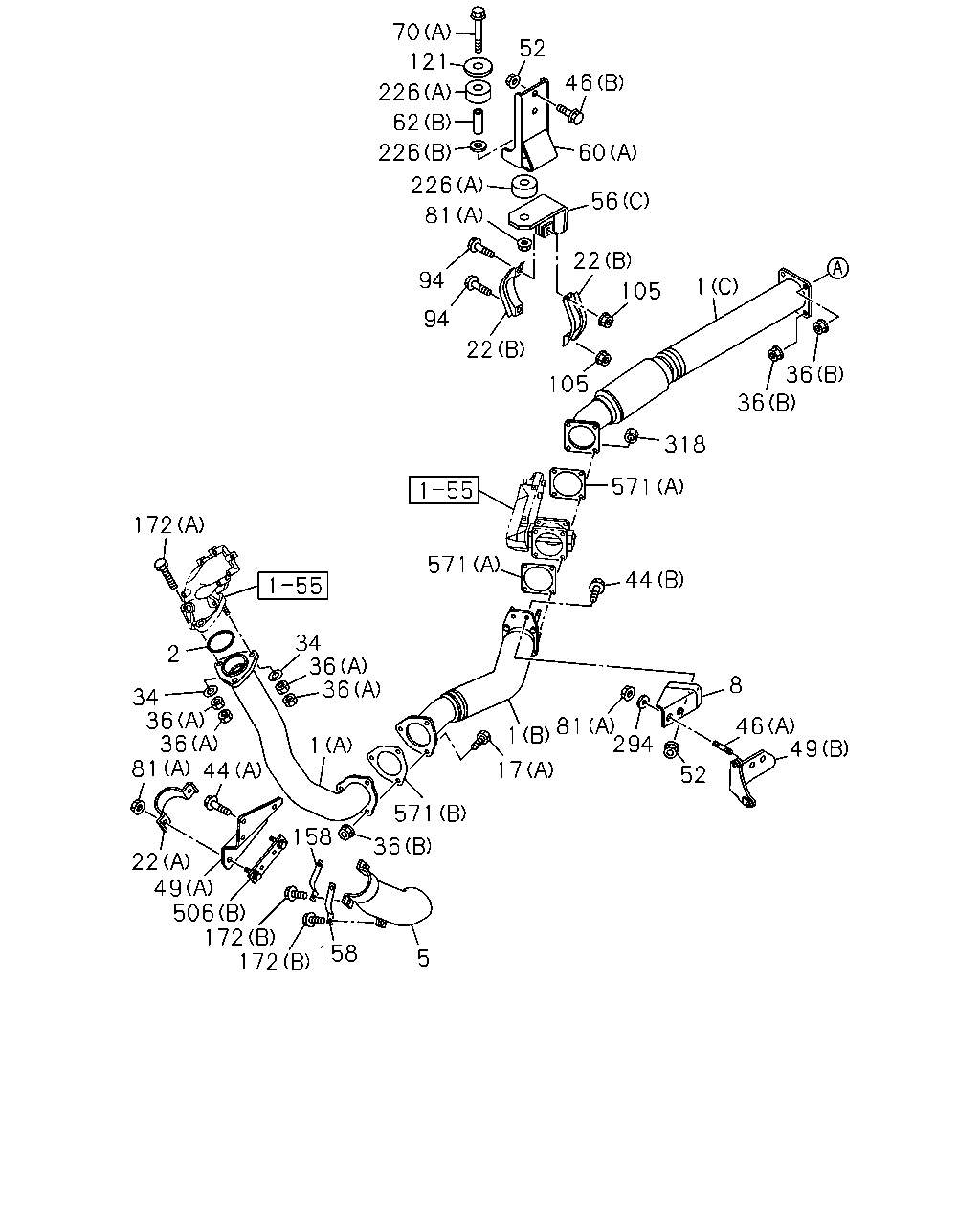

çizim 406857
70 121 226 62 226 226 81 94 94 22 105 105 22 56 60 46 52 1 36 36 318 571 44 8 46 49 52 294 81 1 17 571 36 5 158 172 172 506 49 22 81 44 1 36 36 34 34 36 36 2 172 571 158
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
(B) THA 		8-97629-976-2 01 1 1402-
1 PIPE; EXH
(A) THA 		8-98126-486-5 01 1 1402-
1 PIPE; EXH
(C) 		8-98221-117-0 01 1 1402-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-22116-029-0 01 1 1402-
5 PROTECTOR; HEAT
THA 		8-97630-122-2 01 1 1402-
8 BRACKET; EXH PIPE 8-98120-522-0 01 1 1402-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 1402-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1402-
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 1402-
36 NUT; EXH PIPE
(C) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
36 NUT; EXH PIPE
(B) M12 FLANGE THA 		0-91180-212-0 11 1 1402-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1402-
44 BOLT; BRKT
(B) M10X30 FLANGE THA 		0-28651-030-0 02 1 1402-
44 BOLT; BRKT
(A) M10X20 FLANGE THA 		0-28751-020-0 03 1 1402-
46 BOLT; BRKT,EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1402-
46 BOLT; BRKT,EXH PIPE
(A) M10X25 L=40 THA 		0-44011-025-0 02 1 1402-
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-97629-970-0 01 1 1402-
49 BRACKET; EXH PIPE TO TRANS
(B) THA 		8-97948-676-0 01 1 1402-
52 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
52 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-528-1 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97629-969-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97630-073-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(C) THA 		8-97634-230-0 01 1 1402-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 01 1 1402-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 02 1 1402-
60 BRACKET; FRAME TO BRKT
(B) 		8-98108-507-0 01 1 1402-
62 TUBE; DIST,BRKT
(B) THA 		8-97948-228-0 01 1 1402-
62 TUBE; DIST,BRKT
(B) THA 		8-97948-228-0 02 1 1402-
62 TUBE; DIST,BRKT
(A) L=22 		9-22159-024-0 01 1 1402-
70 BOLT; BRKT
(B) M10X50 FLANGE THA 		0-28051-050-0 01 1 1402-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1402-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 02 1 1402-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1402-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1402-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1402-
158 BRACKET; HEAT PROTECTOR 8-97630-104-0 02 1 1402-
172 BOLT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1402-
172 BOLT
(A) M12X65 		1-09000-386-0 02 1 1402-
226 RUBBER; CUSHION
(A) 		8-97379-882-0 02 1 1402-
226 RUBBER; CUSHION
(B) 		8-98090-400-0 01 1 1402-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
ID=10.5 		8-98073-091-0 02 1 1402-
318 NUT; EXH PIPE,FRT
M10 FLANGE THA 		0-91180-210-0 04 1 1402-
506 BRACKET; STUD
(A) 		1-22134-214-0 04 1 1402-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1402-
571 GASKET
(A) 		1-22116-043-0 02 1 1402-
571 GASKET
(B) 		8-98043-481-0 01 1 1402-

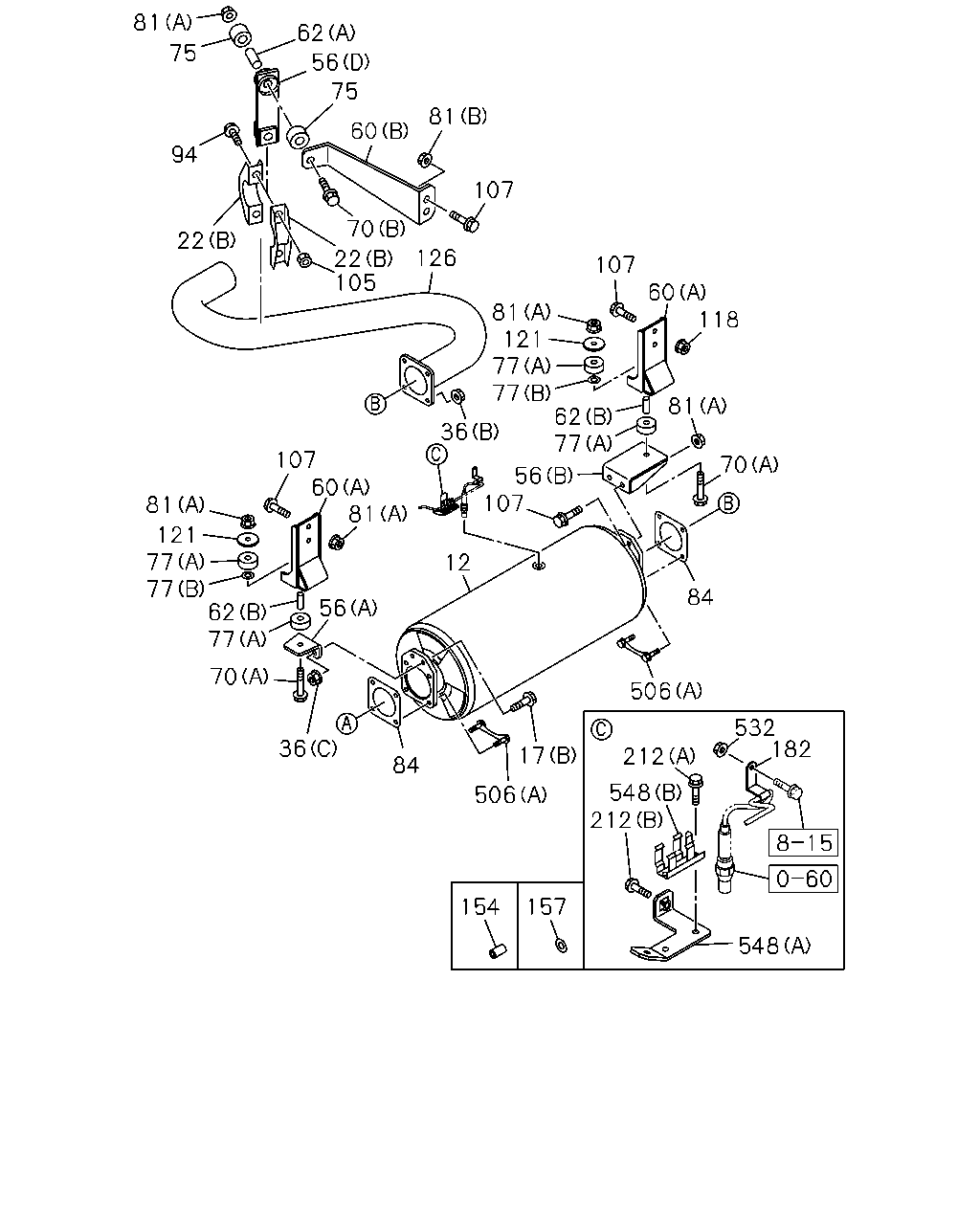

çizim 407059
81 75 94 22 105 22 70 126 107 81 60 75 56 62 107 81 121 77 77 36 107 56 77 62 81 118 60 70 84 506 212 548 212 532 182 548 157 154 506 17 84 36 70 77 62 56 77 77 121 81 107 60 81 12
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH 8-97630-814-1 01 1 1402-
17 BOLT; EXH PIPE
(A) M12X35 		0-20851-235-0 03 1 1402-
17 BOLT; EXH PIPE
(B) M10X35 FLANGE THA 		0-28651-035-0 02 1 1402-
22 CLAMP; EXH PIPE
(A) 		8-97615-334-0 01 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
22 CLAMP; EXH PIPE
(B) ID=80-84 		1-22133-233-0 02 1 1402-
36 NUT; EXH PIPE
(C) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
36 NUT; EXH PIPE
(B) M12 FLANGE THA 		0-91180-212-0 11 1 1402-
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 06 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(D) 		1-22131-528-1 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97629-969-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-97630-073-0 01 1 1402-
56 BRACKET; CLAMP,EXH PIPE
(C) THA 		8-97634-230-0 01 1 1402-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 01 1 1402-
60 BRACKET; FRAME TO BRKT
(A) 		8-97629-971-0 02 1 1402-
60 BRACKET; FRAME TO BRKT
(B) 		8-98108-507-0 01 1 1402-
62 TUBE; DIST,BRKT
(B) THA 		8-97948-228-0 01 1 1402-
62 TUBE; DIST,BRKT
(B) THA 		8-97948-228-0 02 1 1402-
62 TUBE; DIST,BRKT
(A) L=22 		9-22159-024-0 01 1 1402-
70 BOLT; BRKT
(B) M10X50 FLANGE THA 		0-28051-050-0 01 1 1402-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 01 1 1402-
70 BOLT; BRKT
(A) M10X70 FLANGE THA 		0-28051-070-0 02 1 1402-
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 1402-
77 RUBBER; CUSHION,BRKT
(A) 		8-97379-882-0 04 1 1402-
77 RUBBER; CUSHION,BRKT
(B) 		8-98090-400-0 02 1 1402-
81 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 02 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1402-
81 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 04 1 1402-
84 GASKET; EXH PIPE 1-22116-034-0 02 1 1402-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
94 BOLT; CLAMP
M10X40 FLANGE THA 		0-28651-040-0 02 1 1402-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
105 NUT; CLAMP
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
107 BOLT; BRKT
M10X35 FLANGE THA 		0-28651-035-0 02 1 1402-
107 BOLT; BRKT
M10X35 FLANGE THA 		0-28651-035-0 06 1 1402-
118 NUT; SILENCER MTG BRKT
M10 FLANGE THA 		0-91180-210-0 02 1 1402-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 01 1 1402-
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1402-
126 PIPE; EXH,RR
THA 		8-98217-352-0 01 1 1402-
154 CUSHION; HEAT PROTECTOR
L=22 		9-22159-024-0 02 1 1402-1408
157 WASHER; PL,BRKT
ID=10.5 OD=32 		0-91614-810-0 01 1 1402-1408
182 CLIP; HARNESS
ID=7 L=38 H=21 THA 		1-09700-916-0 01 1 1402-
212 BOLT; BRKT
(A) M6X12 FLANGE THA 		0-28050-612-0 02 1 1402-
212 BOLT; BRKT
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 1402-
506 BRACKET; STUD
(A) 		1-22134-214-0 04 1 1402-
506 BRACKET; STUD
(B) 		8-97615-333-1 01 1 1402-
532 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1402-
548 BRACKET; O2 SENSOR
(B) 		8-97262-725-0 01 1 1402-
548 BRACKET; O2 SENSOR
(A) THA 		8-98152-132-0 01 1 1402-
