◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10874 - CXZ RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-55B - EXHAUST BRAKE VALVE AND CONTROL CYLINDER ▶
1-55B — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#13304) — 11 parça

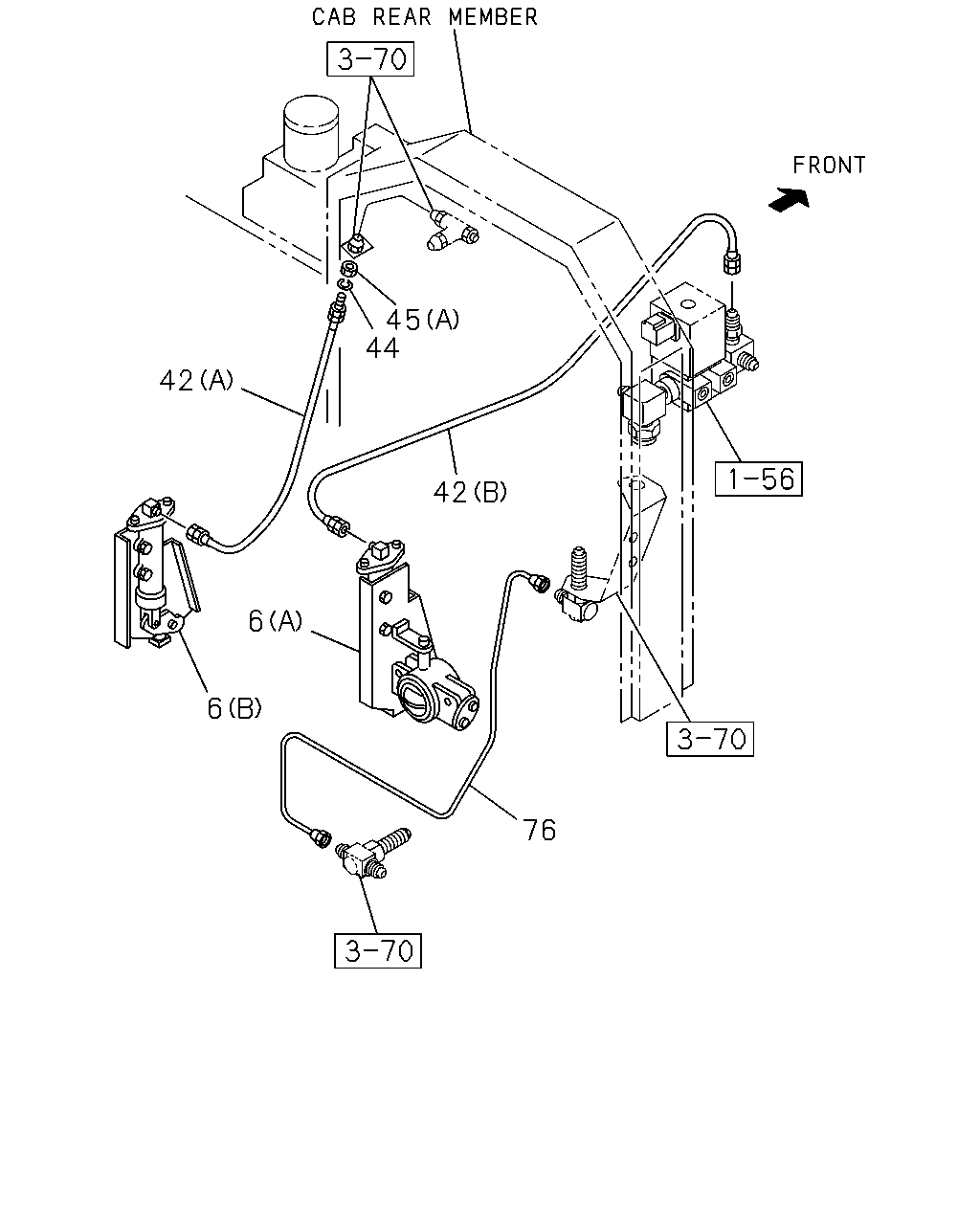

çizim 77116
45 44 42 42 6 6 76
BalonParca AdiParca NoAdetTipApplied Date A B C
6 VALVE; EXH BRAKE
(B) 		1-22180-364-1 01 1 0105- ● ● ●
6 VALVE; EXH BRAKE
(A) 		1-22180-363-1 01 1 0105- ● ● ●
42 HOSE; FLEX,EXH BRK
(A) L=300 		1-09363-608-0 01 1 0105- ● ● ●
42 HOSE; FLEX,EXH BRK
(B) L=300 		1-09363-611-0 01 1 0105- ● ● ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 0105-0603 ● ● ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		0-91510-512-0 01 1 0604- ● ● ●
45 NUT; FLEX HOSE
(A) M12 		9-09840-280-0 01 1 0105- ● ● ●
76 PIPE ASM; AIR UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. POWER BRAKE LOCK SYSTEM(J50) L=1066 		1-49122-236-0 01 1 0105-0508 ● ● ●
76 PIPE ASM; AIR UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=1066 		1-49122-236-0 01 1 0509- ● ● ●
76 PIPE ASM; AIR UNION TO UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. MUFFLER TWIN VERTICAL<NBS> L=488 		1-49122-245-0 01 1 0105- ● ● ●
76 PIPE ASM; AIR UNION TO UNION
MUFFLER TWIN VERTICAL<NBS> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=462 		1-49122-247-0 01 1 0105- ● ● ●
