Isuzu WW
▶
TRUCKS
▶
GVR
▶
11581 - GVR CNG(THAILAND)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#133039) — 37 parça
◀

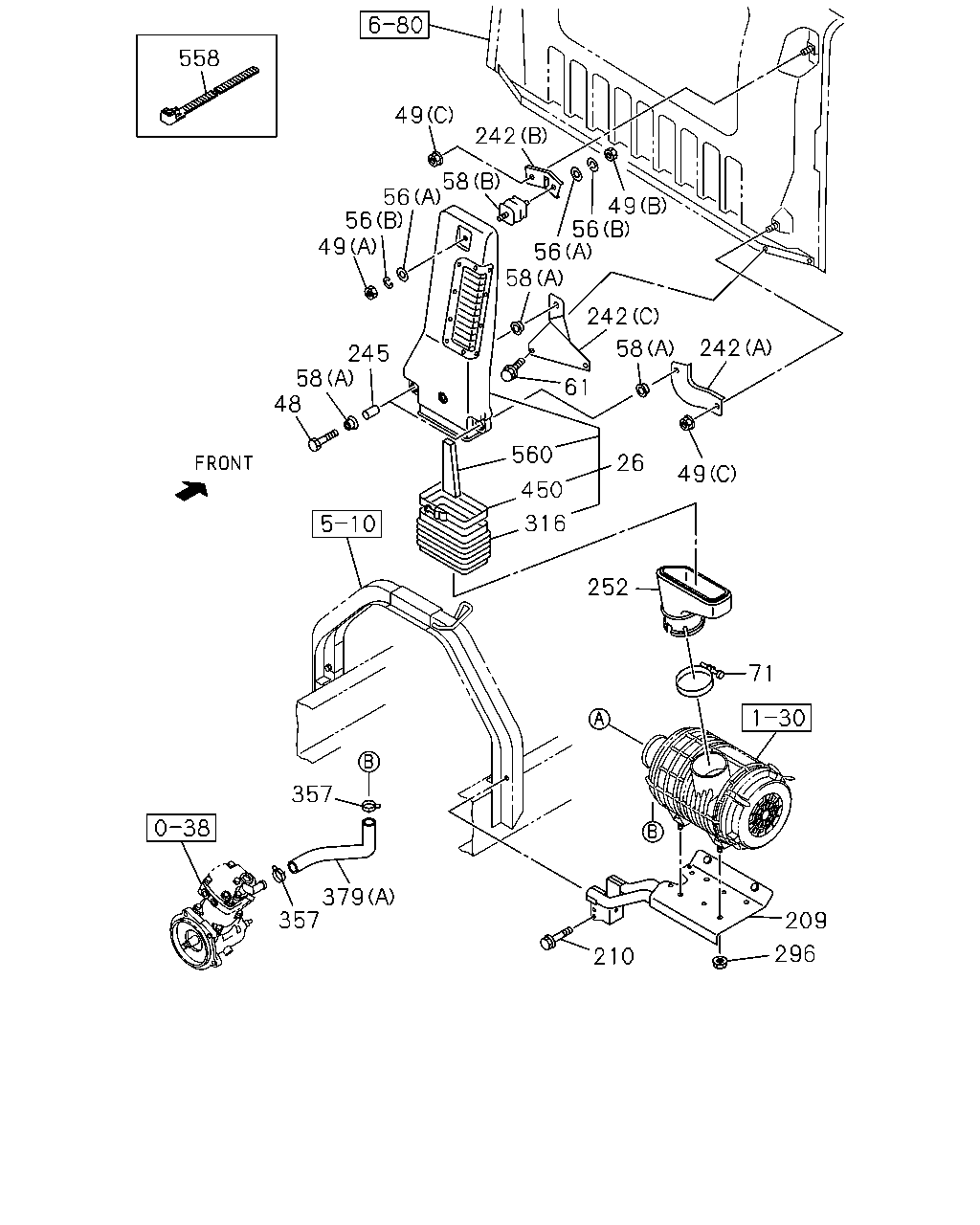

[131A] DUCT FIXING (27 parça)
[131A] PIPING (10 parça)
▶
296
209
210
379
357
357
252
71
316
49
26
560
450
245
58
242
58
242
58
56
56
49
242
49
58
56
56
49
61
558
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1402-
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
1402-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1402-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1402-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1402-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1402-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1402-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1402-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1402-
61
BOLT; BRKT,AIR DUCT
M8X20 FLANGE
8-98061-920-0
02
1
1402-
71
CLIP; AIR DUCT
ID=140-160
8-98133-368-0
01
1
1402-
209
BRACKET; ACL
THA
8-97948-148-0
01
1
1402-
210
BOLT; ACL BRKT
M10X25 FLANGE THA
0-28651-025-0
04
1
1402-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1402-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1402-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1402-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1402-
252
DUCT; AIR INT
8-98021-989-1
01
1
1402-
296
NUT; ACL
M8 FLANGE THA
0-91180-108-0
04
1
1402-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1402-
357
CLIP; RUBBER HOSE
ID=26
1-09707-091-0
02
1
1402-
379
HOSE; RUBBER
(B) L=150 SERVICED BY L=3000
0-01558-300-0
01
1
1402-
379
HOSE; RUBBER
(A)
8-98077-470-0
01
1
1402-
450
CLAMP; HOSE
9-09915-504-1
01
1
1402-
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
01
1
1402-
558
CLIP; AIR FLOW SENSOR
L=250
5-09707-030-1
02
1
1402-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1402-
353
353
353
353
353
353
353
353
353
488
548
379
23
5
5
320
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=130-150
8-98133-360-0
01
1
1402-
5
CLIP; AIR DUCT
(B) ID=90-110
8-98133-365-0
01
1
1402-
23
CLIP; HOSE
ID=12.8
8-94367-943-0
01
1
1402-
320
HOSE; CONN,ACL
8-97630-436-0
01
1
1402-
353
CLIP; RUBBER HOSE
(B) ID=12.8
8-94367-943-0
01
1
1402-
353
CLIP; RUBBER HOSE
(A) ID=55-75
8-98133-349-0
08
1
1402-
379
HOSE; RUBBER
(B) L=150 SERVICED BY L=3000
0-01558-300-0
01
1
1402-
379
HOSE; RUBBER
(A)
8-98077-470-0
01
1
1402-
488
HOSE; RUBBER,PIPE
8-97950-126-0
01
1
1402-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-97950-137-0
01
1
1402-
