Isuzu WW
▶
TRUCKS
▶
GVR
▶
11581 - GVR CNG(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

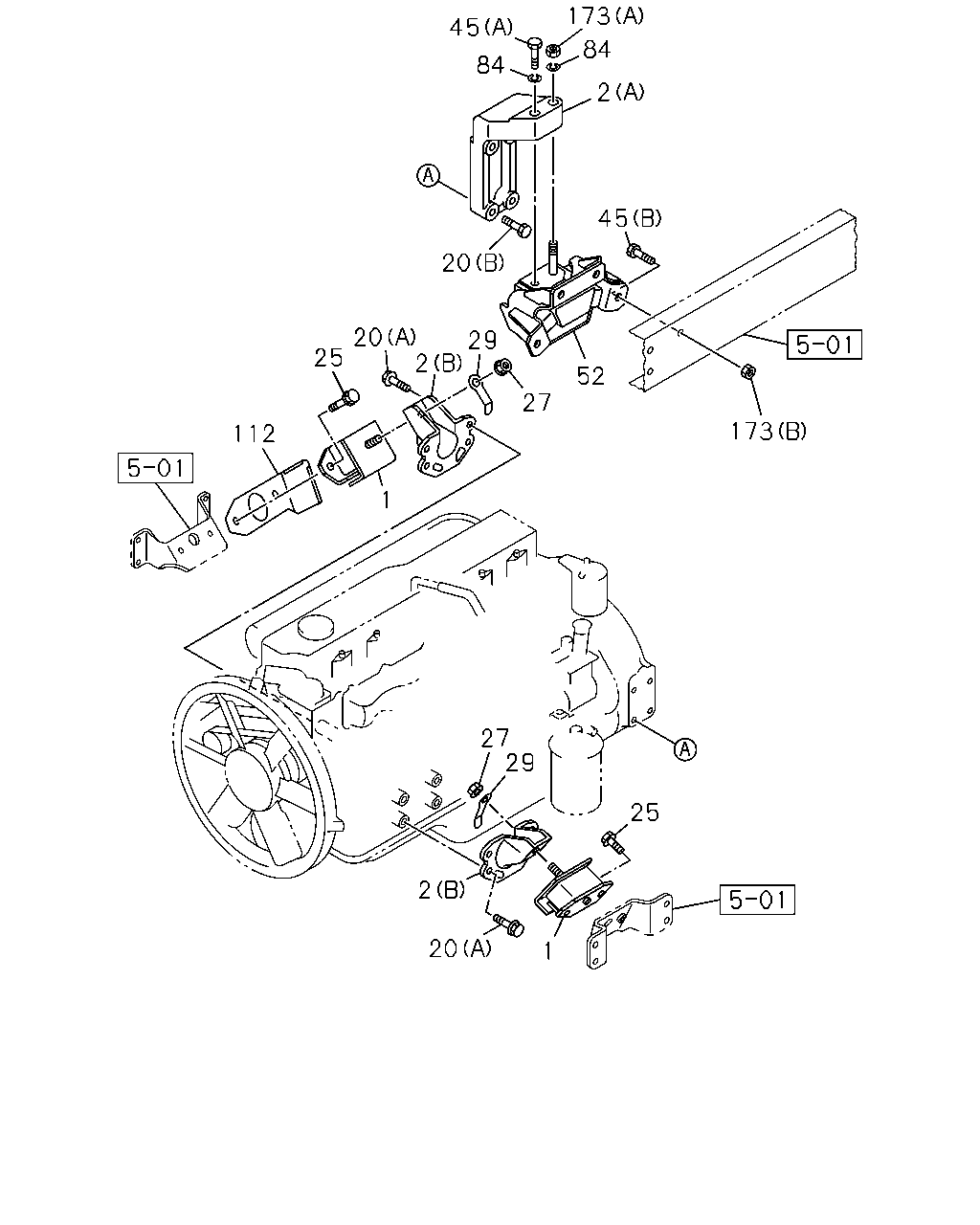

0-22 — ENGINE MOUNTING
(#133011) — 16 parça
52
27
29
20
25
112
1
2
20
45
2
84
173
45
27
29
25
2
20
1
173
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-172-0
02
1
1402-
2
FOOT; ENG
(B)
8-94392-141-3
02
1
1402-
2
FOOT; ENG
(A)
8-97611-990-0
01
1
1402-
2
FOOT; ENG
(A)
8-97611-991-0
01
1
1402-
20
BOLT; ENG FOOT
(B) M12X55
8-94399-884-1
08
1
1402-
20
BOLT; ENG FOOT
(A) M10X30
8-97011-732-0
08
1
1402-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE THA
0-28651-235-0
04
1
1402-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE THA
0-91180-212-0
02
1
1402-
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
1402-
45
BOLT; CUSHION RUBBER TO FRAME
(A) M16X60
0-10956-660-0
02
1
1402-
45
BOLT; CUSHION RUBBER TO FRAME
(B) M14X50
0-29261-450-0
08
1
1402-
52
RUBBER; CUSHION,ENG MTG,RR
8-98013-022-1
02
1
1402-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=17
9-09164-516-0
04
1
1402-
112
PROTECTOR; HEAT
THA
1-53219-629-4
01
1
1402-
173
NUT; ENG MTG RR TO FRAME
(A) M16 THA
0-91110-516-0
02
1
1402-
173
NUT; ENG MTG RR TO FRAME
(B) M14 FLANGE THA
0-91180-214-0
08
1
1402-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
