1-45 — WATER SEDIMENTER; FUEL (#13301) — 48 parça

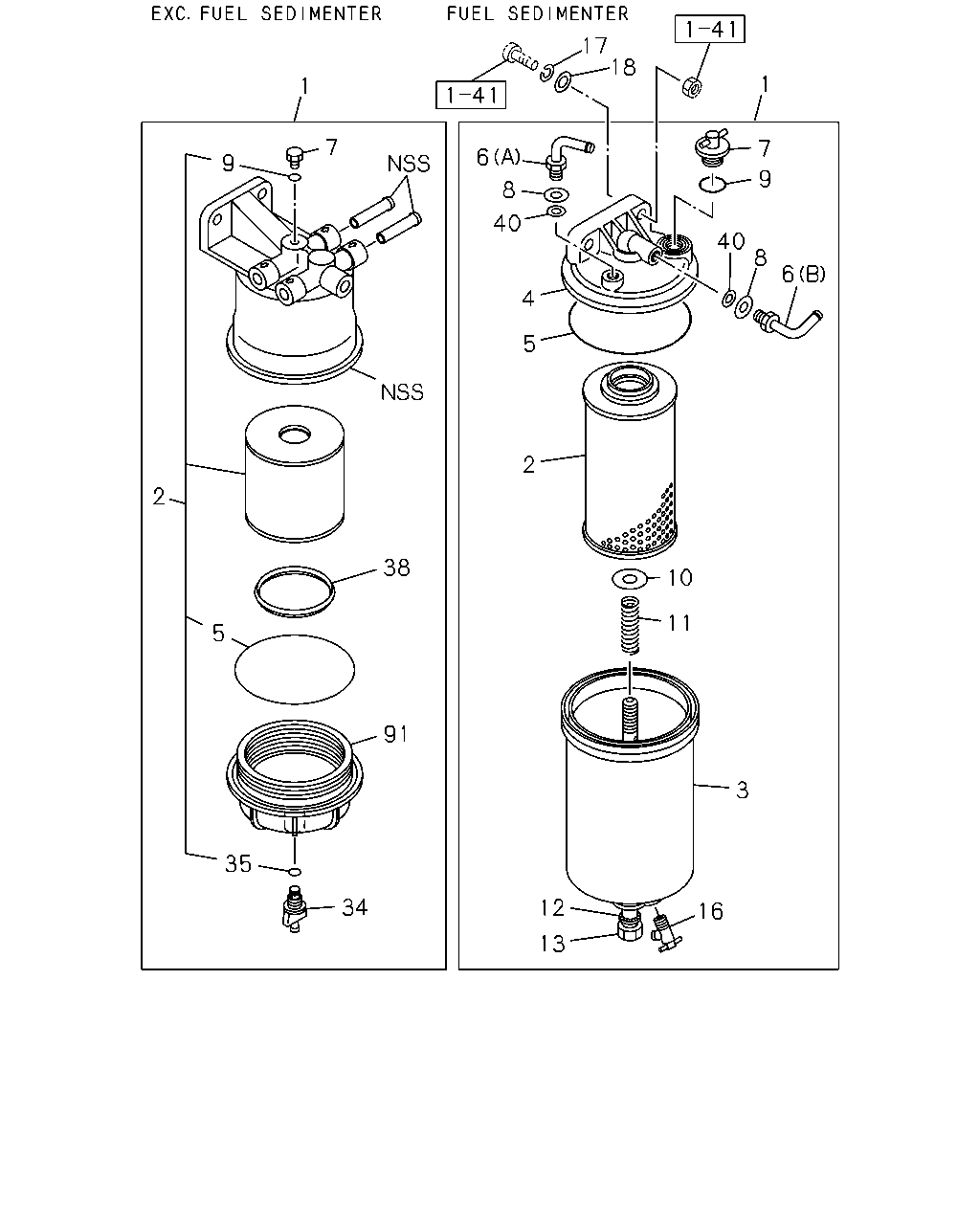

çizim 77175
18 17 1 1 7 9 2 5 38 91 35 34 7 9 6 8 40 6 8 40 4 5 2 10 11 3 16 12 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 SEDIMENTER; FUEL
FUEL SEDIMENTER<PS9> 		1-13201-021-0 01 1 0105- ●
1 SEDIMENTER; FUEL
FUEL SEDIMENTER<PS9> 		1-13200-564-1 01 1 0105- ●
1 SEDIMENTER; FUEL
EXC. FUEL SEDIMENTER<PS9> 		1-13201-017-0 01 1 0105- ●
1 SEDIMENTER; FUEL
MUFFLER TWIN VERTICAL<NBS> 		1-13201-017-0 01 1 0105- ●
1 SEDIMENTER; FUEL
EXC. MUFFLER TWIN VERTICAL<NBS> 		1-13201-015-0 01 1 0105-0105 ●
1 SEDIMENTER; FUEL
EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL SEDIMENTER<PS9> 		1-13201-015-0 01 1 0105- ●
2 ELEMENT; FUEL FILTER
FUEL SEDIMENTER<PS9> 		1-13240-020-0 01 1 0105- ● ●
2 ELEMENT; FUEL FILTER
EXC. FUEL SEDIMENTER<PS9> 		1-13240-194-0 01 1 0105- ●
2 ELEMENT; FUEL FILTER
EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL SEDIMENTER<PS9> 		1-13240-194-0 01 1 0105- ●
2 ELEMENT; FUEL FILTER
MUFFLER TWIN VERTICAL<NBS> 		1-13240-194-0 01 1 0105- ●
3 BODY ASM; SEDIMENTER
FUEL SEDIMENTER<PS9> 		1-13211-069-0 01 1 0105- ● ●
4 COVER; UPR,SEDIMENTER ASM
FUEL SEDIMENTER<PS9> 		1-13212-055-0 01 1 0105- ● ●
5 GASKET; UPR COVER,SEDIMENTER
FUEL SEDIMENTER<PS9> 		1-09630-072-0 01 1 0105- ● ●
5 GASKET; UPR COVER,SEDIMENTER
EXC. FUEL SEDIMENTER<PS9> 		1-13213-017-0 01 1 0105- ●
5 GASKET; UPR COVER,SEDIMENTER
EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL SEDIMENTER<PS9> 		1-13213-017-0 01 1 0105- ●
5 GASKET; UPR COVER,SEDIMENTER
MUFFLER TWIN VERTICAL<NBS> 		1-13213-017-0 01 1 0105- ●
6 CONNECTOR ASM; SEDIMENTER
FUEL SEDIMENTER<PS9> (A) 		1-13229-004-0 01 1 0105- ● ●
6 CONNECTOR ASM; SEDIMENTER
FUEL SEDIMENTER<PS9> (B) 		1-13229-005-0 01 1 0105- ● ●
7 PLUG; DRAIN,SEDIMENTER
FUEL SEDIMENTER<PS9> 		1-13219-059-0 01 1 0105- ● ●
7 PLUG; DRAIN,SEDIMENTER
EXC. FUEL SEDIMENTER<PS9> M8X10 		9-09862-068-0 01 1 0105- ●
7 PLUG; DRAIN,SEDIMENTER
EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL SEDIMENTER<PS9> M8X10 		9-09862-068-0 01 1 0105- ●
7 PLUG; DRAIN,SEDIMENTER
MUFFLER TWIN VERTICAL<NBS> M8X10 		9-09862-068-0 01 1 0105- ●
8 STOPPER; CONN,SEDIMENTER
FUEL SEDIMENTER<PS9> 		1-13229-001-0 02 1 0105- ● ●
9 GASKET; DRAIN PLUG & CONNECTOR
FUEL SEDIMENTER<PS9> 		1-13219-060-0 01 1 0105- ● ●
9 GASKET; DRAIN PLUG & CONNECTOR
EXC. FUEL SEDIMENTER<PS9> 		5-09623-024-1 01 1 0105- ●
9 GASKET; DRAIN PLUG & CONNECTOR
EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL SEDIMENTER<PS9> 		5-09623-024-1 01 1 0105- ●
9 GASKET; DRAIN PLUG & CONNECTOR
MUFFLER TWIN VERTICAL<NBS> 		5-09623-024-1 01 1 0105- ●
10 SEAT; ELEMENT,SEDIMENTER
FUEL SEDIMENTER<PS9> 		1-13249-020-0 01 1 0105- ● ●
11 SPRING; SET,SCREEN
FUEL SEDIMENTER<PS9> 		1-13249-019-0 01 1 0105- ● ●
12 GASKET; CENTER BOLT
FUEL SEDIMENTER<PS9> 		1-13219-057-0 01 1 0105- ● ●
13 BOLT; CENTER,SEDIMENTER
FUEL SEDIMENTER<PS9> 		1-13231-030-0 01 1 0105- ● ●
16 COCK ASM; DRAIN
FUEL SEDIMENTER<PS9> 		1-13219-058-0 01 1 0105- ● ●
17 WASHER; LK,FUEL SEDIMENTER
FUEL SEDIMENTER<PS9> ID=14.2 		9-09150-514-0 02 1 0105-0603 ● ●
17 WASHER; LK,FUEL SEDIMENTER
FUEL SEDIMENTER<PS9> ID=14.2 		0-91510-514-0 02 1 0604- ● ●
18 WASHER; PL,FUEL SEDIMENTER
FUEL SEDIMENTER<PS9> ID=15 		9-09160-514-0 02 1 0105- ● ●
34 PLUG; DRAIN,FUEL FILTER
EXC. FUEL SEDIMENTER<PS9> 		1-13219-314-0 01 1 0105- ●
34 PLUG; DRAIN,FUEL FILTER
EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL SEDIMENTER<PS9> 		1-13219-314-0 01 1 0105- ●
34 PLUG; DRAIN,FUEL FILTER
MUFFLER TWIN VERTICAL<NBS> 		1-13219-314-0 01 1 0105- ●
35 GASKET; DRAIN PLUG
EXC. FUEL SEDIMENTER<PS9> 		8-94416-377-0 01 1 0105- ●
35 GASKET; DRAIN PLUG
EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL SEDIMENTER<PS9> 		8-94416-377-0 01 1 0105- ●
35 GASKET; DRAIN PLUG
MUFFLER TWIN VERTICAL<NBS> 		8-94416-377-0 01 1 0105- ●
38 FLOAT; SEDIMENTER
EXC. FUEL SEDIMENTER<PS9> 		1-13219-313-0 01 1 0105- ●
38 FLOAT; SEDIMENTER
EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL SEDIMENTER<PS9> 		1-13219-313-0 01 1 0105- ●
38 FLOAT; SEDIMENTER
MUFFLER TWIN VERTICAL<NBS> 		1-13219-313-0 01 1 0105- ●
40 GASKET; CONNECTOR TO COVER
FUEL SEDIMENTER<PS9> ID=14.2 OD=19.2 		1-09630-085-0 02 1 0105- ● ●
91 COVER; LWR,SEDIMENTER
EXC. FUEL SEDIMENTER<PS9> 		1-13212-176-2 01 1 0105- ●
91 COVER; LWR,SEDIMENTER
EXC. MUFFLER TWIN VERTICAL<NBS>,FUEL SEDIMENTER<PS9> 		1-13212-176-2 01 1 0105- ●
91 COVER; LWR,SEDIMENTER
MUFFLER TWIN VERTICAL<NBS> 		1-13212-176-2 01 1 0105- ●
