Isuzu WW
▶
TRUCKS
▶
FVM
▶
10632 - FVM-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

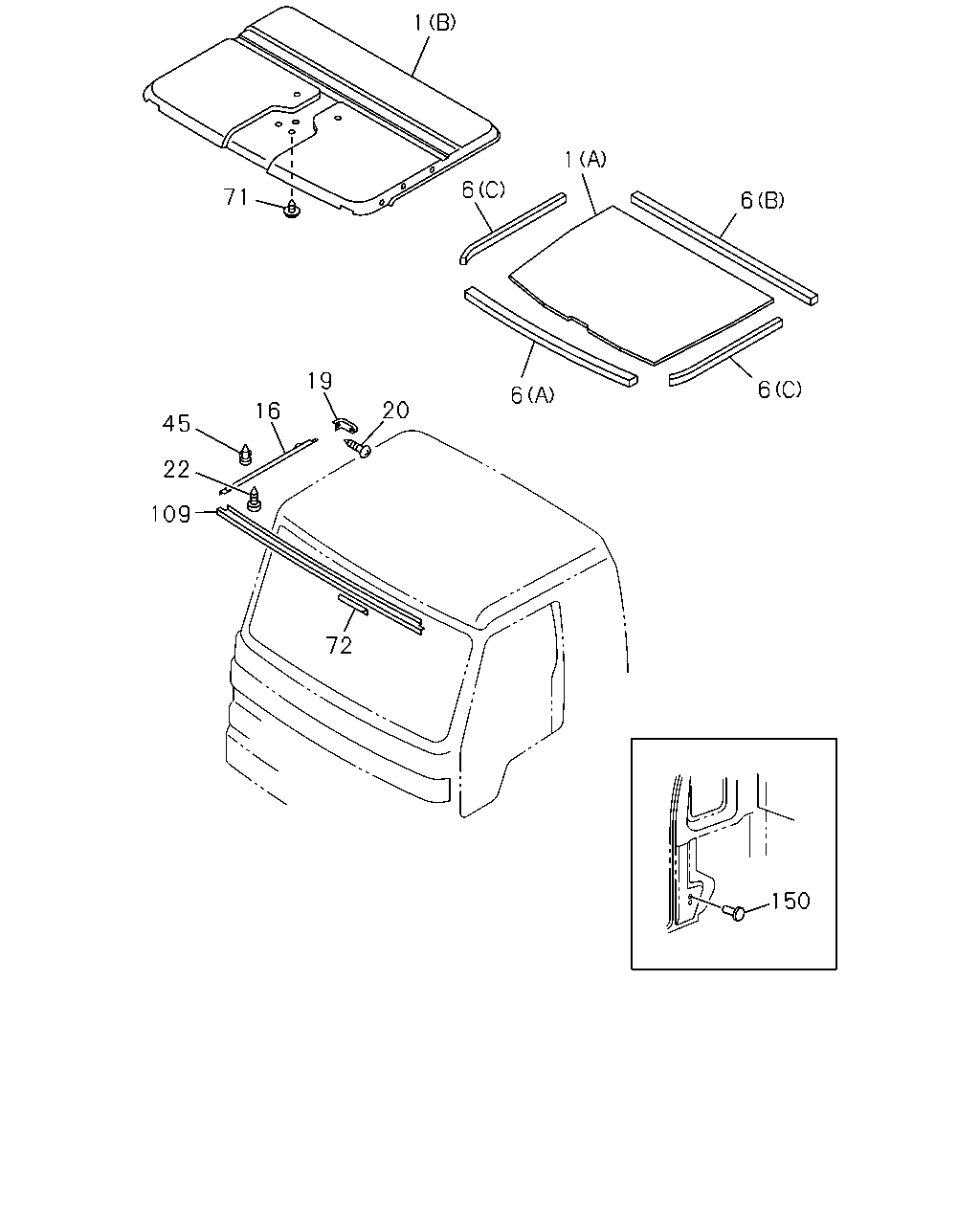

6-66 — HEAD LINING AND TRIM
(#1330) — 16 parça
1
1
6
71
6
19
6
6
20
16
45
22
109
72
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
DELUXE CAB(W14) (B)
1-73318-348-4
01
1
9204-
1
LINING; HD
EXC. DELUXE CAB(W14) (A)
1-73318-407-0
01
1
9204-
6
SPACER; HD LINING
EXC. DELUXE CAB(W14) (A) L=1600
1-73318-300-1
01
1
9204-
6
SPACER; HD LINING
EXC. DELUXE CAB(W14) (B) L=1650
1-73318-301-1
01
1
9204-
6
SPACER; HD LINING
EXC. DELUXE CAB(W14) (C) L=1120
1-73318-302-1
02
1
9204-
16
FINISHER; HEADLINING,FRT
DELUXE CAB(W14) GRAY
1-73318-350-0
01
1
9204-
16
FINISHER; HEADLINING,FRT
DELUXE CAB(W14) GRAY
1-73318-349-0
01
1
9204-
19
FINISHER; BACK CORNER,HEADLINING
DELUXE CAB(W14) GRAY
1-73318-352-0
01
1
9204-
19
FINISHER; BACK CORNER,HEADLINING
DELUXE CAB(W14) GRAY
1-73318-351-0
01
1
9204-
20
SCREW; FINISHER,BACK CORNER,HEADLINING
DELUXE CAB(W14) M4X16 TAPPING
1-09981-477-0
04
1
9204-
22
SCREW; SIDE FINISHER,HEADLINING
DELUXE CAB(W14) M4X16 TAPPING
1-09981-477-0
04
1
9204-
45
CLIP; FINISHER
DELUXE CAB(W14)
1-73318-278-0
04
1
9204-
71
FASTENER; HD LINING
DELUXE CAB(W14)
1-73318-353-0
01
1
9204-
72
FINISHER; CANT RAIL
DELUXE CAB(W14) L=190
1-71998-300-0
01
1
9204-
109
TRIM; ROOM,CANT RAIL FRT
DELUXE CAB(W14) GRAY
1-73998-800-0
01
1
9204-
150
PLUG; HOLE,TRIM COVER
FRONT SEAT BELT WO/RETRACTOR<A37>,FRONT SEAT BELT 2POINT<W25> D4.6X14.7 BLACK
1-09983-104-0
02
1
9204-
