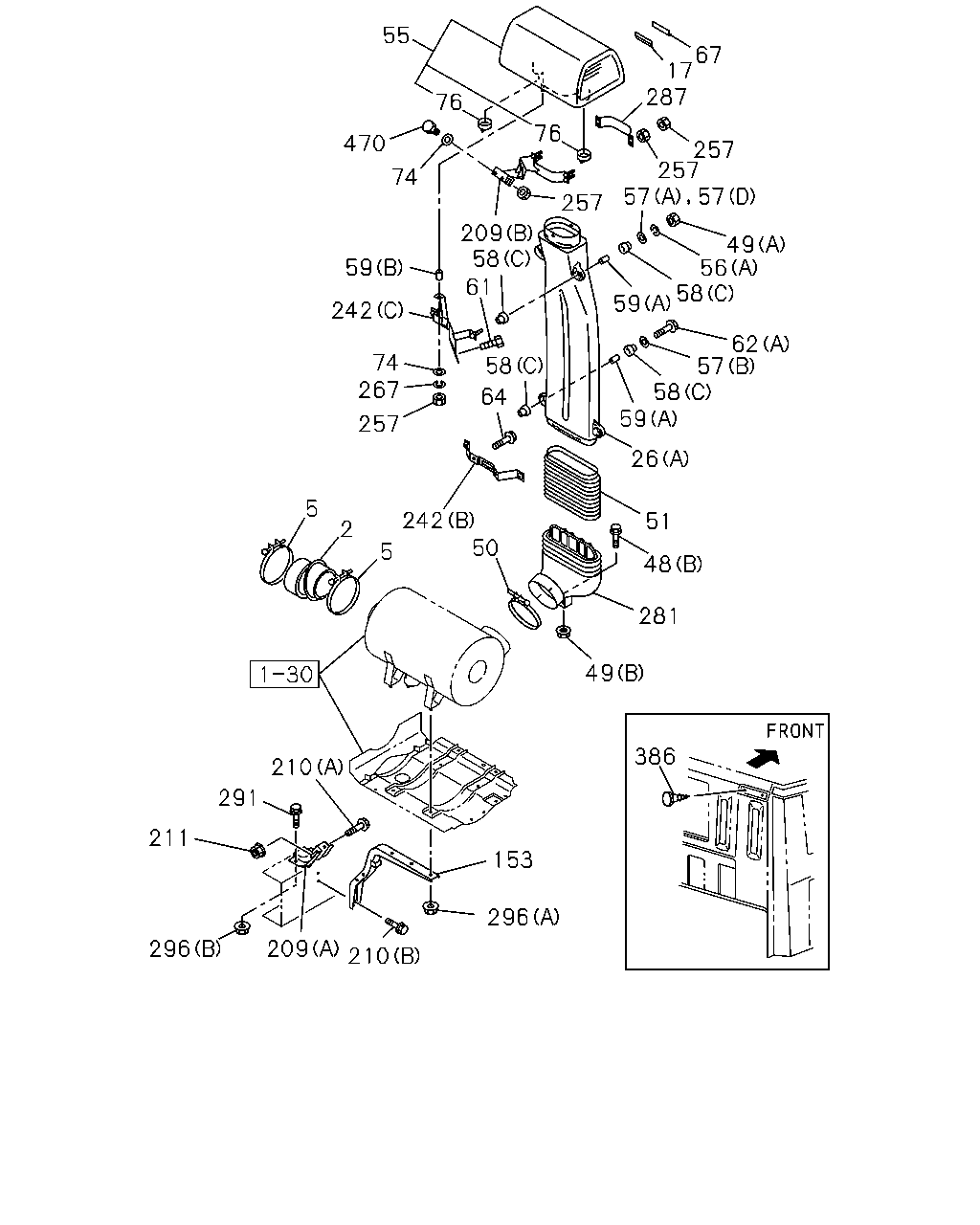

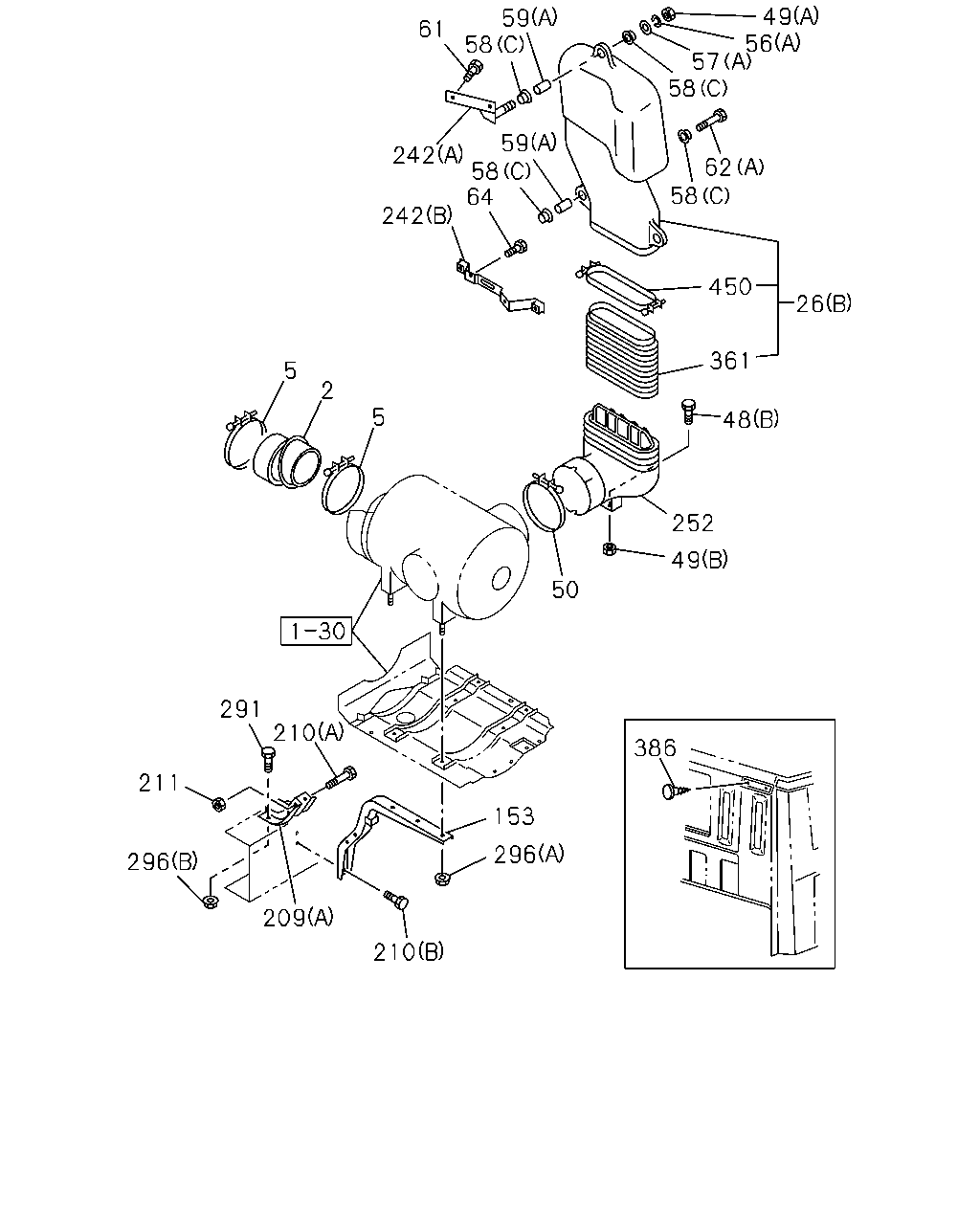

1-31B — AIR DUCT (#13297) — 128 parça

67 17 287 55 76 76 257 257 470 74 257 57 57 49 56 58 59 209 58 61 59 242 74 267 257 58 64 62 57 58 59 26 51 48 281 49 242 50 5 2 5 386 296 153 210 291 211 296 209 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-937-0	01	1	0105-	●	●	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	02	1	0105-	●	●	●
17	GASKET; AIR DUCT PRE CLEANER<W17>	1-14239-170-0	01	1	0105-	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-	●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (B)	1-14230-134-1	01	1	0105-	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-	●	●	●
50	CLIP; JOINT HOSE PRE CLEANER<W17> ID=130-169	1-09707-157-0	01	1	0501-	●	●	●
50	CLIP; JOINT HOSE ID=158	1-09707-097-1	01	1	0105-0412	●	●	●
50	CLIP; JOINT HOSE EXC. PRE CLEANER<W17> ID=158	1-09707-097-1	01	1	0501-	●	●	●
51	GASKET ASM; RUBBER PRE CLEANER<W17>	1-14230-150-0	01	1	0105-	●	●	●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-768-0	01	1	0105-	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-	●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	08	1	0105-	●	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	0105-	●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-	●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-	●	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X60	1-09030-044-1	01	1	0105-	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X60	1-09030-044-1	02	1	0105-	●	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	0105-	●	●	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	03	1	0105-	●	●	●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	0105-	●	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0106	●	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0107-0308	●	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-	●	●	●
209	BRACKET; ACL (A)	1-53419-266-0	01	1	0105-	●	●	●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-258-0	01	1	0105-	●	●	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-246-0	01	1	0105-	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
242	BRACKET; AIR DUCT (B)	1-79997-327-1	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-362-0	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-120-0	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-323-1	01	1	0105-	●	●	●
257	NUT; BRKT PRE CLEANER<W17> M10	1-09400-053-0	11	1	0105-	●	●	●
267	WASHER; LK,ACL PRE CLEANER<W17> ID=10	1-09985-180-0	01	1	0105-	●	●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-136-1	01	1	0105-	●	●	●
287	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	0105-	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	0105-	●	●	●
470	BOLT; BRKT PRE CLEANER<W17>	1-09000-372-0	02	1	0105-	●	●	●

49 56 57 58 59 58 61 59 58 64 242 242 62 58 450 26 361 48 252 49 50 5 2 5 291 210 211 153 386 296 210 209 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL	1-14231-937-0	01	1	0105-	●	●	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	02	1	0105-	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-	●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (B)	1-14230-134-1	01	1	0105-	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-	●	●	●
50	CLIP; JOINT HOSE PRE CLEANER<W17> ID=130-169	1-09707-157-0	01	1	0501-	●	●	●
50	CLIP; JOINT HOSE ID=158	1-09707-097-1	01	1	0105-0412	●	●	●
50	CLIP; JOINT HOSE EXC. PRE CLEANER<W17> ID=158	1-09707-097-1	01	1	0501-	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-	●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	08	1	0105-	●	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	0105-	●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-	●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-	●	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X60	1-09030-044-1	01	1	0105-	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X60	1-09030-044-1	02	1	0105-	●	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0106	●	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0107-0308	●	●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-	●	●	●
209	BRACKET; ACL (A)	1-53419-266-0	01	1	0105-	●	●	●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-258-0	01	1	0105-	●	●	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-246-0	01	1	0105-	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
242	BRACKET; AIR DUCT (B)	1-79997-327-1	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-362-0	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-120-0	01	1	0105-	●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-323-1	01	1	0105-	●	●	●
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-136-1	01	1	0105-0207	●	●	●
252	DUCT; AIR INT ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. PRE CLEANER<W17>	1-14230-136-1	01	1	0208-0311	●	●	●
252	DUCT; AIR INT EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y>	1-14230-136-1	01	1	0208-0311	●	●	●
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-136-1	01	1	0312-	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	0105-	●	●	●
386	PLUG; DUCT BRKT,AIR INT EXC. GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●
386	PLUG; DUCT BRKT,AIR INT GRIP OUT SIDE<W52> OD=15 L=14.5	1-76378-157-0	01	1	0105-	●	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0105-0106	●	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0107-	●	●	●
