Sayfa 1-31A - Isuzu EPC

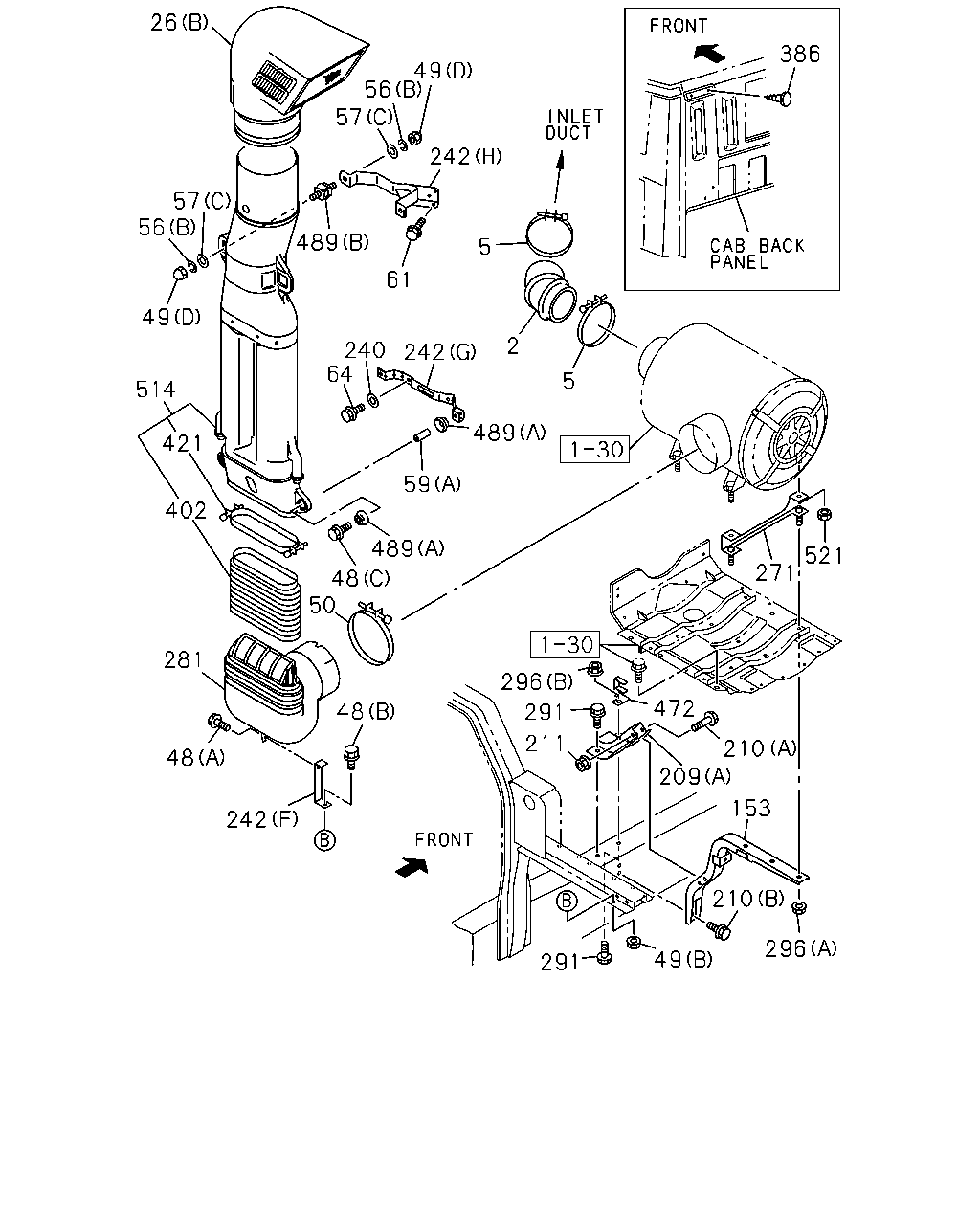

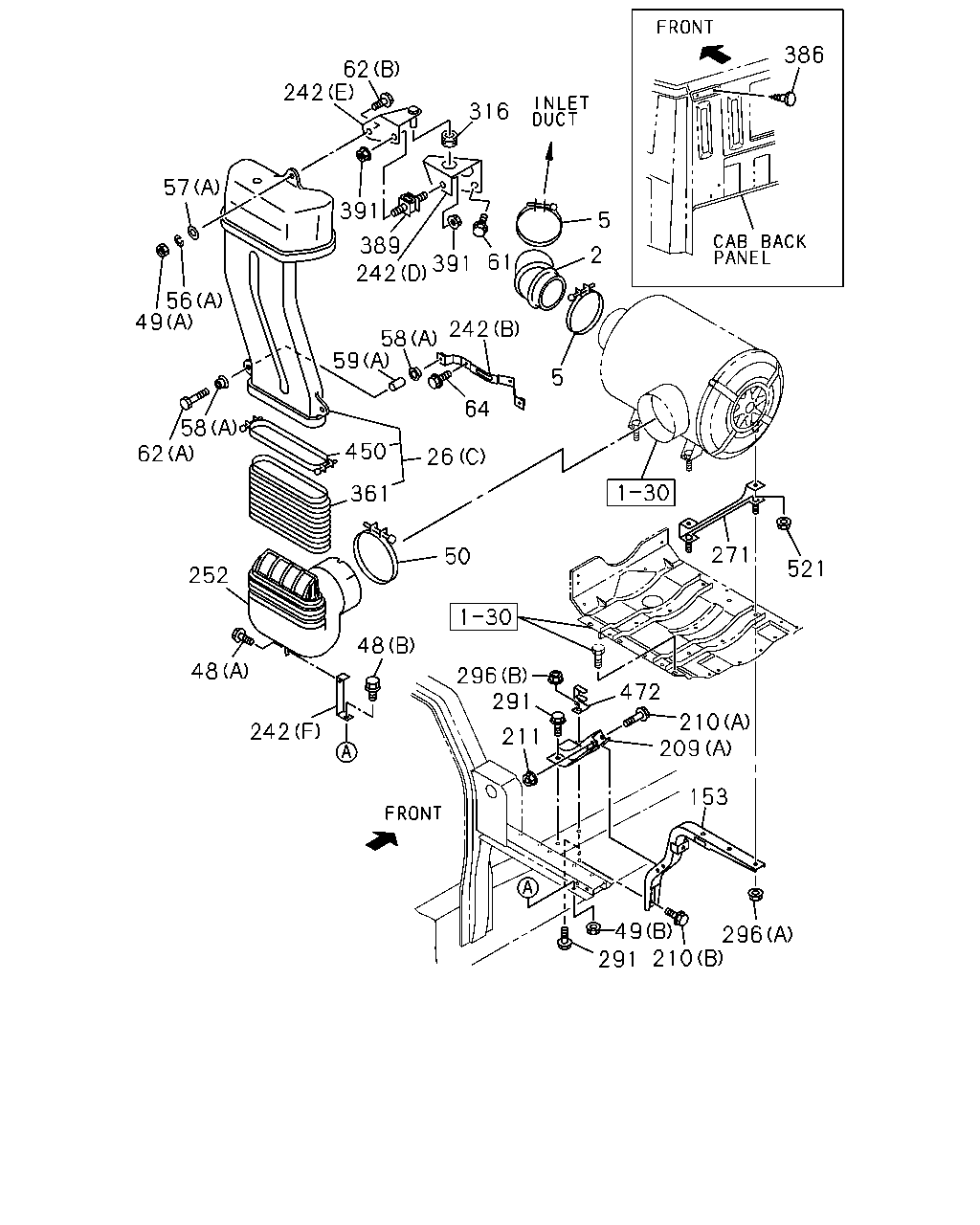

1-31A — AIR DUCT (#13296) — 653 parça

386 316 242 62 5 2 61 391 391 57 389 242 56 49 58 59 242 5 64 26 450 361 58 62 50 252 48 48 242 296 271 521 291 211 472 210 209 153 296 210 291 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0105-0311	●
2	HOSE; ACL	1-14231-955-0	01	1	0105-0311		●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-	●		●
2	HOSE; ACL HONG KONG EQUIPMENT(PQ1)	1-14231-955-0	01	1	0312-		●		●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0105-0311	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-	●		●
2	HOSE; ACL EXC. HONG KONG EQUIPMENT(PQ1)	1-14231-871-0	01	1	0312-		●		●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-	●	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	0105-	●		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0105-0106		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0107-		●		●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0105-0106		●	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0107-		●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512		●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0105-0106		●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0107-		●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0406-0512		●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-		●		●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-	●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-0106		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0107-		●		●
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0105-0106		●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0107-		●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-	●	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-	●		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0105-0106		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0107-		●		●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0105-0106		●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0107-		●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0106		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0107-0110		●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0105-0106		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0107-		●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0105-0106		●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0107-		●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	0105-			●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	08	1	0105-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	0105-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0105-0106		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0107-0110		●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	0111-		●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-0106		●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0107-		●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-	●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0105-0106		●	●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0107-		●	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X60	1-09030-044-1	01	1	0105-	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X60	1-09030-044-1	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	0105-0512			●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-			●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-0308	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-	●
153	BRACKET; ACL,FRT EXC. HONG KONG EQUIPMENT(PQ1)	1-53419-265-1	01	1	0309-		●		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0106		●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0107-0308		●	●	●
153	BRACKET; ACL,FRT HONG KONG EQUIPMENT(PQ1)	1-53419-299-0	01	1	0309-		●		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	0105-	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0105-	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	0105-			●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> (F)	1-23957-006-0	01	1	0105-	●
242	BRACKET; AIR DUCT (F)	1-23957-006-0	01	1	0105-		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-325-1	01	1	0105-0106		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-325-1	01	1	0107-		●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-351-1	01	1	0105-0106		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-351-1	01	1	0107-0110		●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-324-0	01	1	0111-		●		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0105-0106		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0107-		●	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0105-0106		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0107-		●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	0105-			●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	0105-			●
252	DUCT; AIR INT CAB UP +110MM<TGG> EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0105-	●
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0105-		●	●
252	DUCT; AIR INT EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17>	1-14230-191-0	01	1	0105-	●
271	SPACER; BRKT,ACL CAB UP +110MM<TGG>	1-53419-343-0	02	1	0105-	●
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	0105-		●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●	●
316	RUBBER; CUSHION,DUCT EXC. PRE CLEANER<W17>	9-09575-525-0	01	1	0105-			●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	0105-	●		●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0105-0106		●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0107-		●		●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●
389	RUBBER; SUPPORT,AIR INT UPR EXC. PRE CLEANER<W17>	8-97080-149-0	01	1	0105-			●
391	NUT; SUPPORT RUBBER,UPR EXC. PRE CLEANER<W17> M8 FLANGE	0-91150-108-0	02	1	0105-0602			●
391	NUT; SUPPORT RUBBER,UPR EXC. PRE CLEANER<W17> M8 FLANGE	0-91180-108-0	02	1	0603-			●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0105-0106	●	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0107-	●	●	●	●
472	STOPPER; LINK ROD CAB UP +110MM<TGG>	1-33659-230-0	01	1	0105-	●
472	STOPPER; LINK ROD	1-33659-230-0	01	1	0105-		●	●	●
472	STOPPER; LINK ROD EXC. CAB UP +110MM<TGG>	1-33659-227-0	01	1	0105-	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0105-0602		●	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	04	1	0603-	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-		●	●

386 49 56 57 26 57 56 489 242 5 61 2 5 242 240 64 489 59 49 514 421 402 489 48 50 281 48 48 242 521 271 296 291 211 472 210 209 153 210 296 49 291

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0105-0311	●
2	HOSE; ACL	1-14231-955-0	01	1	0105-0311		●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-	●		●
2	HOSE; ACL HONG KONG EQUIPMENT(PQ1)	1-14231-955-0	01	1	0312-		●		●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0105-0311	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-	●		●
2	HOSE; ACL EXC. HONG KONG EQUIPMENT(PQ1)	1-14231-871-0	01	1	0312-		●		●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-	●	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	0105-	●		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0105-0106		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0107-		●		●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0105-0106		●	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0107-		●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512		●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0105-0106		●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0107-		●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0406-0512		●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-		●		●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-	●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-0106		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0107-		●		●
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0105-0106		●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0107-		●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-	●	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-	●		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0105-0106		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0107-		●		●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0105-0106		●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0107-		●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0106		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0107-0110		●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0105-0106		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0107-		●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0105-0106		●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0107-		●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	0105-			●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-	●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0105-0106		●	●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0107-		●	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-0308	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-	●
153	BRACKET; ACL,FRT EXC. HONG KONG EQUIPMENT(PQ1)	1-53419-265-1	01	1	0309-		●		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0106		●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0107-0308		●	●	●
153	BRACKET; ACL,FRT HONG KONG EQUIPMENT(PQ1)	1-53419-299-0	01	1	0309-		●		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	0105-	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0105-	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
240	WASHER; PL,BRKT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0105-0106		●	●
240	WASHER; PL,BRKT PRE CLEANER<W17> ID=8.4 OD=22	1-09985-188-0	01	1	0107-		●	●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	0105-			●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> (F)	1-23957-006-0	01	1	0105-	●
242	BRACKET; AIR DUCT (F)	1-23957-006-0	01	1	0105-		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-325-1	01	1	0105-0106		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-325-1	01	1	0107-		●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-351-1	01	1	0105-0106		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-351-1	01	1	0107-0110		●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-324-0	01	1	0111-		●		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0105-0106		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0107-		●	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0105-0106		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0107-		●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	0105-			●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	0105-			●
271	SPACER; BRKT,ACL CAB UP +110MM<TGG>	1-53419-343-0	02	1	0105-	●
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	0105-		●	●
281	DUCT; AIR,VERTICAL INT CAB UP +110MM<TGG> PRE CLEANER<W17>	1-14230-194-0	01	1	0105-	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-194-0	01	1	0105-		●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17> EXC. CAB UP +110MM<TGG>	1-14230-191-0	01	1	0105-	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-1	01	1	0105-0106		●	●
402	GASKET; RUBBER PRE CLEANER<W17>	1-14230-149-1	01	1	0107-		●	●	●
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	0105-0106		●	●
421	CLAMP; AIR DUCT PRE CLEANER<W17>	1-14239-237-0	01	1	0107-		●	●	●
472	STOPPER; LINK ROD CAB UP +110MM<TGG>	1-33659-230-0	01	1	0105-	●
472	STOPPER; LINK ROD	1-33659-230-0	01	1	0105-		●	●	●
472	STOPPER; LINK ROD EXC. CAB UP +110MM<TGG>	1-33659-227-0	01	1	0105-	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-0106		●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0107-		●	●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0105-0106		●	●
489	RUBBER; SUPPORT PRE CLEANER<W17> (B)	8-97080-149-0	02	1	0107-		●	●	●
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-0	01	1	0105-0106		●	●
514	DUCT; PRE CLEANER PRE CLEANER<W17>	1-14230-170-0	01	1	0107-		●	●	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0105-0602		●	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	04	1	0603-	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-		●	●

386 55 470 76 74 59 242 74 267 257 76 287 17 67 257 257 257 209 58 61 57 57 49 56 58 59 58 64 62 57 58 59 26 51 242 48 281 48 49 242 48 49 50 5 2 5 472 296 291 271 521 211 291 210 296 209 210 296 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0105-0311	●
2	HOSE; ACL	1-14231-955-0	01	1	0105-0311		●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-	●		●
2	HOSE; ACL HONG KONG EQUIPMENT(PQ1)	1-14231-955-0	01	1	0312-		●		●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0105-0311	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-	●		●
2	HOSE; ACL EXC. HONG KONG EQUIPMENT(PQ1)	1-14231-871-0	01	1	0312-		●		●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-	●	●	●	●
17	GASKET; AIR DUCT PRE CLEANER<W17>	1-14239-170-0	01	1	0105-	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	0105-	●		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0105-0106		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0107-		●		●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0105-0106		●	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0107-		●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512		●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0105-0106		●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0107-		●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0406-0512		●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-		●		●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-	●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-0106		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0107-		●		●
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0105-0106		●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0107-		●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-	●	●	●	●
51	GASKET ASM; RUBBER PRE CLEANER<W17>	1-14230-150-0	01	1	0105-	●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-768-0	01	1	0105-	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-	●		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0105-0106		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0107-		●		●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0105-0106		●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0107-		●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0106		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0107-0110		●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0105-0106		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0107-		●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0105-0106		●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0107-		●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	0105-			●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	08	1	0105-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	0105-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0105-0106		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0107-0110		●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	0111-		●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-0106		●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0107-		●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-	●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0105-0106		●	●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0107-		●	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X60	1-09030-044-1	01	1	0105-	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X60	1-09030-044-1	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	0105-0512			●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-			●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	0105-	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	03	1	0105-	●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	0105-	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-0308	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-	●
153	BRACKET; ACL,FRT EXC. HONG KONG EQUIPMENT(PQ1)	1-53419-265-1	01	1	0309-		●		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0106		●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0107-0308		●	●	●
153	BRACKET; ACL,FRT HONG KONG EQUIPMENT(PQ1)	1-53419-299-0	01	1	0309-		●		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	0105-	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0105-	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	0105-			●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> (F)	1-23957-006-0	01	1	0105-	●
242	BRACKET; AIR DUCT (F)	1-23957-006-0	01	1	0105-		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-325-1	01	1	0105-0106		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-325-1	01	1	0107-		●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-351-1	01	1	0105-0106		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-351-1	01	1	0107-0110		●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-324-0	01	1	0111-		●		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0105-0106		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0107-		●	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0105-0106		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0107-		●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	0105-			●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	0105-			●
257	NUT; BRKT PRE CLEANER<W17> M10	1-09400-053-0	11	1	0105-	●
267	WASHER; LK,ACL PRE CLEANER<W17> ID=10	1-09985-180-0	01	1	0105-	●
271	SPACER; BRKT,ACL CAB UP +110MM<TGG>	1-53419-343-0	02	1	0105-	●
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	0105-		●	●
281	DUCT; AIR,VERTICAL INT CAB UP +110MM<TGG> PRE CLEANER<W17>	1-14230-194-0	01	1	0105-	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17>	1-14230-194-0	01	1	0105-		●	●
281	DUCT; AIR,VERTICAL INT PRE CLEANER<W17> EXC. CAB UP +110MM<TGG>	1-14230-191-0	01	1	0105-	●
287	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	0105-	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●	●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●
470	BOLT; BRKT PRE CLEANER<W17>	1-09000-372-0	02	1	0105-	●
472	STOPPER; LINK ROD CAB UP +110MM<TGG>	1-33659-230-0	01	1	0105-	●
472	STOPPER; LINK ROD	1-33659-230-0	01	1	0105-		●	●	●
472	STOPPER; LINK ROD EXC. CAB UP +110MM<TGG>	1-33659-227-0	01	1	0105-	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0105-0602		●	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	04	1	0603-	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-		●	●

386 61 58 59 49 56 57 58 59 242 58 64 242 62 58 26 450 361 252 48 48 49 48 242 49 50 5 2 5 472 296 291 271 521 291 210 211 296 209 210 153 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0105-0311	●
2	HOSE; ACL	1-14231-955-0	01	1	0105-0311		●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-	●		●
2	HOSE; ACL HONG KONG EQUIPMENT(PQ1)	1-14231-955-0	01	1	0312-		●		●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0105-0311	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-	●		●
2	HOSE; ACL EXC. HONG KONG EQUIPMENT(PQ1)	1-14231-871-0	01	1	0312-		●		●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-	●	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	0105-	●		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0105-0106		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0107-		●		●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0105-0106		●	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0107-		●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512		●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0105-0106		●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0107-		●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0406-0512		●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-		●		●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-	●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-0106		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0107-		●		●
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0105-0106		●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0107-		●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-	●	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-	●		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0105-0106		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0107-		●		●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0105-0106		●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0107-		●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0106		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0107-0110		●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0105-0106		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0107-		●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0105-0106		●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0107-		●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	0105-			●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	08	1	0105-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	0105-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0105-0106		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0107-0110		●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	0111-		●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-0106		●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0107-		●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-	●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0105-0106		●	●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0107-		●	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X60	1-09030-044-1	01	1	0105-	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X60	1-09030-044-1	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	0105-0512			●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-			●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-0308	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-	●
153	BRACKET; ACL,FRT EXC. HONG KONG EQUIPMENT(PQ1)	1-53419-265-1	01	1	0309-		●		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0106		●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0107-0308		●	●	●
153	BRACKET; ACL,FRT HONG KONG EQUIPMENT(PQ1)	1-53419-299-0	01	1	0309-		●		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	0105-	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0105-	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	0105-			●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> (F)	1-23957-006-0	01	1	0105-	●
242	BRACKET; AIR DUCT (F)	1-23957-006-0	01	1	0105-		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-325-1	01	1	0105-0106		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-325-1	01	1	0107-		●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-351-1	01	1	0105-0106		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-351-1	01	1	0107-0110		●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-324-0	01	1	0111-		●		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0105-0106		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0107-		●	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0105-0106		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0107-		●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	0105-			●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	0105-			●
252	DUCT; AIR INT CAB UP +110MM<TGG> EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0105-	●
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0105-		●	●
252	DUCT; AIR INT EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17>	1-14230-191-0	01	1	0105-	●
271	SPACER; BRKT,ACL CAB UP +110MM<TGG>	1-53419-343-0	02	1	0105-	●
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	0105-		●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	0105-	●		●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0105-0106		●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0107-		●		●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0105-0106	●	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0107-	●	●	●	●
472	STOPPER; LINK ROD CAB UP +110MM<TGG>	1-33659-230-0	01	1	0105-	●
472	STOPPER; LINK ROD	1-33659-230-0	01	1	0105-		●	●	●
472	STOPPER; LINK ROD EXC. CAB UP +110MM<TGG>	1-33659-227-0	01	1	0105-	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0105-0602		●	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	04	1	0603-	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-		●	●

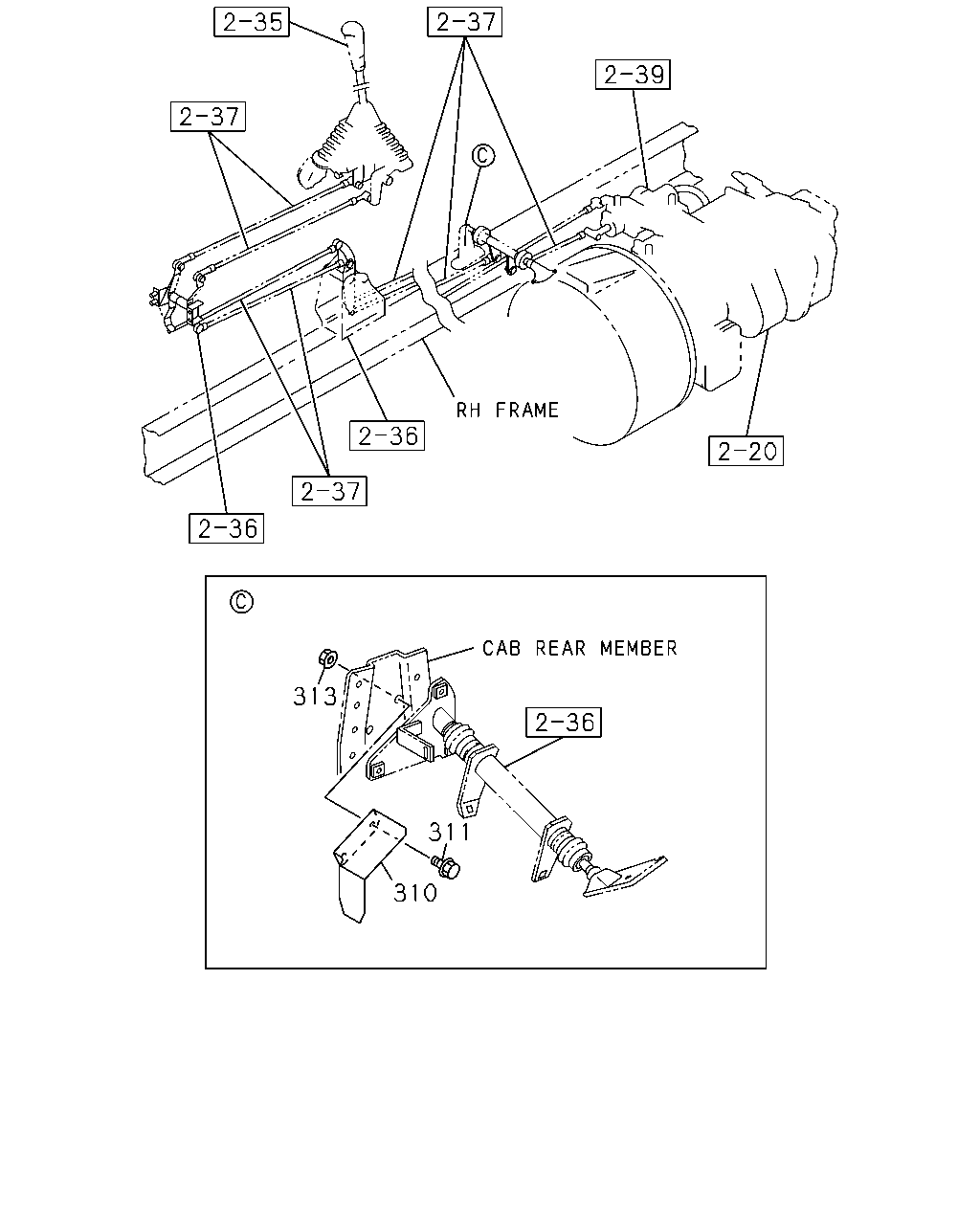

313 311 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
310	PROTECTOR; HEAT,ACL EXC. CAB UP +110MM<TGG>	1-14181-287-1	01	1	0105-	●
311	BOLT; HEAT PROTECTOR EXC. CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●
311	BOLT; HEAT PROTECTOR EXC. CAB UP +110MM<TGG> M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
313	NUT; HEAT PROTECTOR EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	0105-0602	●
313	NUT; HEAT PROTECTOR EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	01	1	0603-	●

242 61 49 56 57 58 5 2 5 242 57 58 59 64 271 521 26 450 361 57 56 49 58 62 252 50 48 48 242 296 291 472 211 210 209 153 49 296 210 291 386 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0105-0311	●
2	HOSE; ACL	1-14231-955-0	01	1	0105-0311		●	●
2	HOSE; ACL CAB UP +110MM<TGG>	1-14231-955-0	01	1	0312-	●		●
2	HOSE; ACL HONG KONG EQUIPMENT(PQ1)	1-14231-955-0	01	1	0312-		●		●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0105-0311	●
2	HOSE; ACL EXC. CAB UP +110MM<TGG>	1-14231-871-0	01	1	0312-	●		●
2	HOSE; ACL EXC. HONG KONG EQUIPMENT(PQ1)	1-14231-871-0	01	1	0312-		●		●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	02	1	0105-	●	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17> (A)	1-14231-938-0	01	1	0105-	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (C)	1-14230-152-0	01	1	0105-	●		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0105-0106		●
26	DUCT; AIR INT EXC. PRE CLEANER<W17> (D)	1-14230-202-0	01	1	0107-		●		●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0105-0106		●	●
26	DUCT; AIR INT PRE CLEANER<W17> (B)	1-14219-258-0	01	1	0107-		●	●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512		●	●
48	BOLT; AIR DUCT CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
48	BOLT; AIR DUCT (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28681-025-0	01	1	0105-0512	●	●	●	●
48	BOLT; AIR DUCT (B) M10X25 FLANGE	0-28651-025-0	01	1	0601-	●	●	●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0105-0106		●	●
48	BOLT; AIR DUCT PRE CLEANER<W17> (C) M10X60	1-09030-044-1	02	1	0107-		●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	9-09110-408-0	01	1	0406-0512		●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (D) M8	0-91110-508-0	01	1	0601-		●		●
49	NUT; AIR DUCT PRE CLEANER<W17> (A) M10	1-09984-145-0	02	1	0105-	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91150-210-0	01	1	0105-0602	●	●	●	●
49	NUT; AIR DUCT (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (A) M10	1-09984-145-0	01	1	0105-	●		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0105-0106		●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (C) M8 FLANGE	1-09984-126-0	01	1	0107-		●		●
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0105-0106		●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (D) M8 FLANGE	1-09984-126-0	04	1	0107-		●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	0105-	●	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (A) ID=10	1-09985-185-0	02	1	0105-	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10	1-09985-185-0	01	1	0105-	●		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0105-0106		●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	02	1	0107-		●		●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0105-0106		●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> (B) ID=8.2	1-09985-177-0	04	1	0107-		●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	02	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=26	9-09160-710-0	02	1	0105-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.3	1-09985-172-0	01	1	0105-0110	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0111-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-0106		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (D) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0107-0110		●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0111-	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0105-0106		●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	02	1	0107-		●		●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0105-0106		●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (C) ID=8.4 OD=22	1-09985-188-0	04	1	0107-		●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> (A) ID=11 OD=54	1-09503-154-1	01	1	0105-			●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	08	1	0105-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	0105-	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0105-0106		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	1-14119-452-0	01	1	0107-0110		●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (B)	8-97080-149-0	01	1	0111-		●		●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0105-0106		●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (A) OD=40 T=18.5	1-14119-267-0	04	1	0107-		●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (A)	1-79998-228-0	04	1	0105-	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> (B) L=22	9-22159-024-0	01	1	0105-	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> (A)	1-79998-228-0	03	1	0105-	●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0105-0106		●	●
59	TUBE; DIST,AIR INT DUCT (A)	1-79998-228-0	02	1	0107-		●	●	●
61	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28081-080-0	01	1	0105-0512	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X80 FLANGE	0-28051-080-0	01	1	0601-	●
62	BOLT; AIR INT DUCT PRE CLEANER<W17> (A) M10X60	1-09030-044-1	01	1	0105-	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (A) M10X60	1-09030-044-1	02	1	0105-	●	●	●	●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28681-035-0	01	1	0105-0512			●
62	BOLT; AIR INT DUCT EXC. PRE CLEANER<W17> (B) M10X35 FLANGE	0-28651-035-0	01	1	0601-			●
64	BOLT; BRKT,AIR DUCT M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	0105-	●	●	●	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0105-0308	●
153	BRACKET; ACL,FRT	1-53419-265-1	01	1	0309-	●
153	BRACKET; ACL,FRT EXC. HONG KONG EQUIPMENT(PQ1)	1-53419-265-1	01	1	0309-		●		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0105-0106		●	●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0107-0308		●	●	●
153	BRACKET; ACL,FRT HONG KONG EQUIPMENT(PQ1)	1-53419-299-0	01	1	0309-		●		●
153	BRACKET; ACL,FRT	1-53419-299-0	01	1	0309-			●
209	BRACKET; ACL HIGH ROOF<S2F> PRE CLEANER<W17> (B)	1-14239-257-0	01	1	0105-	●
209	BRACKET; ACL PRE CLEANER<W17> EXC. HIGH ROOF<S2F> (B)	1-14239-247-0	01	1	0105-	●
209	BRACKET; ACL (A)	1-53419-276-0	01	1	0105-	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28080-870-0	02	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (A) M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28681-230-0	01	1	0105-0512	●	●	●	●
210	BOLT; ACL BRKT (B) M12X30 FLANGE	0-28651-230-0	01	1	0601-	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●	●
211	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
242	BRACKET; AIR DUCT (B)	1-79997-326-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (B)	1-79997-326-1	01	1	0105-			●
242	BRACKET; AIR DUCT CAB UP +110MM<TGG> (F)	1-23957-006-0	01	1	0105-	●
242	BRACKET; AIR DUCT (F)	1-23957-006-0	01	1	0105-		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-79996-361-0	01	1	0105-	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> EXC. GRIP OUT SIDE<W52> (C)	1-79996-119-0	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (A)	1-79997-322-1	01	1	0105-	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-325-1	01	1	0105-0106		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (I)	1-53419-325-1	01	1	0107-		●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-351-1	01	1	0105-0106		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-351-1	01	1	0107-0110		●		●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (J)	1-53419-324-0	01	1	0111-		●		●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0105-0106		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (G)	1-79990-041-0	01	1	0107-		●	●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0105-0106		●	●
242	BRACKET; AIR DUCT PRE CLEANER<W17> (H)	1-79990-045-1	01	1	0107-		●	●	●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (D)	1-47477-674-0	01	1	0105-			●
242	BRACKET; AIR DUCT EXC. PRE CLEANER<W17> (E)	1-47477-675-0	01	1	0105-			●
252	DUCT; AIR INT CAB UP +110MM<TGG> EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0105-	●
252	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14230-194-0	01	1	0105-		●	●
252	DUCT; AIR INT EXC. CAB UP +110MM<TGG>,PRE CLEANER<W17>	1-14230-191-0	01	1	0105-	●
271	SPACER; BRKT,ACL CAB UP +110MM<TGG>	1-53419-343-0	02	1	0105-	●
271	SPACER; BRKT,ACL	1-53419-343-0	02	1	0105-		●	●
291	BOLT; ACL M12X30 FLANGE	0-28681-230-0	02	1	0105-0512	●	●	●	●
291	BOLT; ACL M12X30 FLANGE	0-28651-230-0	02	1	0601-	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91150-108-0	04	1	0105-0602	●	●	●	●
296	NUT; ACL (A) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91150-212-0	02	1	0105-0602	●	●	●	●
296	NUT; ACL (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●	●	●	●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-124-0	01	1	0105-	●		●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0105-0106		●
361	RUBBER; CUSHION,AIR DUCT EXC. PRE CLEANER<W17>	1-14230-149-1	01	1	0107-		●		●
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	04	1	0105-	●	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0105-0106	●	●	●
450	CLAMP; HOSE EXC. PRE CLEANER<W17>	1-14239-237-0	01	1	0107-	●	●	●	●
472	STOPPER; LINK ROD CAB UP +110MM<TGG>	1-33659-230-0	01	1	0105-	●
472	STOPPER; LINK ROD	1-33659-230-0	01	1	0105-		●	●	●
472	STOPPER; LINK ROD EXC. CAB UP +110MM<TGG>	1-33659-227-0	01	1	0105-	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	0105-0602	●
521	NUT; SPACER M8 FLANGE	0-91150-108-0	04	1	0105-0602		●	●
521	NUT; SPACER CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	04	1	0603-	●
521	NUT; SPACER M8 FLANGE	0-91180-108-0	04	1	0603-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
