1-30B — AIR CLEANER (#13295) — 32 parça

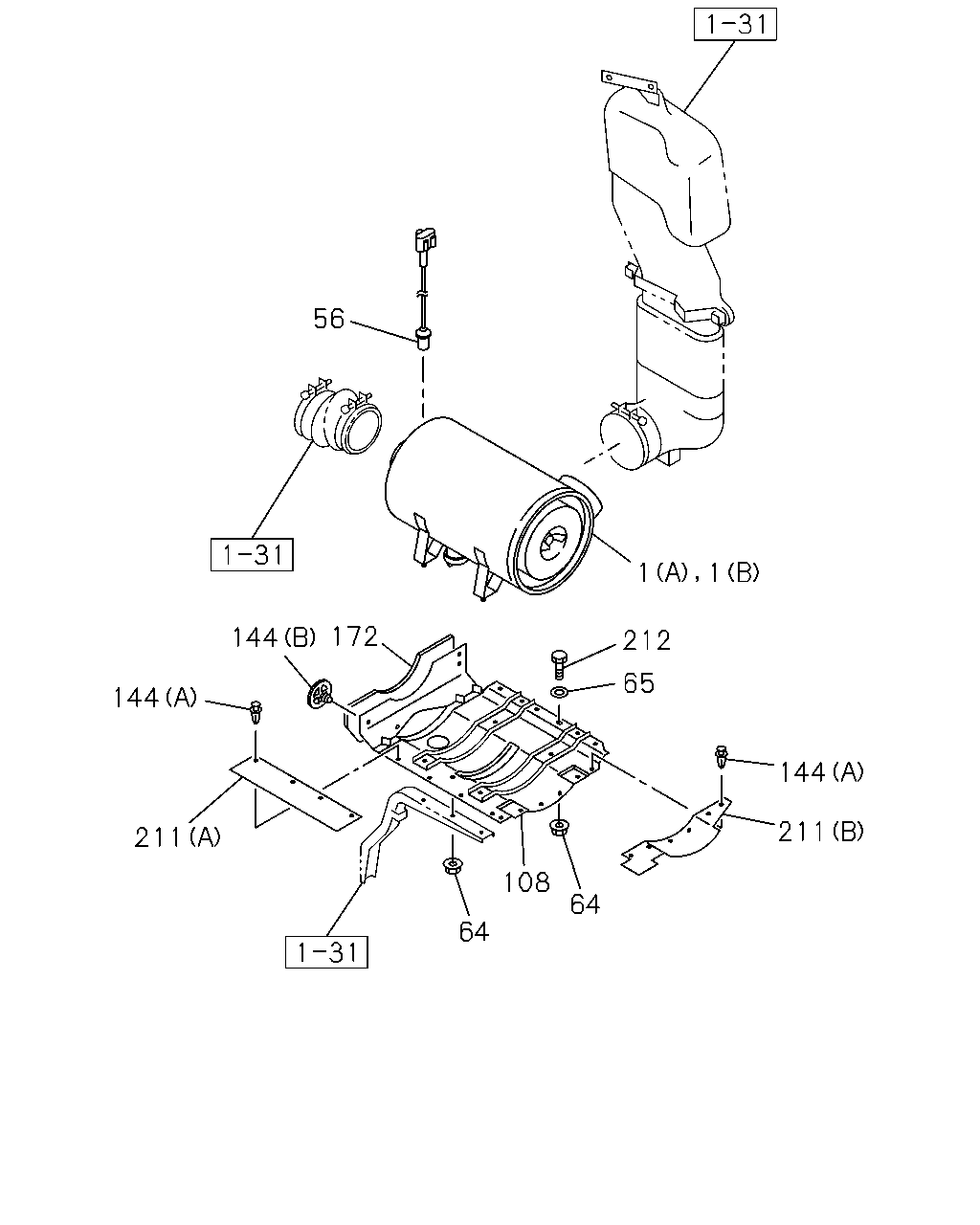

çizim 22650
56 144 172 212 1 65 144 211 64 108 64 211 144 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-767-2 01 1 0105- ● ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-783-2 01 1 0105- ● ● ●
56 SWITCH; ACL 1-81530-016-0 01 1 0105- ● ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 0105-0602 ● ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 0105-0306 ● ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 0307- ● ● ●
108 COVER; ACL 1-53419-300-0 01 1 0105- ● ● ●
144 CLIP; ACL
(A) 		5-09987-033-0 09 1 0105- ● ● ●
144 CLIP; ACL
(B) 		8-94279-048-0 07 1 0105- ● ● ●
172 INSULATOR; NOISE 1-53446-781-2 01 1 0105- ● ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 0105-0106 ● ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 0107- ● ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 0105-0106 ● ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 0107- ● ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 0105-0512 ● ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ●

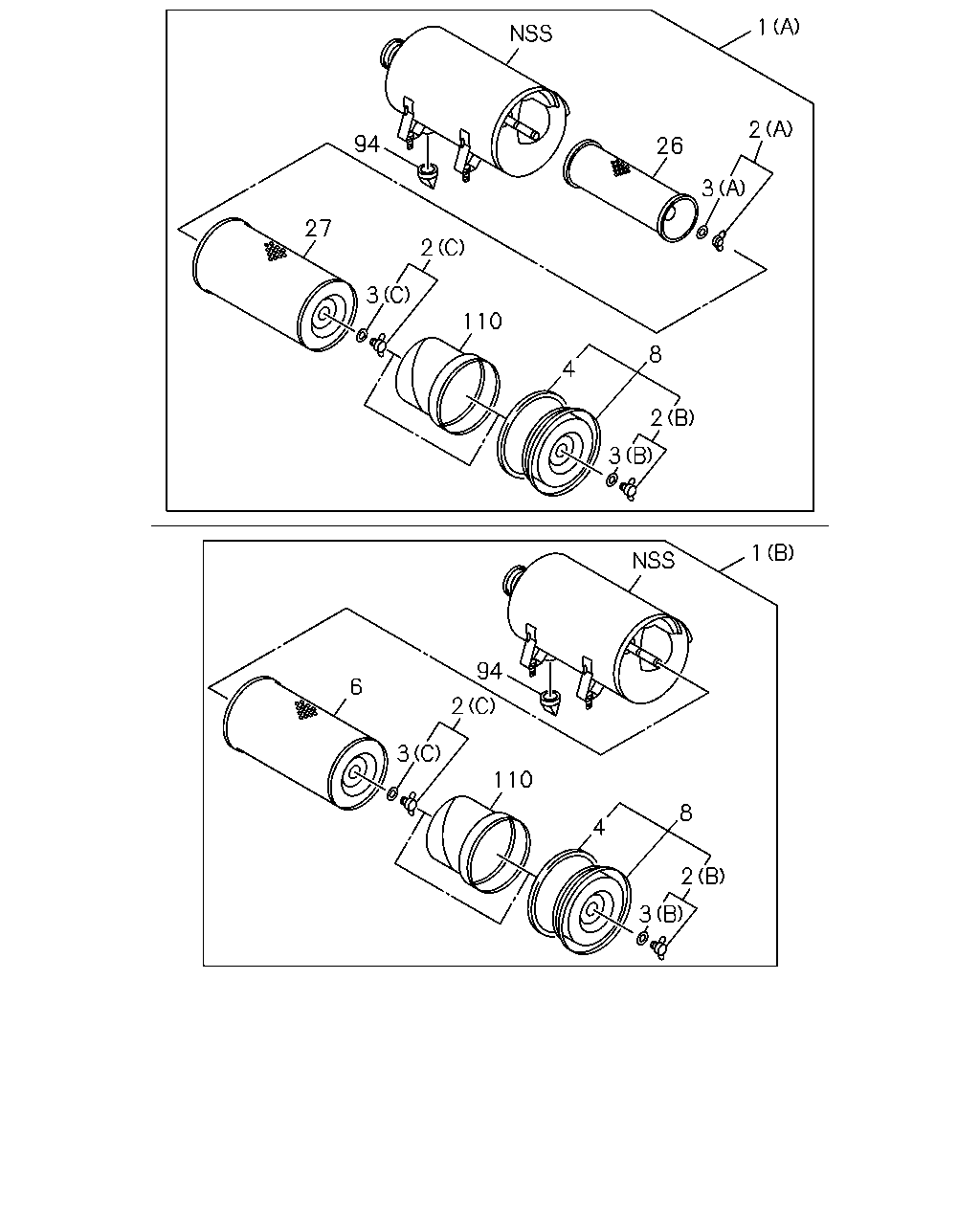

çizim 77088
1 2 3 26 8 2 94 27 3 110 4 2 3 1 94 2 6 3 110 4 8 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-767-2 01 1 0105- ● ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-783-2 01 1 0105- ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 0105- ● ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 0105- ● ● ●
2 NUT; WING,ELEMENT
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14217-003-0 01 1 0105- ● ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-118-0 01 1 0105- ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0105- ● ● ●
3 WASHER; SEAL,WING NUT
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14219-032-0 01 1 0105- ● ● ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0105- ● ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-184-1 01 1 0105- ● ● ●
8 COVER ASM; ACL 1-14212-064-0 01 1 0105- ● ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-089-1 01 1 0105- ● ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-184-1 01 1 0105- ● ● ●
94 VALVE; VACUATOR 1-14219-129-0 01 1 0105- ● ● ●
110 ADAPTER; ACL 1-14219-175-0 01 1 0105- ● ● ●
