1-30A — AIR CLEANER (#13294) — 152 parça

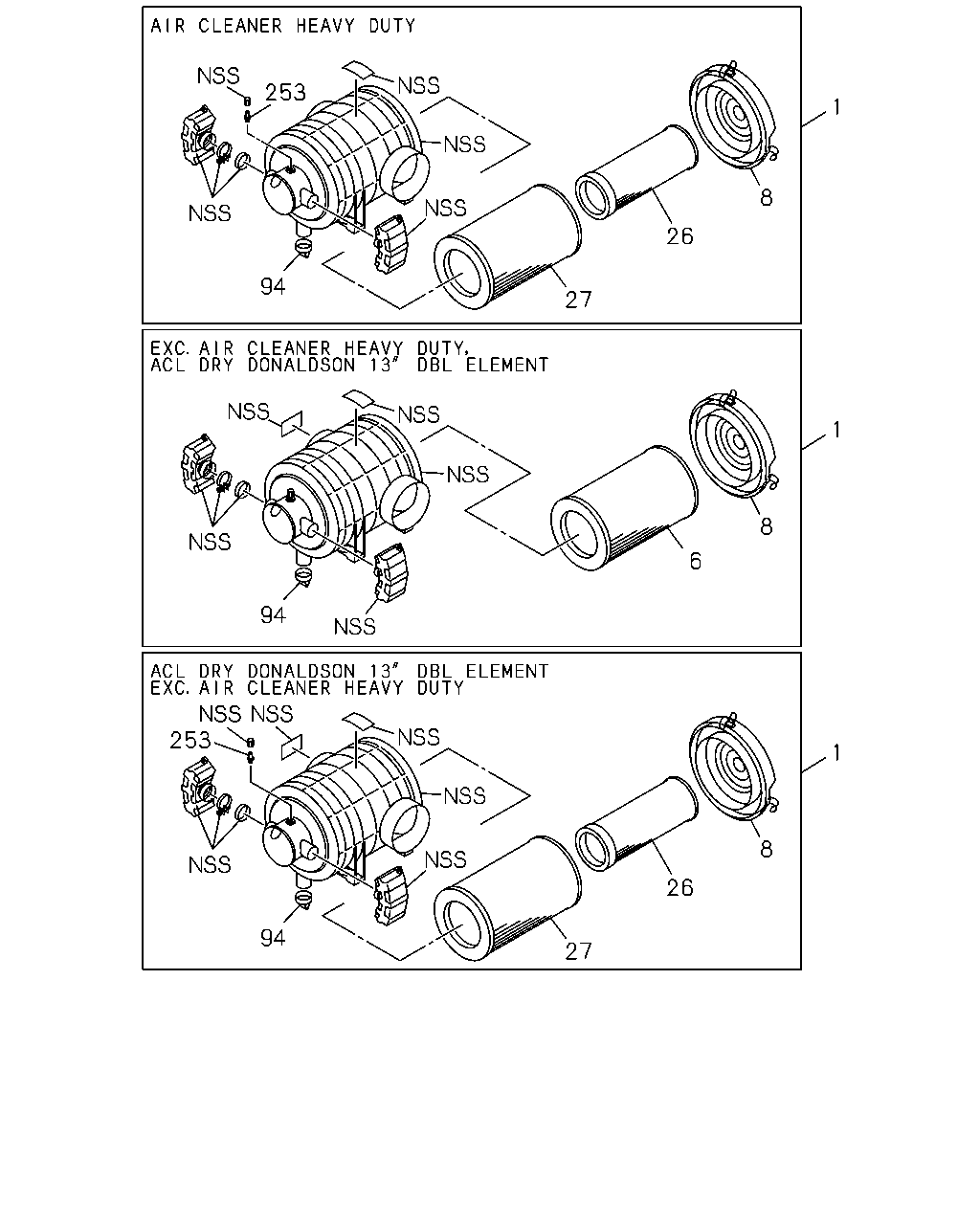

çizim 77152
1 8 26 27 94 253 1 8 6 94 253 94 27 26 8 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 0105-0308 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 0309- ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. HONG KONG EQUIPMENT(PQ1) 		1-14210-832-0 01 1 0309- ● ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 0105- ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 0105-0308 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 0309- ●
1 CLEANER ASM; AIR
EXC. HONG KONG EQUIPMENT(PQ1),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 0309- ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 0105-0106 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 0107-0308 ● ● ●
1 CLEANER ASM; AIR
HONG KONG EQUIPMENT(PQ1) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 0309- ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 0309- ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 0105-0106 ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 0107-0308 ● ● ●
1 CLEANER ASM; AIR
HONG KONG EQUIPMENT(PQ1) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 0309- ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 0309- ●
6 FILTER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0105-0308 ●
6 FILTER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0309- ●
6 FILTER; ACL
EXC. HONG KONG EQUIPMENT(PQ1),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0309- ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0105-0106 ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0107-0308 ● ● ●
6 FILTER; ACL
HONG KONG EQUIPMENT(PQ1) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0309- ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0309- ●
8 COVER ASM; ACL 1-14212-129-0 01 1 0105-0308 ●
8 COVER ASM; ACL 1-14212-129-0 01 1 0309- ●
8 COVER ASM; ACL
EXC. HONG KONG EQUIPMENT(PQ1) 		1-14212-129-0 01 1 0309- ● ●
8 COVER ASM; ACL 1-14212-132-0 01 1 0105-0106 ● ●
8 COVER ASM; ACL 1-14212-132-0 01 1 0107-0308 ● ● ●
8 COVER ASM; ACL
HONG KONG EQUIPMENT(PQ1) 		1-14212-132-0 01 1 0309- ● ●
8 COVER ASM; ACL 1-14212-132-0 01 1 0309- ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 0105-0308 ●
26 FILTER; ACL,INNER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 0105-0308 ●
26 FILTER; ACL,INNER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 0309- ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 0309- ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. HONG KONG EQUIPMENT(PQ1) 		1-14215-217-0 01 1 0309- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 0105-0106 ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 0107-0308 ● ● ●
26 FILTER; ACL,INNER
HONG KONG EQUIPMENT(PQ1) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 0309- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 0309- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 0105-0308 ●
27 FILTER; ACL,OUTER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 0105-0308 ●
27 FILTER; ACL,OUTER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 0309- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 0309- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. HONG KONG EQUIPMENT(PQ1) 		1-14215-203-0 01 1 0309- ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0105-0106 ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0107-0308 ● ● ●
27 FILTER; ACL,OUTER
HONG KONG EQUIPMENT(PQ1) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0309- ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0309- ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 0105-0308 ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 0309- ●
94 VALVE; VACUATOR
EXC. HONG KONG EQUIPMENT(PQ1) 		1-14219-251-0 01 1 0309- ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0105-0106 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0107-0308 ● ● ●
94 VALVE; VACUATOR
HONG KONG EQUIPMENT(PQ1) 		1-14219-192-0 01 1 0309- ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0309- ●
253 NIPPLE 1-14219-252-0 01 1 0105-0308 ●
253 NIPPLE 1-14219-252-0 01 1 0309- ●
253 NIPPLE
EXC. HONG KONG EQUIPMENT(PQ1) 		1-14219-252-0 01 1 0309- ● ●

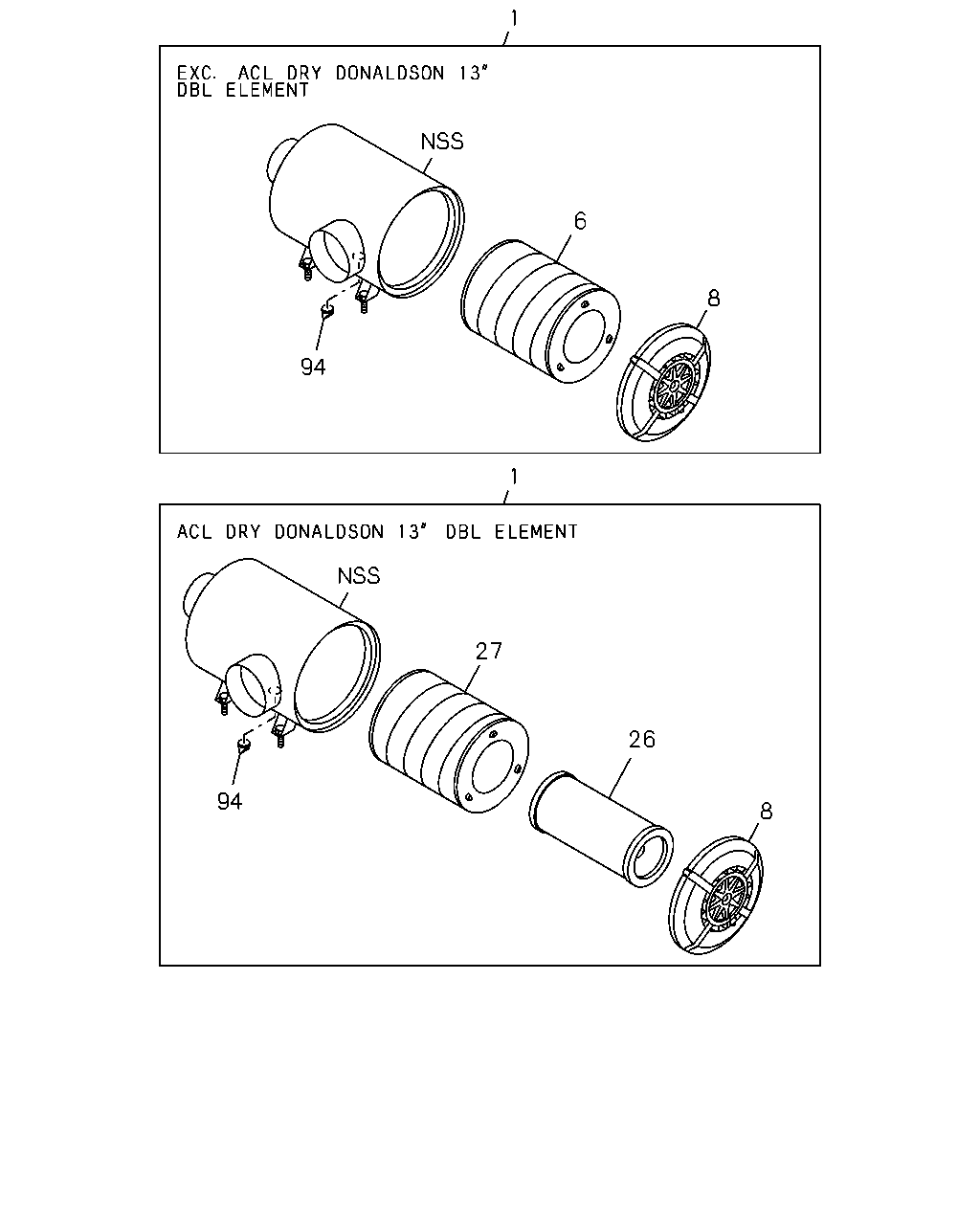

çizim 77208
1 8 6 94 1 8 26 27 94
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 0105-0308 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 0309- ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. HONG KONG EQUIPMENT(PQ1) 		1-14210-832-0 01 1 0309- ● ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 0105- ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 0105-0308 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 0309- ●
1 CLEANER ASM; AIR
EXC. HONG KONG EQUIPMENT(PQ1),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 0309- ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 0105-0106 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 0107-0308 ● ● ●
1 CLEANER ASM; AIR
HONG KONG EQUIPMENT(PQ1) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 0309- ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 0309- ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 0105-0106 ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 0107-0308 ● ● ●
1 CLEANER ASM; AIR
HONG KONG EQUIPMENT(PQ1) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 0309- ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 0309- ●
6 FILTER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0105-0308 ●
6 FILTER; ACL
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0309- ●
6 FILTER; ACL
EXC. HONG KONG EQUIPMENT(PQ1),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0309- ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0105-0106 ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0107-0308 ● ● ●
6 FILTER; ACL
HONG KONG EQUIPMENT(PQ1) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0309- ● ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0309- ●
8 COVER ASM; ACL 1-14212-129-0 01 1 0105-0308 ●
8 COVER ASM; ACL 1-14212-129-0 01 1 0309- ●
8 COVER ASM; ACL
EXC. HONG KONG EQUIPMENT(PQ1) 		1-14212-129-0 01 1 0309- ● ●
8 COVER ASM; ACL 1-14212-132-0 01 1 0105-0106 ● ●
8 COVER ASM; ACL 1-14212-132-0 01 1 0107-0308 ● ● ●
8 COVER ASM; ACL
HONG KONG EQUIPMENT(PQ1) 		1-14212-132-0 01 1 0309- ● ●
8 COVER ASM; ACL 1-14212-132-0 01 1 0309- ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 0105-0308 ●
26 FILTER; ACL,INNER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 0105-0308 ●
26 FILTER; ACL,INNER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 0309- ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-217-0 01 1 0309- ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. HONG KONG EQUIPMENT(PQ1) 		1-14215-217-0 01 1 0309- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 0105-0106 ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 0107-0308 ● ● ●
26 FILTER; ACL,INNER
HONG KONG EQUIPMENT(PQ1) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 0309- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 0309- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 0105-0308 ●
27 FILTER; ACL,OUTER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 0105-0308 ●
27 FILTER; ACL,OUTER
AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 0309- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14215-203-0 01 1 0309- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. HONG KONG EQUIPMENT(PQ1) 		1-14215-203-0 01 1 0309- ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0105-0106 ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0107-0308 ● ● ●
27 FILTER; ACL,OUTER
HONG KONG EQUIPMENT(PQ1) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0309- ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0309- ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 0105-0308 ●
94 VALVE; VACUATOR 1-14219-251-0 01 1 0309- ●
94 VALVE; VACUATOR
EXC. HONG KONG EQUIPMENT(PQ1) 		1-14219-251-0 01 1 0309- ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0105-0106 ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0107-0308 ● ● ●
94 VALVE; VACUATOR
HONG KONG EQUIPMENT(PQ1) 		1-14219-192-0 01 1 0309- ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0309- ●

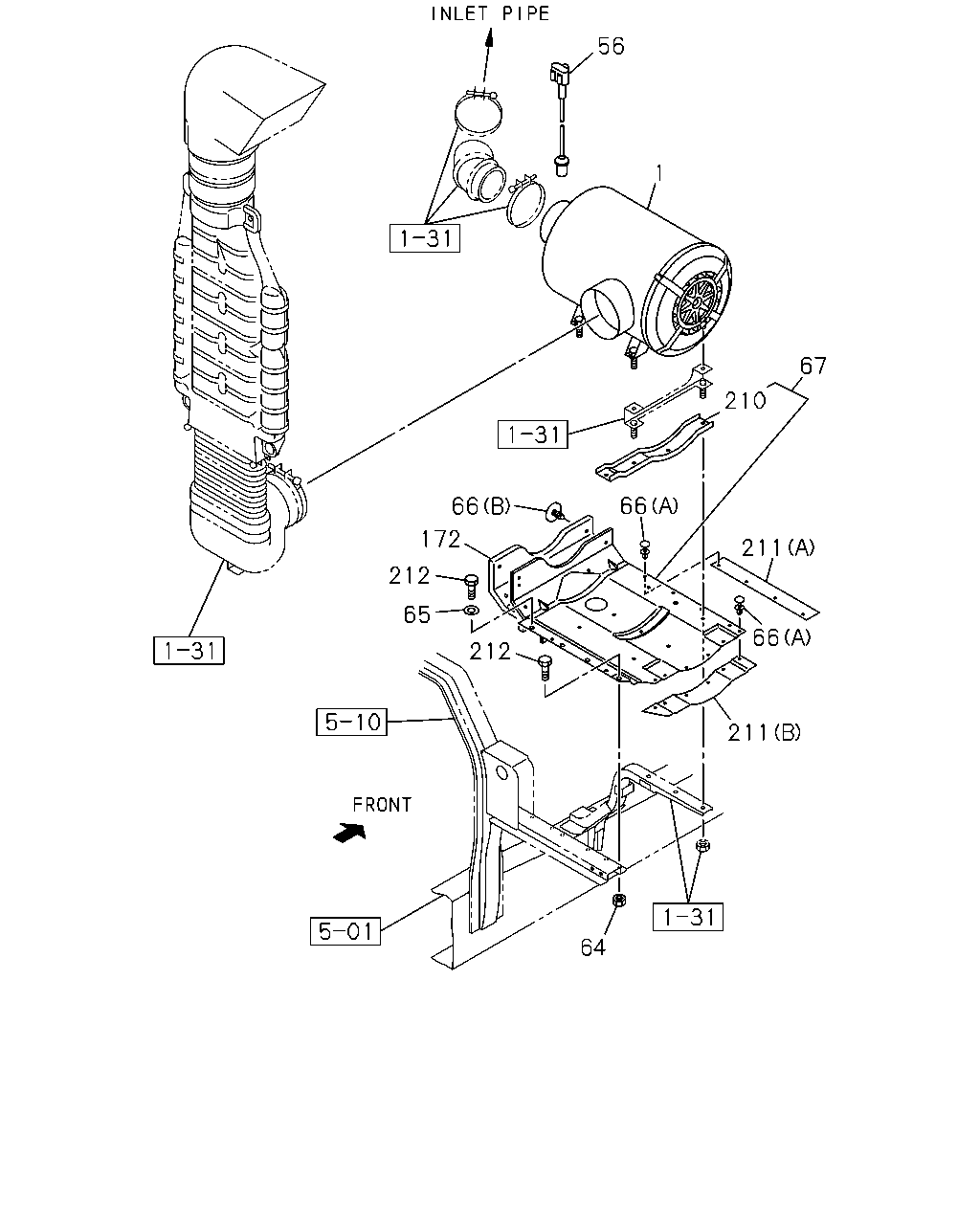

çizim 77217
56 67 1 210 211 66 66 172 212 212 65 66 211 64
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 0105-0308 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. AIR CLEANER HEAVY DUTY<K45> 		1-14210-832-0 01 1 0309- ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> EXC. HONG KONG EQUIPMENT(PQ1) 		1-14210-832-0 01 1 0309- ● ●
1 CLEANER ASM; AIR
AIR CLEANER HEAVY DUTY<K45> 		1-14210-834-0 01 1 0105- ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 0105-0308 ●
1 CLEANER ASM; AIR
EXC. AIR CLEANER HEAVY DUTY<K45>,ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 0309- ●
1 CLEANER ASM; AIR
EXC. HONG KONG EQUIPMENT(PQ1),ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-740-0 01 1 0309- ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 0105-0106 ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 0107-0308 ● ● ●
1 CLEANER ASM; AIR
HONG KONG EQUIPMENT(PQ1) ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 0309- ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-821-0 01 1 0309- ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 0105-0106 ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 0107-0308 ● ● ●
1 CLEANER ASM; AIR
HONG KONG EQUIPMENT(PQ1) EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 0309- ● ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14210-787-3 01 1 0309- ●
56 SWITCH; ACL 1-81530-016-0 01 1 0105- ● ● ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 0105-0602 ● ● ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 03 1 0105-0306 ● ● ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 0307- ● ● ● ●
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 0105-0106 ● ● ●
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 0107- ● ● ● ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 0105-0106 ● ● ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 0107- ● ● ● ●
67 COVER; ACL 1-53419-281-3 01 1 0105-0308 ●
67 COVER; ACL 1-53419-281-3 01 1 0309- ●
67 COVER; ACL
EXC. HONG KONG EQUIPMENT(PQ1) 		1-53419-281-3 01 1 0309- ● ●
67 COVER; ACL 1-53419-304-0 01 1 0105-0106 ● ●
67 COVER; ACL 1-53419-304-0 01 1 0107-0308 ● ● ●
67 COVER; ACL
HONG KONG EQUIPMENT(PQ1) 		1-53419-304-0 01 1 0309- ● ●
67 COVER; ACL 1-53419-304-0 01 1 0309- ●
172 INSULATOR; NOISE 1-53446-780-1 01 1 0105-0106 ● ● ●
172 INSULATOR; NOISE 1-53446-780-1 01 1 0107- ● ● ● ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 0105-0106 ● ● ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 0107- ● ● ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 0105-0106 ● ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 0107- ● ● ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 0105-0106 ● ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 0107- ● ● ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 0105-0512 ● ● ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
