Sayfa 1-11A - Isuzu EPC

1-11A — RADIATOR HOSE AND SUB TANK (#13292) — 268 parça

87 90 90 140 90 87 63 60 42 139 10 10 10 37 10 20 37 20 9 7 143 16 123 90 10 63 10 10 37 10 60 42 7 9 20 37 20 90 79 10 10 68 68 38 10 38 39 40 39 35 10 40 40 10 38 39

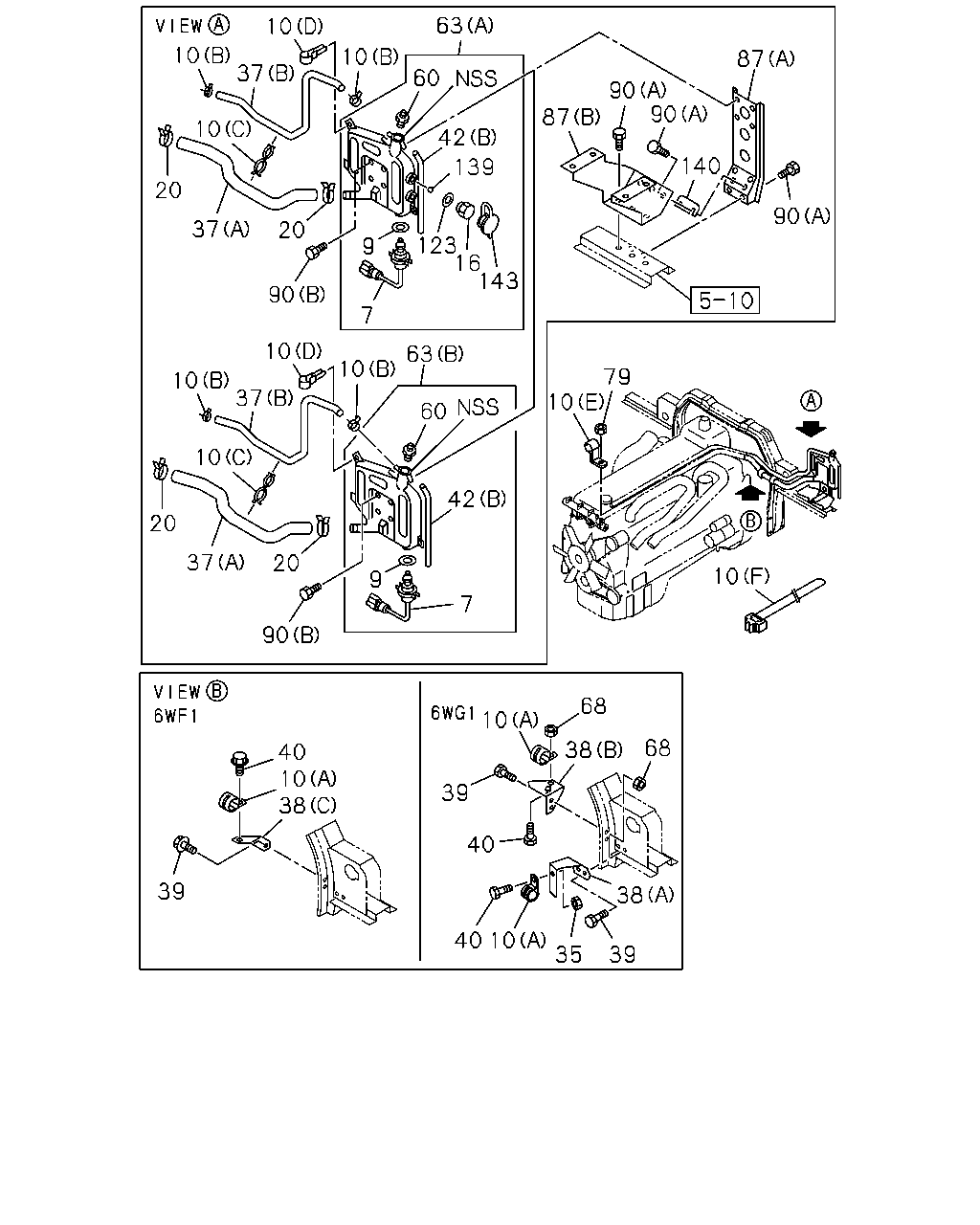

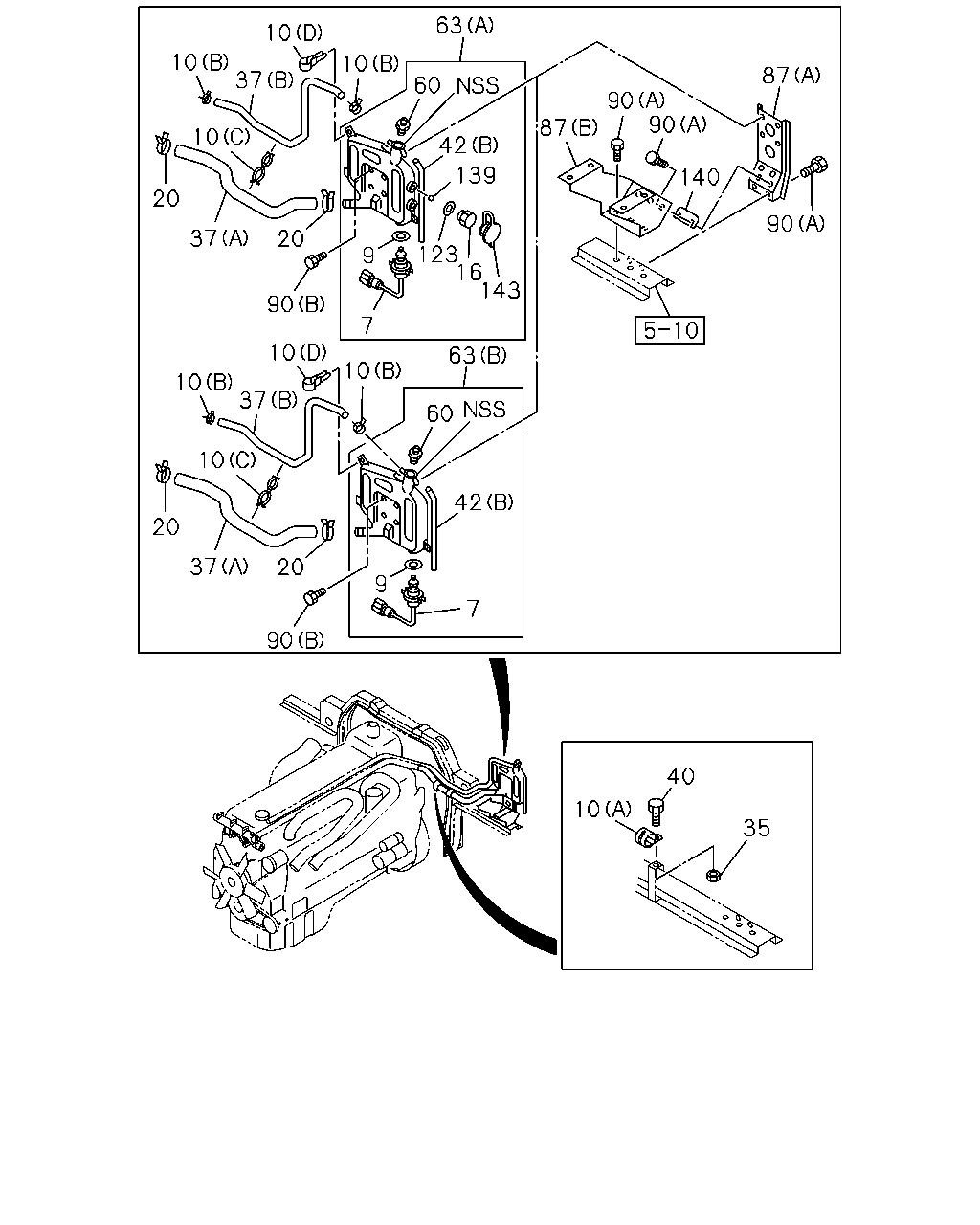

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	SWITCH ASM; TANK	1-82480-093-1	01	1	0105-0106	●	●	●
7	SWITCH ASM; TANK	1-82480-093-1	01	1	0107-	●	●	●	●
9	GASKET; SWITCH ID=28 T=2.5	1-09630-126-0	01	1	0105-	●	●	●
9	GASKET; SWITCH ID=28 OD=35	1-09630-130-0	01	1	0107-				●
10	CLIP; RUBBER HOSE CAB UP +110MM<TGG> (A) ID=43 L=40	1-09700-624-2	02	1	0105-		●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	02	1	0105-			●
10	CLIP; RUBBER HOSE EXC. CAB UP +110MM<TGG> (A) ID=43 L=40	1-09700-624-2	01	1	0105-0106		●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	01	1	0105-0106	●
10	CLIP; RUBBER HOSE EXC. CAB UP +110MM<TGG> (A) ID=43 L=40	1-09700-624-2	01	1	0107-		●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	01	1	0107-	●			●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-0106	●	●	●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-		●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-	●
10	CLIP; RUBBER HOSE (B) ID=14	1-09704-102-0	04	1	0105-	●	●	●
10	CLIP; RUBBER HOSE (C) ID=44 & 16	1-09709-125-0	04	1	0105-	●	●	●
10	CLIP; RUBBER HOSE (D) ID=14 L=44	9-09917-427-0	02	1	0105-	●	●	●
10	CLIP; RUBBER HOSE (D) ID=28 L=58	1-09700-400-0	02	1	0107-				●
10	CLIP; RUBBER HOSE (B) ID=14	1-09704-102-0	06	1	0107-				●
10	CLIP; RUBBER HOSE (F) L=350	1-09707-183-0	01	1	0107-				●
10	CLIP; RUBBER HOSE (C) ID=44 & 16	1-09709-125-0	08	1	0107-				●
16	PLUG; TANK	1-21464-514-0	02	1	0105-0106	●	●	●
16	PLUG; TANK	1-21464-514-0	02	1	0107-0205	●	●	●	●
20	CLIP; HOSE,RAD ID=31	1-09707-093-1	02	1	0105-	●	●	●	●
35	NUT M10 FLANGE	0-91150-210-0	01	1	0105-0602		●	●
35	NUT M10 FLANGE	0-91180-210-0	01	1	0603-		●	●
37	HOSE; RUBBER CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000	0-03559-300-0	01	1	0105-		●
37	HOSE; RUBBER (B) L=1450 SERVICED BY L=3000	0-03559-300-0	01	1	0105-			●
37	HOSE; RUBBER CAB UP +110MM<TGG> (A)	1-21437-568-1	01	1	0105-		●
37	HOSE; RUBBER (A)	1-21437-568-1	01	1	0105-			●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0105-		●
37	HOSE; RUBBER (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0105-	●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (A)	1-21437-583-0	01	1	0105-		●
37	HOSE; RUBBER (A)	1-21437-755-0	01	1	0105-0106	●
37	HOSE; RUBBER (A)	1-21437-755-0	01	1	0107-	●			●
37	HOSE; RUBBER (B) L=1350 SERVICED BY L=3000	0-03559-300-0	02	1	0107-				●
38	BRACKET; RUBBER HOSE CAB UP +110MM<TGG> (A)	1-21489-158-2	01	1	0105-		●
38	BRACKET; RUBBER HOSE (A)	1-21489-158-2	01	1	0105-			●
38	BRACKET; RUBBER HOSE CAB UP +110MM<TGG> (B)	1-21489-165-1	01	1	0105-		●
38	BRACKET; RUBBER HOSE (B)	1-21489-165-1	01	1	0105-			●
38	BRACKET; RUBBER HOSE (C)	1-21489-180-0	01	1	0105-0106	●
38	BRACKET; RUBBER HOSE (C)	1-21489-180-0	01	1	0107-	●			●
39	BOLT; BRKT FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28680-820-0	04	1	0105-0512		●
39	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	04	1	0105-0512			●
39	BOLT; BRKT FIX CAB UP +110MM<TGG> M8X20 FLANGE	0-28650-820-0	04	1	0601-		●
39	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	04	1	0601-			●
39	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	01	1	0105-0106	●
39	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	01	1	0107-0512	●			●
39	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	01	1	0601-	●			●
40	BOLT; CLIP CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	02	1	0105-0512		●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	0105-0512			●
40	BOLT; CLIP CAB UP +110MM<TGG> M10X25 FLANGE	0-28651-025-0	02	1	0601-		●
40	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	0601-			●
40	BOLT; CLIP EXC. CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	01	1	0105-0106		●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	01	1	0105-0106	●
40	BOLT; CLIP EXC. CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	01	1	0107-0512		●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	01	1	0107-0512	●			●
40	BOLT; CLIP EXC. CAB UP +110MM<TGG> M10X25 FLANGE	0-28651-025-0	01	1	0601-		●
40	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	01	1	0601-	●			●
42	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (A) L=500 SERVICED BY L=3000	0-03559-300-0	01	1	0109-	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0105-0106	●	●	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0107-0108		●	●
42	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0107-0108	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0109-		●	●
42	HOSE; RUBBER (B) L=850	1-21489-154-0	01	1	0105-0106	●	●	●
42	HOSE; RUBBER (B) L=850	1-21489-154-0	01	1	0107-	●	●	●	●
42	HOSE; RUBBER (A) L=290 SERVICED BY L=3000	0-03559-300-0	01	1	0107-				●
60	CAP; SUB TANK	1-21450-137-0	01	1	0105-0106	●	●	●
60	CAP; SUB TANK	1-21450-137-0	01	1	0107-	●	●	●	●
63	TANK ASM; SUB (A)	1-21481-144-0	01	1	0105-0106	●	●	●
63	TANK ASM; SUB (A)	1-21481-144-0	01	1	0107-0205		●	●
63	TANK ASM; SUB EXC. EURO3 SPECIFICATION<NJX> (A)	1-21481-144-0	01	1	0107-0205	●
63	TANK ASM; SUB (B)	1-21481-146-0	01	1	0206-		●	●
63	TANK ASM; SUB EXC. EURO3 SPECIFICATION<NJX> (B)	1-21481-146-0	01	1	0206-	●
63	TANK ASM; SUB (A)	1-21481-143-1	01	1	0107-				●
68	NUT; BRKT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	04	1	0105-0602		●
68	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0105-0602			●
68	NUT; BRKT CAB UP +110MM<TGG> M8 FLANGE	0-91180-108-0	04	1	0603-		●
68	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-			●
79	NUT; CLIP,HOSE M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●	●
79	NUT; CLIP,HOSE M8 FLANGE	0-91150-108-0	01	1	0107-0602		●	●
79	NUT; CLIP,HOSE EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
79	NUT; CLIP,HOSE M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
79	NUT; CLIP,HOSE EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	01	1	0603-	●
87	BRACKET; SUB TANK CAB UP +110MM<TGG> (A)	1-21489-162-0	01	1	0105-		●
87	BRACKET; SUB TANK (A)	1-21489-162-0	01	1	0105-	●		●
87	BRACKET; SUB TANK EXC. CAB UP +110MM<TGG> (A)	1-21489-156-0	01	1	0105-		●
87	BRACKET; SUB TANK (B)	1-21489-155-0	01	1	0105-	●	●	●	●
90	BOLT; SUB TANK TO BRKT (A) M8X20 FLANGE	0-28680-820-0	06	1	0105-0512	●	●	●	●
90	BOLT; SUB TANK TO BRKT (A) M8X20 FLANGE	0-28650-820-0	06	1	0601-	●	●	●	●
90	BOLT; SUB TANK TO BRKT (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0105-	●	●	●	●
123	GASKET ID=26.2	8-94399-716-1	02	1	0105-0106	●	●	●
123	GASKET ID=26.2	8-94399-716-1	02	1	0107-0205	●	●	●	●
139	FLOAT	1-21489-161-0	02	1	0105-0106	●	●	●
139	FLOAT	1-21489-161-0	02	1	0107-0205	●	●	●	●
140	SHIM T=0.8	1-53458-716-0	AR	1	0105-	●	●	●
143	COVER; PLUG	1-82389-017-0	02	1	0105-0106	●	●	●
143	COVER; PLUG	1-82389-017-0	02	1	0107-0205	●	●	●	●

79 10 128 56 56 10 42 10 56 55 56

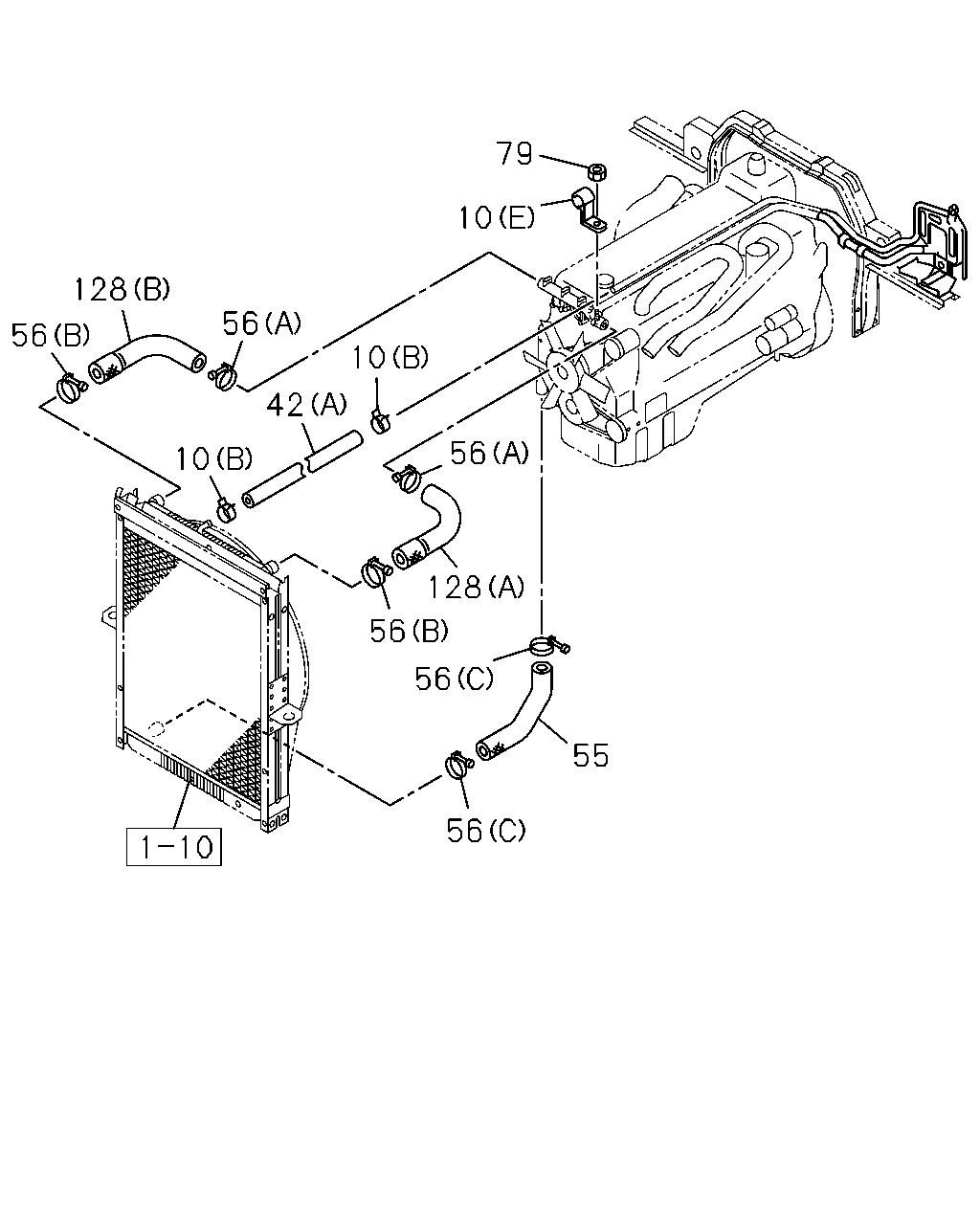

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	CLIP; RUBBER HOSE CAB UP +110MM<TGG> (A) ID=43 L=40	1-09700-624-2	02	1	0105-		●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	02	1	0105-			●
10	CLIP; RUBBER HOSE EXC. CAB UP +110MM<TGG> (A) ID=43 L=40	1-09700-624-2	01	1	0105-0106		●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	01	1	0105-0106	●
10	CLIP; RUBBER HOSE EXC. CAB UP +110MM<TGG> (A) ID=43 L=40	1-09700-624-2	01	1	0107-		●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	01	1	0107-	●			●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-0106	●	●	●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-		●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-	●
10	CLIP; RUBBER HOSE (B) ID=14	1-09704-102-0	04	1	0105-	●	●	●
10	CLIP; RUBBER HOSE (C) ID=44 & 16	1-09709-125-0	04	1	0105-	●	●	●
10	CLIP; RUBBER HOSE (D) ID=14 L=44	9-09917-427-0	02	1	0105-	●	●	●
10	CLIP; RUBBER HOSE (D) ID=28 L=58	1-09700-400-0	02	1	0107-				●
10	CLIP; RUBBER HOSE (B) ID=14	1-09704-102-0	06	1	0107-				●
10	CLIP; RUBBER HOSE (F) L=350	1-09707-183-0	01	1	0107-				●
10	CLIP; RUBBER HOSE (C) ID=44 & 16	1-09709-125-0	08	1	0107-				●
42	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (A) L=500 SERVICED BY L=3000	0-03559-300-0	01	1	0109-	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0105-0106	●	●	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0107-0108		●	●
42	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0107-0108	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0109-		●	●
42	HOSE; RUBBER (B) L=850	1-21489-154-0	01	1	0105-0106	●	●	●
42	HOSE; RUBBER (B) L=850	1-21489-154-0	01	1	0107-	●	●	●	●
42	HOSE; RUBBER (A) L=290 SERVICED BY L=3000	0-03559-300-0	01	1	0107-				●
55	HOSE; WATER,RAD OUTLET CAB UP +110MM<TGG>	1-21437-710-0	01	1	0105-		●
55	HOSE; WATER,RAD OUTLET EXC. CAB UP +110MM<TGG>	1-21437-448-2	01	1	0105-		●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	0105-0106	●		●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	0107-	●		●	●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (A) ID=57	1-09704-066-0	02	1	0105-		●
56	CLIP; WATER HOSE,RAD (A) ID=57	1-09704-066-0	02	1	0105-	●		●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (B) ID=63	1-09704-067-0	02	1	0105-		●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	0105-	●		●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (C) ID=72	1-09704-068-0	02	1	0105-		●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	02	1	0105-	●		●
56	CLIP; WATER HOSE,RAD EXC. CAB UP +110MM<TGG> (D) ID=72	1-09704-068-0	04	1	0105-0106		●
56	CLIP; WATER HOSE,RAD EXC. CAB UP +110MM<TGG> (D) ID=72	1-09704-068-0	04	1	0107-		●
56	CLIP; WATER HOSE,RAD (D) ID=72	1-09704-068-0	04	1	0107-				●
79	NUT; CLIP,HOSE M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●	●
79	NUT; CLIP,HOSE M8 FLANGE	0-91150-108-0	01	1	0107-0602		●	●
79	NUT; CLIP,HOSE EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
79	NUT; CLIP,HOSE M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
79	NUT; CLIP,HOSE EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	01	1	0603-	●
128	HOSE; WATER,RAD INL CAB UP +110MM<TGG> (B)	1-21437-618-1	01	1	0105-		●
128	HOSE; WATER,RAD INL (B)	1-21437-618-1	01	1	0105-	●		●
128	HOSE; WATER,RAD INL CAB UP +110MM<TGG> (A)	1-21437-617-0	01	1	0105-		●
128	HOSE; WATER,RAD INL (A)	1-21437-617-0	01	1	0105-	●		●
128	HOSE; WATER,RAD INL EXC. CAB UP +110MM<TGG> (C)	1-21437-495-1	01	1	0105-		●
128	HOSE; WATER,RAD INL (C)	1-21437-866-0	01	1	0107-				●

79 10 10 56 56 128 56 42 10 128 56 56 55 56

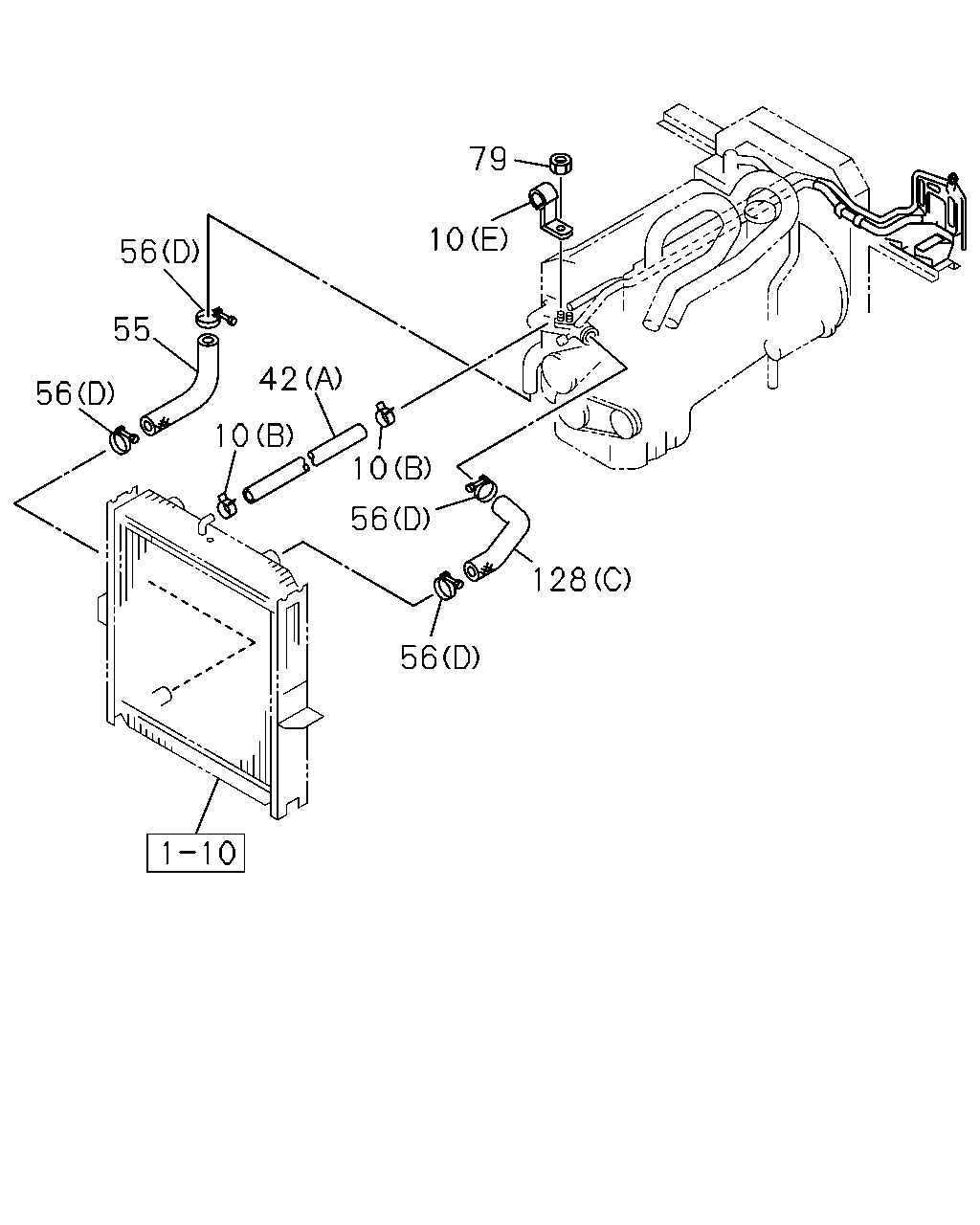

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
10	CLIP; RUBBER HOSE CAB UP +110MM<TGG> (A) ID=43 L=40	1-09700-624-2	02	1	0105-		●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	02	1	0105-			●
10	CLIP; RUBBER HOSE EXC. CAB UP +110MM<TGG> (A) ID=43 L=40	1-09700-624-2	01	1	0105-0106		●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	01	1	0105-0106	●
10	CLIP; RUBBER HOSE EXC. CAB UP +110MM<TGG> (A) ID=43 L=40	1-09700-624-2	01	1	0107-		●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	01	1	0107-	●			●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-0106	●	●	●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-		●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-	●
10	CLIP; RUBBER HOSE (B) ID=14	1-09704-102-0	04	1	0105-	●	●	●
10	CLIP; RUBBER HOSE (C) ID=44 & 16	1-09709-125-0	04	1	0105-	●	●	●
10	CLIP; RUBBER HOSE (D) ID=14 L=44	9-09917-427-0	02	1	0105-	●	●	●
10	CLIP; RUBBER HOSE (D) ID=28 L=58	1-09700-400-0	02	1	0107-				●
10	CLIP; RUBBER HOSE (B) ID=14	1-09704-102-0	06	1	0107-				●
10	CLIP; RUBBER HOSE (F) L=350	1-09707-183-0	01	1	0107-				●
10	CLIP; RUBBER HOSE (C) ID=44 & 16	1-09709-125-0	08	1	0107-				●
42	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (A) L=500 SERVICED BY L=3000	0-03559-300-0	01	1	0109-	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0105-0106	●	●	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0107-0108		●	●
42	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0107-0108	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0109-		●	●
42	HOSE; RUBBER (B) L=850	1-21489-154-0	01	1	0105-0106	●	●	●
42	HOSE; RUBBER (B) L=850	1-21489-154-0	01	1	0107-	●	●	●	●
42	HOSE; RUBBER (A) L=290 SERVICED BY L=3000	0-03559-300-0	01	1	0107-				●
55	HOSE; WATER,RAD OUTLET CAB UP +110MM<TGG>	1-21437-710-0	01	1	0105-		●
55	HOSE; WATER,RAD OUTLET EXC. CAB UP +110MM<TGG>	1-21437-448-2	01	1	0105-		●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	0105-0106	●		●
55	HOSE; WATER,RAD OUTLET	1-21437-615-1	01	1	0107-	●		●	●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (A) ID=57	1-09704-066-0	02	1	0105-		●
56	CLIP; WATER HOSE,RAD (A) ID=57	1-09704-066-0	02	1	0105-	●		●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (B) ID=63	1-09704-067-0	02	1	0105-		●
56	CLIP; WATER HOSE,RAD (B) ID=63	1-09704-067-0	02	1	0105-	●		●
56	CLIP; WATER HOSE,RAD CAB UP +110MM<TGG> (C) ID=72	1-09704-068-0	02	1	0105-		●
56	CLIP; WATER HOSE,RAD (C) ID=72	1-09704-068-0	02	1	0105-	●		●
56	CLIP; WATER HOSE,RAD EXC. CAB UP +110MM<TGG> (D) ID=72	1-09704-068-0	04	1	0105-0106		●
56	CLIP; WATER HOSE,RAD EXC. CAB UP +110MM<TGG> (D) ID=72	1-09704-068-0	04	1	0107-		●
56	CLIP; WATER HOSE,RAD (D) ID=72	1-09704-068-0	04	1	0107-				●
79	NUT; CLIP,HOSE M8 FLANGE	0-91150-108-0	01	1	0105-0106	●	●	●
79	NUT; CLIP,HOSE M8 FLANGE	0-91150-108-0	01	1	0107-0602		●	●
79	NUT; CLIP,HOSE EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91150-108-0	01	1	0107-0602	●
79	NUT; CLIP,HOSE M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
79	NUT; CLIP,HOSE EXC. EURO3 SPECIFICATION<NJX> M8 FLANGE	0-91180-108-0	01	1	0603-	●
128	HOSE; WATER,RAD INL CAB UP +110MM<TGG> (B)	1-21437-618-1	01	1	0105-		●
128	HOSE; WATER,RAD INL (B)	1-21437-618-1	01	1	0105-	●		●
128	HOSE; WATER,RAD INL CAB UP +110MM<TGG> (A)	1-21437-617-0	01	1	0105-		●
128	HOSE; WATER,RAD INL (A)	1-21437-617-0	01	1	0105-	●		●
128	HOSE; WATER,RAD INL EXC. CAB UP +110MM<TGG> (C)	1-21437-495-1	01	1	0105-		●
128	HOSE; WATER,RAD INL (C)	1-21437-866-0	01	1	0107-				●

90 87 140 90 90 87 63 60 42 139 143 16 123 7 9 10 10 37 10 10 20 37 20 90 10 63 60 42 7 9 10 37 10 10 20 90 37 20 35 40 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	SWITCH ASM; TANK	1-82480-093-1	01	1	0105-0106	●	●	●
7	SWITCH ASM; TANK	1-82480-093-1	01	1	0107-	●	●	●	●
9	GASKET; SWITCH ID=28 T=2.5	1-09630-126-0	01	1	0105-	●	●	●
9	GASKET; SWITCH ID=28 OD=35	1-09630-130-0	01	1	0107-				●
10	CLIP; RUBBER HOSE CAB UP +110MM<TGG> (A) ID=43 L=40	1-09700-624-2	02	1	0105-		●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	02	1	0105-			●
10	CLIP; RUBBER HOSE EXC. CAB UP +110MM<TGG> (A) ID=43 L=40	1-09700-624-2	01	1	0105-0106		●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	01	1	0105-0106	●
10	CLIP; RUBBER HOSE EXC. CAB UP +110MM<TGG> (A) ID=43 L=40	1-09700-624-2	01	1	0107-		●
10	CLIP; RUBBER HOSE (A) ID=43 L=40	1-09700-624-2	01	1	0107-	●			●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0105-0106	●	●	●
10	CLIP; RUBBER HOSE (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-		●	●
10	CLIP; RUBBER HOSE EXC. EURO3 SPECIFICATION<NJX> (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0107-	●
10	CLIP; RUBBER HOSE (B) ID=14	1-09704-102-0	04	1	0105-	●	●	●
10	CLIP; RUBBER HOSE (C) ID=44 & 16	1-09709-125-0	04	1	0105-	●	●	●
10	CLIP; RUBBER HOSE (D) ID=14 L=44	9-09917-427-0	02	1	0105-	●	●	●
10	CLIP; RUBBER HOSE (D) ID=28 L=58	1-09700-400-0	02	1	0107-				●
10	CLIP; RUBBER HOSE (B) ID=14	1-09704-102-0	06	1	0107-				●
10	CLIP; RUBBER HOSE (F) L=350	1-09707-183-0	01	1	0107-				●
10	CLIP; RUBBER HOSE (C) ID=44 & 16	1-09709-125-0	08	1	0107-				●
16	PLUG; TANK	1-21464-514-0	02	1	0105-0106	●	●	●
16	PLUG; TANK	1-21464-514-0	02	1	0107-0205	●	●	●	●
20	CLIP; HOSE,RAD ID=31	1-09707-093-1	02	1	0105-	●	●	●	●
35	NUT M10 FLANGE	0-91150-210-0	01	1	0105-0602		●	●
35	NUT M10 FLANGE	0-91180-210-0	01	1	0603-		●	●
37	HOSE; RUBBER CAB UP +110MM<TGG> (B) L=1450 SERVICED BY L=3000	0-03559-300-0	01	1	0105-		●
37	HOSE; RUBBER (B) L=1450 SERVICED BY L=3000	0-03559-300-0	01	1	0105-			●
37	HOSE; RUBBER CAB UP +110MM<TGG> (A)	1-21437-568-1	01	1	0105-		●
37	HOSE; RUBBER (A)	1-21437-568-1	01	1	0105-			●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0105-		●
37	HOSE; RUBBER (B) L=1350 SERVICED BY L=3000	0-03559-300-0	01	1	0105-	●
37	HOSE; RUBBER EXC. CAB UP +110MM<TGG> (A)	1-21437-583-0	01	1	0105-		●
37	HOSE; RUBBER (A)	1-21437-755-0	01	1	0105-0106	●
37	HOSE; RUBBER (A)	1-21437-755-0	01	1	0107-	●			●
37	HOSE; RUBBER (B) L=1350 SERVICED BY L=3000	0-03559-300-0	02	1	0107-				●
40	BOLT; CLIP CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	02	1	0105-0512		●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	0105-0512			●
40	BOLT; CLIP CAB UP +110MM<TGG> M10X25 FLANGE	0-28651-025-0	02	1	0601-		●
40	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	0601-			●
40	BOLT; CLIP EXC. CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	01	1	0105-0106		●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	01	1	0105-0106	●
40	BOLT; CLIP EXC. CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	01	1	0107-0512		●
40	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	01	1	0107-0512	●			●
40	BOLT; CLIP EXC. CAB UP +110MM<TGG> M10X25 FLANGE	0-28651-025-0	01	1	0601-		●
40	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	01	1	0601-	●			●
42	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (A) L=500 SERVICED BY L=3000	0-03559-300-0	01	1	0109-	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0105-0106	●	●	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0107-0108		●	●
42	HOSE; RUBBER EXC. EURO3 SPECIFICATION<NJX> (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0107-0108	●
42	HOSE; RUBBER (A) L=560 SERVICED BY L=3000	0-03559-300-0	01	1	0109-		●	●
42	HOSE; RUBBER (B) L=850	1-21489-154-0	01	1	0105-0106	●	●	●
42	HOSE; RUBBER (B) L=850	1-21489-154-0	01	1	0107-	●	●	●	●
42	HOSE; RUBBER (A) L=290 SERVICED BY L=3000	0-03559-300-0	01	1	0107-				●
60	CAP; SUB TANK	1-21450-137-0	01	1	0105-0106	●	●	●
60	CAP; SUB TANK	1-21450-137-0	01	1	0107-	●	●	●	●
63	TANK ASM; SUB (A)	1-21481-144-0	01	1	0105-0106	●	●	●
63	TANK ASM; SUB (A)	1-21481-144-0	01	1	0107-0205		●	●
63	TANK ASM; SUB EXC. EURO3 SPECIFICATION<NJX> (A)	1-21481-144-0	01	1	0107-0205	●
63	TANK ASM; SUB (B)	1-21481-146-0	01	1	0206-		●	●
63	TANK ASM; SUB EXC. EURO3 SPECIFICATION<NJX> (B)	1-21481-146-0	01	1	0206-	●
63	TANK ASM; SUB (A)	1-21481-143-1	01	1	0107-				●
87	BRACKET; SUB TANK CAB UP +110MM<TGG> (A)	1-21489-162-0	01	1	0105-		●
87	BRACKET; SUB TANK (A)	1-21489-162-0	01	1	0105-	●		●
87	BRACKET; SUB TANK EXC. CAB UP +110MM<TGG> (A)	1-21489-156-0	01	1	0105-		●
87	BRACKET; SUB TANK (B)	1-21489-155-0	01	1	0105-	●	●	●	●
90	BOLT; SUB TANK TO BRKT (A) M8X20 FLANGE	0-28680-820-0	06	1	0105-0512	●	●	●	●
90	BOLT; SUB TANK TO BRKT (A) M8X20 FLANGE	0-28650-820-0	06	1	0601-	●	●	●	●
90	BOLT; SUB TANK TO BRKT (B) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	0105-	●	●	●	●
123	GASKET ID=26.2	8-94399-716-1	02	1	0105-0106	●	●	●
123	GASKET ID=26.2	8-94399-716-1	02	1	0107-0205	●	●	●	●
139	FLOAT	1-21489-161-0	02	1	0105-0106	●	●	●
139	FLOAT	1-21489-161-0	02	1	0107-0205	●	●	●	●
140	SHIM T=0.8	1-53458-716-0	AR	1	0105-	●	●	●
143	COVER; PLUG	1-82389-017-0	02	1	0105-0106	●	●	●
143	COVER; PLUG	1-82389-017-0	02	1	0107-0205	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
