1-10A — RADIATOR (#13290) — 186 parça

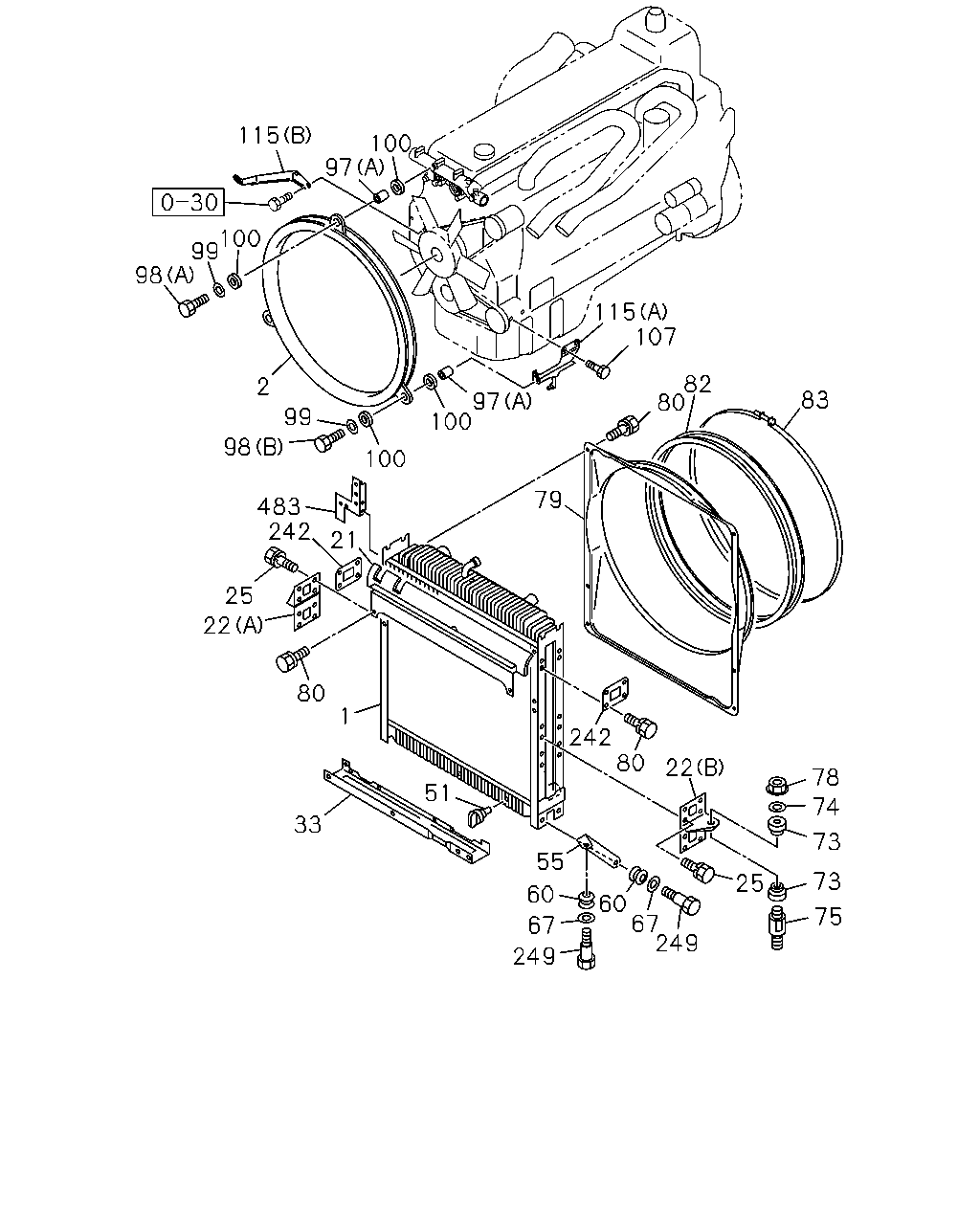

115 100 97 100 99 98 2 115 107 83 82 80 97 100 100 99 98 483 242 21 79 25 22 80 1 51 33 242 80 22 78 74 73 73 75 25 249 67 60 55 60 67 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM CAB UP +110MM<TGG>	1-21410-729-1	01	1	0105-	●
1	RADIATOR ASM EXC. CAB UP +110MM<TGG>	1-21410-693-0	01	1	0105-	●
1	RADIATOR ASM	1-21410-870-1	01	1	0105-		●
1	RADIATOR ASM	1-21410-730-1	01	1	0105-			●
1	RADIATOR ASM	1-21410-871-1	01	1	0107-				●
2	GUIDE; FAN	1-21551-369-0	01	1	0106-	●
2	GUIDE; FAN	1-21551-420-0	01	1	0105-0105	●	●	●
2	GUIDE; FAN	1-21551-420-0	01	1	0106-		●	●
2	GUIDE; FAN	1-21551-500-0	01	1	0107-				●
21	SEAL; RAD CAB UP +110MM<TGG>	1-21460-097-0	01	1	0105-0111	●
21	SEAL; RAD CAB UP +110MM<TGG>	1-21460-127-0	01	1	0112-	●
21	SEAL; RAD	1-21460-123-0	01	1	0105-0106		●
21	SEAL; RAD	1-21460-123-0	01	1	0107-		●		●
21	SEAL; RAD	1-21460-096-0	01	1	0105-			●
22	BRACKET; RAD MTG (B)	1-21464-444-0	01	1	0105-0111	●
22	BRACKET; RAD MTG EXC. CAB UP +110MM<TGG> (B)	1-21464-444-0	01	1	0112-	●
22	BRACKET; RAD MTG (A)	1-21464-443-0	01	1	0105-0111	●
22	BRACKET; RAD MTG EXC. CAB UP +110MM<TGG> (A)	1-21464-443-0	01	1	0112-	●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	0105-0106		●	●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	0107-0111		●	●	●
22	BRACKET; RAD MTG CAB UP +110MM<TGG> (B)	1-21464-504-0	01	1	0112-	●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	0112-		●	●	●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	0105-0106		●	●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	0107-0111		●	●	●
22	BRACKET; RAD MTG CAB UP +110MM<TGG> (A)	1-21464-503-0	01	1	0112-	●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	0112-		●	●	●
25	BOLT; BRKT CAB UP +110MM<TGG> M8X16 FLANGE	0-28080-816-0	18	1	0105-	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0105-			●
25	BOLT; BRKT EXC. CAB UP +110MM<TGG> M8X16 FLANGE	0-28080-816-0	14	1	0105-	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	20	1	0105-0106		●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	20	1	0107-		●		●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0105-0106	●	●	●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0107-	●	●	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0105-0106	●	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0107-	●	●	●	●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-638-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-637-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR EXC. CAB UP +110MM<TGG>	1-21464-397-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR EXC. CAB UP +110MM<TGG>	1-21464-396-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR	1-21464-499-0	01	1	0105-0106		●	●
55	STAY; RAD TO UPR MBR	1-21464-499-0	01	1	0107-		●	●	●
55	STAY; RAD TO UPR MBR	1-21464-498-0	01	1	0105-0106		●	●
55	STAY; RAD TO UPR MBR	1-21464-498-0	01	1	0107-		●	●	●
60	GROMMET	1-09332-117-0	04	1	0105-	●	●	●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	0105-	●	●	●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	0105-	●	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	0105-	●	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	0105-	●	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
79	GUIDE; FAN,RAD CAB UP +110MM<TGG>	1-21551-415-0	01	1	0105-	●
79	GUIDE; FAN,RAD EXC. CAB UP +110MM<TGG>	1-21551-384-0	01	1	0105-0111	●
79	GUIDE; FAN,RAD EXC. CAB UP +110MM<TGG>	1-21551-439-0	01	1	0112-	●
79	GUIDE; FAN,RAD	1-21551-422-0	01	1	0105-0106		●	●
79	GUIDE; FAN,RAD	1-21551-422-1	01	1	0107-		●	●	●
80	BOLT; FAN GUIDE CAB UP +110MM<TGG> M8X12 FLANGE	0-28080-812-0	15	1	0105-	●
80	BOLT; FAN GUIDE EXC. CAB UP +110MM<TGG> M8X12 FLANGE	0-28080-812-0	16	1	0105-	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	14	1	0105-0106		●	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	14	1	0107-		●	●	●
82	COVER; FAN,RAD	1-21559-134-1	01	1	0105-	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	0105-0106		●	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	0107-		●	●	●
83	CLIP; FAN COVER	1-09707-127-1	01	1	0105-	●
83	CLIP; FAN COVER	1-09707-152-2	02	1	0105-0106		●	●
83	CLIP; FAN COVER	1-09707-152-2	02	1	0107-		●	●	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	03	1	0105-	●	●	●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	0105-0105	●	●	●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	0105-0105	●	●	●	●
98	BOLT; RAD FAN GUIDE (A),(B) M10X45 FLANGE	0-28081-045-0	03	1	0106-0512	●	●	●	●
98	BOLT; RAD FAN GUIDE (A),(B) M10X45 FLANGE	0-28051-045-0	03	1	0601-	●	●	●	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	0105-	●	●	●	●
100	RUBBER; MTG	1-09337-017-0	06	1	0105-	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	0105-0106	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	0107-0512	●	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28951-425-0	02	1	0601-	●	●	●	●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	0105-0106	●	●	●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	0107-	●	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	0105-0106	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	0107-0307	●	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-485-0	01	1	0308-	●	●	●	●
115	BRACKET; FAN GUIDE (C)	1-21559-463-0	01	1	0107-				●
242	BRACKET; RAD	1-21464-461-1	02	1	0105-	●
242	BRACKET; RAD (B)	1-21464-729-0	01	1	0105-0106		●
242	BRACKET; RAD (B)	1-21464-729-0	01	1	0107-		●		●
242	BRACKET; RAD (A)	1-21464-730-0	01	1	0105-0106		●
242	BRACKET; RAD (A)	1-21464-730-0	01	1	0107-		●		●
242	BRACKET; RAD (A)	1-21464-517-0	01	1	0105-			●
242	BRACKET; RAD (B)	1-21464-518-0	01	1	0105-			●
249	BOLT; STAY,RAD MBR M8X26	1-09009-175-0	02	1	0202-	●	●	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	0105-0201	●	●	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	02	1	0202-	●	●	●	●
483	BRACKET; SEAL CAB UP +110MM<TGG>	1-21460-092-1	01	1	0105-0111	●
483	BRACKET; SEAL CAB UP +110MM<TGG>	1-21460-128-0	01	1	0112-	●

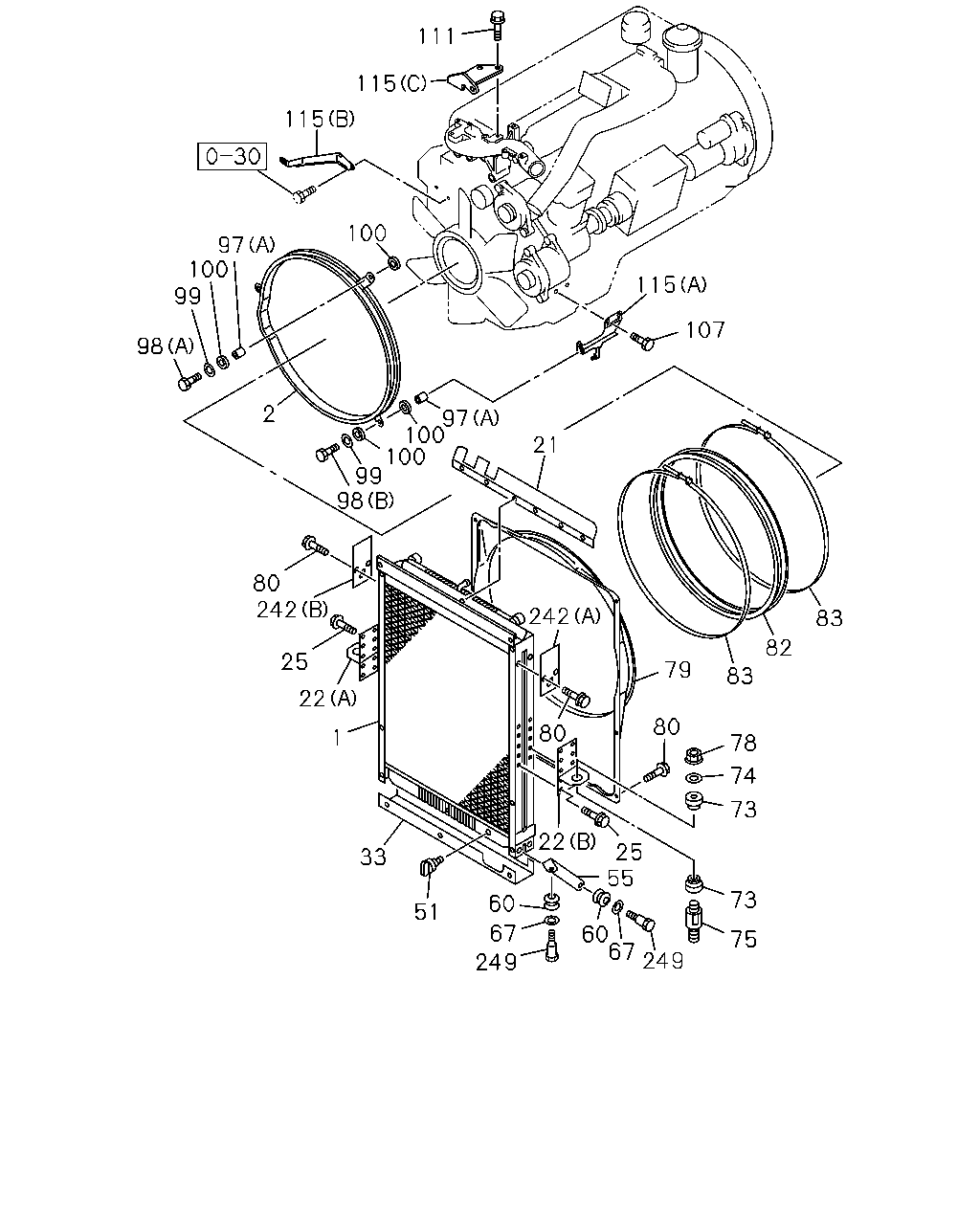

111 115 115 100 97 100 99 98 115 107 97 100 100 99 2 98 21 83 82 83 79 80 78 74 73 73 75 249 67 60 55 25 22 60 67 249 51 33 1 22 25 242 80 242 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM CAB UP +110MM<TGG>	1-21410-729-1	01	1	0105-	●
1	RADIATOR ASM EXC. CAB UP +110MM<TGG>	1-21410-693-0	01	1	0105-	●
1	RADIATOR ASM	1-21410-870-1	01	1	0105-		●
1	RADIATOR ASM	1-21410-730-1	01	1	0105-			●
1	RADIATOR ASM	1-21410-871-1	01	1	0107-				●
2	GUIDE; FAN	1-21551-369-0	01	1	0106-	●
2	GUIDE; FAN	1-21551-420-0	01	1	0105-0105	●	●	●
2	GUIDE; FAN	1-21551-420-0	01	1	0106-		●	●
2	GUIDE; FAN	1-21551-500-0	01	1	0107-				●
21	SEAL; RAD CAB UP +110MM<TGG>	1-21460-097-0	01	1	0105-0111	●
21	SEAL; RAD CAB UP +110MM<TGG>	1-21460-127-0	01	1	0112-	●
21	SEAL; RAD	1-21460-123-0	01	1	0105-0106		●
21	SEAL; RAD	1-21460-123-0	01	1	0107-		●		●
21	SEAL; RAD	1-21460-096-0	01	1	0105-			●
22	BRACKET; RAD MTG (B)	1-21464-444-0	01	1	0105-0111	●
22	BRACKET; RAD MTG EXC. CAB UP +110MM<TGG> (B)	1-21464-444-0	01	1	0112-	●
22	BRACKET; RAD MTG (A)	1-21464-443-0	01	1	0105-0111	●
22	BRACKET; RAD MTG EXC. CAB UP +110MM<TGG> (A)	1-21464-443-0	01	1	0112-	●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	0105-0106		●	●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	0107-0111		●	●	●
22	BRACKET; RAD MTG CAB UP +110MM<TGG> (B)	1-21464-504-0	01	1	0112-	●
22	BRACKET; RAD MTG (B)	1-21464-504-0	01	1	0112-		●	●	●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	0105-0106		●	●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	0107-0111		●	●	●
22	BRACKET; RAD MTG CAB UP +110MM<TGG> (A)	1-21464-503-0	01	1	0112-	●
22	BRACKET; RAD MTG (A)	1-21464-503-0	01	1	0112-		●	●	●
25	BOLT; BRKT CAB UP +110MM<TGG> M8X16 FLANGE	0-28080-816-0	18	1	0105-	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	18	1	0105-			●
25	BOLT; BRKT EXC. CAB UP +110MM<TGG> M8X16 FLANGE	0-28080-816-0	14	1	0105-	●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	20	1	0105-0106		●
25	BOLT; BRKT M8X16 FLANGE	0-28080-816-0	20	1	0107-		●		●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0105-0106	●	●	●
33	PROTECTOR; RAD	1-21419-050-0	01	1	0107-	●	●	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0105-0106	●	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0107-	●	●	●	●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-638-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR CAB UP +110MM<TGG>	1-21464-637-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR EXC. CAB UP +110MM<TGG>	1-21464-397-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR EXC. CAB UP +110MM<TGG>	1-21464-396-0	01	1	0105-	●
55	STAY; RAD TO UPR MBR	1-21464-499-0	01	1	0105-0106		●	●
55	STAY; RAD TO UPR MBR	1-21464-499-0	01	1	0107-		●	●	●
55	STAY; RAD TO UPR MBR	1-21464-498-0	01	1	0105-0106		●	●
55	STAY; RAD TO UPR MBR	1-21464-498-0	01	1	0107-		●	●	●
60	GROMMET	1-09332-117-0	04	1	0105-	●	●	●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	0105-	●	●	●	●
73	RUBBER; CUSHION,RAD MTG T=14	1-21467-004-0	04	1	0105-	●	●	●	●
74	WASHER; PL,CUSHION RUBBER ID=11 OD=54	1-09503-154-1	02	1	0105-	●	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG	1-21466-005-0	02	1	0105-	●	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91150-210-0	02	1	0105-0602	●	●	●	●
78	NUT; CUSHION RUBBER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
79	GUIDE; FAN,RAD CAB UP +110MM<TGG>	1-21551-415-0	01	1	0105-	●
79	GUIDE; FAN,RAD EXC. CAB UP +110MM<TGG>	1-21551-384-0	01	1	0105-0111	●
79	GUIDE; FAN,RAD EXC. CAB UP +110MM<TGG>	1-21551-439-0	01	1	0112-	●
79	GUIDE; FAN,RAD	1-21551-422-0	01	1	0105-0106		●	●
79	GUIDE; FAN,RAD	1-21551-422-1	01	1	0107-		●	●	●
80	BOLT; FAN GUIDE CAB UP +110MM<TGG> M8X12 FLANGE	0-28080-812-0	15	1	0105-	●
80	BOLT; FAN GUIDE EXC. CAB UP +110MM<TGG> M8X12 FLANGE	0-28080-812-0	16	1	0105-	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	14	1	0105-0106		●	●
80	BOLT; FAN GUIDE M8X12 FLANGE	0-28080-812-0	14	1	0107-		●	●	●
82	COVER; FAN,RAD	1-21559-134-1	01	1	0105-	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	0105-0106		●	●
82	COVER; FAN,RAD	1-21559-262-1	01	1	0107-		●	●	●
83	CLIP; FAN COVER	1-09707-127-1	01	1	0105-	●
83	CLIP; FAN COVER	1-09707-152-2	02	1	0105-0106		●	●
83	CLIP; FAN COVER	1-09707-152-2	02	1	0107-		●	●	●
97	TUBE; DIST,FAN GUIDE (A) ID=11.8 L=27	1-21559-149-0	03	1	0105-	●	●	●
98	BOLT; RAD FAN GUIDE (A) M10X40 FLANGE	0-28081-040-0	01	1	0105-0105	●	●	●
98	BOLT; RAD FAN GUIDE (B) M10X60 FLANGE	0-28081-060-0	02	1	0105-0105	●	●	●	●
98	BOLT; RAD FAN GUIDE (A),(B) M10X45 FLANGE	0-28081-045-0	03	1	0106-0512	●	●	●	●
98	BOLT; RAD FAN GUIDE (A),(B) M10X45 FLANGE	0-28051-045-0	03	1	0601-	●	●	●	●
99	WASHER; PL ID=10.5 OD=26	9-09164-710-0	03	1	0105-	●	●	●	●
100	RUBBER; MTG	1-09337-017-0	06	1	0105-	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	0105-0106	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28981-425-0	02	1	0107-0512	●	●	●	●
107	BOLT; BRKT TO STAY M14X25 FLANGE	0-28951-425-0	02	1	0601-	●	●	●	●
111	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0107-0512				●
111	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	0105-0106	●	●	●
115	BRACKET; FAN GUIDE (A)	1-21559-353-0	01	1	0107-	●	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	0105-0106	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-354-0	01	1	0107-0307	●	●	●	●
115	BRACKET; FAN GUIDE (B)	1-21559-485-0	01	1	0308-	●	●	●	●
115	BRACKET; FAN GUIDE (C)	1-21559-463-0	01	1	0107-				●
242	BRACKET; RAD	1-21464-461-1	02	1	0105-	●
242	BRACKET; RAD (B)	1-21464-729-0	01	1	0105-0106		●
242	BRACKET; RAD (B)	1-21464-729-0	01	1	0107-		●		●
242	BRACKET; RAD (A)	1-21464-730-0	01	1	0105-0106		●
242	BRACKET; RAD (A)	1-21464-730-0	01	1	0107-		●		●
242	BRACKET; RAD (A)	1-21464-517-0	01	1	0105-			●
242	BRACKET; RAD (B)	1-21464-518-0	01	1	0105-			●
249	BOLT; STAY,RAD MBR M8X26	1-09009-175-0	02	1	0202-	●	●	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	0105-0201	●	●	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	02	1	0202-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
