Sayfa 1-01B - Isuzu EPC

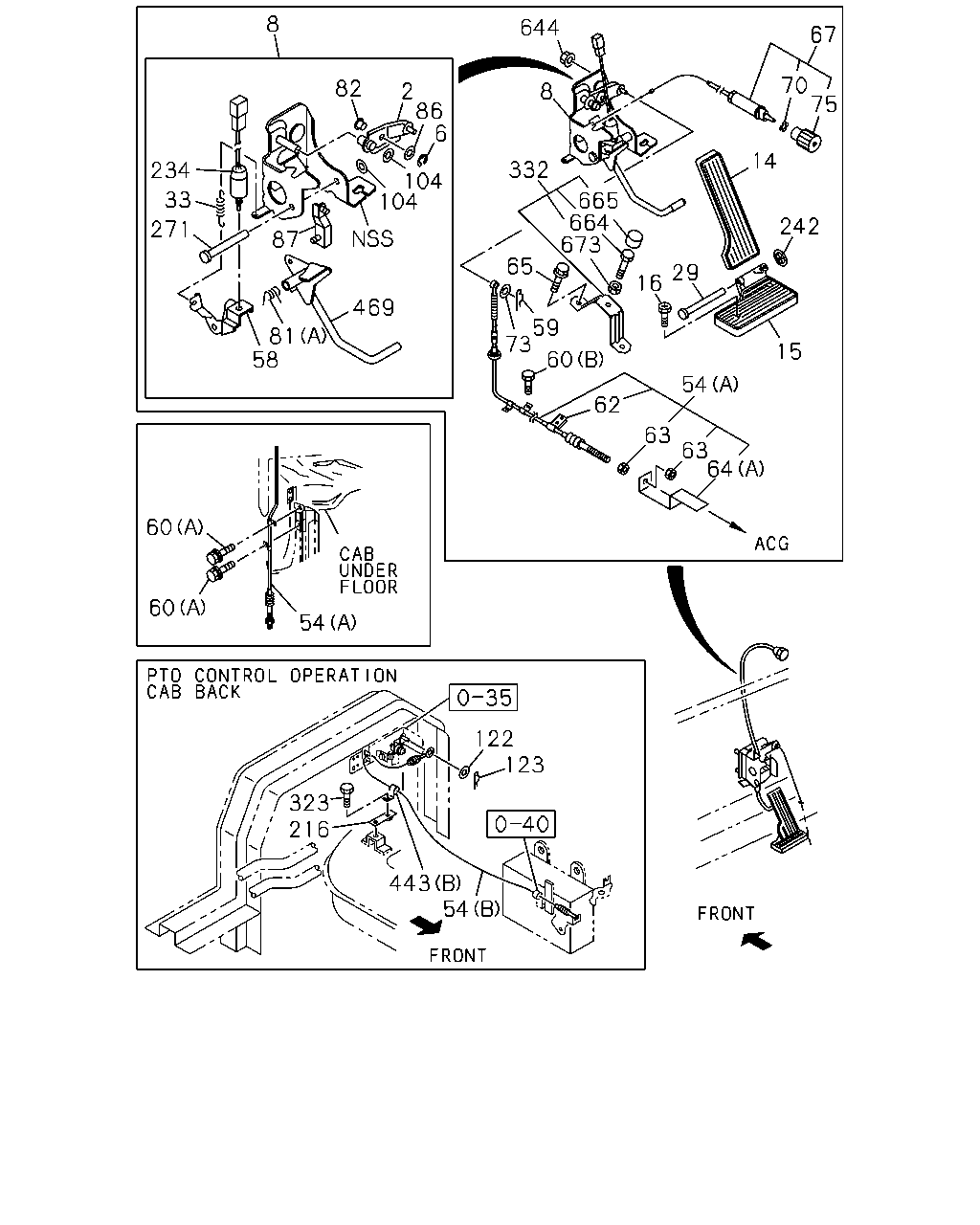

1-01B — ACCELERATOR PEDAL AND CONTROL (#13289) — 82 parça

23 24 439 56

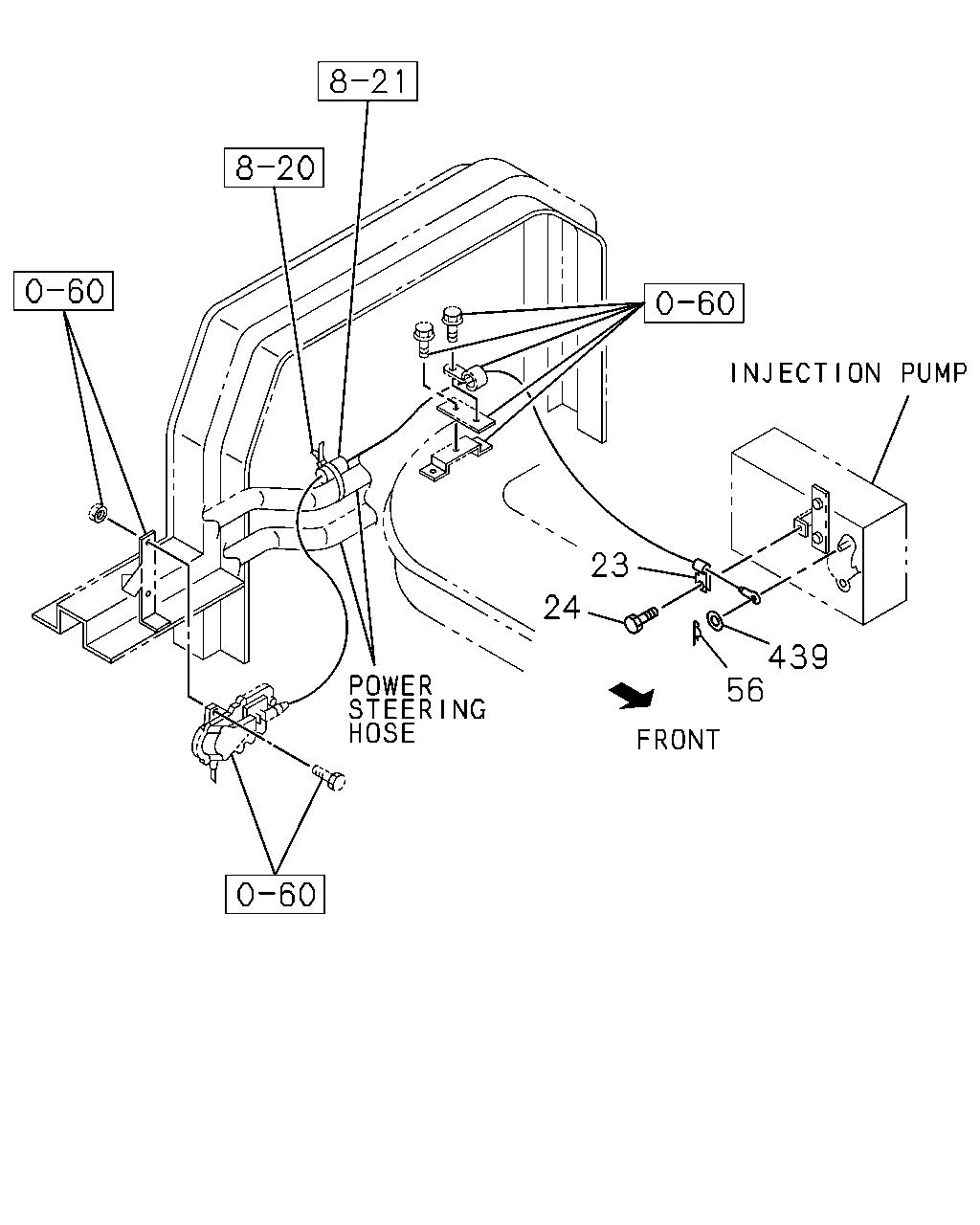

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	0105-	●	●	●
24	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	0105-0512	●	●	●
24	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0105-	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0105-	●	●	●

8 6 86 2 82 234 33 271 87 104 104 469 81 58 67 70 75 14 242 644 8 332 665 664 673 65 59 73 16 29 15 54 60 62 63 63 64 122 123 323 216 443 54 54 60 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT	1-71907-210-2	01	1	0105-	●	●	●
6	RING; SNAP,LINK TO LINK ID=4	9-09185-404-0	02	1	0105-0604	●	●	●
6	RING; SNAP,LINK TO LINK ID=4	0-91805-504-0	02	1	0605-	●	●	●
8	LINK ASM; ENG CONT	1-73996-206-6	01	1	0105-	●	●	●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0105-	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0105-	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0105-	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●
33	SPRING; IDLING CONT LEVER	8-94414-815-0	01	1	0105-	●	●	●
54	CABLE; ENG CONT (A) L=1950	1-73907-477-0	01	1	0105-	●		●
54	CABLE; ENG CONT (A) L=2657	1-73907-316-2	01	1	0105-		●
54	CABLE; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=1234	1-23230-107-1	01	1	0105-		●
58	LEVER; IDLING CONT	1-71907-242-1	01	1	0105-	●	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	0105-	●	●	●
60	BOLT; CABLE (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-	●	●	●
60	BOLT; CABLE (B) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512		●
60	BOLT; CABLE (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	0105-	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0105-	●	●	●
64	BRACKET; ENG CONT CABLE (A)	1-23219-105-1	01	1	0105-		●
64	BRACKET; ENG CONT CABLE (A)	1-09768-018-1	01	1	0105-	●		●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-	●	●	●
67	CABLE ASM; IDLE CONT L=399	1-73998-912-3	01	1	0105-0204	●	●	●
67	CABLE ASM; IDLE CONT L=315	1-73908-423-0	01	1	0205-	●	●	●
70	NUT; CONT CABLE	1-73908-045-1	01	1	0105-	●	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	0105-	●	●	●
75	KNOB ASM; IDLING CONT	8-97066-797-1	01	1	0105-0109	●	●	●
75	KNOB ASM; IDLING CONT	8-97137-504-0	01	1	0110-0204	●	●	●
75	KNOB ASM; IDLING CONT	1-73908-409-0	01	1	0205-	●	●	●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0105-	●	●	●
82	BUSHING; ENG CONT LVR	1-71907-244-1	02	1	0105-	●	●	●
86	WASHER; PL,ENG CONT LEVER ID=6.4	9-09160-506-0	02	1	0105-	●	●	●
87	LINK; ENG CONT	1-71907-211-1	01	1	0105-	●	●	●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	02	1	0105-	●	●	●
122	WASHER; PL,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.4	9-09160-508-0	01	1	0105-		●
123	PIN; SNAP,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> L=27.7	1-09987-141-0	01	1	0105-		●
216	BRACKET PTO CONTROL OPERATION CAB BACK<TBZ>	1-47476-881-0	01	1	0105-		●
234	SWITCH; ACCEL	1-82380-114-3	01	1	0105-	●	●	●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0105-	●	●	●
271	SHAFT; ENG CONT OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●
323	BOLT; CLIP PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE	0-28680-820-0	01	1	0105-0512		●
323	BOLT; CLIP PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0105-	●	●	●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-0106		●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-		●
443	CLIP; CABLE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●	●
443	CLIP; CABLE (C) ID=9 L=20	9-09524-835-0	01	1	0105-	●	●	●
469	LEVER ASM	1-71907-209-5	01	1	0105-	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0105-0304	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0305-	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0105-	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0105-	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0105-0512	●	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●	●

403 72 199 402 54 164 403 402 405 404 444 443 54 539 443 444

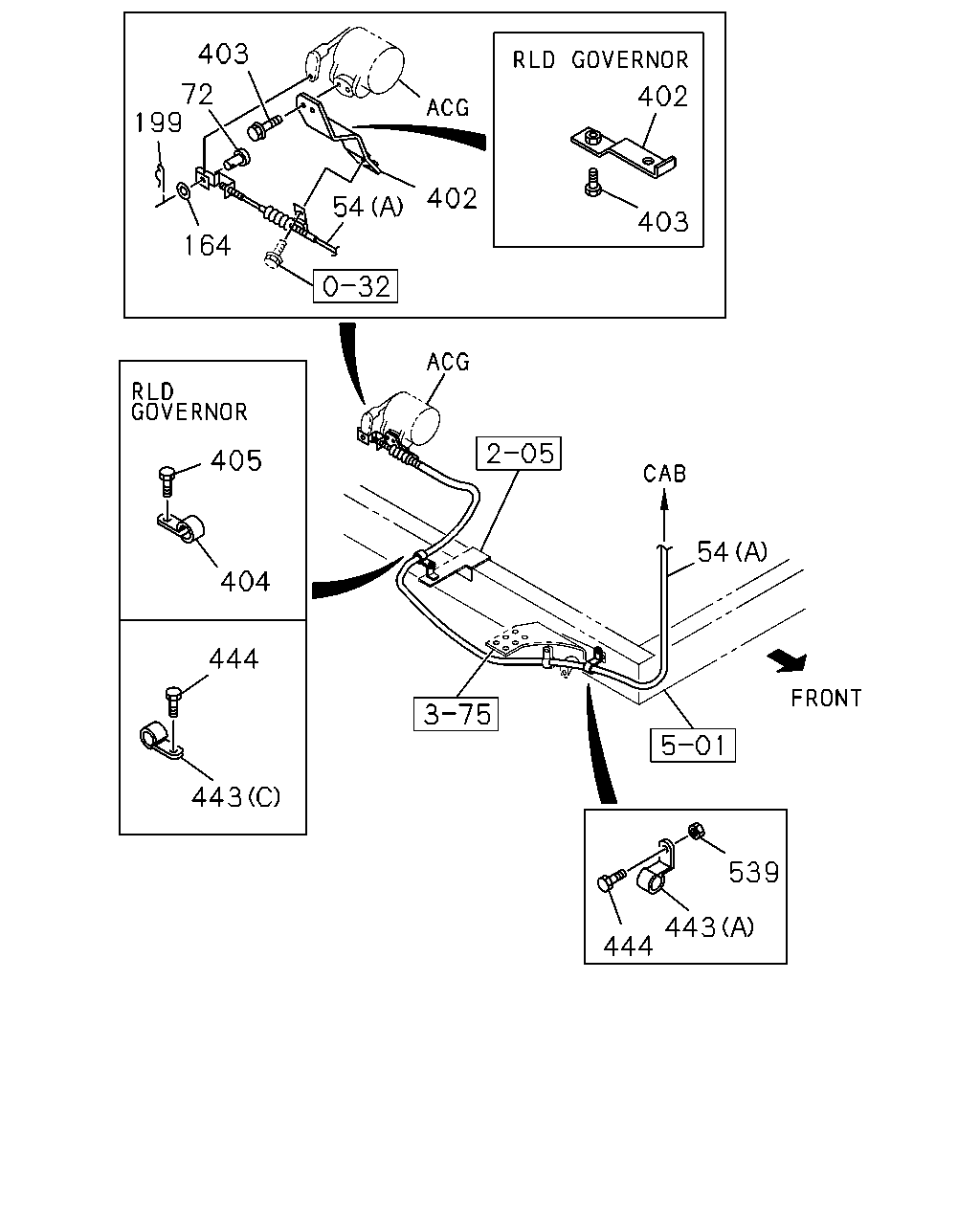

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
54	CABLE; ENG CONT (A) L=1950	1-73907-477-0	01	1	0105-	●		●
54	CABLE; ENG CONT (A) L=2657	1-73907-316-2	01	1	0105-		●
54	CABLE; ENG CONT PTO CONTROL OPERATION CAB BACK<TBZ> (B) L=1234	1-23230-107-1	01	1	0105-		●
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08223-817-0	01	1	0105-	●		●
164	WASHER; PL ID=8.4	9-09160-508-0	01	1	0105-	●	●	●
199	PIN; SNAP L=27.7	1-09747-005-0	01	1	0105-	●	●	●
402	BRACKET; CABLE CLIP	1-23335-379-0	01	1	0105-	●		●
402	BRACKET; CABLE CLIP	1-47476-527-0	01	1	0105-		●
403	BOLT; BRKT,ACCEL PEDAL M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●		●
403	BOLT; BRKT,ACCEL PEDAL M8X16 FLANGE	0-28050-816-0	02	1	0601-	●		●
403	BOLT; BRKT,ACCEL PEDAL M8X25 FLANGE	0-28680-825-0	01	1	0105-0512		●
403	BOLT; BRKT,ACCEL PEDAL M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
404	CLIP; CABLE ID=7 L=20	9-09524-635-0	01	1	0105-		●
405	BOLT; CABLE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0512		●
405	BOLT; CABLE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-		●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-0106		●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-		●
443	CLIP; CABLE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-	●	●	●
443	CLIP; CABLE (C) ID=9 L=20	9-09524-835-0	01	1	0105-	●	●	●
444	BOLT; CABLE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●	●
444	BOLT; CABLE CLIP M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
539	NUT; CLIP M8 FLANGE	0-91150-208-0	01	1	0105-0602	●	●	●
539	NUT; CLIP M8 FLANGE	0-91180-208-0	01	1	0603-	●	●	●
