Sayfa 1-01A - Isuzu EPC

1-01A — ACCELERATOR PEDAL AND CONTROL (#13288) — 467 parça

406 759 404 396 55 439 56 66 24 158 396 64 66 23 405 404 759 391 42 323 443 323 396 410 409 324 443 759 404 405 122 123 121 42 446 42 447 446

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0105-0106	●
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0107-0112	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0105-0105			●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0105-0105	●			●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0106-0112			●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0106-0112				●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-140-0	01	1	0201-0401			●
23	BRACKET; FUEL CUT CABLE	1-14319-140-0	01	1	0201-0401	●	●		●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-113-0	01	1	0402-0402			●
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0402-0402	●	●		●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0403-			●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0403-	●	●		●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	0105-			●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512			●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	01	1	0601-			●
24	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0105-0105	●
24	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0106-0512	●	●
24	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE	0-28080-820-0	02	1	0105-0106			●
42	BOLT; BRKT,ENG CONT CABLE (A) M8X20 FLANGE	0-28080-820-0	02	1	0105-0106	●			●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE	0-28080-820-0	02	1	0107-0512			●
42	BOLT; BRKT,ENG CONT CABLE (A) M8X20 FLANGE	0-28080-820-0	02	1	0107-0512	●	●		●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
42	BOLT; BRKT,ENG CONT CABLE (A) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●		●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512			●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-			●
42	BOLT; BRKT,ENG CONT CABLE (B) M6X12 FLANGE	0-28080-612-0	02	1	0105-0106	●
42	BOLT; BRKT,ENG CONT CABLE (B) M6X12 FLANGE	0-28080-612-0	02	1	0107-0512	●	●
42	BOLT; BRKT,ENG CONT CABLE (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-	●	●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0105-0106			●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	0105-0106	●			●
55	PIN; JAW JOINT ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0107-			●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	0107-	●	●		●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0105-	●	●	●	●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0105-0105			●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	0105-0105	●			●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0106-0206			●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	0106-0206				●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0207-0303			●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	0207-0303	●	●		●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0304-			●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	0304-				●
64	BRACKET; ENG CONT CABLE RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	0105-			●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0105-0105			●
66	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0105-0105	●			●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0106-0602			●
66	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0106-0602				●
66	NUT; BRKT ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	02	1	0603-			●
66	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-				●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0105-0106			●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	0105-0106	●			●
121	PIN; JOINT,CABLE ELECTRONIC GOV RED3(KG5) L=11	1-09744-102-0	01	1	0107-			●
121	PIN; JOINT,CABLE L=11	1-09744-102-0	01	1	0107-	●	●		●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0105-0106			●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0105-0106	●			●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0107-			●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0107-	●	●		●
122	WASHER; PL,CABLE RLD GOVERNOR(SD7) ID=8.4	9-09160-508-0	01	1	0105-			●
122	WASHER; PL,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	0105-			●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0105-0106			●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0105-0106	●			●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0107-			●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0107-	●	●		●
123	PIN; SNAP,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09987-141-0	01	1	0105-			●
123	PIN; SNAP,CABLE RLD GOVERNOR(SD7) L=27.7	1-09747-005-0	01	1	0105-			●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602			●	●
158	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-			●	●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	02	1	0105-0106			●
323	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0106	●			●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512			●
323	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0107-0512	●	●		●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
323	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●		●
323	BOLT; CLIP PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512			●
323	BOLT; CLIP PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28650-820-0	01	1	0601-			●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0105-0602			●
324	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0105-0602				●
324	NUT; CLIP FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	01	1	0603-			●
324	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-				●
324	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0105-0106	●
324	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	02	1	0107-0602	●	●
324	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
391	BRACKET; ENG CONT	1-15419-581-1	01	1	0105-0106	●
391	BRACKET; ENG CONT	1-15419-581-1	01	1	0107-	●	●
396	BRACKET; CLIP (A)	1-47478-055-0	01	1	0105-			●	●
396	BRACKET; CLIP (C)	1-14319-130-1	01	1	0105-0106	●
396	BRACKET; CLIP (C)	1-14319-130-1	01	1	0107-	●	●
396	BRACKET; CLIP (B)	1-47479-250-0	01	1	0105-0106	●
396	BRACKET; CLIP (B)	1-47479-250-0	01	1	0107-	●	●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	0105-			●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	0105-			●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0105-			●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	0105-			●
404	CLIP; CABLE (B) ID=11 L=20	9-09525-035-0	01	1	0105-0106	●
404	CLIP; CABLE (B) ID=11 L=20	9-09525-035-0	01	1	0107-	●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0105-0106	●			●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0107-	●	●		●
405	BOLT; CABLE CLIP RLD GOVERNOR(SD7) M6X16 FLANGE	0-28080-616-0	02	1	0105-0512			●
405	BOLT; CABLE CLIP RLD GOVERNOR(SD7) M6X16 FLANGE	0-28050-616-0	02	1	0601-			●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-0512			●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-			●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	03	1	0105-0106	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	03	1	0107-0512	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602			●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-			●	●
409	SLEEVE ID=6 OD=10 L=70	1-09376-512-0	01	1	0108-	●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 OD=10 L=70	1-09376-512-0	01	1	0105-0105			●
409	SLEEVE ID=6 OD=10 L=70	1-09376-512-0	01	1	0105-0105	●			●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 L=30	5-09360-352-0	01	1	0106-0106			●
409	SLEEVE ID=6 L=30	5-09360-352-0	01	1	0106-0106	●			●
409	SLEEVE ELECTRONIC GOV RED3(KG5) ID=6 L=30	5-09360-352-0	01	1	0107-			●
409	SLEEVE ID=6 L=30	5-09360-352-0	01	1	0107-	●	●		●
410	CLIP; BAND L=300	1-09707-001-1	01	1	0108-0504	●
410	CLIP; BAND L=350	1-09707-183-0	01	1	0505-	●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=140	5-09707-031-1	01	1	0105-0106			●
410	CLIP; BAND L=140	5-09707-031-1	01	1	0105-0106	●			●
410	CLIP; BAND ELECTRONIC GOV RED3(KG5) L=140	5-09707-031-1	01	1	0107-			●
410	CLIP; BAND L=140	5-09707-031-1	01	1	0107-	●	●		●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0105-	●	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-0106			●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-0106			●
443	CLIP; CABLE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-0106	●			●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-			●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-			●
443	CLIP; CABLE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-	●	●		●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=7 L=20	9-09524-635-0	02	1	0105-0106			●
443	CLIP; CABLE (A) ID=7 L=20	9-09524-635-0	02	1	0105-0106	●			●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=7 L=20	9-09524-635-0	02	1	0107-			●
443	CLIP; CABLE (A) ID=7 L=20	9-09524-635-0	02	1	0107-	●	●		●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	0105-			●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-0106			●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-0106	●			●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0107-			●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0107-	●	●		●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	0105-0404			●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	0105-0404				●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	0405-			●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	0405-	●	●		●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (C) ID=7 L=28	9-09524-655-0	04	1	0105-			●
446	CLIP; ENG CONT (A)	9-09917-514-0	01	1	0105-0106	●
446	CLIP; ENG CONT (A)	9-09917-514-0	01	1	0107-0404	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0105-0106			●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	0105-0106	●			●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0107-0602			●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	0107-0602	●	●		●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	01	1	0603-			●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●		●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	0105-0602			●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	04	1	0603-			●
759	WIRE; CONT,FUEL CUT ELECTRONIC GOV RED3(KG5) L=752	1-23230-026-1	01	1	0105-			●
759	WIRE; CONT,FUEL CUT L=752	1-23230-026-1	01	1	0105-				●
759	WIRE; CONT,FUEL CUT L=937	1-23230-201-0	01	1	0105-0106	●
759	WIRE; CONT,FUEL CUT L=937	1-23230-201-0	01	1	0107-	●	●

67 75 70 8 644 14 242 15 29 16 59 73 665 664 332 673 65 54 6 86 2 82 104 104 87 8 234 271 58 33 81 469 60 60 54 122 123 443 216 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	0105-0106			●
2	LEVER; ENG CONT	1-71907-550-1	01	1	0105-0106	●			●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	0107-			●
2	LEVER; ENG CONT	1-71907-550-1	01	1	0107-	●	●		●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	0105-			●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) ID=4	9-09185-404-0	02	1	0105-0604			●
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) ID=4	0-91805-504-0	02	1	0605-			●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	0105-0106			●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	0105-0106	●			●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	0107-			●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	0107-	●	●		●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	0105-			●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0105-	●	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0105-	●	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0105-	●	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●	●

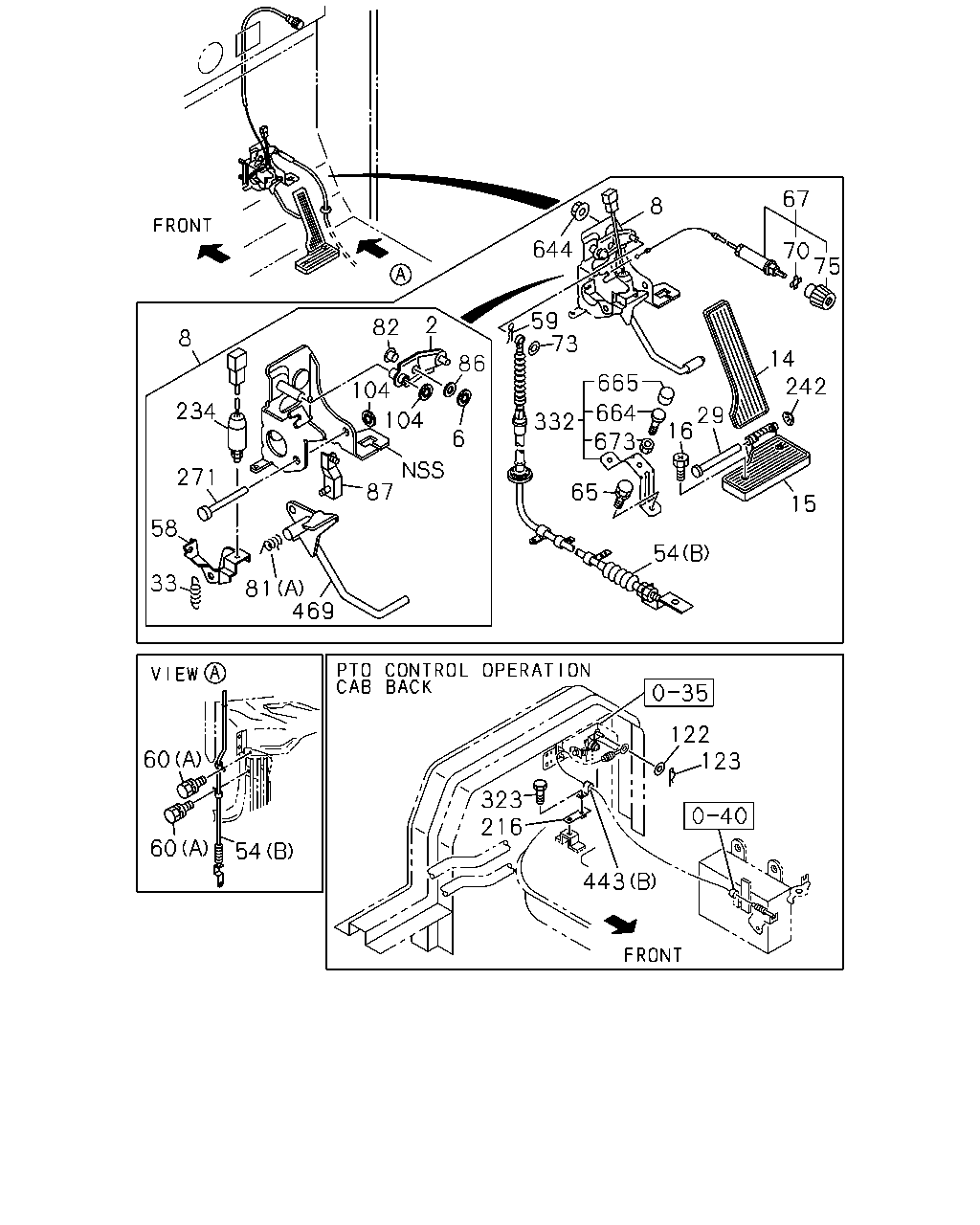

33	SPRING; IDLING CONT LEVER EXC. ELECTRONIC GOV RED3(KG5)	8-94414-815-0	01	1	0105-			●
54	CABLE; ENG CONT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (B) L=2971	1-73907-566-1	01	1	0105-			●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0105-0106			●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	0105-0106	●			●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0107-			●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	0107-	●	●		●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (B) L=2836	1-73907-404-2	01	1	0105-			●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=1300	1-23230-132-0	01	1	0105-			●
58	LEVER; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-242-1	01	1	0105-			●
59	PIN; SNAP,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	0105-			●
60	BOLT; CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-			●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-	●	●	●	●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=399	1-73998-912-3	01	1	0105-0204			●
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=315	1-73908-423-0	01	1	0205-			●
70	NUT; CONT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-73908-045-1	01	1	0105-			●
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	0105-			●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97066-797-1	01	1	0105-0109			●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97137-504-0	01	1	0110-0204			●
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73908-409-0	01	1	0205-			●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	0105-0106			●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	0105-0106	●			●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	0107-0206			●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	0107-0206	●	●		●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	8-97997-917-0	01	1	0207-			●
81	SPRING; RETURN,ENG CONT LEVER (B)	8-97997-917-0	01	1	0207-	●	●		●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0105-	●	●	●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	0105-0106			●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	0105-0106	●			●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	0107-			●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	0107-	●	●		●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	0105-			●
86	WASHER; PL,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) ID=6.4	9-09160-506-0	02	1	0105-			●
87	LINK; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-211-1	01	1	0105-			●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0105-0106			●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	0105-0106	●			●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0107-			●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	0107-	●	●		●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	0105-			●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0105-0106			●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0105-0106	●			●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0107-			●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0107-	●	●		●
122	WASHER; PL,CABLE RLD GOVERNOR(SD7) ID=8.4	9-09160-508-0	01	1	0105-			●
122	WASHER; PL,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	0105-			●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0105-0106			●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0105-0106	●			●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0107-			●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0107-	●	●		●
123	PIN; SNAP,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09987-141-0	01	1	0105-			●
123	PIN; SNAP,CABLE RLD GOVERNOR(SD7) L=27.7	1-09747-005-0	01	1	0105-			●
216	BRACKET PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5)	1-47476-881-0	01	1	0105-			●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-2	01	1	0105-0106			●
234	SWITCH; ACCEL	1-82380-131-2	01	1	0105-0106	●			●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-2	01	1	0107-			●
234	SWITCH; ACCEL	1-82380-131-2	01	1	0107-	●	●		●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-3	01	1	0105-			●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0105-	●	●	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	0105-0106			●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0105-0106	●			●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	0107-			●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0107-	●	●		●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	0105-			●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	02	1	0105-0106			●
323	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0105-0106	●			●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	02	1	0107-0512			●
323	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0107-0512	●	●		●
323	BOLT; CLIP ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
323	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●		●
323	BOLT; CLIP PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28680-820-0	01	1	0105-0512			●
323	BOLT; CLIP PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) M8X20 FLANGE	0-28650-820-0	01	1	0601-			●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0105-	●	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-0106			●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-0106			●
443	CLIP; CABLE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-0106	●			●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-			●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-			●
443	CLIP; CABLE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-	●	●		●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=7 L=20	9-09524-635-0	02	1	0105-0106			●
443	CLIP; CABLE (A) ID=7 L=20	9-09524-635-0	02	1	0105-0106	●			●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=7 L=20	9-09524-635-0	02	1	0107-			●
443	CLIP; CABLE (A) ID=7 L=20	9-09524-635-0	02	1	0107-	●	●		●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	0105-			●
469	LEVER ASM EXC. ELECTRONIC GOV RED3(KG5)	1-71907-209-5	01	1	0105-			●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0105-0304	●	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0305-	●	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0105-	●	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0105-	●	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0105-0512	●	●	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●	●	●

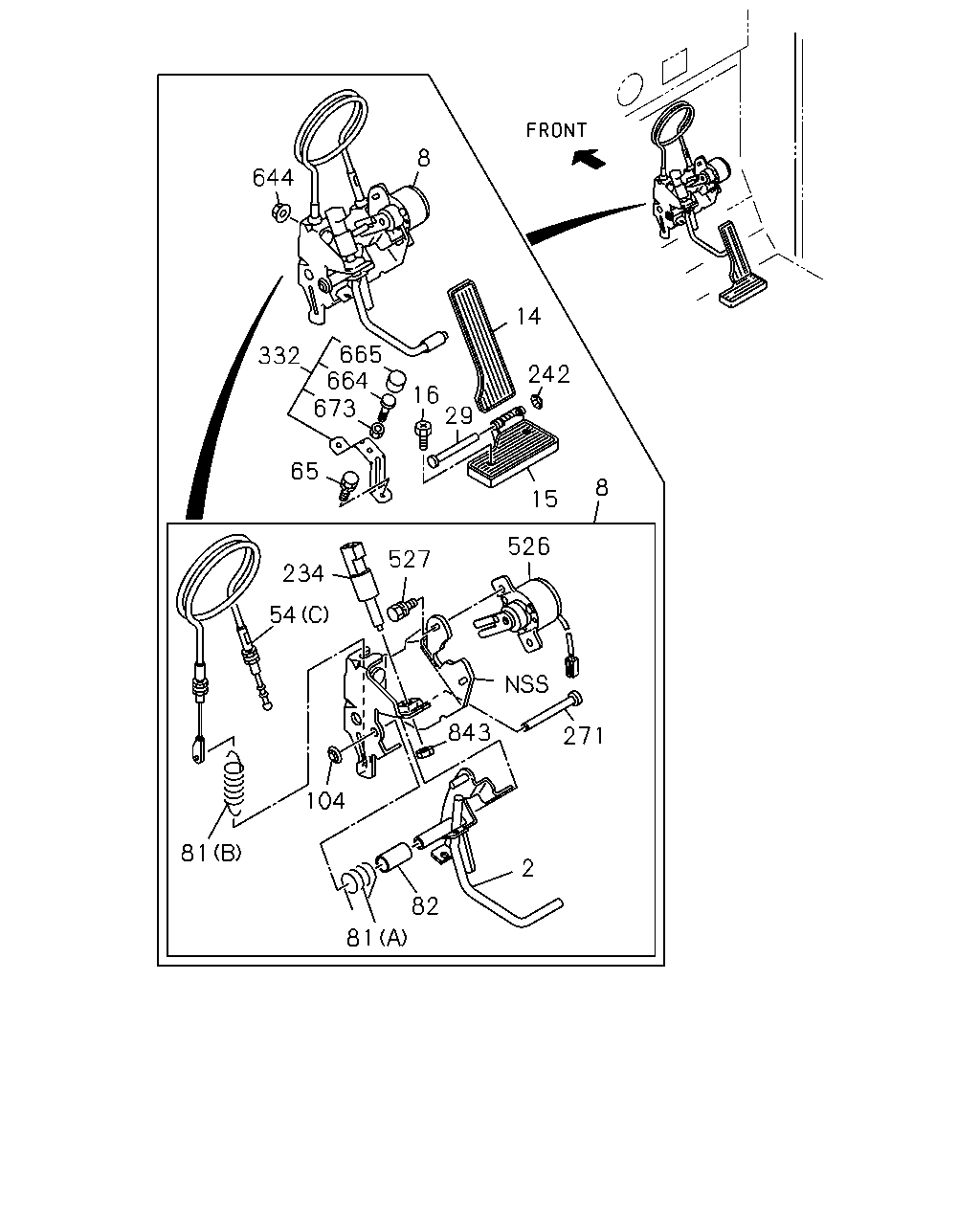

8 644 14 242 8 15 29 16 665 664 673 65 332 526 527 234 54 271 843 104 2 82 81 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	0105-0106			●
2	LEVER; ENG CONT	1-71907-550-1	01	1	0105-0106	●			●
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	0107-			●
2	LEVER; ENG CONT	1-71907-550-1	01	1	0107-	●	●		●
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	0105-			●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	0105-0106			●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	0105-0106	●			●
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-551-3	01	1	0107-			●
8	LINK ASM; ENG CONT	1-71907-551-3	01	1	0107-	●	●		●
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73996-206-6	01	1	0105-			●
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0105-	●	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-3	01	1	0105-	●	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0105-	●	●	●	●
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0105-	●	●	●	●
54	CABLE; ENG CONT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (B) L=2971	1-73907-566-1	01	1	0105-			●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0105-0106			●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	0105-0106	●			●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0107-			●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	0107-	●	●		●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (B) L=2836	1-73907-404-2	01	1	0105-			●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=1300	1-23230-132-0	01	1	0105-			●
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-	●	●	●	●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	0105-0106			●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	0105-0106	●			●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	0107-0206			●
81	SPRING; RETURN,ENG CONT LEVER (B)	1-71907-268-0	01	1	0107-0206	●	●		●
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	8-97997-917-0	01	1	0207-			●
81	SPRING; RETURN,ENG CONT LEVER (B)	8-97997-917-0	01	1	0207-	●	●		●
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0105-	●	●	●	●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	0105-0106			●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	0105-0106	●			●
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	0107-			●
82	BUSHING; ENG CONT LVR L=31.5	1-53459-627-0	01	1	0107-	●	●		●
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	0105-			●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0105-0106			●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	0105-0106	●			●
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	01	1	0107-			●
104	NUT; ENG CONT ID=7.9 PUSH NUT	8-94368-617-0	01	1	0107-	●	●		●
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) ID=7.9 PUSH NUT	8-94368-617-0	02	1	0105-			●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-2	01	1	0105-0106			●
234	SWITCH; ACCEL	1-82380-131-2	01	1	0105-0106	●			●
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-2	01	1	0107-			●
234	SWITCH; ACCEL	1-82380-131-2	01	1	0107-	●	●		●
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-3	01	1	0105-			●
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0105-	●	●	●	●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	0105-0106			●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0105-0106	●			●
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	0107-			●
271	SHAFT; ENG CONT OD=8.0 L=69	1-71907-298-0	01	1	0107-	●	●		●
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	0105-			●
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0105-	●	●	●	●
526	SENSOR; ACCEL ELECTRONIC GOV RED3(KG5)	1-81534-003-2	01	1	0105-0106			●
526	SENSOR; ACCEL	1-81534-003-2	01	1	0105-0106	●			●
526	SENSOR; ACCEL ELECTRONIC GOV RED3(KG5)	1-81534-003-2	01	1	0107-			●
526	SENSOR; ACCEL	1-81534-003-2	01	1	0107-	●	●		●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-0106			●
527	BOLT; ACCEL SENSOR M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-0106	●			●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-0206			●
527	BOLT; ACCEL SENSOR M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0107-0206	●	●		●
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0207-			●
527	BOLT; ACCEL SENSOR M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0207-	●	●		●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0105-0304	●	●	●	●
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0305-	●	●	●	●
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0105-	●	●	●	●
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0105-	●	●	●	●
673	NUT; STOPPER M8	9-09111-408-0	01	1	0105-0512	●	●	●	●
673	NUT; STOPPER M8	0-91111-508-0	01	1	0601-	●	●	●	●
843	NUT ELECTRONIC GOV RED3(KG5) M12	9-99111-412-0	01	1	0105-0106			●
843	NUT M12	9-99111-412-0	01	1	0105-0106	●			●
843	NUT ELECTRONIC GOV RED3(KG5) M12	9-99111-412-0	01	1	0107-0512			●
843	NUT M12	9-99111-412-0	01	1	0107-0512	●	●		●
843	NUT ELECTRONIC GOV RED3(KG5) M12	0-91111-512-0	01	1	0601-			●
843	NUT M12	0-91111-512-0	01	1	0601-	●	●		●

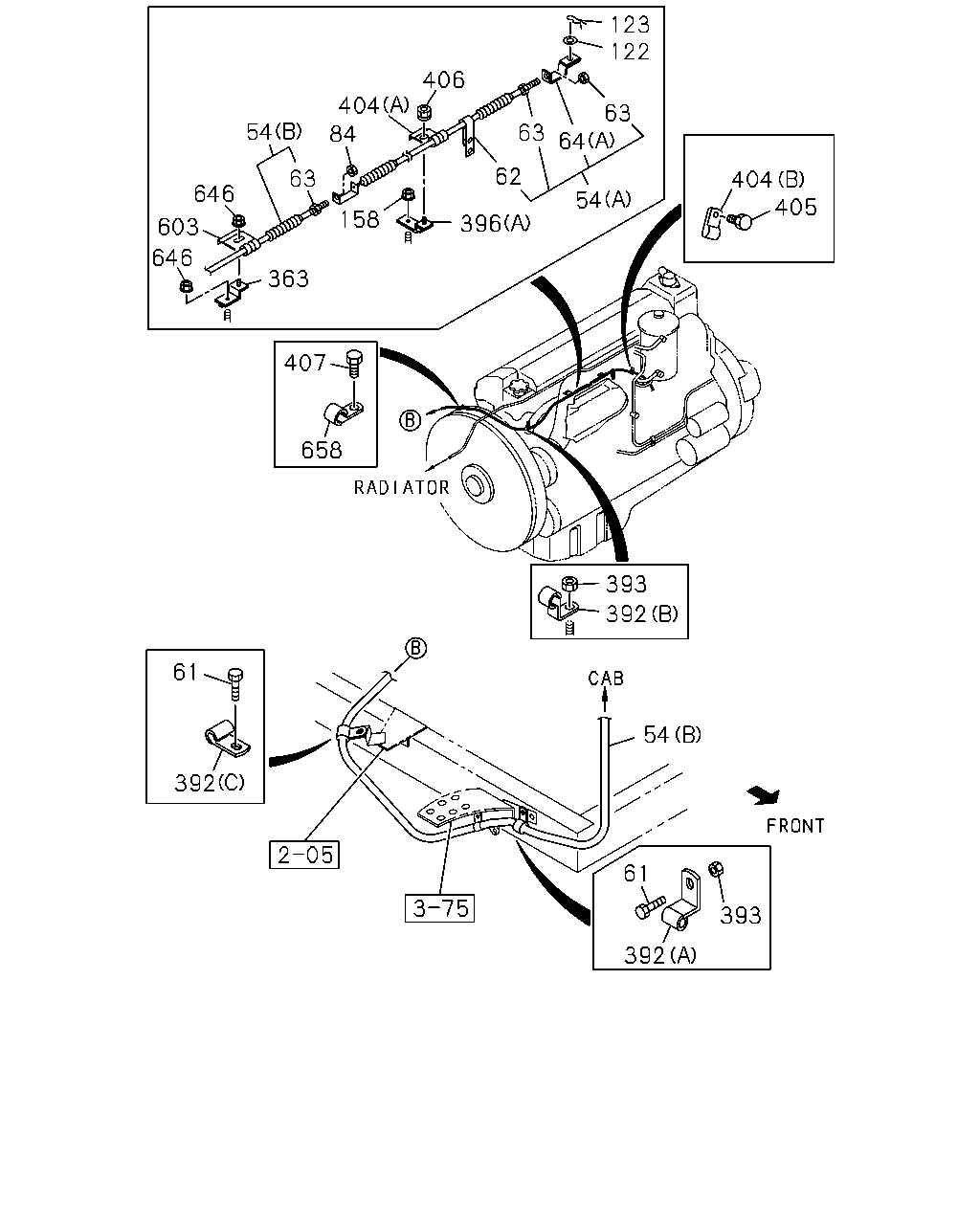

123 122 63 64 63 62 406 404 84 158 63 54 646 603 363 646 404 405 54 396 658 407 392 393 61 392 54 61 393 392

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
54	CABLE; ENG CONT CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (B) L=2971	1-73907-566-1	01	1	0105-			●
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0105-0106			●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	0105-0106	●			●

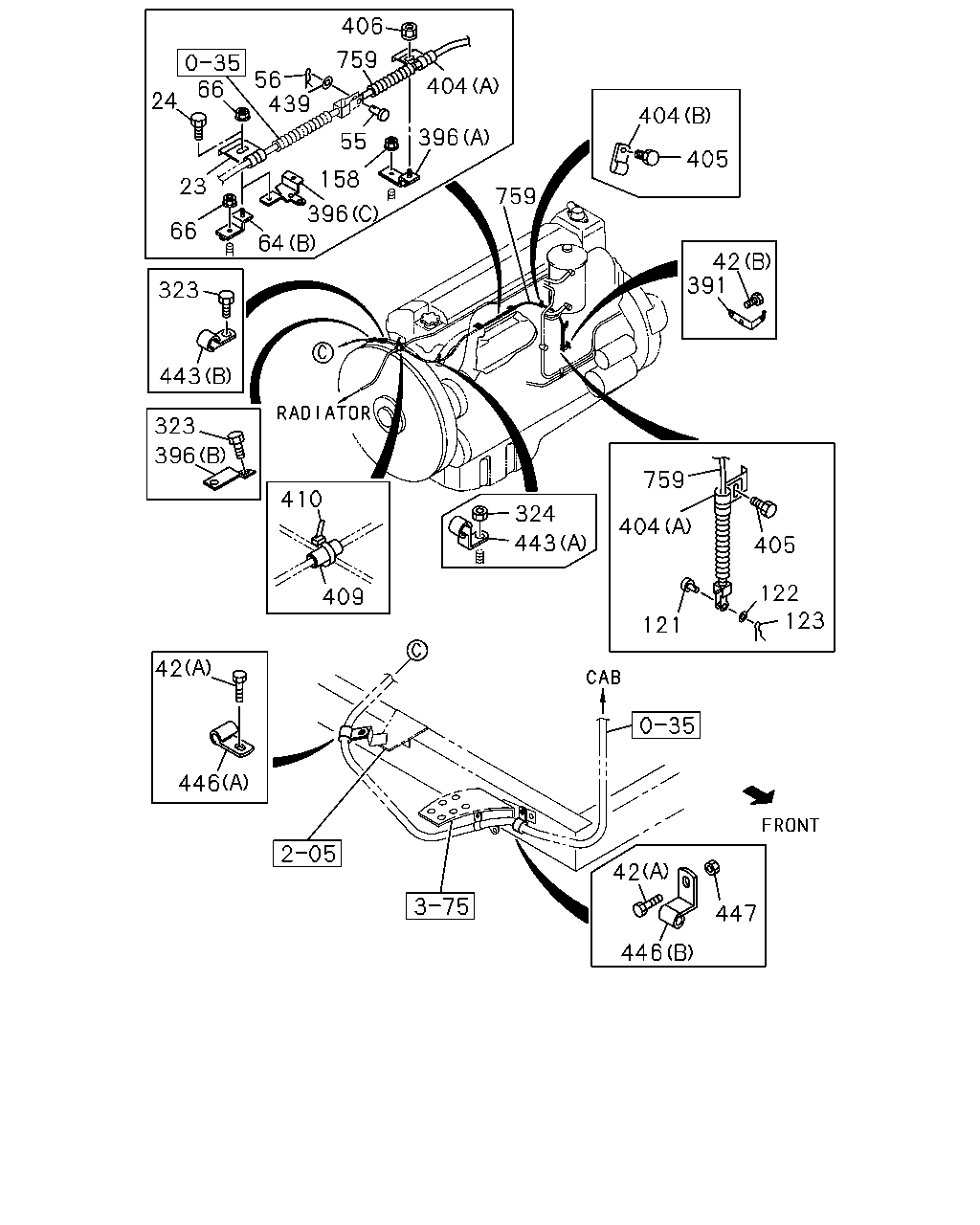

54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (C) L=850	1-71907-257-0	01	1	0107-			●
54	CABLE; ENG CONT (C) L=850	1-71907-257-0	01	1	0107-	●	●		●
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (B) L=2836	1-73907-404-2	01	1	0105-			●
54	CABLE; ENG CONT RLD GOVERNOR(SD7) (A) L=1300	1-23230-132-0	01	1	0105-			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512			●
61	BOLT; BRKT TO FRAME ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
62	CLIP; ENG CONT CABLE RLD GOVERNOR(SD7) L=30	1-09700-326-0	01	1	0105-			●
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	01	1	0105-			●
63	NUT; LOCK,BRKT RLD GOVERNOR(SD7) M8	9-09111-408-0	02	1	0105-			●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0105-0105			●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	0105-0105	●			●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0106-0206			●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	0106-0206				●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0207-0303			●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	0207-0303	●	●		●
64	BRACKET; ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (B)	1-47477-804-3	01	1	0304-			●
64	BRACKET; ENG CONT CABLE (B)	1-47477-804-3	01	1	0304-				●
64	BRACKET; ENG CONT CABLE RLD GOVERNOR(SD7) (A)	1-23219-105-1	01	1	0105-			●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0105-0501			●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8	9-09110-408-0	01	1	0502-0512			●
84	NUT; ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) M8	0-91110-508-0	01	1	0601-			●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0105-0106			●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0105-0106	●			●
122	WASHER; PL,CABLE ELECTRONIC GOV RED3(KG5) ID=5.3	9-09160-505-0	01	1	0107-			●
122	WASHER; PL,CABLE ID=5.3	9-09160-505-0	01	1	0107-	●	●		●
122	WASHER; PL,CABLE RLD GOVERNOR(SD7) ID=8.4	9-09160-508-0	01	1	0105-			●
122	WASHER; PL,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	0105-			●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0105-0106			●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0105-0106	●			●
123	PIN; SNAP,CABLE ELECTRONIC GOV RED3(KG5) L=17.9	1-09747-002-0	01	1	0107-			●
123	PIN; SNAP,CABLE L=17.9	1-09747-002-0	01	1	0107-	●	●		●
123	PIN; SNAP,CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09987-141-0	01	1	0105-			●
123	PIN; SNAP,CABLE RLD GOVERNOR(SD7) L=27.7	1-09747-005-0	01	1	0105-			●
158	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0105-0602			●	●
158	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-			●	●
363	SPACER; BRKT,ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-47477-804-3	01	1	0105-			●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	0105-			●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-			●
392	CLIP; ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	0105-			●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0105-0602			●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0105-0602			●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	01	1	0603-			●
393	NUT; CLIP TO FRAME EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	01	1	0603-			●
396	BRACKET; CLIP (A)	1-47478-055-0	01	1	0105-			●	●
396	BRACKET; CLIP (C)	1-14319-130-1	01	1	0105-0106	●
396	BRACKET; CLIP (C)	1-14319-130-1	01	1	0107-	●	●
396	BRACKET; CLIP (B)	1-47479-250-0	01	1	0105-0106	●
396	BRACKET; CLIP (B)	1-47479-250-0	01	1	0107-	●	●
404	CLIP; CABLE (A)	1-14319-111-0	01	1	0105-			●
404	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A)	1-14319-111-0	01	1	0105-			●
404	CLIP; CABLE (B) ID=9 L=40	9-09524-875-0	01	1	0105-			●	●
404	CLIP; CABLE RLD GOVERNOR(SD7) (B) ID=9 L=40	9-09524-875-0	01	1	0105-			●
404	CLIP; CABLE (B) ID=11 L=20	9-09525-035-0	01	1	0105-0106	●
404	CLIP; CABLE (B) ID=11 L=20	9-09525-035-0	01	1	0107-	●	●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0105-0106	●			●
404	CLIP; CABLE (A)	1-14319-111-0	02	1	0107-	●	●		●
405	BOLT; CABLE CLIP RLD GOVERNOR(SD7) M6X16 FLANGE	0-28080-616-0	02	1	0105-0512			●
405	BOLT; CABLE CLIP RLD GOVERNOR(SD7) M6X16 FLANGE	0-28050-616-0	02	1	0601-			●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	02	1	0105-0512			●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	02	1	0601-			●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	03	1	0105-0106	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28080-816-0	03	1	0107-0512	●	●
405	BOLT; CABLE CLIP M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91150-108-0	01	1	0105-0602			●	●
406	NUT; CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	0603-			●	●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512			●
407	BOLT; CLIP TO ENG EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
603	BRACKET; ENG CONT SHAFT EXC. ELECTRONIC GOV RED3(KG5)	1-14319-140-0	01	1	0105-			●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0105-0602			●
646	NUT; BRKT,LEVER EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	02	1	0603-			●
658	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=7 L=20	9-09524-635-0	02	1	0105-			●

42 42 42 42 446 443 24 23 439 56 446 447 447 446 446 447 447

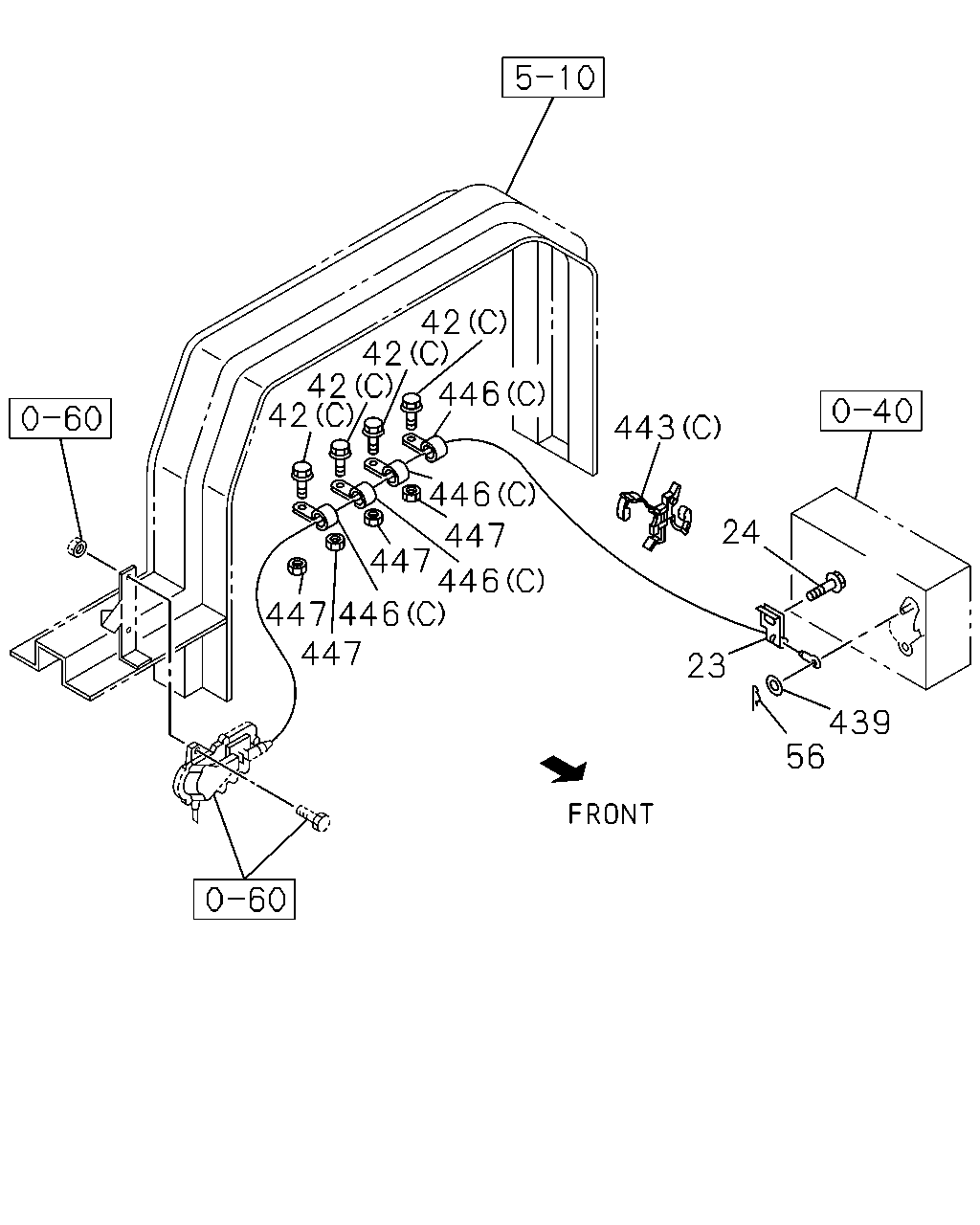

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0105-0106	●
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0107-0112	●	●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0105-0105			●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0105-0105	●			●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0106-0112			●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0106-0112				●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-140-0	01	1	0201-0401			●
23	BRACKET; FUEL CUT CABLE	1-14319-140-0	01	1	0201-0401	●	●		●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-113-0	01	1	0402-0402			●
23	BRACKET; FUEL CUT CABLE	1-14319-113-0	01	1	0402-0402	●	●		●
23	BRACKET; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5)	1-14319-099-0	01	1	0403-			●
23	BRACKET; FUEL CUT CABLE	1-14319-099-0	01	1	0403-	●	●		●
23	BRACKET; FUEL CUT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-14319-138-0	01	1	0105-			●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	01	1	0105-0512			●
24	BOLT; BRKT EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	01	1	0601-			●
24	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0105-0105	●
24	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	0106-0512	●	●
24	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE	0-28080-820-0	02	1	0105-0106			●
42	BOLT; BRKT,ENG CONT CABLE (A) M8X20 FLANGE	0-28080-820-0	02	1	0105-0106	●			●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE	0-28080-820-0	02	1	0107-0512			●
42	BOLT; BRKT,ENG CONT CABLE (A) M8X20 FLANGE	0-28080-820-0	02	1	0107-0512	●	●		●
42	BOLT; BRKT,ENG CONT CABLE ELECTRONIC GOV RED3(KG5) (A) M8X20 FLANGE	0-28050-820-0	02	1	0601-			●
42	BOLT; BRKT,ENG CONT CABLE (A) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●		●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) M8X25 FLANGE	0-28680-825-0	04	1	0105-0512			●
42	BOLT; BRKT,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-			●
42	BOLT; BRKT,ENG CONT CABLE (B) M6X12 FLANGE	0-28080-612-0	02	1	0105-0106	●
42	BOLT; BRKT,ENG CONT CABLE (B) M6X12 FLANGE	0-28080-612-0	02	1	0107-0512	●	●
42	BOLT; BRKT,ENG CONT CABLE (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0105-	●	●	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0105-	●	●	●	●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-0106			●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-0106			●
443	CLIP; CABLE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0105-0106	●			●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-			●
443	CLIP; CABLE PTO CONTROL OPERATION CAB BACK<TBZ> EXC. ELECTRONIC GOV RED3(KG5) (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-			●
443	CLIP; CABLE (B) ID=6 H=20 L=20	1-09700-603-0	01	1	0107-	●	●		●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=7 L=20	9-09524-635-0	02	1	0105-0106			●
443	CLIP; CABLE (A) ID=7 L=20	9-09524-635-0	02	1	0105-0106	●			●
443	CLIP; CABLE ELECTRONIC GOV RED3(KG5) (A) ID=7 L=20	9-09524-635-0	02	1	0107-			●
443	CLIP; CABLE (A) ID=7 L=20	9-09524-635-0	02	1	0107-	●	●		●
443	CLIP; CABLE EXC. ELECTRONIC GOV RED3(KG5) (C) ID=6-10 & 6-10	1-09709-192-1	01	1	0105-			●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-0106			●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0105-0106	●			●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0107-			●
446	CLIP; ENG CONT (B) ID=11 H=20 L=20	5-09700-351-0	01	1	0107-	●	●		●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	0105-0404			●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	0105-0404				●
446	CLIP; ENG CONT ELECTRONIC GOV RED3(KG5) (A) ID=11 L=20	9-09525-035-0	01	1	0405-			●
446	CLIP; ENG CONT (A) ID=11 L=20	9-09525-035-0	01	1	0405-	●	●		●
446	CLIP; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (C) ID=7 L=28	9-09524-655-0	04	1	0105-			●
446	CLIP; ENG CONT (A)	9-09917-514-0	01	1	0105-0106	●
446	CLIP; ENG CONT (A)	9-09917-514-0	01	1	0107-0404	●	●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0105-0106			●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	0105-0106	●			●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	01	1	0107-0602			●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91150-108-0	01	1	0107-0602	●	●		●
447	NUT; BRKT,CONT WIRE ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	01	1	0603-			●
447	NUT; BRKT,CONT WIRE M8 FLANGE	0-91180-108-0	01	1	0603-	●	●		●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	0105-0602			●
447	NUT; BRKT,CONT WIRE EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	04	1	0603-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
