0-90A — POWER TAKE OFF; FLYWHEEL (#13286) — 108 parça

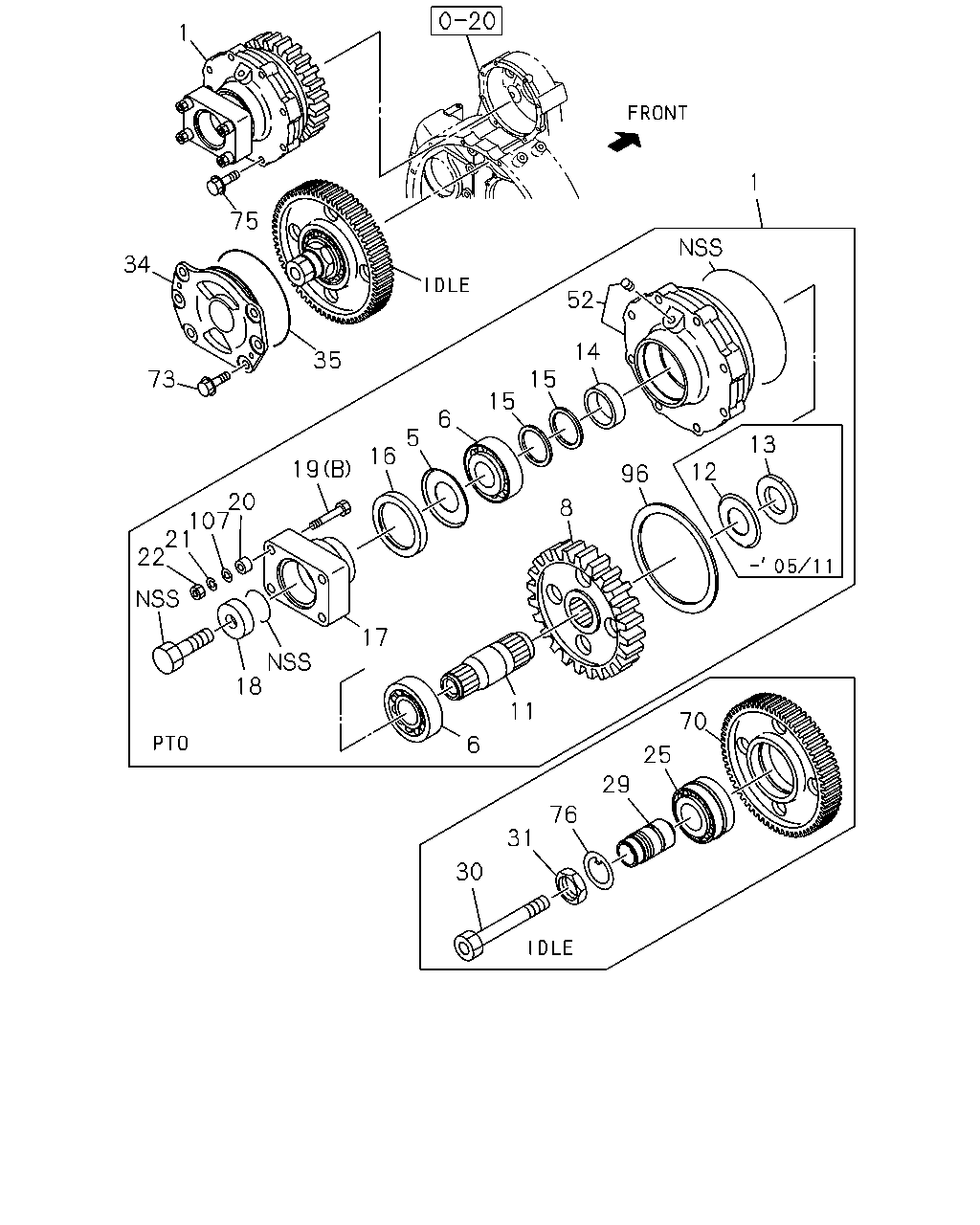

çizim 78283
1 75 34 73 35 1 52 14 15 15 6 5 16 20 19 107 21 22 13 12 96 8 11 6 17 18 70 25 29 76 31 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1) 		1-38000-308-0 01 1 0105-0106 ●
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1) 		1-38000-308-0 01 1 0107-0208 ● ●
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1) 		1-38000-387-0 01 1 0209-0303 ● ●
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1) 		1-38000-388-1 01 1 0304-0505 ● ●
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1) 		1-38000-394-3 01 1 0506- ● ●
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) 		1-09625-128-0 01 1 0105-0106 ●
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) 		1-09625-128-0 01 1 0107- ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) JTEKT 		8-94248-088-2 02 1 0506- ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) NSK 		9-00093-149-0 02 1 0105-0106 ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) NSK 		9-00093-149-0 02 1 0107-0310 ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) NSK 		9-00093-149-0 04 1 0311-0505 ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) NSK 		9-00093-149-0 06 1 0506-0511 ● ●
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) NSK 		9-00093-149-0 02 1 0512- ● ●
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1) Z=61 		1-38241-105-0 01 1 0105-0106 ●
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1) Z=61 		1-38241-105-0 01 1 0107-0208 ● ●
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1) Z=61 		1-38241-135-1 01 1 0209-0303 ● ●
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1) Z=61 		1-38241-136-0 01 1 0304-0511 ● ●
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		8-98012-348-0 01 1 0512- ● ●
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-38221-031-0 01 1 0105-0106 ●
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-38221-031-1 01 1 0107-0511 ● ●
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		8-98012-349-1 01 1 0512- ● ●
12 WASHER; LK,SHAFT NUT,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		9-09853-865-0 01 1 0105-0106 ●
12 WASHER; LK,SHAFT NUT,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		9-09853-865-0 01 1 0107-0511 ● ●
13 NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		9-09843-720-0 01 1 0105-0106 ●
13 NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		9-09843-720-1 01 1 0107-0511 ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=17.95 		9-38226-045-0 01 1 0105-0106 ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=17.95 		9-38226-045-0 01 1 0107- ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.20 		9-38226-046-0 01 1 0105-0106 ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.20 		9-38226-046-0 01 1 0107- ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.45 		9-38226-047-0 01 1 0105-0106 ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.45 		9-38226-047-0 01 1 0107- ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.70 		9-38226-048-0 01 1 0105-0106 ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.70 		9-38226-048-0 01 1 0107- ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.95 		9-38226-049-0 01 1 0105-0106 ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.95 		9-38226-049-0 01 1 0107- ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=19.20 		9-38226-050-0 01 1 0105-0106 ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=19.20 		9-38226-050-0 01 1 0107- ● ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=19.45 		9-38226-051-0 01 1 0105-0106 ●
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=19.45 		9-38226-051-0 01 1 0107- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.50 		9-41229-324-0 AR 1 0105-0106 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.50 		9-41229-324-0 AR 1 0107- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.51 		9-41229-325-0 AR 1 0105-0106 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.51 		9-41229-325-0 AR 1 0107- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.52 		9-41229-326-0 AR 1 0105-0106 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.52 		9-41229-326-0 AR 1 0107- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.53 		9-41229-327-0 AR 1 0105-0106 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.53 		9-41229-327-0 AR 1 0107- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.54 		9-41229-328-0 AR 1 0105-0106 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.54 		9-41229-328-0 AR 1 0107- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.55 		9-41229-329-0 AR 1 0105-0106 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.55 		9-41229-329-0 AR 1 0107- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.56 		9-41229-330-0 AR 1 0105-0106 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.56 		9-41229-330-0 AR 1 0107- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.57 		9-41229-331-0 AR 1 0105-0106 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.57 		9-41229-331-0 AR 1 0107- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.58 		9-41229-332-0 AR 1 0105-0106 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.58 		9-41229-332-0 AR 1 0107- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.59 		9-41229-333-0 AR 1 0105-0106 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.59 		9-41229-333-0 AR 1 0107- ● ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.60 		9-41229-334-0 AR 1 0105-0106 ●
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.60 		9-41229-334-0 AR 1 0107- ● ●
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		9-38175-011-0 01 1 0105-0106 ●
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		9-38175-011-0 01 1 0107- ● ●
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-38189-010-0 01 1 0105-0106 ●
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-38189-010-2 01 1 0107- ● ●
18 WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		1-09509-014-0 01 1 0105-0106 ●
18 WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		1-09509-014-1 01 1 0107- ● ●
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (B) M12X70 		9-92621-270-0 04 1 0105-0106 ●
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (B) M12X70 		9-92621-270-0 04 1 0107-0505 ● ●
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (B) M12X40 		9-92061-240-0 04 1 0506-0512 ● ●
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (B) M12X40 		0-20951-240-0 04 1 0601- ● ●
20 SPACER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=13 ID=22.2 		9-38189-005-0 04 1 0105-0106 ●
20 SPACER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=13 ID=22.2 		9-38189-005-0 04 1 0107-0310 ● ●
21 WASHER; LK,FLANGE
ENGINE REAR PTO(SV1) ID=12.2 		9-09150-612-0 04 1 0105-0106 ●
21 WASHER; LK,FLANGE
ENGINE REAR PTO(SV1) ID=12.2 		9-09150-612-0 04 1 0107-0603 ● ●
21 WASHER; LK,FLANGE
ENGINE REAR PTO(SV1) ID=12.2 		0-91510-612-0 04 1 0604- ● ●
22 NUT; FLANGE
ENGINE REAR PTO(SV1) M12 		9-99110-512-0 04 1 0105-0106 ●
22 NUT; FLANGE
ENGINE REAR PTO(SV1) M12 		9-99110-512-0 04 1 0107-0512 ● ●
22 NUT; FLANGE
ENGINE REAR PTO(SV1) M12 		0-91110-512-0 04 1 0601- ● ●
25 BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		1-09820-105-0 01 1 0105-0106 ●
25 BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		1-09820-105-0 01 1 0107- ● ●
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO(SV1) 		1-12531-108-0 01 1 0105-0106 ●
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO(SV1) 		1-12531-108-0 01 1 0107- ● ●
30 BOLT; SPINDLE
ENGINE REAR PTO(SV1) 		9-09805-081-1 01 1 0105-0106 ●
30 BOLT; SPINDLE
ENGINE REAR PTO(SV1) 		9-09805-081-1 01 1 0107- ● ●
31 NUT; IDLE GEAR
ENGINE REAR PTO(SV1) 		9-09843-063-0 01 1 0105-0106 ●
31 NUT; IDLE GEAR
ENGINE REAR PTO(SV1) 		9-09843-063-0 01 1 0107- ● ●
34 COVER; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-11343-012-0 01 1 0105-0106 ●
34 COVER; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-11343-012-1 01 1 0107- ● ●
35 GASKET; COVER
ENGINE REAR PTO(SV1) 		1-09623-266-0 01 1 0105-0106 ●
35 GASKET; COVER
ENGINE REAR PTO(SV1) 		1-09623-266-0 01 1 0107- ● ●
52 CASE; BRG,PTO
ENGINE REAR PTO(SV1) 		9-38181-007-1 01 1 0105-0106 ●
52 CASE; BRG,PTO
ENGINE REAR PTO(SV1) 		9-38181-007-3 01 1 0107- ● ●
70 GEAR; IDLE DRIVEN,PTO
ENGINE REAR PTO(SV1) Z=63 		1-38261-030-1 01 1 0105-0106 ●
70 GEAR; IDLE DRIVEN,PTO
ENGINE REAR PTO(SV1) Z=63 		1-38261-030-1 01 1 0107-0208 ● ●
70 GEAR; IDLE DRIVEN,PTO
ENGINE REAR PTO(SV1) Z=63 		1-38261-040-0 01 1 0209- ● ●
73 BOLT; COVER,PTO
ENGINE REAR PTO(SV1) 		0-28191-220-0 06 1 0105-0106 ●
73 BOLT; COVER,PTO
ENGINE REAR PTO(SV1) 		0-28191-220-0 06 1 0107-0512 ● ●
73 BOLT; COVER,PTO
ENGINE REAR PTO(SV1) 		0-28161-220-0 06 1 0601- ● ●
75 BOLT; COVER
ENGINE REAR PTO(SV1) M10X30 FLANGE 		0-28781-030-0 08 1 0105-0106 ●
75 BOLT; COVER
ENGINE REAR PTO(SV1) M10X30 FLANGE 		0-28781-030-0 08 1 0107-0512 ● ●
75 BOLT; COVER
ENGINE REAR PTO(SV1) M10X30 FLANGE 		0-28751-030-0 08 1 0601- ● ●
76 WASHER; LK,IDLE GEAR
ENGINE REAR PTO(SV1) 		9-09854-034-0 01 1 0105-0106 ●
76 WASHER; LK,IDLE GEAR
ENGINE REAR PTO(SV1) 		9-09854-034-0 01 1 0107- ● ●
96 RING; GEAR PTO
ENGINE REAR PTO(SV1) 		1-38261-027-0 01 1 0105-0106 ●
96 RING; GEAR PTO
ENGINE REAR PTO(SV1) 		1-38261-027-0 01 1 0107-0303 ● ●
107 WASHER; PL,FLANGE
ENGINE REAR PTO(SV1) ID=12.5 		9-09160-512-0 04 1 0311-0312 ● ●
107 WASHER; PL,FLANGE
ENGINE REAR PTO(SV1) ID=12.5 		9-09160-512-0 04 1 0401- ● ●
