Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#1328) — 353 parça

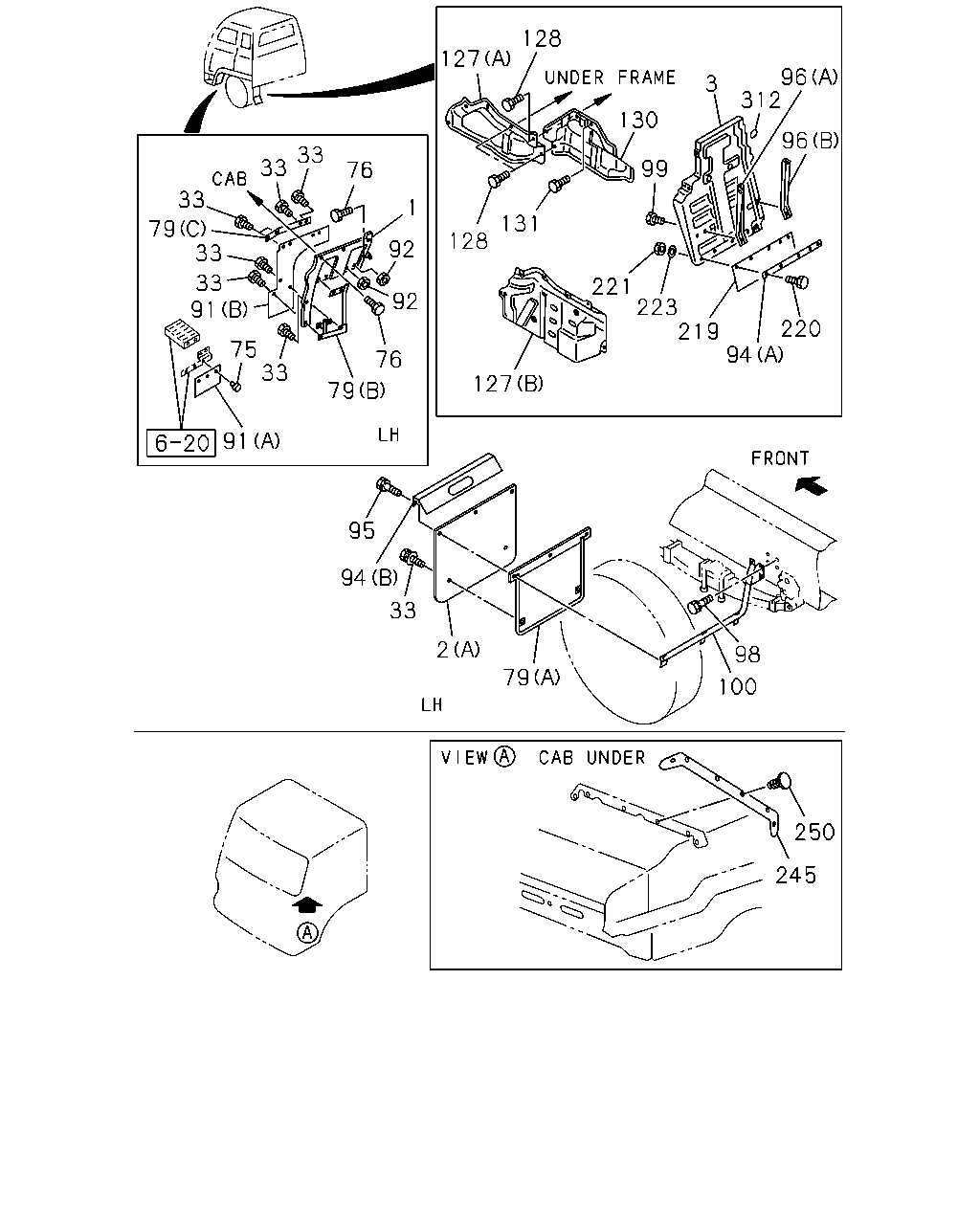

128 127 96 312 3 130 96 33 33 99 76 33 1 131 79 33 128 92 33 91 92 221 223 219 94 220 75 33 76 127 79 91 95 94 33 2 98 79 100 250 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79938-731-0	01	1	9204-
1	GUARD; MUD,FRT	1-79938-730-0	01	1	9204-
2	COVER; MUD,TIRE RR (A)	1-79930-584-2	01	1	9204-9504
2	COVER; MUD,TIRE RR 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-584-2	01	1	9505-
2	COVER; MUD,TIRE RR (B)	1-79930-530-2	01	1	9204-9504
2	COVER; MUD,TIRE RR (B)	1-79930-530-2	01	1	9505-
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L) (B)	1-79930-530-2	01	1	9505-
3	GUARD; MUD,RR	1-79938-707-3	01	1	9204-9504
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-707-3	01	1	9505-
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9204-9504
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9505-
3	GUARD; MUD,RR 6HE1 STD ENG(46L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9505-
3	GUARD; MUD,RR EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-714-0	01	1	9204-9504
3	GUARD; MUD,RR 6SA1 STD ENG(06L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-714-0	01	1	9505-
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-775-0	01	1	9505-
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	16	1	9204-9307
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	21	1	9308-9401
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	23	1	9402-
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9204-9404
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9405-9504
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9505-
33	BOLT; MUD COVER 6HE1 STD ENG(46L) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9505-
75	RIVET; MUD COVER D6X16 PUSH RIVET	1-09983-105-0	06	1	9204-
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9204-9504
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9505-
76	BOLT; MUD GUARD 6HE1 STD ENG(46L) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9505-
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9204-
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9204-9504
76	BOLT; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9505-
79	RETAINER; MUD COVER (C)	1-79930-656-0	02	1	9204-
79	RETAINER; MUD COVER (A)	1-79930-651-1	01	1	9204-9504
79	RETAINER; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-651-1	01	1	9505-
79	RETAINER; MUD COVER (B)	1-79930-654-2	01	1	9204-
79	RETAINER; MUD COVER (D)	1-79930-521-0	01	1	9204-9307
79	RETAINER; MUD COVER (D)	1-79930-986-0	01	1	9308-9401
79	RETAINER; MUD COVER (D)	1-79931-131-0	01	1	9402-9504
79	RETAINER; MUD COVER (D)	1-79931-131-0	01	1	9505-
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (D)	1-79931-131-0	01	1	9505-
79	RETAINER; MUD COVER (B)	1-79930-655-2	01	1	9204-
91	COVER; MUD,FRT (A)	1-79930-653-1	02	1	9204-
91	COVER; MUD,FRT (B)	1-79930-658-2	02	1	9204-
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9204-
92	NUT; MUD COVER 6HE1 STD ENG(46L) M6	9-09110-406-0	05	1	9505-
94	RETAINER; FLAP RUBBER (B)	1-79930-649-1	01	1	9204-9504
94	RETAINER; FLAP RUBBER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B)	1-79930-649-1	01	1	9505-
94	RETAINER; FLAP RUBBER (A)	1-79930-586-0	01	1	9204-9504
94	RETAINER; FLAP RUBBER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-586-0	01	1	9505-
95	BOLT; STAY TO RET M6X16 W/LK&PL WASHER	1-09980-492-0	03	1	9204-9504
95	BOLT; STAY TO RET 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X16 W/LK&PL WASHER	1-09980-492-0	03	1	9505-
96	STAY; MUD GUARD (A)	1-79938-643-1	01	1	9204-9504
96	STAY; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79938-643-1	01	1	9505-
96	STAY; MUD GUARD (B)	1-79938-645-1	01	1	9204-9504
96	STAY; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) (B)	1-79938-645-1	01	1	9505-
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28010-830-0	04	1	9204-9204
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28080-830-0	04	1	9205-9504
98	BOLT; STAY TO BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X30 FLANGE	0-28080-830-0	04	1	9505-
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (D) M8X16 FLANGE	0-28080-816-0	02	1	9505-
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (A) M8X20 FLANGE	0-28080-820-0	01	1	9505-
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (B) M8X30 FLANGE	0-28080-830-0	01	1	9505-
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (C) M10X25 FLANGE	0-28081-025-0	04	1	9505-
99	BOLT; STAY TO MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	04	1	9204-9504
99	BOLT; STAY TO MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X20 W/LK&PL WASHER	1-09980-495-0	04	1	9505-
100	STAY; UPR,MUD GUARD	1-53497-407-0	01	1	9204-9504
100	STAY; UPR,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-53497-407-0	01	1	9505-
100	STAY; UPR,MUD GUARD 6HE1 STD ENG(46L)	1-53497-489-0	01	1	9505-
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3) (B)	1-53192-417-0	01	1	9204-
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3) (B)	1-53192-104-0	01	1	9204-
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-79938-623-3	01	1	9204-
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-79938-621-3	01	1	9204-
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9204-
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-418-0	01	1	9204-
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-108-0	01	1	9204-
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-734-1	01	1	9505-
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-740-1	01	1	9505-
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-627-5	01	1	9204-
130	PANEL; SHUTTER NOISE 6SA1TC ENG(28L) EXC. AUSTRALIA EQUIPMENT(RR3)	1-79938-627-5	01	1	9204-
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-625-5	01	1	9204-
130	PANEL; SHUTTER NOISE 6SA1TC ENG(28L) EXC. AUSTRALIA EQUIPMENT(RR3)	1-79938-625-5	01	1	9204-
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9204-
219	FLAP; MUD GUARD	1-79930-650-0	01	1	9204-9504
219	FLAP; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79930-650-0	01	1	9505-
220	BOLT; RET,MUD GUARD M6X16 W/LK WASHER	0-50000-616-0	05	1	9204-9204
220	BOLT; RET,MUD GUARD M6X16 W/LK WASHER	0-50080-616-0	05	1	9205-9504
220	BOLT; RET,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X16 W/LK WASHER	0-50080-616-0	05	1	9505-
221	NUT; COVER,MUD GUARD RR	8-94238-948-0	05	1	9204-9504
221	NUT; COVER,MUD GUARD RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	8-94238-948-0	05	1	9505-
223	WASHER; PL,RET	8-94238-949-0	05	1	9204-9504
223	WASHER; PL,RET 6SA1 STD ENG(06L),6SA1TC ENG(28L)	8-94238-949-0	05	1	9505-
245	RUBBER; SHUTTER,RAD 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-79938-858-0	01	1	9204-
250	FASTENER; SHUTTER 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-09987-189-0	06	1	9204-
312	SEAL; DUMMY HOLE OD=36	1-76778-007-0	02	1	9204-9504
312	SEAL; DUMMY HOLE 6SA1 STD ENG(06L),6SA1TC ENG(28L) OD=36	1-76778-007-0	02	1	9505-

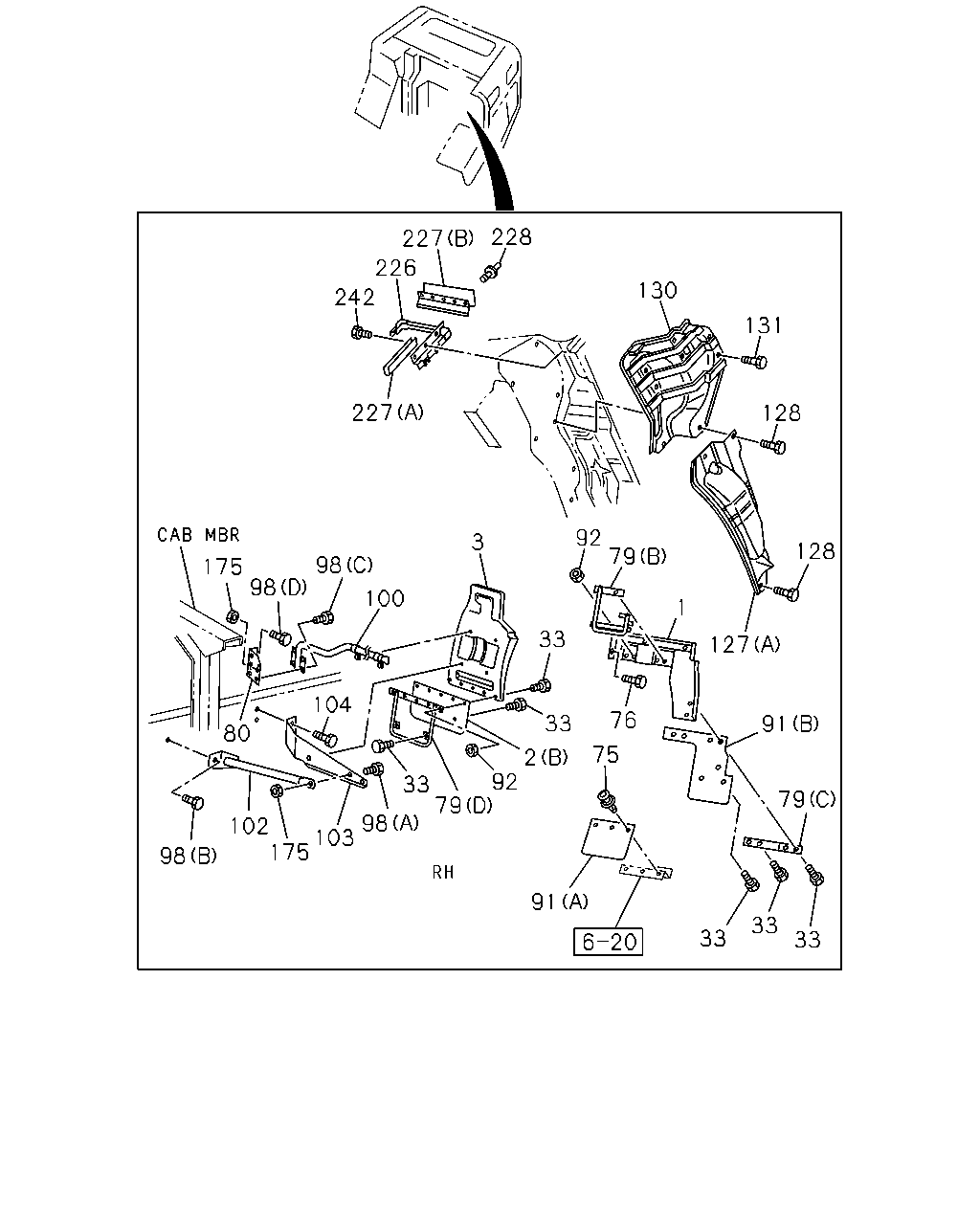

228 227 226 130 242 131 227 128 92 79 3 128 175 98 98 100 1 33 127 104 76 33 91 80 75 2 33 92 79 79 102 98 103 175 98 91 33 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79938-731-0	01	1	9204-
1	GUARD; MUD,FRT	1-79938-730-0	01	1	9204-
2	COVER; MUD,TIRE RR (A)	1-79930-584-2	01	1	9204-9504
2	COVER; MUD,TIRE RR 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-584-2	01	1	9505-
2	COVER; MUD,TIRE RR (B)	1-79930-530-2	01	1	9204-9504
2	COVER; MUD,TIRE RR (B)	1-79930-530-2	01	1	9505-
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L) (B)	1-79930-530-2	01	1	9505-
3	GUARD; MUD,RR	1-79938-707-3	01	1	9204-9504
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-707-3	01	1	9505-
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9204-9504
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9505-
3	GUARD; MUD,RR 6HE1 STD ENG(46L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9505-
3	GUARD; MUD,RR EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-714-0	01	1	9204-9504
3	GUARD; MUD,RR 6SA1 STD ENG(06L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-714-0	01	1	9505-
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-775-0	01	1	9505-
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	16	1	9204-9307
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	21	1	9308-9401
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	23	1	9402-
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9204-9404
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9405-9504
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9505-
33	BOLT; MUD COVER 6HE1 STD ENG(46L) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9505-
75	RIVET; MUD COVER D6X16 PUSH RIVET	1-09983-105-0	06	1	9204-
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9204-9504
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9505-
76	BOLT; MUD GUARD 6HE1 STD ENG(46L) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9505-
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9204-
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9204-9504
76	BOLT; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9505-
79	RETAINER; MUD COVER (C)	1-79930-656-0	02	1	9204-
79	RETAINER; MUD COVER (A)	1-79930-651-1	01	1	9204-9504
79	RETAINER; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-651-1	01	1	9505-
79	RETAINER; MUD COVER (B)	1-79930-654-2	01	1	9204-
79	RETAINER; MUD COVER (D)	1-79930-521-0	01	1	9204-9307
79	RETAINER; MUD COVER (D)	1-79930-986-0	01	1	9308-9401
79	RETAINER; MUD COVER (D)	1-79931-131-0	01	1	9402-9504
79	RETAINER; MUD COVER (D)	1-79931-131-0	01	1	9505-
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (D)	1-79931-131-0	01	1	9505-
79	RETAINER; MUD COVER (B)	1-79930-655-2	01	1	9204-
80	BRACKET; MUD GUARD STAY 6HE1 STD ENG(46L)	1-53497-488-0	01	1	9505-
91	COVER; MUD,FRT (A)	1-79930-653-1	02	1	9204-
91	COVER; MUD,FRT (B)	1-79930-658-2	02	1	9204-
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9204-
92	NUT; MUD COVER 6HE1 STD ENG(46L) M6	9-09110-406-0	05	1	9505-
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28010-830-0	04	1	9204-9204
98	BOLT; STAY TO BRKT M8X30 FLANGE	0-28080-830-0	04	1	9205-9504
98	BOLT; STAY TO BRKT 6SA1 STD ENG(06L),6SA1TC ENG(28L) M8X30 FLANGE	0-28080-830-0	04	1	9505-
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (D) M8X16 FLANGE	0-28080-816-0	02	1	9505-
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (A) M8X20 FLANGE	0-28080-820-0	01	1	9505-
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (B) M8X30 FLANGE	0-28080-830-0	01	1	9505-
98	BOLT; STAY TO BRKT 6HE1 STD ENG(46L) (C) M10X25 FLANGE	0-28081-025-0	04	1	9505-
100	STAY; UPR,MUD GUARD	1-53497-407-0	01	1	9204-9504
100	STAY; UPR,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-53497-407-0	01	1	9505-
100	STAY; UPR,MUD GUARD 6HE1 STD ENG(46L)	1-53497-489-0	01	1	9505-
102	STAY; LWR,MUD GUARD 6HE1 STD ENG(46L)	1-53497-360-1	01	1	9505-
103	BRACKET ASM; RR MUD FLAP 6HE1 STD ENG(46L)	1-53497-380-1	01	1	9505-
104	BOLT; BRKT 6HE1 STD ENG(46L) M10X25 FLANGE	0-28081-025-0	02	1	9505-
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3) (B)	1-53192-417-0	01	1	9204-
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3) (B)	1-53192-104-0	01	1	9204-
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-79938-623-3	01	1	9204-
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-79938-621-3	01	1	9204-
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9204-
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-418-0	01	1	9204-
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-108-0	01	1	9204-
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-734-1	01	1	9505-
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-740-1	01	1	9505-
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-627-5	01	1	9204-
130	PANEL; SHUTTER NOISE 6SA1TC ENG(28L) EXC. AUSTRALIA EQUIPMENT(RR3)	1-79938-627-5	01	1	9204-
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-625-5	01	1	9204-
130	PANEL; SHUTTER NOISE 6SA1TC ENG(28L) EXC. AUSTRALIA EQUIPMENT(RR3)	1-79938-625-5	01	1	9204-
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9204-
175	NUT; STAY FIX 6HE1 STD ENG(46L) M8	9-09110-408-0	03	1	9505-
226	SUPPORT; SEAL,MUD GUARD	1-79938-772-1	01	1	9204-9504
226	SUPPORT; SEAL,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-772-1	01	1	9505-
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-733-1	01	1	9505-
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-768-1	01	1	9505-
227	SEAL; MUD GUARD (A) L=342	1-79938-765-0	01	1	9204-9504
227	SEAL; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=342	1-79938-765-0	01	1	9505-
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (A) L=342	1-79938-765-0	02	1	9505-
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-739-0	01	1	9505-
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-675-1	01	1	9505-
228	FASTENER; MUD GUARD SEAL	5-09989-002-0	04	1	9204-9504
228	FASTENER; MUD GUARD SEAL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	5-09989-002-0	04	1	9505-
228	FASTENER; MUD GUARD SEAL 6HE1 STD ENG(46L)	5-09989-002-0	14	1	9505-
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9204-9402
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9403-9504
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9505-
242	BOLT; SUPPORT MUD GUARD 6HE1 STD ENG(46L) M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9505-

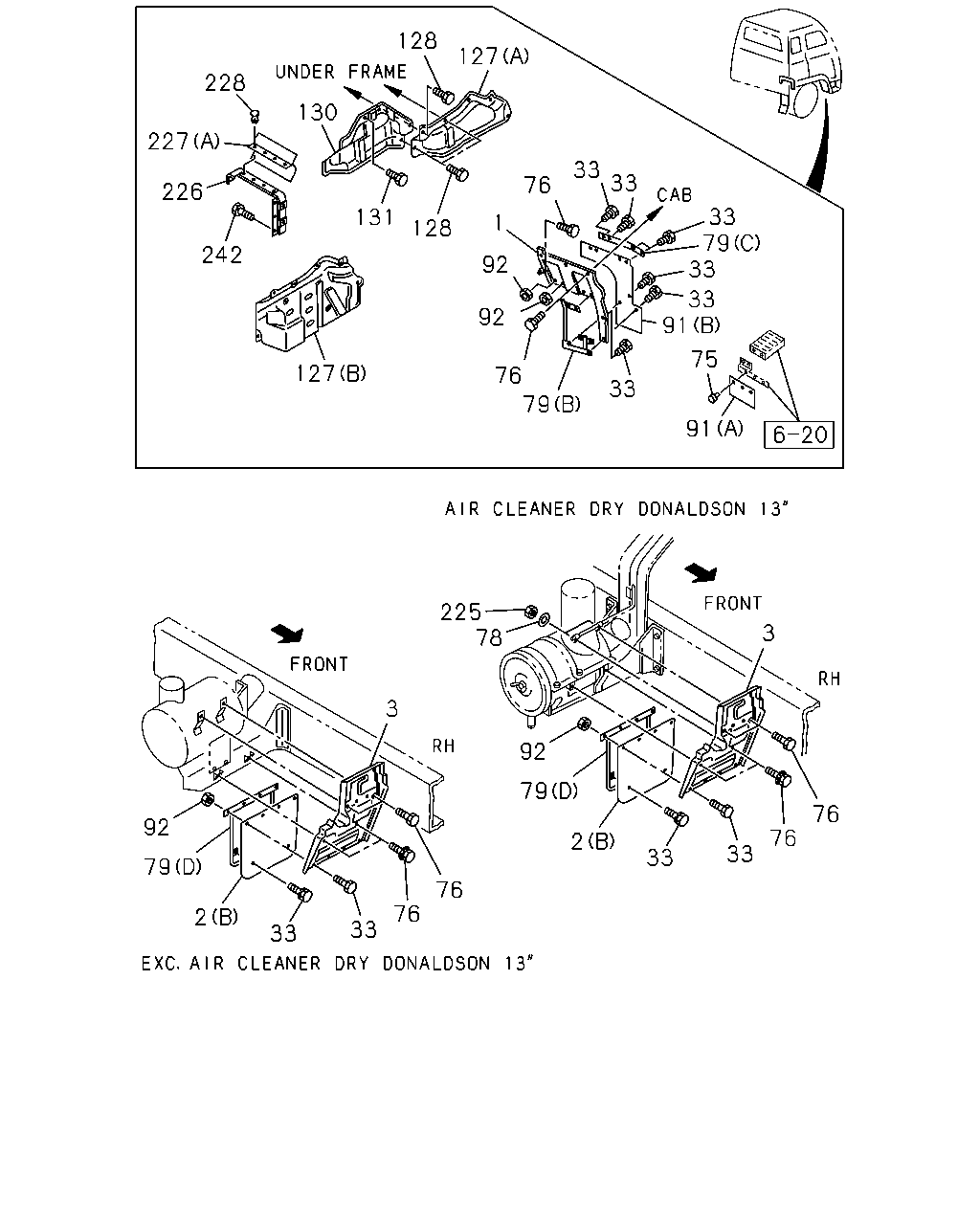

128 127 228 130 227 33 33 76 226 33 79 33 131 1 128 242 92 33 91 92 75 127 76 33 79 91 225 78 3 3 92 79 76 92 76 2 33 33 79 76 76 2 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79938-731-0	01	1	9204-
1	GUARD; MUD,FRT	1-79938-730-0	01	1	9204-
2	COVER; MUD,TIRE RR (A)	1-79930-584-2	01	1	9204-9504
2	COVER; MUD,TIRE RR 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-584-2	01	1	9505-
2	COVER; MUD,TIRE RR (B)	1-79930-530-2	01	1	9204-9504
2	COVER; MUD,TIRE RR (B)	1-79930-530-2	01	1	9505-
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L) (B)	1-79930-530-2	01	1	9505-
3	GUARD; MUD,RR	1-79938-707-3	01	1	9204-9504
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-707-3	01	1	9505-
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9204-9504
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9505-
3	GUARD; MUD,RR 6HE1 STD ENG(46L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9505-
3	GUARD; MUD,RR EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-714-0	01	1	9204-9504
3	GUARD; MUD,RR 6SA1 STD ENG(06L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-714-0	01	1	9505-
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-775-0	01	1	9505-
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	16	1	9204-9307
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	21	1	9308-9401
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	23	1	9402-
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9204-9404
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9405-9504
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9505-
33	BOLT; MUD COVER 6HE1 STD ENG(46L) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9505-
75	RIVET; MUD COVER D6X16 PUSH RIVET	1-09983-105-0	06	1	9204-
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9204-9504
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9505-
76	BOLT; MUD GUARD 6HE1 STD ENG(46L) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9505-
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9204-
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9204-9504
76	BOLT; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9505-
78	WASHER; PL,MUD GUARD 6SA1TC ENG(28L) ID=8.4 OD=22	9-09160-708-0	02	1	9204-
79	RETAINER; MUD COVER (C)	1-79930-656-0	02	1	9204-
79	RETAINER; MUD COVER (A)	1-79930-651-1	01	1	9204-9504
79	RETAINER; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-651-1	01	1	9505-
79	RETAINER; MUD COVER (B)	1-79930-654-2	01	1	9204-
79	RETAINER; MUD COVER (D)	1-79930-521-0	01	1	9204-9307
79	RETAINER; MUD COVER (D)	1-79930-986-0	01	1	9308-9401
79	RETAINER; MUD COVER (D)	1-79931-131-0	01	1	9402-9504
79	RETAINER; MUD COVER (D)	1-79931-131-0	01	1	9505-
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (D)	1-79931-131-0	01	1	9505-
79	RETAINER; MUD COVER (B)	1-79930-655-2	01	1	9204-
91	COVER; MUD,FRT (A)	1-79930-653-1	02	1	9204-
91	COVER; MUD,FRT (B)	1-79930-658-2	02	1	9204-
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9204-
92	NUT; MUD COVER 6HE1 STD ENG(46L) M6	9-09110-406-0	05	1	9505-
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3) (B)	1-53192-417-0	01	1	9204-
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3) (B)	1-53192-104-0	01	1	9204-
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-79938-623-3	01	1	9204-
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-79938-621-3	01	1	9204-
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9204-
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-418-0	01	1	9204-
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-108-0	01	1	9204-
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-734-1	01	1	9505-
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-740-1	01	1	9505-
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-627-5	01	1	9204-
130	PANEL; SHUTTER NOISE 6SA1TC ENG(28L) EXC. AUSTRALIA EQUIPMENT(RR3)	1-79938-627-5	01	1	9204-
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-625-5	01	1	9204-
130	PANEL; SHUTTER NOISE 6SA1TC ENG(28L) EXC. AUSTRALIA EQUIPMENT(RR3)	1-79938-625-5	01	1	9204-
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9204-
225	NUT; MUD GUARD 6HE1 STD ENG(46L) M8	9-09110-408-0	04	1	9505-
225	NUT; MUD GUARD 6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9204-
226	SUPPORT; SEAL,MUD GUARD	1-79938-772-1	01	1	9204-9504
226	SUPPORT; SEAL,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-772-1	01	1	9505-
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-733-1	01	1	9505-
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-768-1	01	1	9505-
227	SEAL; MUD GUARD (A) L=342	1-79938-765-0	01	1	9204-9504
227	SEAL; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=342	1-79938-765-0	01	1	9505-
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (A) L=342	1-79938-765-0	02	1	9505-
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-739-0	01	1	9505-
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-675-1	01	1	9505-
228	FASTENER; MUD GUARD SEAL	5-09989-002-0	04	1	9204-9504
228	FASTENER; MUD GUARD SEAL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	5-09989-002-0	04	1	9505-
228	FASTENER; MUD GUARD SEAL 6HE1 STD ENG(46L)	5-09989-002-0	14	1	9505-
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9204-9402
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9403-9504
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9505-
242	BOLT; SUPPORT MUD GUARD 6HE1 STD ENG(46L) M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9505-

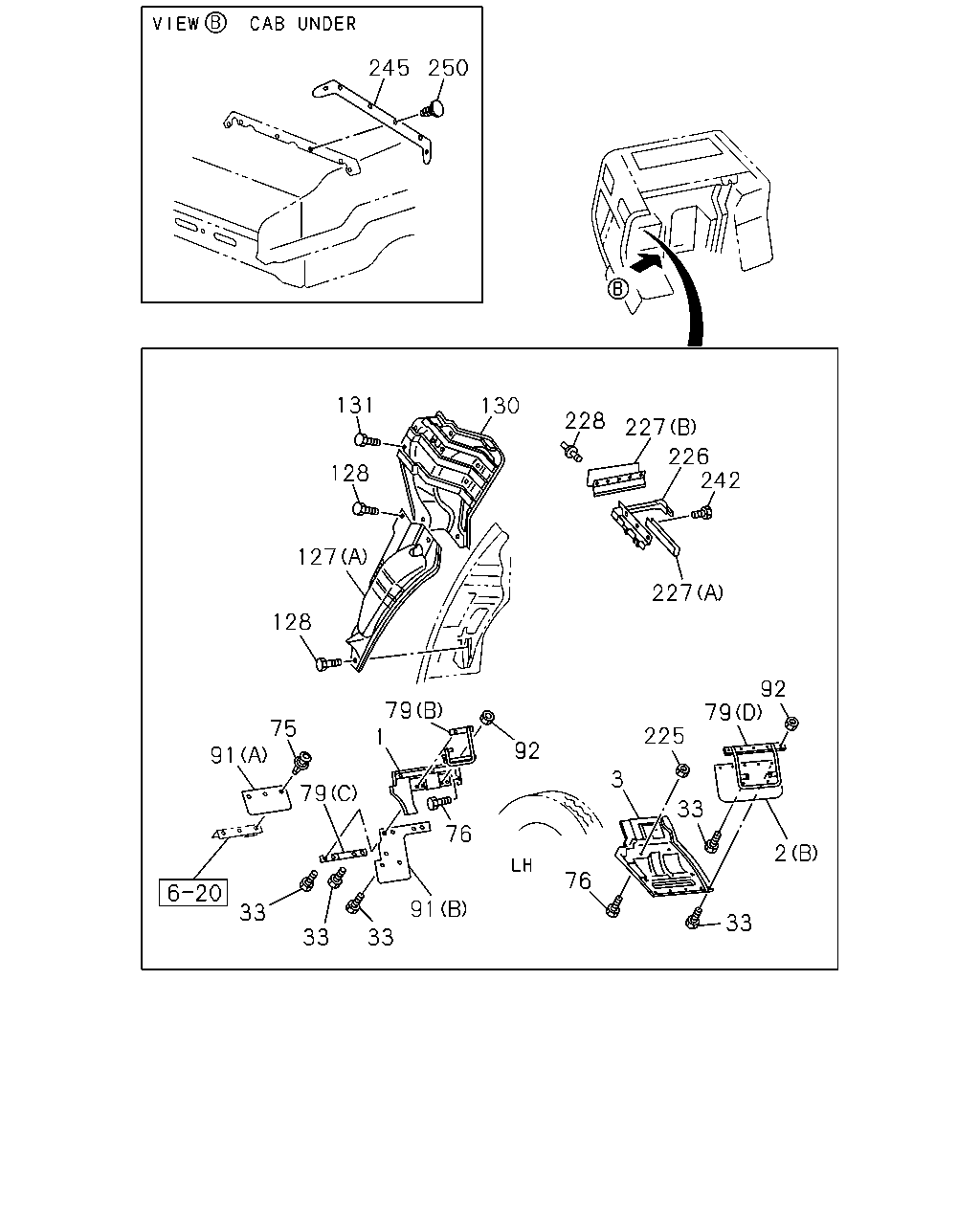

245 250 131 130 228 227 226 242 128 127 227 128 92 79 79 1 75 225 92 91 3 79 33 76 2 76 91 33 33 33 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT	1-79938-731-0	01	1	9204-
1	GUARD; MUD,FRT	1-79938-730-0	01	1	9204-
2	COVER; MUD,TIRE RR (A)	1-79930-584-2	01	1	9204-9504
2	COVER; MUD,TIRE RR 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-584-2	01	1	9505-
2	COVER; MUD,TIRE RR (B)	1-79930-530-2	01	1	9204-9504
2	COVER; MUD,TIRE RR (B)	1-79930-530-2	01	1	9505-
2	COVER; MUD,TIRE RR 6HE1 STD ENG(46L) (B)	1-79930-530-2	01	1	9505-
3	GUARD; MUD,RR	1-79938-707-3	01	1	9204-9504
3	GUARD; MUD,RR 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-707-3	01	1	9505-
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9204-9504
3	GUARD; MUD,RR AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9505-
3	GUARD; MUD,RR 6HE1 STD ENG(46L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-711-1	01	1	9505-
3	GUARD; MUD,RR EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-714-0	01	1	9204-9504
3	GUARD; MUD,RR 6SA1 STD ENG(06L) EXC. AIR CLEANER DRY DONALDSON 13"(E6U)	1-79938-714-0	01	1	9505-
3	GUARD; MUD,RR 6HE1 STD ENG(46L)	1-79938-775-0	01	1	9505-
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	16	1	9204-9307
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	21	1	9308-9401
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	23	1	9402-
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9204-9404
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9405-9504
33	BOLT; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9505-
33	BOLT; MUD COVER 6HE1 STD ENG(46L) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9505-
75	RIVET; MUD COVER D6X16 PUSH RIVET	1-09983-105-0	06	1	9204-
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9204-9504
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9505-
76	BOLT; MUD GUARD 6HE1 STD ENG(46L) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9505-
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9204-
76	BOLT; MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9204-9504
76	BOLT; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) M6X20 W/LK&PL WASHER	1-09980-495-0	03	1	9505-
79	RETAINER; MUD COVER (C)	1-79930-656-0	02	1	9204-
79	RETAINER; MUD COVER (A)	1-79930-651-1	01	1	9204-9504
79	RETAINER; MUD COVER 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A)	1-79930-651-1	01	1	9505-
79	RETAINER; MUD COVER (B)	1-79930-654-2	01	1	9204-
79	RETAINER; MUD COVER (D)	1-79930-521-0	01	1	9204-9307
79	RETAINER; MUD COVER (D)	1-79930-986-0	01	1	9308-9401
79	RETAINER; MUD COVER (D)	1-79931-131-0	01	1	9402-9504
79	RETAINER; MUD COVER (D)	1-79931-131-0	01	1	9505-
79	RETAINER; MUD COVER 6HE1 STD ENG(46L) (D)	1-79931-131-0	01	1	9505-
79	RETAINER; MUD COVER (B)	1-79930-655-2	01	1	9204-
91	COVER; MUD,FRT (A)	1-79930-653-1	02	1	9204-
91	COVER; MUD,FRT (B)	1-79930-658-2	02	1	9204-
92	NUT; MUD COVER M6	9-09110-406-0	09	1	9204-
92	NUT; MUD COVER 6HE1 STD ENG(46L) M6	9-09110-406-0	05	1	9505-
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3) (B)	1-53192-417-0	01	1	9204-
127	APRON; FRT AUSTRALIA EQUIPMENT(RR3) (B)	1-53192-104-0	01	1	9204-
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-79938-623-3	01	1	9204-
127	APRON; FRT EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-79938-621-3	01	1	9204-
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9204-
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-418-0	01	1	9204-
130	PANEL; SHUTTER NOISE AUSTRALIA EQUIPMENT(RR3)	1-53192-108-0	01	1	9204-
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-734-1	01	1	9505-
130	PANEL; SHUTTER NOISE 6HE1 STD ENG(46L)	1-79938-740-1	01	1	9505-
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-627-5	01	1	9204-
130	PANEL; SHUTTER NOISE 6SA1TC ENG(28L) EXC. AUSTRALIA EQUIPMENT(RR3)	1-79938-627-5	01	1	9204-
130	PANEL; SHUTTER NOISE 6SA1 STD ENG(06L)	1-79938-625-5	01	1	9204-
130	PANEL; SHUTTER NOISE 6SA1TC ENG(28L) EXC. AUSTRALIA EQUIPMENT(RR3)	1-79938-625-5	01	1	9204-
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9204-
225	NUT; MUD GUARD 6HE1 STD ENG(46L) M8	9-09110-408-0	04	1	9505-
225	NUT; MUD GUARD 6SA1TC ENG(28L) M8	9-09110-408-0	02	1	9204-
226	SUPPORT; SEAL,MUD GUARD	1-79938-772-1	01	1	9204-9504
226	SUPPORT; SEAL,MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L)	1-79938-772-1	01	1	9505-
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-733-1	01	1	9505-
226	SUPPORT; SEAL,MUD GUARD 6HE1 STD ENG(46L)	1-79938-768-1	01	1	9505-
227	SEAL; MUD GUARD (A) L=342	1-79938-765-0	01	1	9204-9504
227	SEAL; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) (A) L=342	1-79938-765-0	01	1	9505-
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (A) L=342	1-79938-765-0	02	1	9505-
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-739-0	01	1	9505-
227	SEAL; MUD GUARD 6HE1 STD ENG(46L) (B) L=285	1-79938-675-1	01	1	9505-
228	FASTENER; MUD GUARD SEAL	5-09989-002-0	04	1	9204-9504
228	FASTENER; MUD GUARD SEAL 6SA1 STD ENG(06L),6SA1TC ENG(28L)	5-09989-002-0	04	1	9505-
228	FASTENER; MUD GUARD SEAL 6HE1 STD ENG(46L)	5-09989-002-0	14	1	9505-
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	01	1	9204-9402
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9403-9504
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9505-
242	BOLT; SUPPORT MUD GUARD 6HE1 STD ENG(46L) M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	9505-
245	RUBBER; SHUTTER,RAD 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-79938-858-0	01	1	9204-
250	FASTENER; SHUTTER 6SA1 STD ENG(06L),6HE1 STD ENG(46L)	1-09987-189-0	06	1	9204-

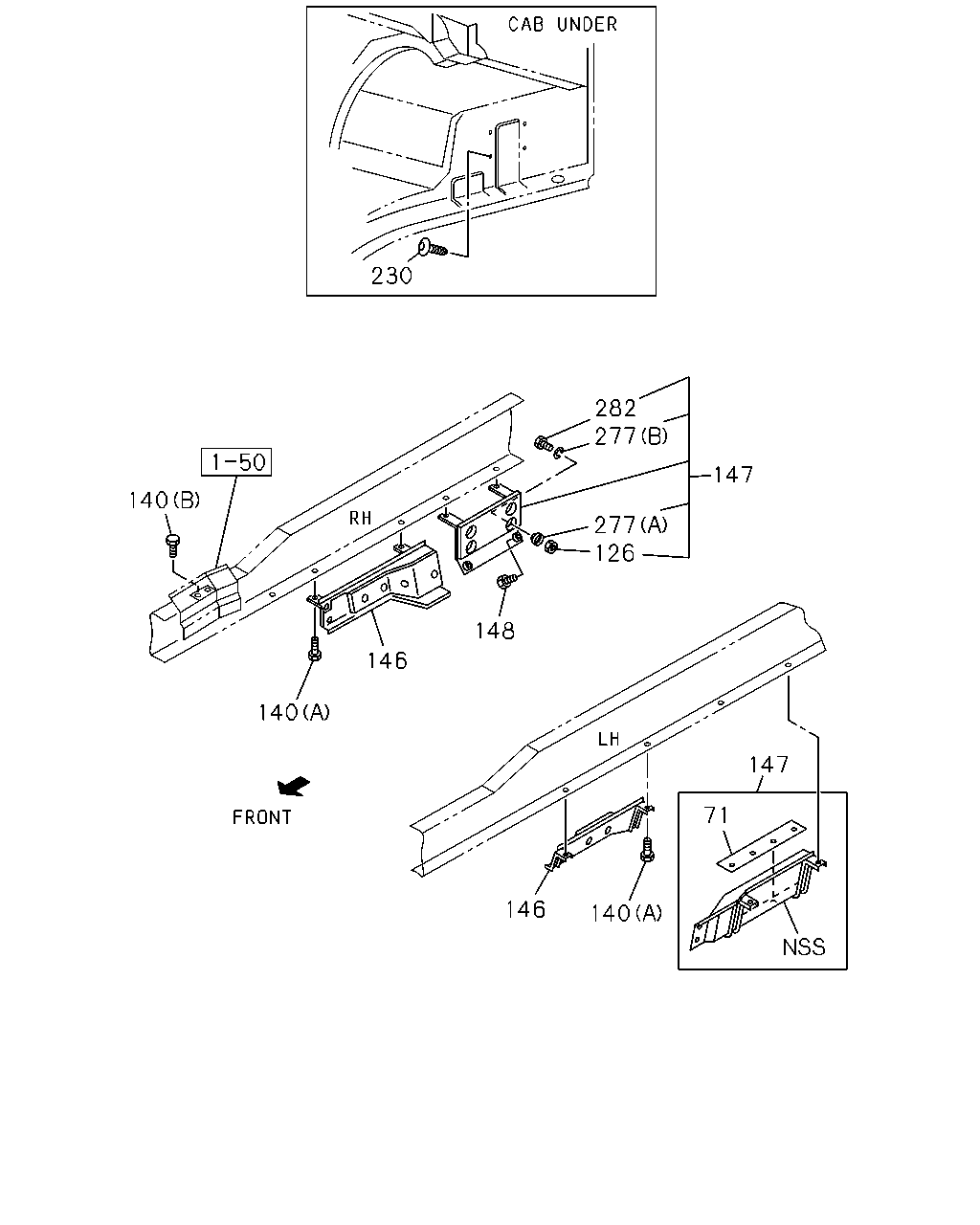

230 282 277 147 140 277 126 148 146 140 147 71 146 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	RUBBER; SEAL AUSTRALIA EQUIPMENT(RR3)	1-53446-210-0	01	1	9206-9404
126	NUT; PANEL AUSTRALIA EQUIPMENT(RR3) M6	9-09110-406-0	04	1	9204-9404
140	BOLT; SIDE PANEL AUSTRALIA EQUIPMENT(RR3) (A) M8X25 FLANGE	0-28080-825-0	08	1	9204-9404
140	BOLT; SIDE PANEL AUSTRALIA EQUIPMENT(RR3) (A) M8X18	1-09030-034-1	02	1	9204-9404
140	BOLT; SIDE PANEL 6HE1 STD ENG(46L) (B) M8X25 FLANGE	0-28080-825-0	02	1	9505-
146	PANEL; SIDE,UNDER,FRT AUSTRALIA EQUIPMENT(RR3)	1-53191-243-5	01	1	9204-9404
146	PANEL; SIDE,UNDER,FRT AUSTRALIA EQUIPMENT(RR3)	1-53191-443-1	01	1	9204-9404
147	PANEL; SIDE,UNDER,RR AUSTRALIA EQUIPMENT(RR3)	1-53192-426-0	01	1	9204-9404
147	PANEL; SIDE,UNDER,RR AUSTRALIA EQUIPMENT(RR3)	1-53192-425-0	01	1	9204-9404
148	BOLT; PANEL TO PANEL AUSTRALIA EQUIPMENT(RR3) M8X20 W/LK&PL WASHER	8-94243-012-0	02	1	9204-9404
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	09	1	9204-9402
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	04	1	9403-9504
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	04	1	9505-
230	PLUG; MUD GUARD 6HE1 STD ENG(46L) D4.7X11	1-76378-154-0	04	1	9505-
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	05	1	9403-9504
230	PLUG; MUD GUARD 6SA1 STD ENG(06L),6SA1TC ENG(28L) D4.7X11	1-76378-154-0	05	1	9505-
277	WASHER; NOISE INSULATOR AUSTRALIA EQUIPMENT(RR3) (A)	1-73377-052-1	04	1	9204-9404
277	WASHER; NOISE INSULATOR AUSTRALIA EQUIPMENT(RR3) (B) ID=6.1	9-09150-506-0	04	1	9204-9404
282	BOLT; NOISE INSULATOR AUSTRALIA EQUIPMENT(RR3) M6X16 FLANGE	0-28080-616-0	04	1	9205-9207
282	BOLT; NOISE INSULATOR AUSTRALIA EQUIPMENT(RR3) M6X20 FLANGE	0-28080-620-0	04	1	9208-9404

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
