Sayfa 8-60 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11570 - FVZ(MIDDLE EAST)EU2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶

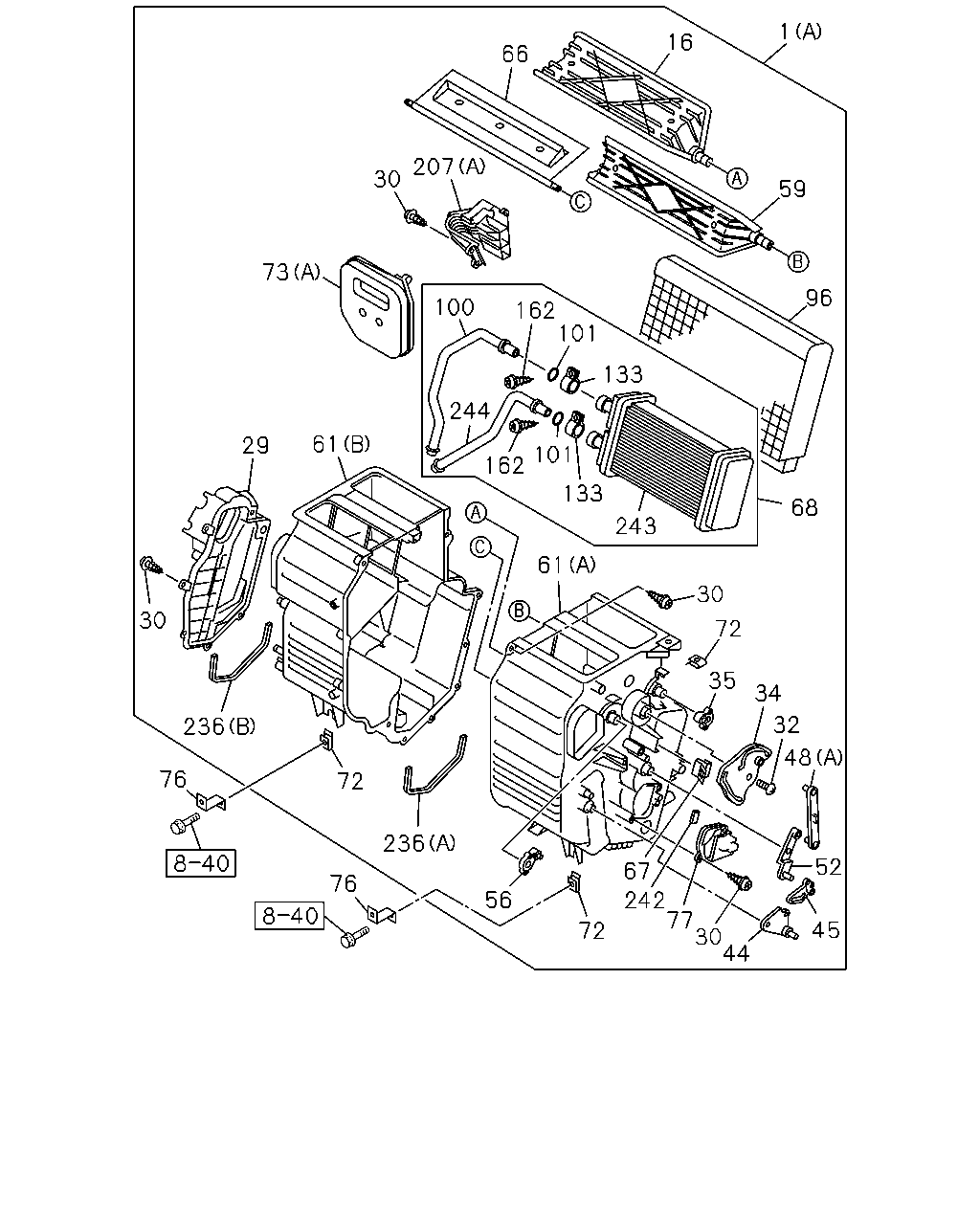

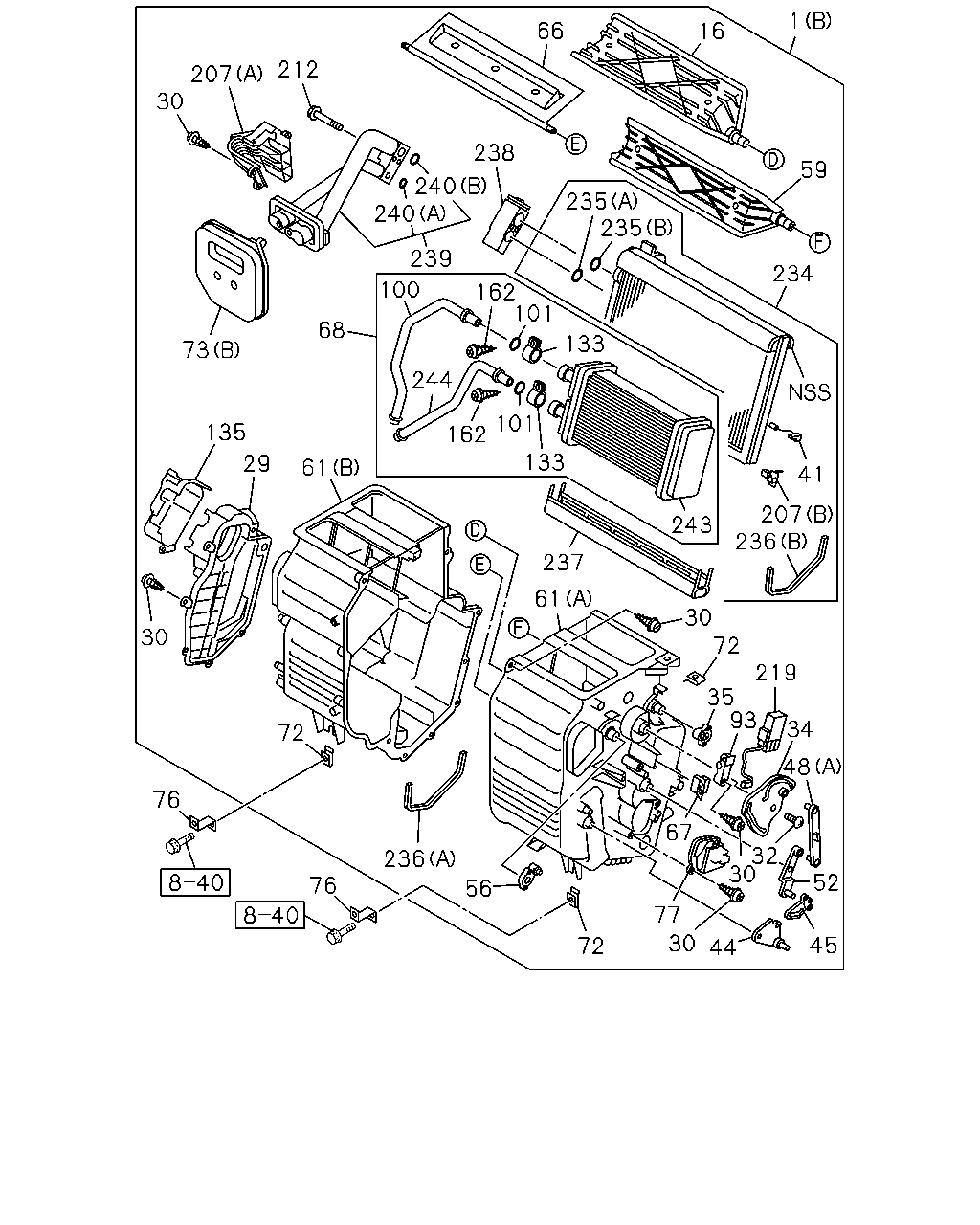

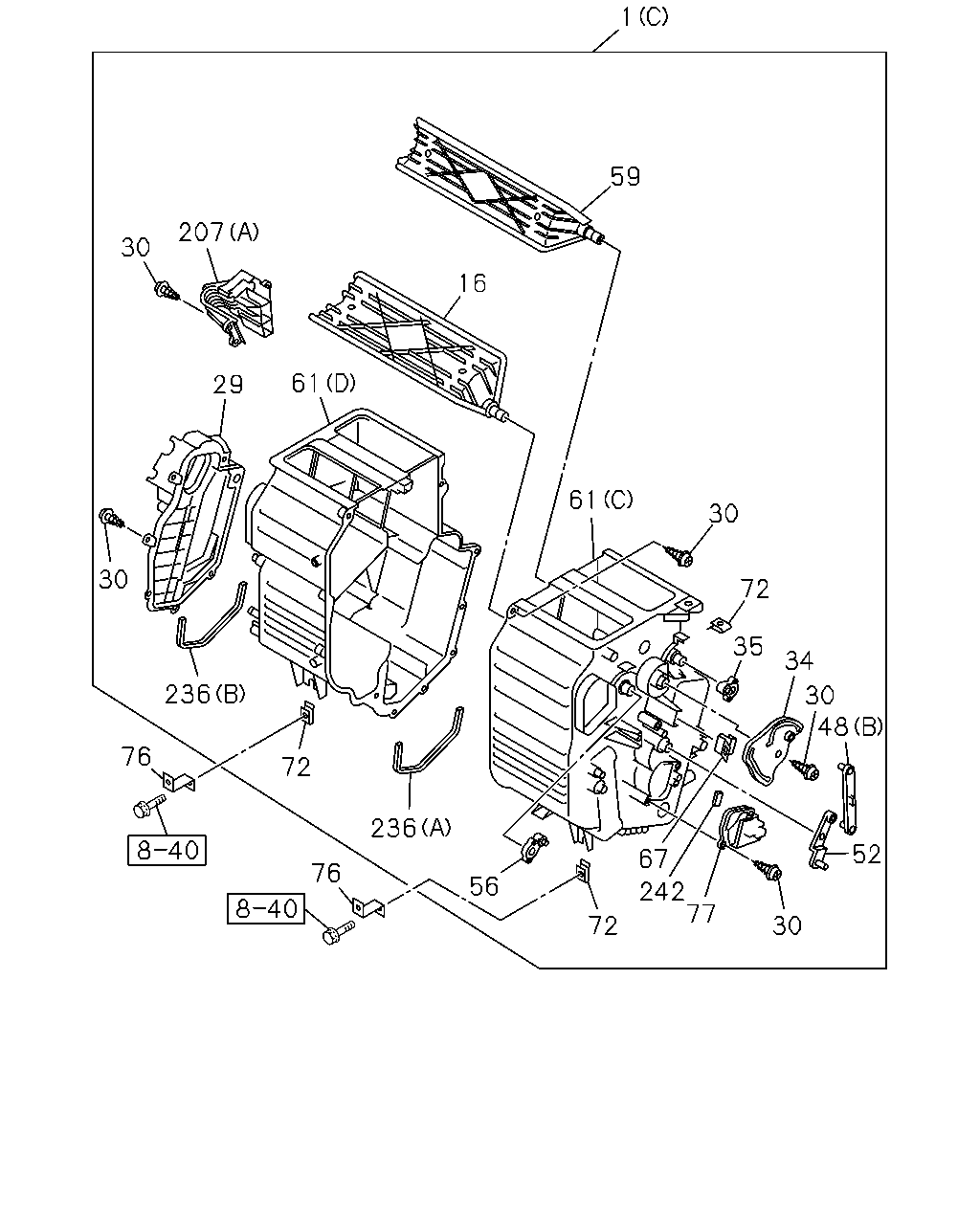

8-60 — HEATER UNIT; FRONT (#132771) — 133 parça

30 207 66 16 1 59 96 68 101 162 100 73 29 61 30 236 76 76 236 56 72 67 242 77 30 44 52 45 48 32 34 35 72 30 243 61 162 244 133 133 101 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1401-
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98034-145-3	01	1	1401-
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98214-401-1	01	1	1401-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-387-0	01	1	1401-
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-480-0	01	1	1401-
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98231-368-0	01	1	1401-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	28	1	1401-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1401-
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	20	1	1401-
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-98047-416-0	02	1	1401-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-98047-416-0	03	1	1401-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-497-0	01	1	1401-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-500-0	01	1	1401-
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-502-0	01	1	1401-
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-503-0	01	1	1401-
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1401-
48	LEVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-499-0	01	1	1401-
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-498-0	01	1	1401-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-501-0	01	1	1401-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-386-0	01	1	1401-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-478-0	01	1	1401-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-479-0	01	1	1401-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-424-0	01	1	1401-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-425-0	01	1	1401-
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-385-0	01	1	1401-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1401-
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	1401-
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-122-0	01	1	1401-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6	8-98047-428-0	03	1	1401-
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98048-817-0	01	1	1401-
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-491-0	01	1	1401-
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98009-742-1	02	1	1401-
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-482-0	01	1	1401-
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1401-
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-532-0	01	1	1401-
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-531-0	02	1	1401-
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-530-0	02	1	1401-
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-529-0	02	1	1401-
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-493-0	01	1	1401-
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-413-0	01	1	1401-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98047-420-0	01	1	1401-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-421-0	01	1	1401-
242	GASKET; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98048-816-0	01	1	1401-1411
242	GASKET; CASE HEATER & DEFROSTER(C41)	8-98048-816-0	01	1	1412-
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-508-0	01	1	1401-
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-511-0	01	1	1401-

207 30 212 240 238 66 16 1 59 234 41 236 243 207 133 162 101 244 68 100 239 240 162 133 101 73 135 61 29 30 76 72 76 236 56 72 30 77 44 30 67 32 48 93 35 72 30 237 61 235 235 219 34 52 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1401-
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98034-145-3	01	1	1401-
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98214-401-1	01	1	1401-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-387-0	01	1	1401-
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-480-0	01	1	1401-
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98231-368-0	01	1	1401-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	28	1	1401-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1401-
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	20	1	1401-
32	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16	8-98047-416-0	02	1	1401-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-98047-416-0	03	1	1401-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-497-0	01	1	1401-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-500-0	01	1	1401-
41	THERMOSTAT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-412-0	01	1	1401-
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-502-0	01	1	1401-
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-503-0	01	1	1401-
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1401-
48	LEVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-499-0	01	1	1401-
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-498-0	01	1	1401-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-501-0	01	1	1401-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-386-0	01	1	1401-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-478-0	01	1	1401-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-479-0	01	1	1401-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-424-0	01	1	1401-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-425-0	01	1	1401-
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-385-0	01	1	1401-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1401-
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	1401-
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-122-0	01	1	1401-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6	8-98047-428-0	03	1	1401-
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98048-817-0	01	1	1401-
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-491-0	01	1	1401-
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98009-742-1	02	1	1401-
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-482-0	01	1	1401-
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-427-0	01	1	1401-
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-532-0	01	1	1401-
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-531-0	02	1	1401-
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-530-0	02	1	1401-
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-481-0	01	1	1401-
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98072-529-0	02	1	1401-
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-493-0	01	1	1401-
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-413-0	01	1	1401-
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M5X61	8-98047-415-0	02	1	1401-
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-429-0	01	1	1401-
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60)	8-98074-120-1	01	1	1401-
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=11.7	8-97095-907-0	01	1	1401-
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	8-97095-908-0	01	1	1401-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98047-420-0	01	1	1401-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-421-0	01	1	1401-
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-382-0	01	1	1401-
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-383-0	01	1	1401-
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-504-0	01	1	1401-
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=7.4	8-97095-906-0	01	1	1401-
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=14.5	8-97095-908-0	01	1	1401-
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-508-0	01	1	1401-
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98048-511-0	01	1	1401-

1 59 16 207 30 61 29 61 30 72 35 34 30 48 52 30 77 242 67 72 56 236 72 236 30 76 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98031-740-3	01	1	1401-
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98034-145-3	01	1	1401-
1	HEATER UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98214-401-1	01	1	1401-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-387-0	01	1	1401-
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-480-0	01	1	1401-
29	COVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98231-368-0	01	1	1401-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	28	1	1401-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1401-
30	SCREW; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M4X16 TAPPING	8-97957-708-0	20	1	1401-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-497-0	01	1	1401-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-500-0	01	1	1401-
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1401-
48	LEVER; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-499-0	01	1	1401-
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-498-0	01	1	1401-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-501-0	01	1	1401-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-386-0	01	1	1401-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-478-0	01	1	1401-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-479-0	01	1	1401-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D)	8-98077-424-0	01	1	1401-
61	CASE; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98077-425-0	01	1	1401-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1401-
67	CLIP; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-417-0	01	1	1401-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6	8-98047-428-0	03	1	1401-
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98009-742-1	02	1	1401-
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98047-482-0	01	1	1401-
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-493-0	01	1	1401-
207	CLAMP; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-413-0	01	1	1401-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98047-420-0	01	1	1401-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98047-421-0	01	1	1401-
242	GASKET; CASE HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	8-98048-816-0	01	1	1401-1411
242	GASKET; CASE HEATER & DEFROSTER(C41)	8-98048-816-0	01	1	1412-
