Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#132766) — 30 parça

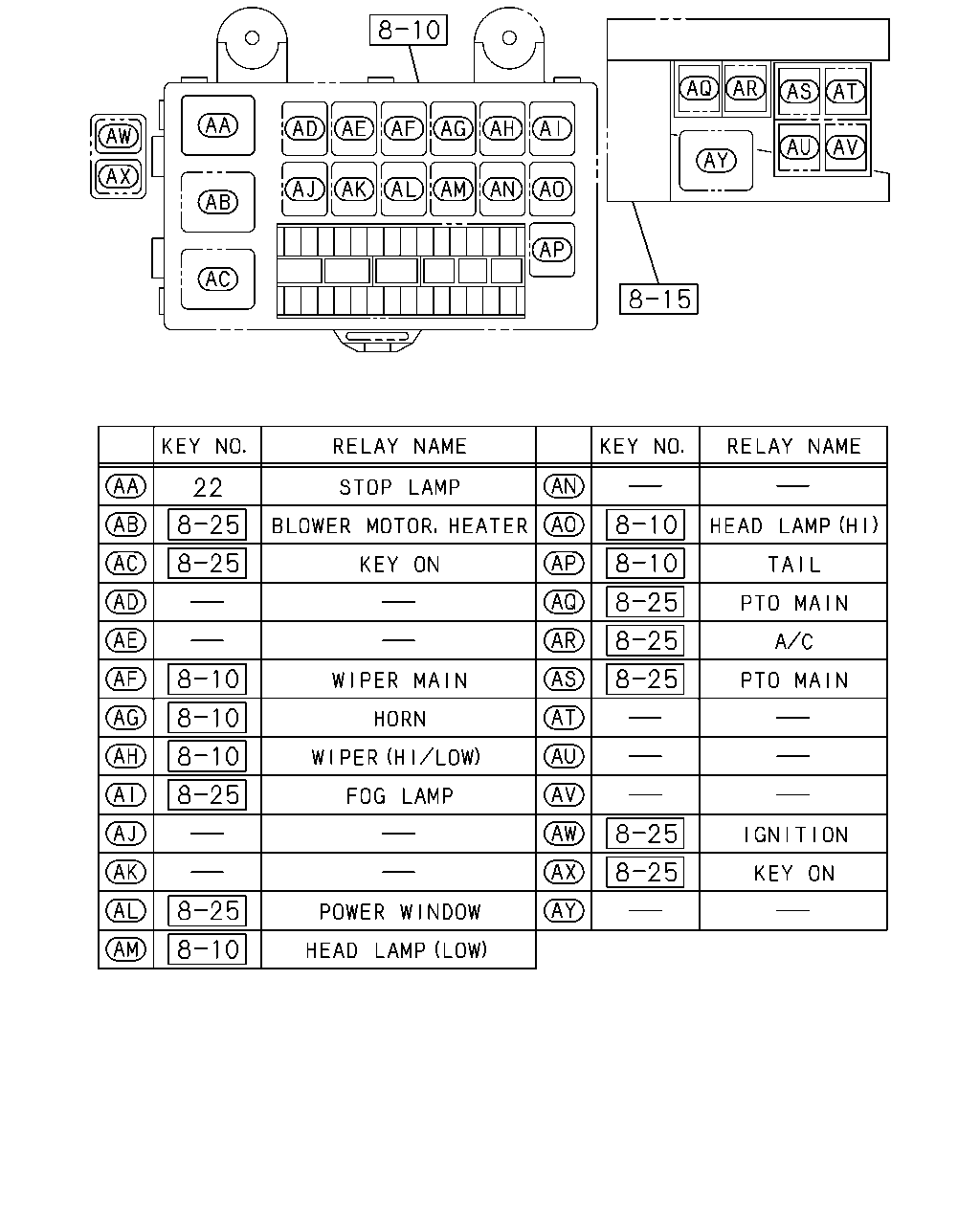

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1401-

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	1401-1402
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-

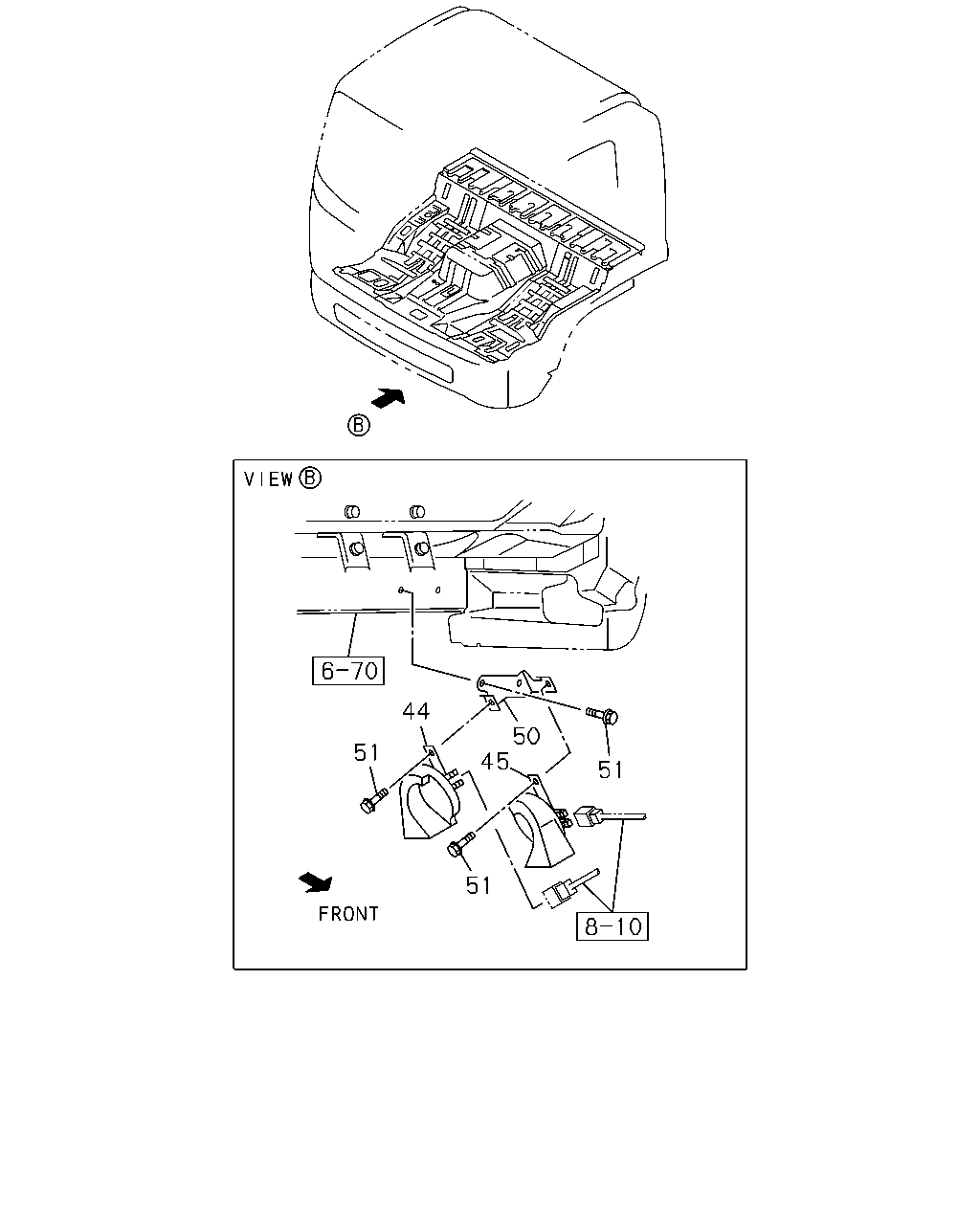

51 44 45 50 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	8-98022-022-0	01	1	1401-
45	HORN; LOW NOTE	8-98022-023-0	01	1	1401-
50	BRACKET; HORN	8-97616-529-2	01	1	1401-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1401-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1401-

34 34 34 33 36 35 39 34 424 34 34 41 89 34 34 261 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM)	1-82563-871-2	01	1	1401-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1401-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (E) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1401-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1401-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1401-
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1401-
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	1401-
35	BRACKET; MAG VLV,PTO CONT PTO ZF TRANS RR(BDM)	8-98154-633-0	01	1	1401-
36	BOLT; MAG VLV,PTO CONT PTO ZF TRANS RR(BDM) M8X20 FLANGE	0-28650-820-0	02	1	1401-
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	1401-
41	NUT; BRKT,MAG VLV PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	1401-
89	VALVE; MAG,DIFF LOCK	8-97641-594-0	01	1	1401-
90	BOLT; MAG VLV M8X30 FLANGE	0-28650-830-0	02	1	1401-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1401-
424	ADAPTER PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1401-

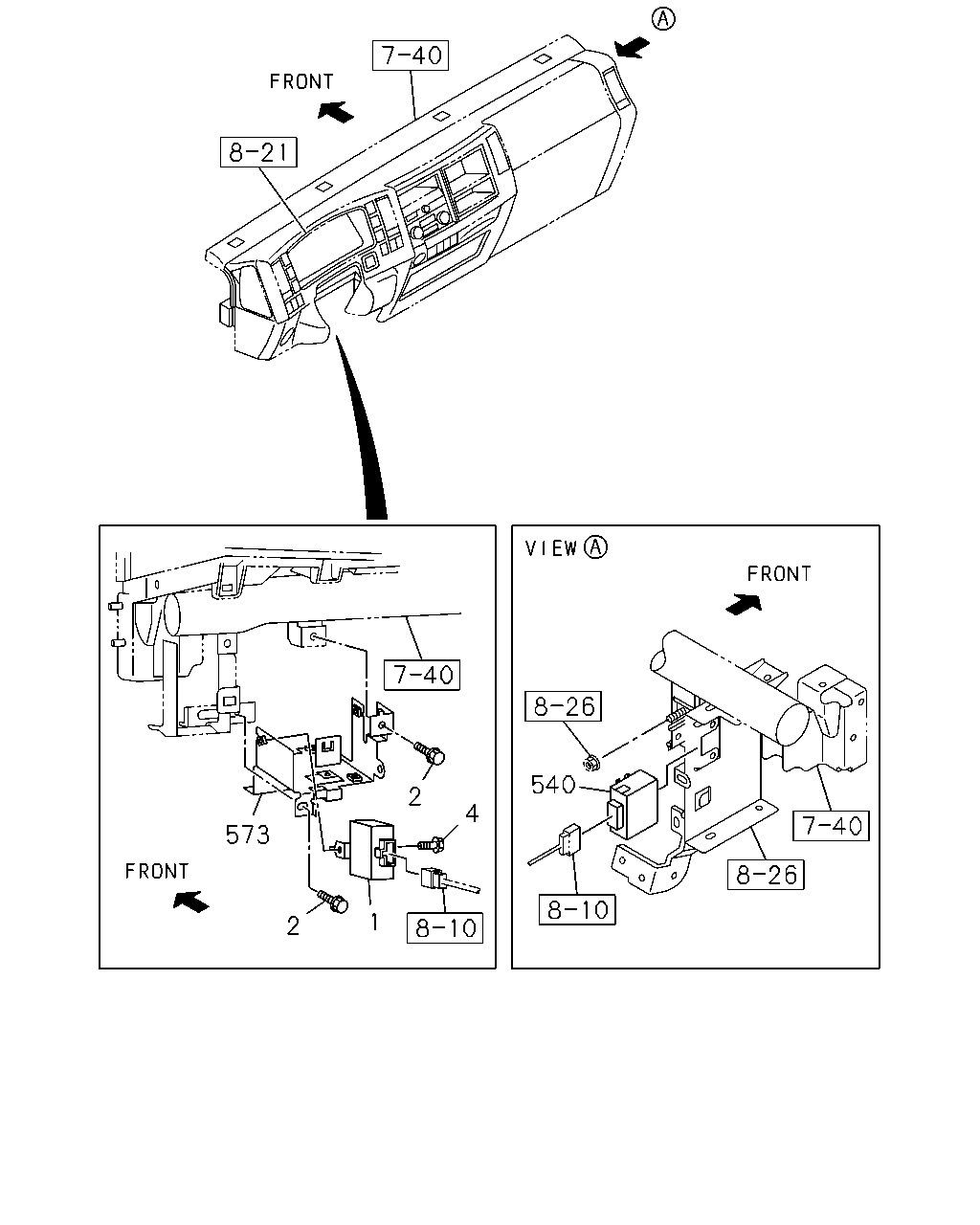

2 1 2 4 573 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-98025-533-1	01	1	1401-
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	1401-
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	1401-
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1401-
573	BRACKET; FLASHER UNIT	8-97616-351-3	01	1	1401-

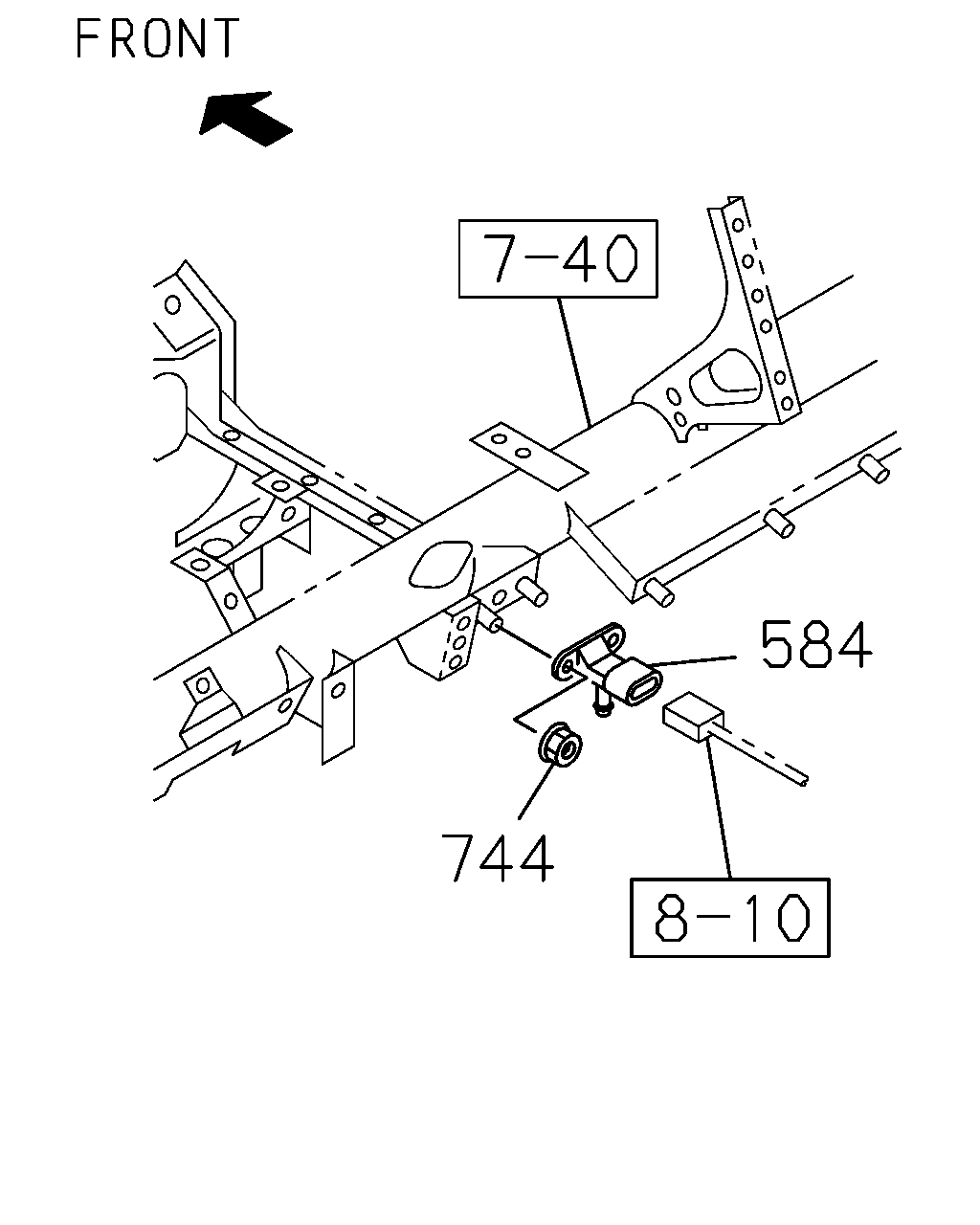

584 744

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	584	SENSOR; PRESSURE	8-98020-514-0	01	1	1401-
	744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	1401-
