Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11570 - FVZ(MIDDLE EAST)EU2
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#132765) — 25 parça
◀
[826A] FRONT SIDE NO.2 (7 parça)
[826A] CONNECTOR (3 parça)
[826A] FRONT SIDE NO.1 (10 parça)
[826A] FRONT SIDE NO.3 (5 parça)
▶

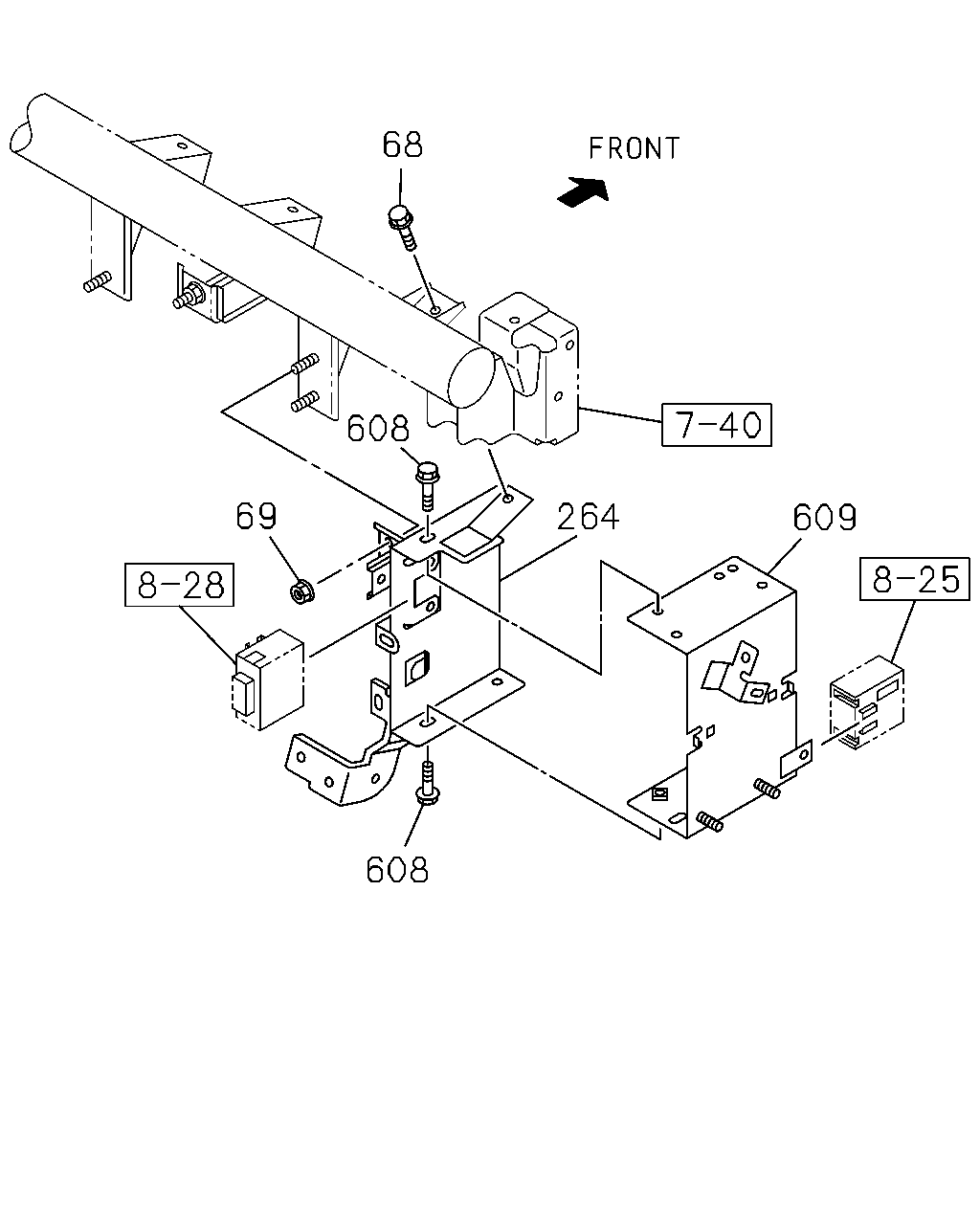

68
608
69
608
264
609
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
01
1
1401-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1401-
264
BRACKET; CONT UNIT
8-97616-354-5
01
1
1401-
608
BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> M6X16 FLANGE
0-28650-616-0
05
1
1401-
609
BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4>
8-98226-231-1
01
1
1401-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1401-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-1
01
1
1402-
507
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
507
CONNECTOR
1-82690-666-0
01
1
1401-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1401-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-1
01
1
1402-

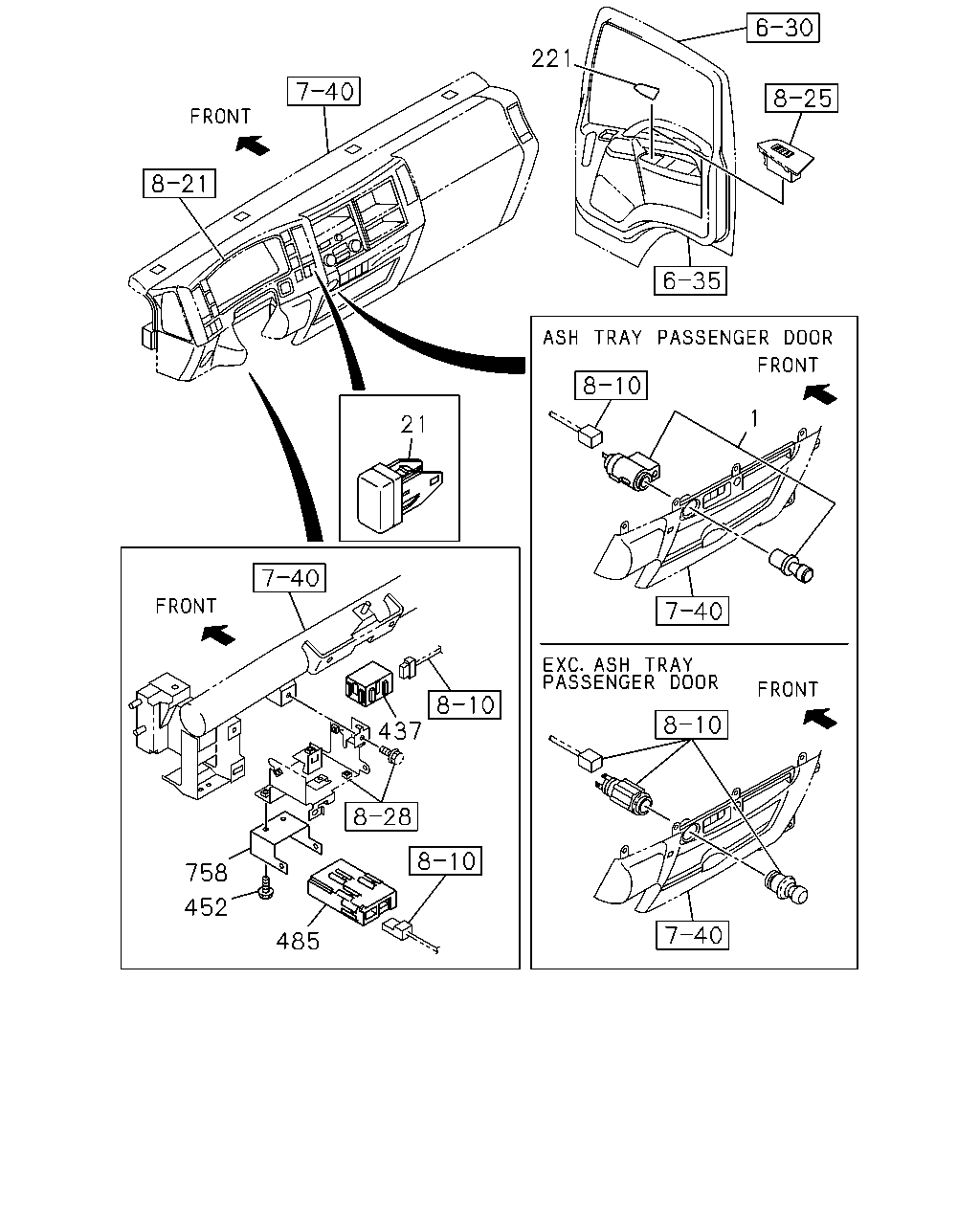

221
21
758
452
485
437
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX>
8-98142-962-0
01
1
1401-
21
COVER; HOLE
8-98025-954-1
01
1
1401-
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-915-2
01
1
1401-
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-916-2
01
1
1401-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
1401-
452
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
02
1
1401-
485
CONTROL UNIT; SPEED SENSOR
1-80190-063-0
01
1
1401-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1401-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-1
01
1
1402-
758
BRACKET; ELEC CONT UNIT,SPEED SENSOR
8-98048-743-1
01
1
1401-

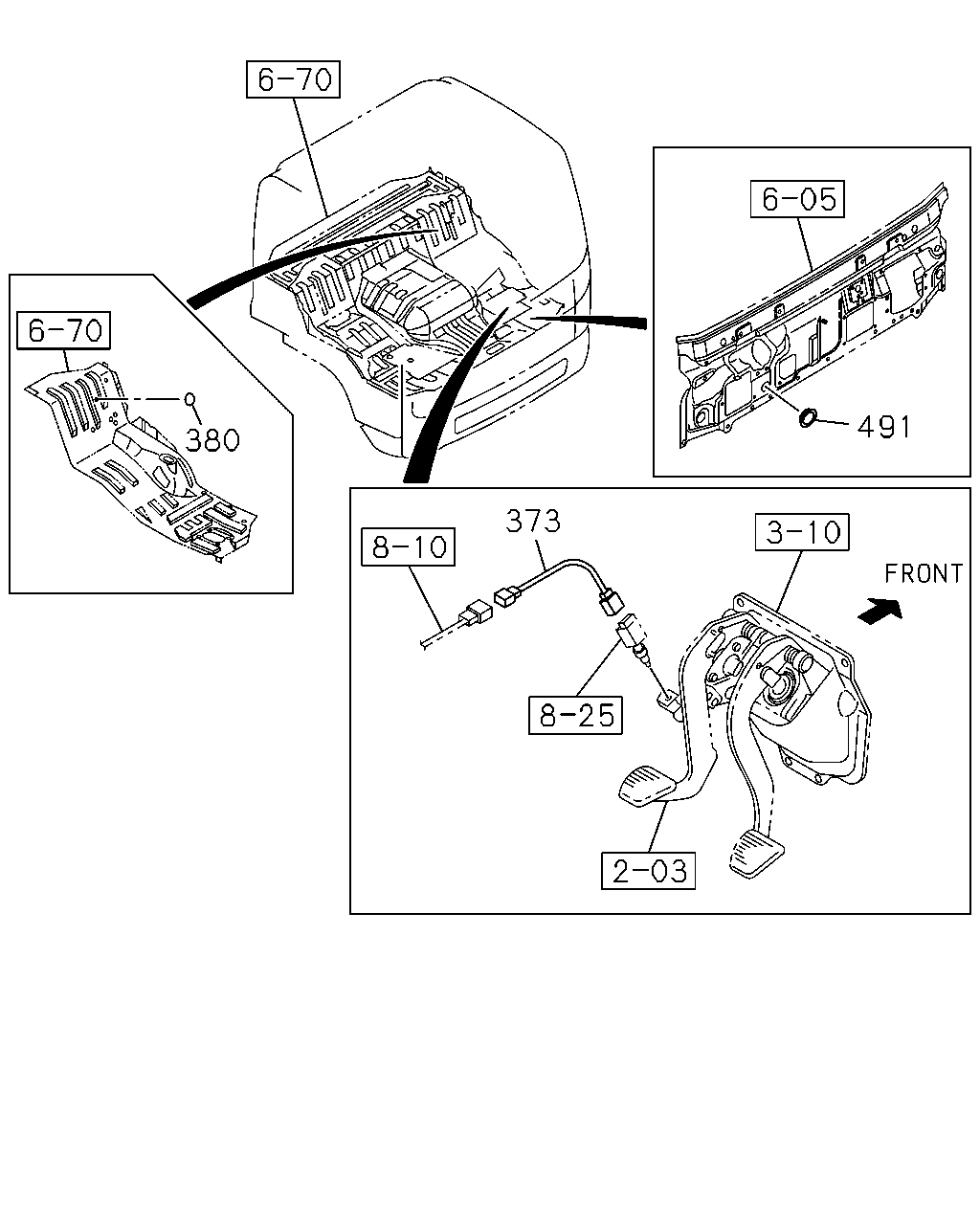

380
373
491
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
373
HARNESS; CLU SWITCH
8-98110-720-0
01
1
1401-
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1401-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1401-
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1401-1401
657
CONTROL UNIT; MIMAMORI
8-98260-912-1
01
1
1402-
