8-15 — FIXING PARTS; WIRING HARNESS (#132762) — 171 parça

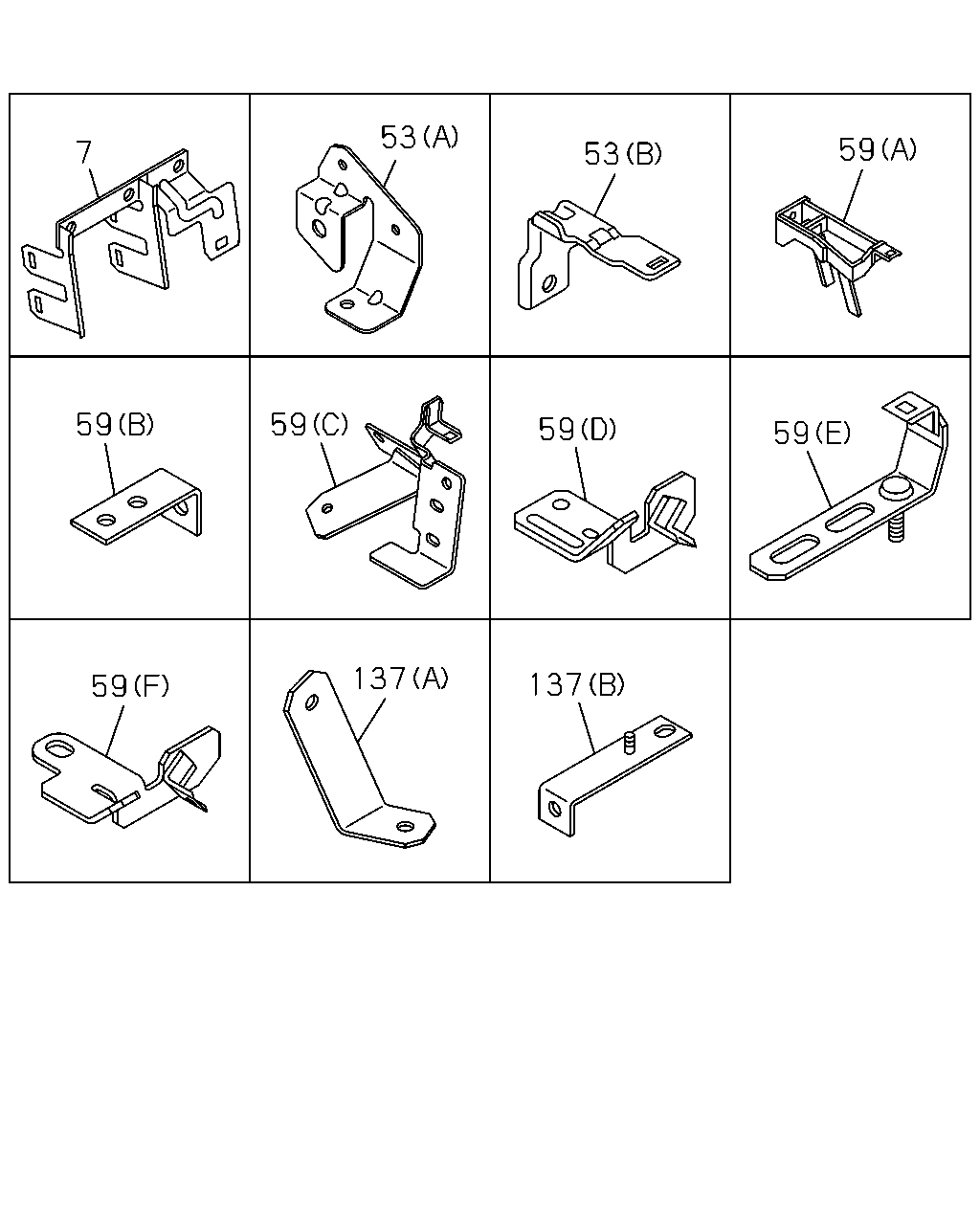

çizim 402442
7 53 53 59 59 59 59 59 59 137 137
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 1401-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1401-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98084-699-0 01 1 1401-
59 BRACKET; FRAME HARNESS
(B) L=62 		1-21464-170-2 01 1 1401-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1401-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1401-1502
59 BRACKET; FRAME HARNESS
(F) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(E) 		8-98047-730-0 02 1 1401-
59 BRACKET; FRAME HARNESS
(C) 		8-98107-611-0 01 1 1401-
137 BRACKET; HARNESS CLAMP
(A) 		8-97614-728-1 01 1 1401-
137 BRACKET; HARNESS CLAMP
(B) 		8-97624-013-0 01 1 1401-

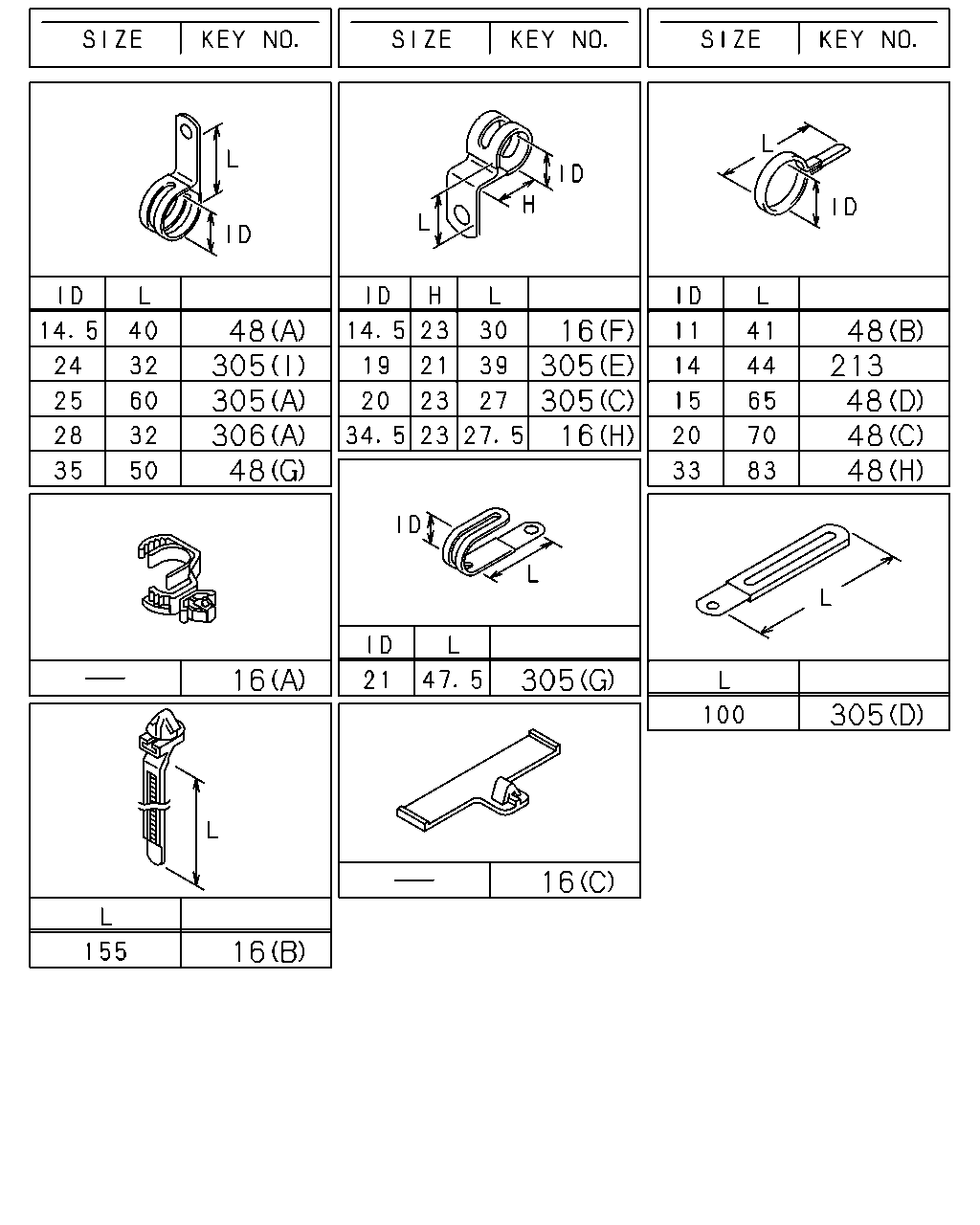

çizim 402467
48 305 305 306 48 16 16 16 305 305 16 305 16 48 213 48 48 48 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (I) L=600 		1-09707-107-1 01 1 1401-
16 CLIP; HARNESS
(G) ID=15 H=30 L=30 		1-09700-832-0 02 1 1401-1408
16 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (G) ID=15 H=30 L=30 		1-09700-832-0 02 1 1409-
16 CLIP; HARNESS
(F) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1401-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1401-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1401-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 04 1 1401-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1401-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1401-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1401-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1401-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (D) OD=9 H=6 		1-09709-178-0 01 1 1401-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (D) ID=15 L=65 		1-09700-466-0 17 1 1401-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM(58W) (D) ID=15 L=65 		1-09700-466-0 23 1 1401-
48 CLIP; FRAME HARNESS
(E) ID=16X2 L=50 		0-95325-586-0 01 1 1401-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1401-
48 CLIP; FRAME HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 1401-
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 01 1 1401-
48 CLIP; FRAME HARNESS
(A) ID=14.5 L=40 		1-09701-014-0 01 1 1401-
48 CLIP; FRAME HARNESS
(G) ID=35 L=50 		1-09701-214-0 01 1 1401-
48 CLIP; FRAME HARNESS
(H) ID=33 L=83 		1-09701-291-0 01 1 1401-
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 1401-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1401-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1401-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1401-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 1401-
305 CLIP; ENG HARNESS
(I) ID=24 L=32 		1-09700-766-1 01 1 1401-
305 CLIP; ENG HARNESS
(B) ID=24 L=27 		1-09700-809-0 03 1 1401-
305 CLIP; ENG HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 1401-
305 CLIP; ENG HARNESS
(E) ID=19 L=39 H=21 		1-09700-972-1 01 1 1401-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1401-
305 CLIP; ENG HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 1401-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1401-
305 CLIP; ENG HARNESS
(D) L=100 		8-94443-021-1 01 1 1401-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1401-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1401-
çizim 402499
428 428 308 308 308 308 335 312
BalonParca AdiParca NoAdetTipApplied Date
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1401-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-98021-692-1 01 1 1401-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98032-178-0 01 1 1401-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98075-824-0 01 1 1401-
312 BRACKET; CLIP HARNESS 8-98230-458-1 01 1 1401-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1401-
428 BRACKET
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (B) 		1-47476-658-0 01 1 1401-
428 BRACKET
(A) 		8-98212-082-1 01 1 1401-

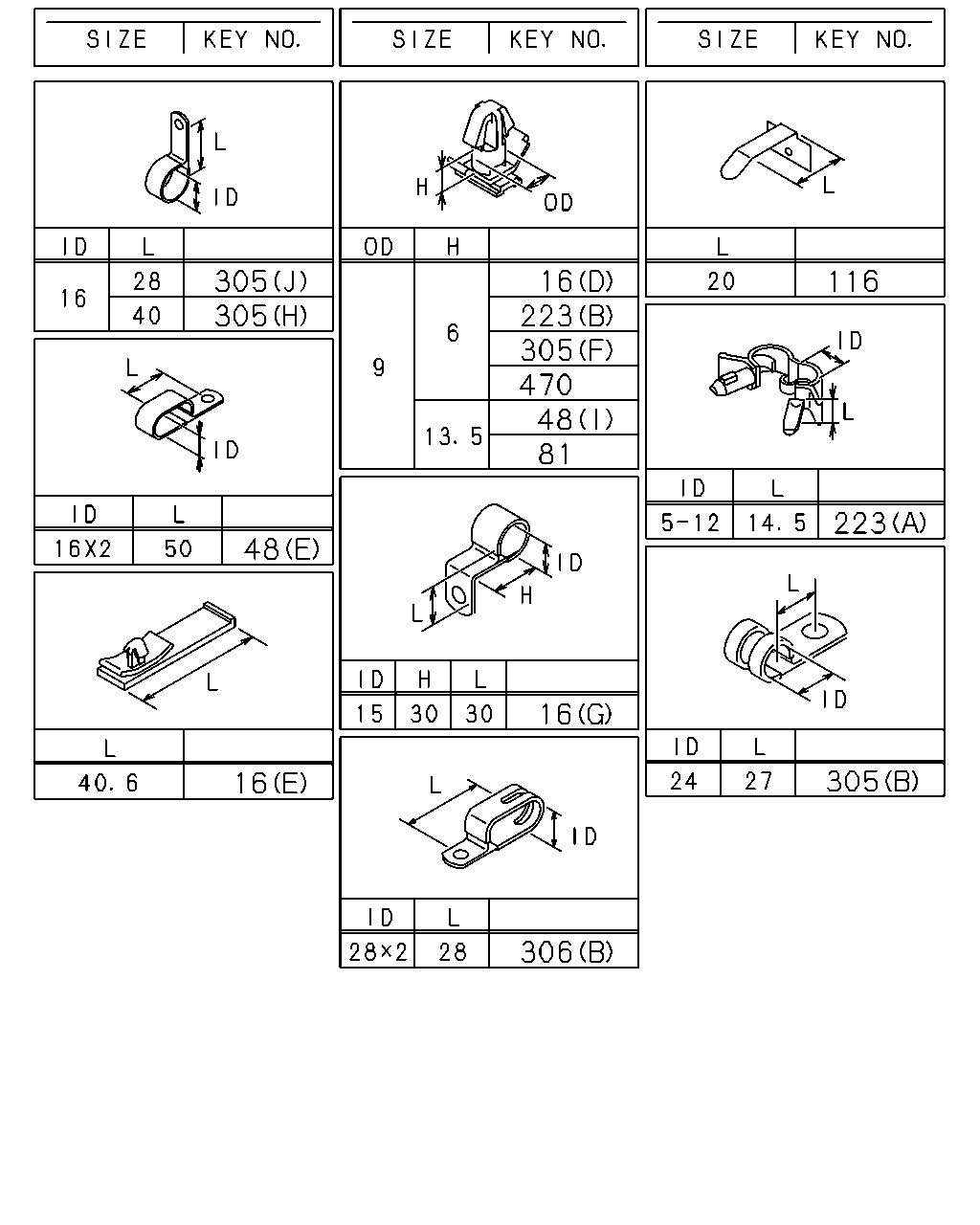

çizim 402531
305 305 48 16 16 223 305 470 48 81 16 306 116 223 305
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (I) L=600 		1-09707-107-1 01 1 1401-
16 CLIP; HARNESS
(G) ID=15 H=30 L=30 		1-09700-832-0 02 1 1401-1408
16 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (G) ID=15 H=30 L=30 		1-09700-832-0 02 1 1409-
16 CLIP; HARNESS
(F) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1401-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1401-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1401-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 04 1 1401-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1401-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1401-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1401-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1401-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (D) OD=9 H=6 		1-09709-178-0 01 1 1401-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (D) ID=15 L=65 		1-09700-466-0 17 1 1401-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM(58W) (D) ID=15 L=65 		1-09700-466-0 23 1 1401-
48 CLIP; FRAME HARNESS
(E) ID=16X2 L=50 		0-95325-586-0 01 1 1401-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1401-
48 CLIP; FRAME HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 1401-
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 01 1 1401-
48 CLIP; FRAME HARNESS
(A) ID=14.5 L=40 		1-09701-014-0 01 1 1401-
48 CLIP; FRAME HARNESS
(G) ID=35 L=50 		1-09701-214-0 01 1 1401-
48 CLIP; FRAME HARNESS
(H) ID=33 L=83 		1-09701-291-0 01 1 1401-
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 1401-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1401-
81 CLIP; HARNESS
OD=9 H=13.5 		1-09709-180-0 01 1 1401-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1401-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 1401-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1401-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1401-
305 CLIP; ENG HARNESS
(H) ID=16 L=40 		0-95235-576-0 01 1 1401-
305 CLIP; ENG HARNESS
(I) ID=24 L=32 		1-09700-766-1 01 1 1401-
305 CLIP; ENG HARNESS
(B) ID=24 L=27 		1-09700-809-0 03 1 1401-
305 CLIP; ENG HARNESS
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 1401-
305 CLIP; ENG HARNESS
(E) ID=19 L=39 H=21 		1-09700-972-1 01 1 1401-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1401-
305 CLIP; ENG HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 1401-
305 CLIP; ENG HARNESS
(G) ID=21 L=47.5 		8-94178-108-0 01 1 1401-
305 CLIP; ENG HARNESS
(D) L=100 		8-94443-021-1 01 1 1401-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1401-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1401-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1401-
çizim 402616
139 304 38 304 304 516 377 38 386 127 139 139 313 139 139 139 38 313 150 139 38 38 524 294 219 525 294 184 47
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 1401-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1401-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1401-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 03 1 1401-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1401-
38 BOLT; CLIP,HARNESS
(E) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1401-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1401-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1401-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1401-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1401-
139 BOLT; BRKT
(G) M8X35 FLANGE 		0-28650-835-0 01 1 1401-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1401-
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 1401-
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 1401-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1401-
150 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1401-1408
150 BOLT; CLIP
BUMPER W/HEADLAMPS<SLB> M8X25 FLANGE 		0-28650-825-0 02 1 1409-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 1401-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1401-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1401-
294 NUT
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (A) M8 FLANGE 		0-91180-108-0 01 1 1401-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1401-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1401-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1401-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 1401-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 06 1 1401-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 09 1 1401-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 04 1 1401-
313 BOLT; BRKT
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> (A) M8X35 FLANGE 		0-28650-835-0 01 1 1401-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1401-
313 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 1401-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1401-
386 BOLT; GRAND HARNESS
M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1401-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1401-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1401-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1401-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1401-

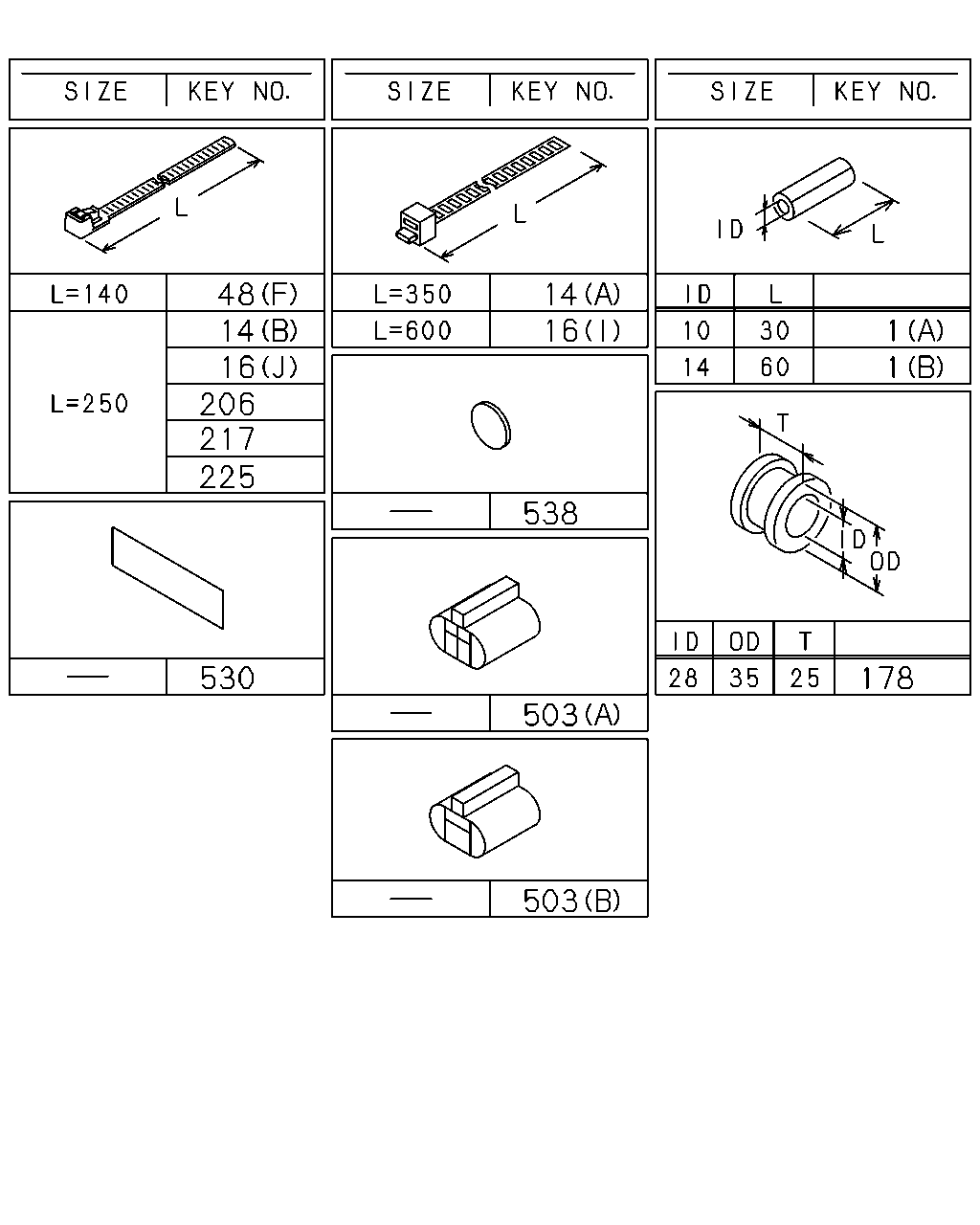

çizim 402630
48 14 16 206 217 225 530 14 16 538 503 503 1 1 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 1401-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1401-
14 CLIP; BAND,HARNESS
(B) L=250 		8-98216-430-0 08 1 1401-
14 CLIP; BAND,HARNESS
(A) L=350 		1-09707-183-0 01 1 1401-
16 CLIP; HARNESS
WHEEL BASE 5800MM(58W) (I) L=600 		1-09707-107-1 01 1 1401-
16 CLIP; HARNESS
(G) ID=15 H=30 L=30 		1-09700-832-0 02 1 1401-1408
16 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> (G) ID=15 H=30 L=30 		1-09700-832-0 02 1 1409-
16 CLIP; HARNESS
(F) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1401-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 1401-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 1401-
16 CLIP; HARNESS
(J) L=250 		5-09707-030-1 04 1 1401-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1401-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1401-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1401-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1401-
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (D) OD=9 H=6 		1-09709-178-0 01 1 1401-
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (D) ID=15 L=65 		1-09700-466-0 17 1 1401-
48 CLIP; FRAME HARNESS
WHEEL BASE 5800MM(58W) (D) ID=15 L=65 		1-09700-466-0 23 1 1401-
48 CLIP; FRAME HARNESS
(E) ID=16X2 L=50 		0-95325-586-0 01 1 1401-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1401-
48 CLIP; FRAME HARNESS
(D) ID=15 L=65 		1-09700-466-0 02 1 1401-
48 CLIP; FRAME HARNESS
(C) ID=20 L=70 		1-09700-485-0 01 1 1401-
48 CLIP; FRAME HARNESS
(A) ID=14.5 L=40 		1-09701-014-0 01 1 1401-
48 CLIP; FRAME HARNESS
(G) ID=35 L=50 		1-09701-214-0 01 1 1401-
48 CLIP; FRAME HARNESS
(H) ID=33 L=83 		1-09701-291-0 01 1 1401-
48 CLIP; FRAME HARNESS
(I) OD=9 H=13.5 		1-09709-180-0 01 1 1401-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1401-
178 GROMMET; HARNESS
WHEEL BASE 5800MM(58W) FUEL TANK 200L FRAME SIDE<N20> ID=28 OD=35 T=25 		1-09332-011-1 01 1 1401-
178 GROMMET; HARNESS
FUEL TANK 400L<SDH> ID=28 OD=35 T=25 		1-09332-011-1 01 1 1401-
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 03 1 1401-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1401-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1401-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 08 1 1401-
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 1401-
503 CONNECTOR
EXC. AIR DRYER<PS7> (A) 		1-82690-666-0 01 1 1401-
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1401-
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1401-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1401-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
