◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11570 - FVZ(MIDDLE EAST)EU2 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#132761) — 137 parça

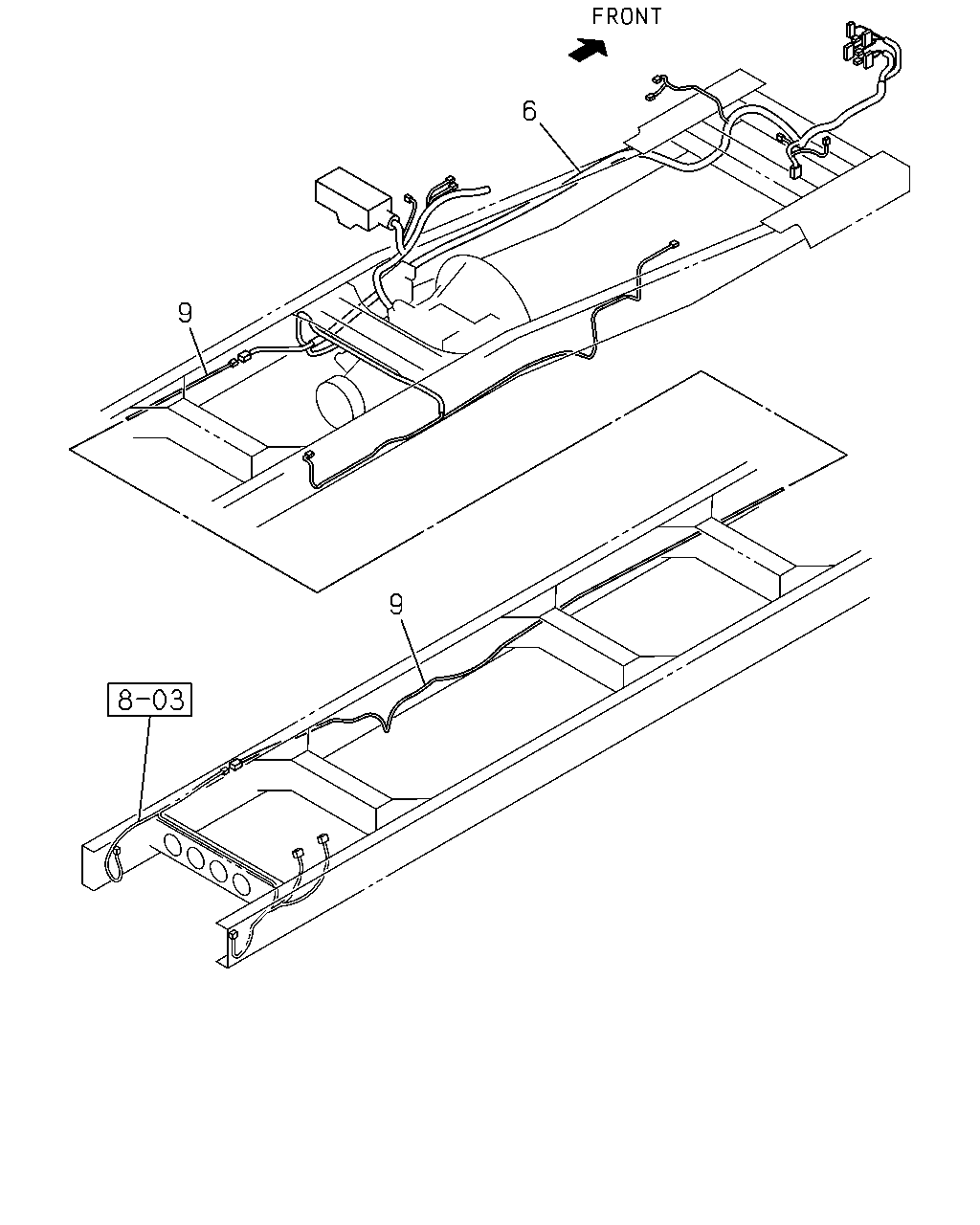

çizim 402133
9 9 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 		8-98212-573-0 01 1 1401-
6 HARNESS; FRAME
WHEEL BASE 5800MM(58W) 		8-98212-572-0 01 1 1401-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> 		8-98212-572-0 01 1 1401-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) 		8-98168-622-0 01 1 1401-
9 HARNESS; FRAME,RR
WHEEL BASE 5800MM(58W) 		8-98252-650-0 01 1 1401-

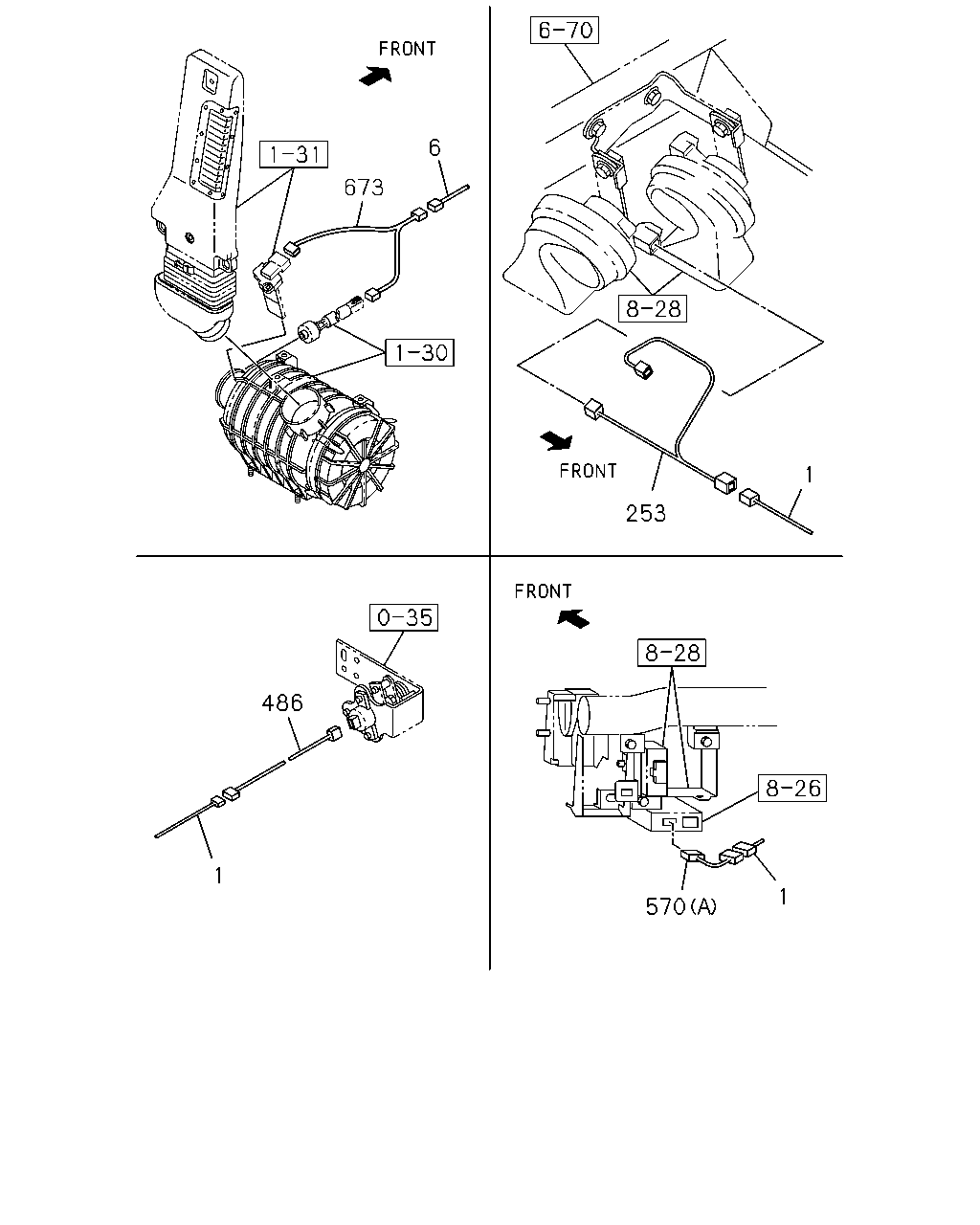

çizim 402440
253 1 1 570 486 1 673 6
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-385-1 01 1 1409-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-385-1 01 1 1409-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98212-385-1 01 1 1409-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROLLEVELING SYSTEM MANUAL<TR6> 		8-98212-384-1 01 1 1409-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1401-1408
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1401-1408
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1401-1408
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1409-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1409-
1 HARNESS; CAB
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1409-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-375-1 01 1 1401-1408
1 HARNESS; CAB
BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-375-1 01 1 1409-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 		8-98212-573-0 01 1 1401-
6 HARNESS; FRAME
WHEEL BASE 5800MM(58W) 		8-98212-572-0 01 1 1401-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> 		8-98212-572-0 01 1 1401-
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1401-
486 HARNESS; ALL SPEED ACCEL
PTO ZF TRANS RR(BDM) 		1-82675-898-0 01 1 1401-
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1401-
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1401-
673 HARNESS; EXT,SENSOR 8-98069-172-0 01 1 1401-

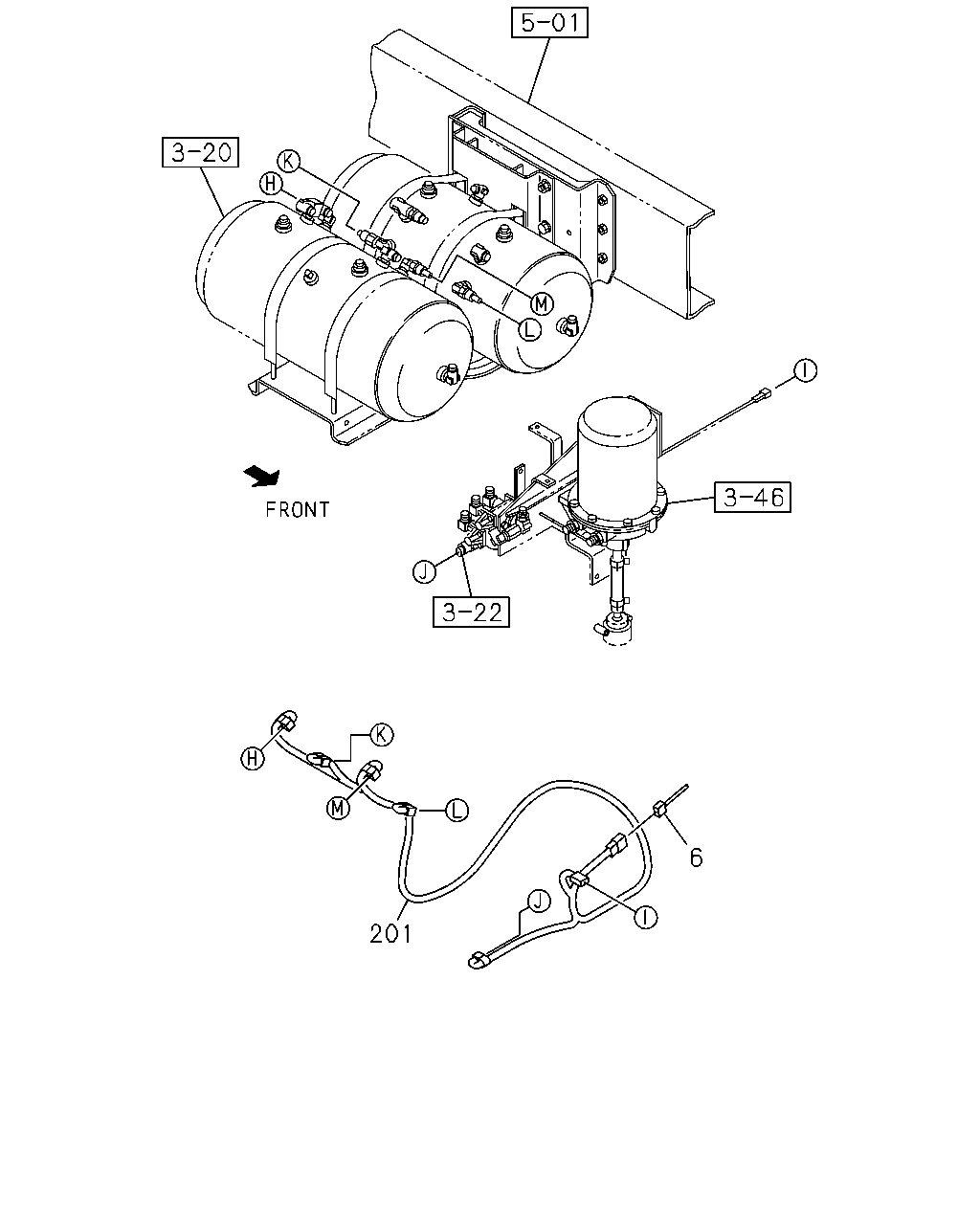

çizim 402464
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 		8-98212-573-0 01 1 1401-
6 HARNESS; FRAME
WHEEL BASE 5800MM(58W) 		8-98212-572-0 01 1 1401-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> 		8-98212-572-0 01 1 1401-
201 HARNESS; AIR TANK 8-98184-703-0 01 1 1401-

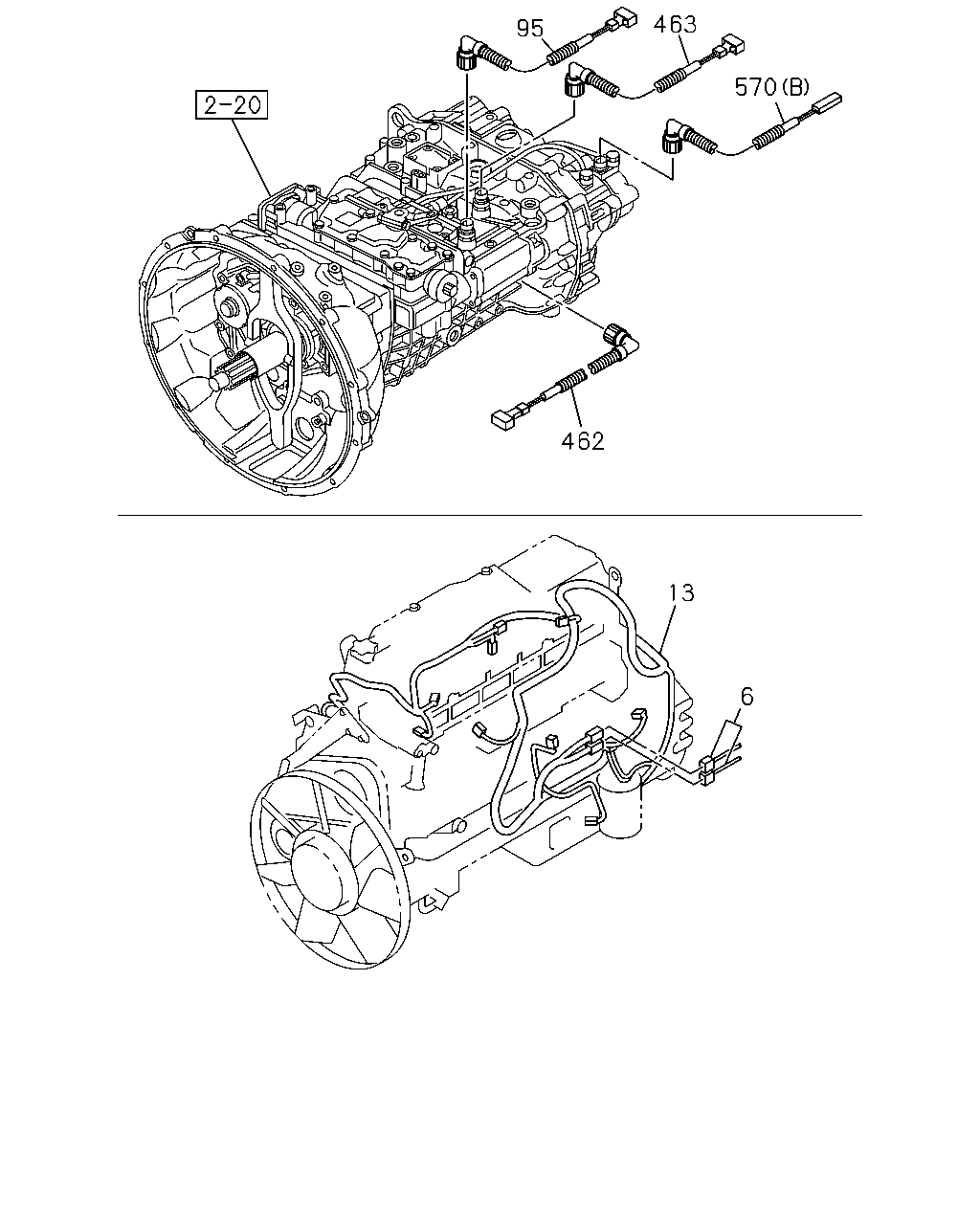

çizim 402480
13 6 462 570 463 95
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 		8-98212-573-0 01 1 1401-
6 HARNESS; FRAME
WHEEL BASE 5800MM(58W) 		8-98212-572-0 01 1 1401-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> 		8-98212-572-0 01 1 1401-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) 		8-98075-775-5 01 1 1401-
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98075-774-5 01 1 1401-
95 HARNESS; NEUTRAL SW
RED 		8-98145-855-0 01 1 1401-
462 HARNESS; SW,RANGE
BLUE 		8-98145-857-0 01 1 1401-
463 HARNESS; SW,BACK UP
BLACK 		8-98145-856-0 01 1 1401-
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1401-
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1401-

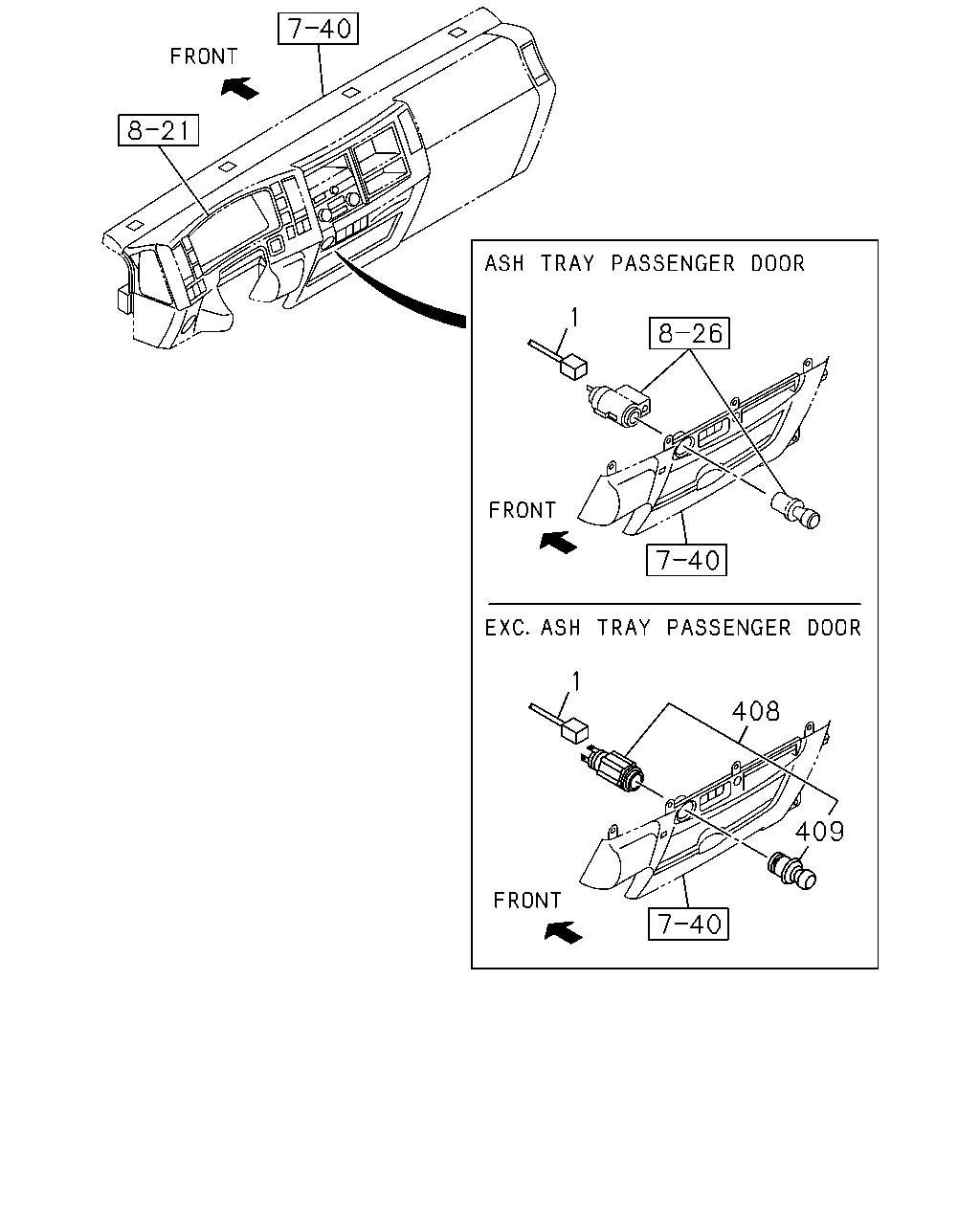

çizim 402482
408 1 409 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-385-1 01 1 1409-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-385-1 01 1 1409-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98212-385-1 01 1 1409-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROLLEVELING SYSTEM MANUAL<TR6> 		8-98212-384-1 01 1 1409-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1401-1408
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1401-1408
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1401-1408
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1409-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1409-
1 HARNESS; CAB
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1409-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-375-1 01 1 1401-1408
1 HARNESS; CAB
BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-375-1 01 1 1409-
408 SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98169-757-0 01 1 1401-
409 CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX> 		8-98183-771-0 01 1 1401-

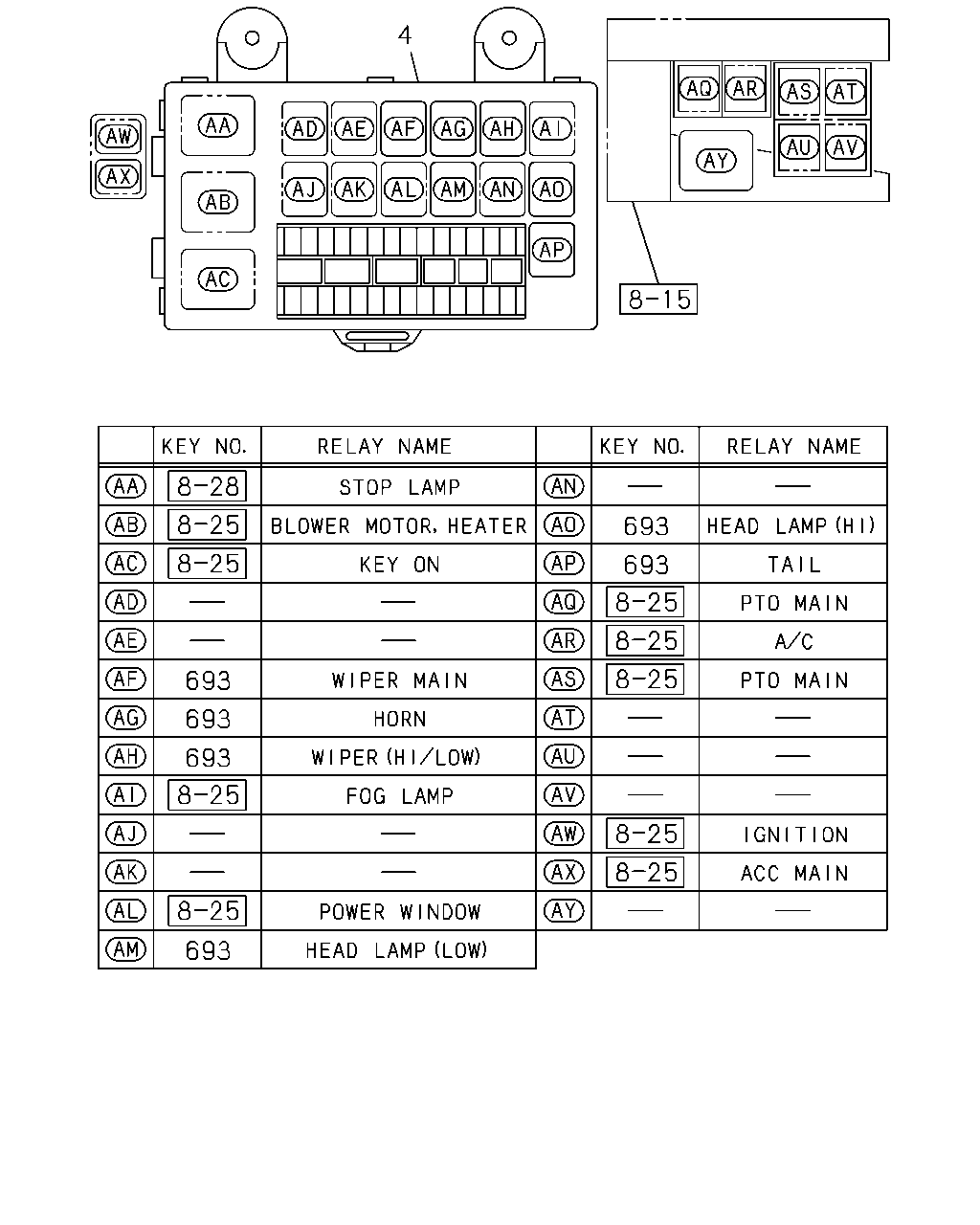

çizim 402514
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1401-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1401-

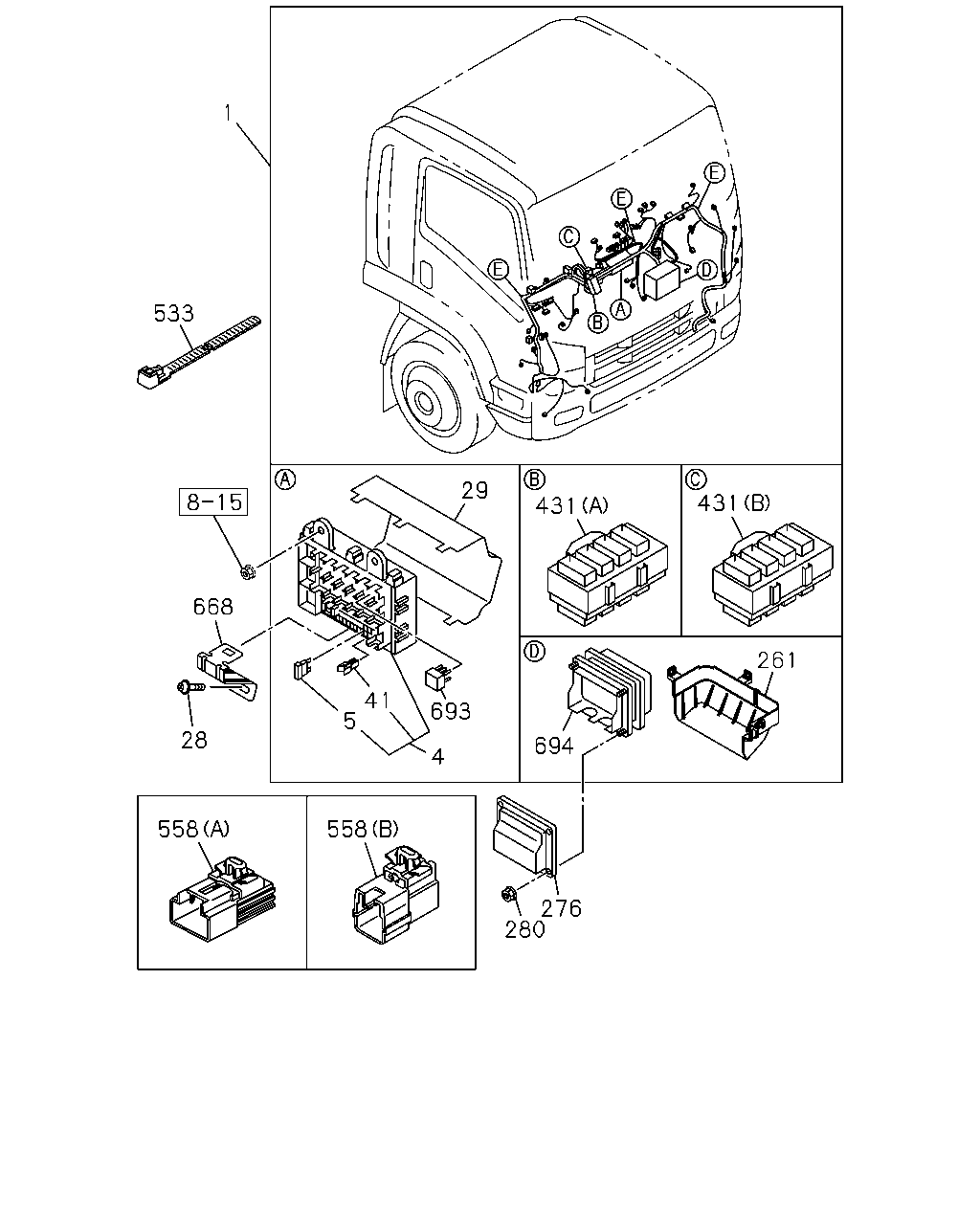

çizim 402527
1 533 668 28 5 4 29 693 41 431 694 431 261 276 280 558 558
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-385-1 01 1 1409-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-385-1 01 1 1409-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98212-385-1 01 1 1409-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROLLEVELING SYSTEM MANUAL<TR6> 		8-98212-384-1 01 1 1409-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1401-1408
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1401-1408
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1401-1408
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1409-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1409-
1 HARNESS; CAB
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1409-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-375-1 01 1 1401-1408
1 HARNESS; CAB
BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-375-1 01 1 1409-
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1401-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1401-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1401-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1401-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1401-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1401-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1401-
41 PULLER; FUSE 8-98054-260-0 01 1 1401-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1401-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1401-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1401-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1401-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1401-
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 1401-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1401-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1401-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1401-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1401-
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1401-
çizim 402537
1 2 2 2 2
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-385-1 01 1 1409-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,BUMPER W/HEADLAMPS<SLB>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-385-1 01 1 1409-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB> 		8-98212-385-1 01 1 1409-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROLLEVELING SYSTEM MANUAL<TR6> 		8-98212-384-1 01 1 1409-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1401-1408
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1401-1408
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1401-1408
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1409-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1409-
1 HARNESS; CAB
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-376-1 01 1 1409-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-375-1 01 1 1401-1408
1 HARNESS; CAB
BUMPER W/HEADLAMPS<SLB> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98212-375-1 01 1 1409-
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 1401-
2 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 1401-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1401-
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1401-

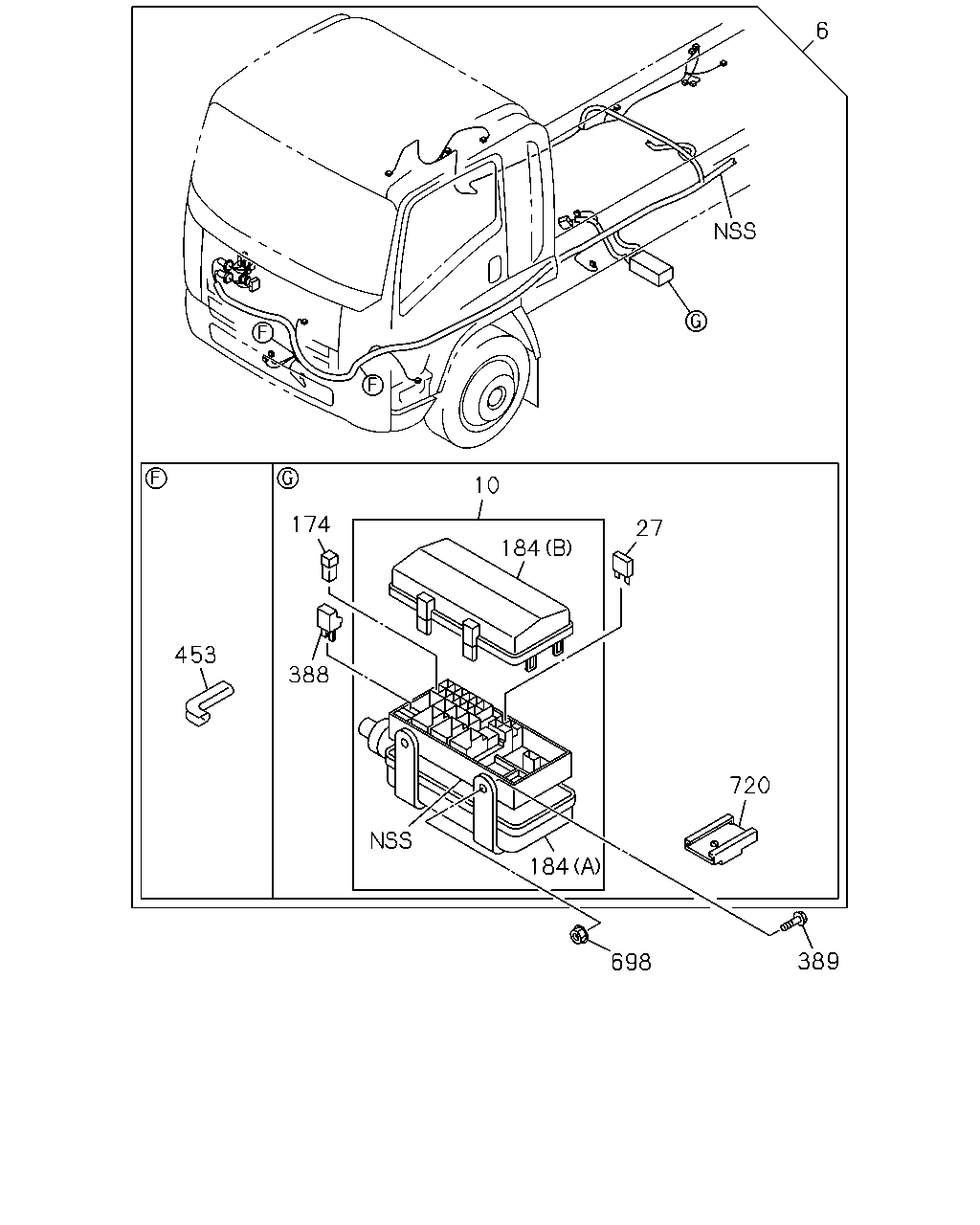

çizim 402569
6 10 27 720 389 698 184 184 388 174 453
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 		8-98212-573-0 01 1 1401-
6 HARNESS; FRAME
WHEEL BASE 5800MM(58W) 		8-98212-572-0 01 1 1401-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> 		8-98212-572-0 01 1 1401-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1401-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 1401-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 1401-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1401-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1401-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1401-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1401-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1401-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1401-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1401-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1401-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1401-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1401-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1401-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1401-

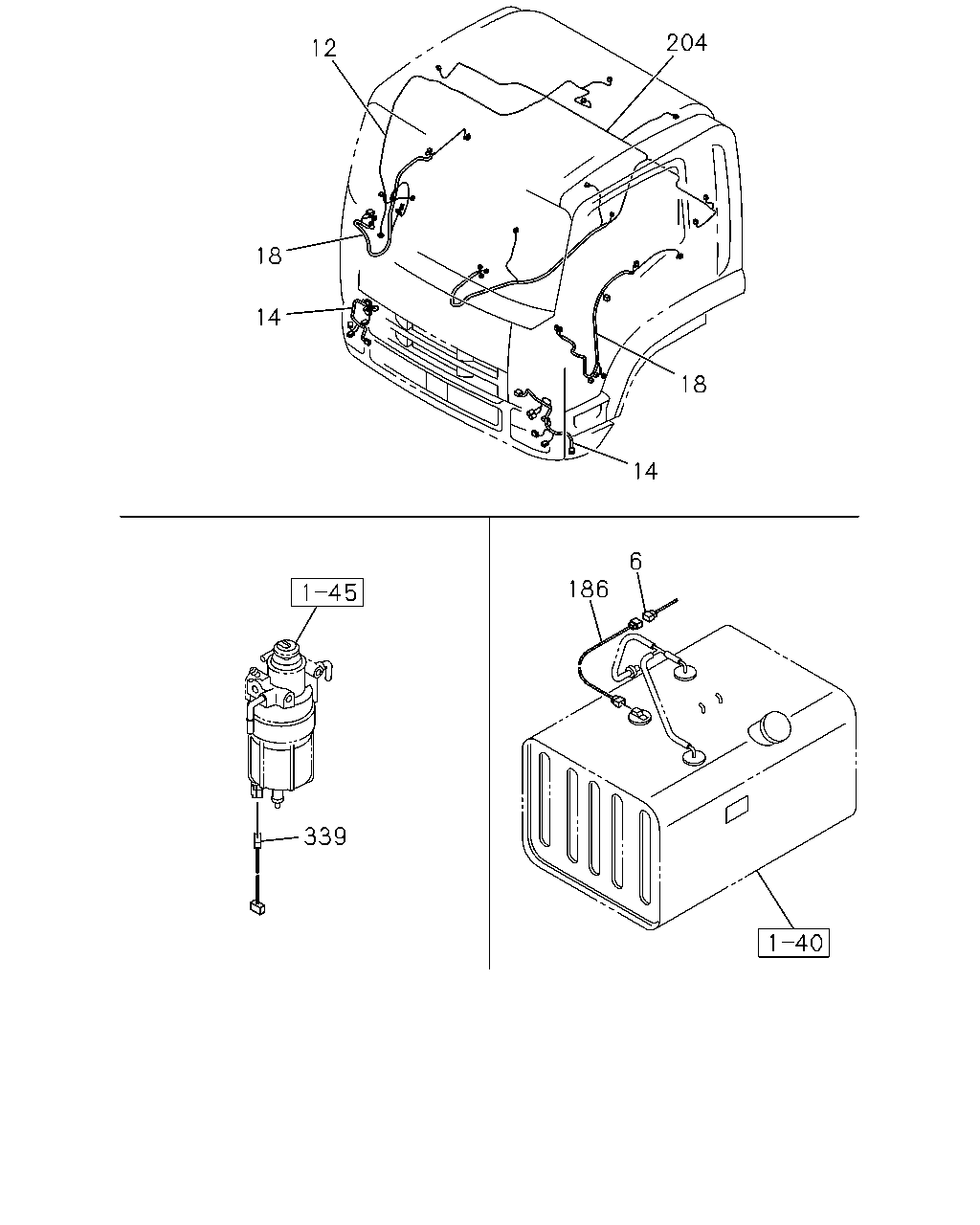

çizim 402627
339 186 6 14 18 14 18 12 204
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 200L FRAME SIDE<N20> 		8-98212-573-0 01 1 1401-
6 HARNESS; FRAME
WHEEL BASE 5800MM(58W) 		8-98212-572-0 01 1 1401-
6 HARNESS; FRAME
WHEEL BASE 5000MM(50W) FUEL TANK 400L<SDH> 		8-98212-572-0 01 1 1401-
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98071-442-0 01 1 1401-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98085-335-1 01 1 1401-
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98069-166-1 02 1 1401-1408
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98069-166-1 02 1 1409-
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-94270-986-0 02 1 1401-1408
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-94270-986-0 02 1 1409-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-98178-803-0 01 1 1401-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> 		8-98178-804-0 01 1 1401-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98178-801-0 01 1 1401-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4> 		8-98178-802-0 01 1 1401-
186 HARNESS; FUEL TANK
FUEL TANK 400L<SDH> 		8-98099-650-0 01 1 1401-
204 HARNESS; CABLE,FLOOR 8-98085-307-1 01 1 1401-
339 HARNESS; EXT,FUEL
FUEL TANK 400L<SDH> 		8-98227-393-0 01 1 1401-
339 HARNESS; EXT,FUEL
WHEEL BASE 5800MM(58W) FUEL TANK 200L FRAME SIDE<N20> 		8-98227-392-1 01 1 1401-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
