8-01 — LAMP; FRONT AND FRONT SIDE (#132758) — 164 parça

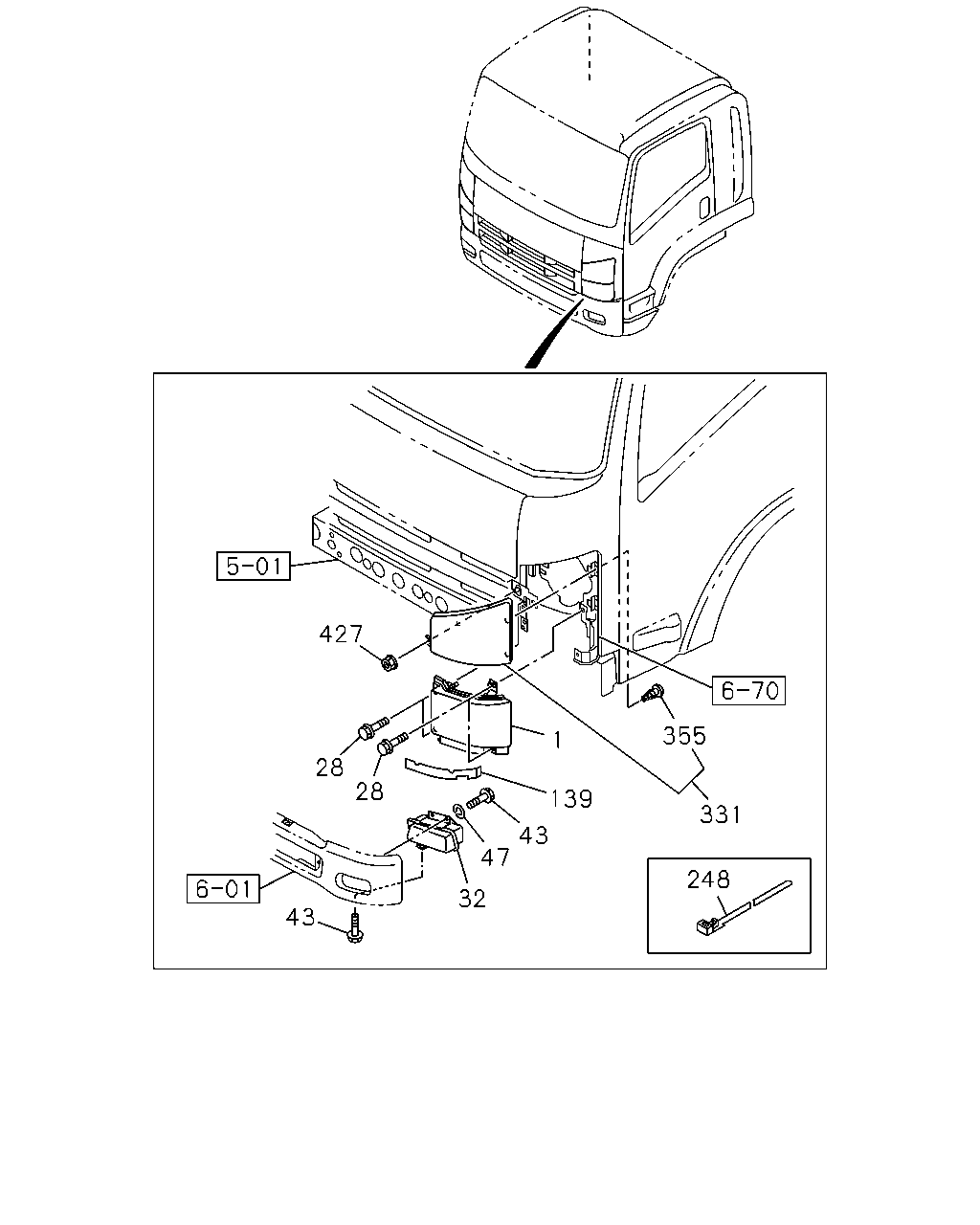

43 28 28 427 1 139 43 47 32 331 355 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98241-323-0	01	1	1409-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98241-324-0	01	1	1409-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-327-0	01	1	1409-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-328-0	01	1	1409-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-314-0	01	1	1401-1408
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-314-0	01	1	1409-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-315-0	01	1	1401-1408
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-315-0	01	1	1409-
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-316-0	01	1	1401-1408
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-316-0	01	1	1409-
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-317-0	01	1	1401-1408
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-317-0	01	1	1409-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1409-
28	BOLT; HEADLAMP M10X25 FLANGE	0-28651-025-0	04	1	1401-1408
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28651-025-0	04	1	1409-
32	LAMP ASM; FOG FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98232-058-1	01	1	1409-
32	LAMP ASM; FOG FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98232-059-1	01	1	1409-
43	BOLT; FOG LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER	8-97360-226-0	06	1	1409-
47	WASHER; PL,FOG LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98217-429-0	02	1	1409-
139	COVER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	8-98054-342-0	02	1	1409-
248	CLIP; HARNESS EXC. BUMPER W/HEADLAMPS<SLB>,FOG LAMP<T96> L=140	5-09707-031-1	02	1	1409-
331	LAMP; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB>	8-98155-458-0	01	1	1409-
331	LAMP; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB>	8-98155-459-0	01	1	1409-
355	SCREW; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB>	8-98051-428-0	04	1	1409-
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1401-1408
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1409-
427	NUT; TURN SIGNAL LAMP EXC. BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91180-106-0	02	1	1409-

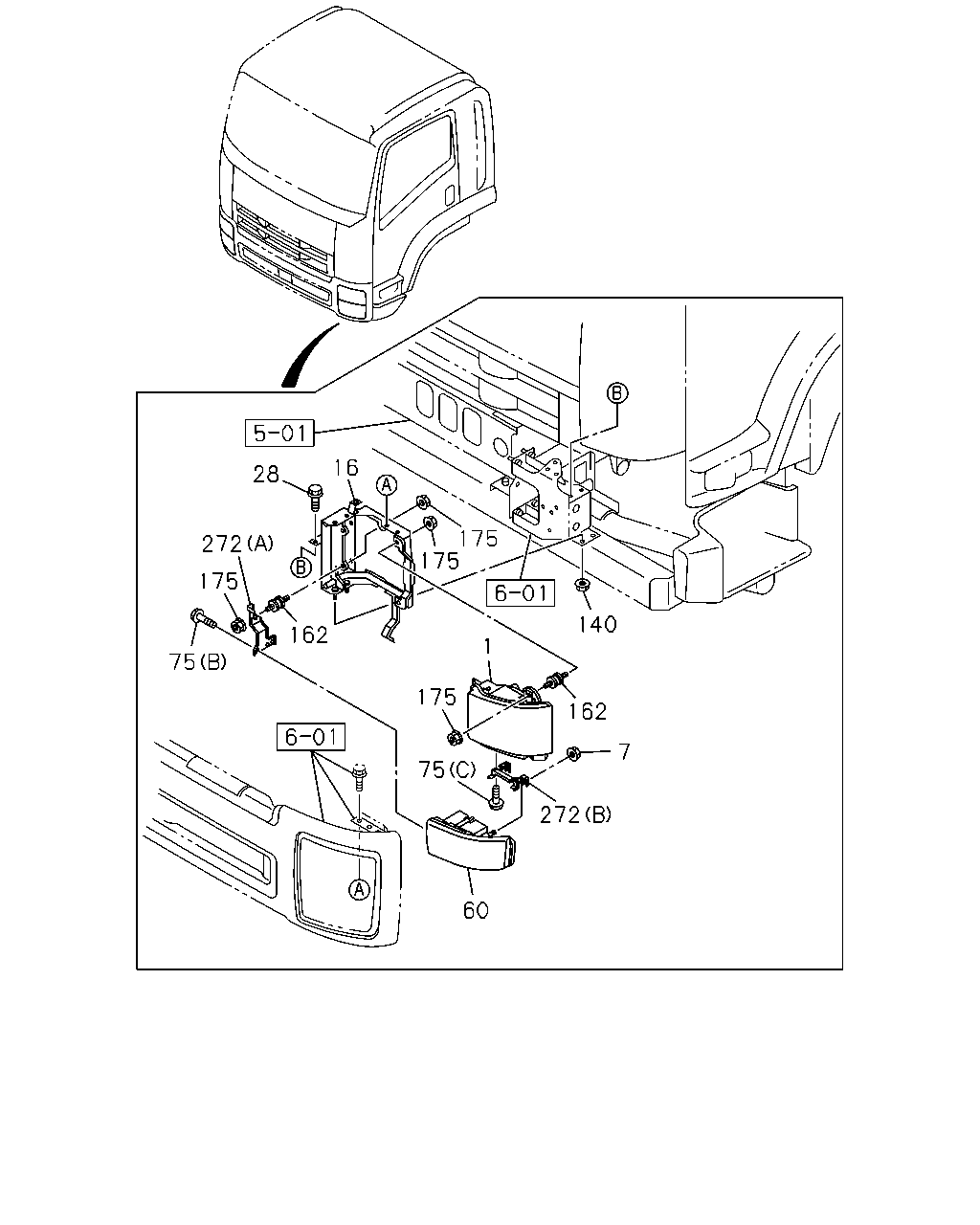

7 272 60 162 175 16 175 140 175 1 75 162 175 75 272 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98241-323-0	01	1	1409-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98241-324-0	01	1	1409-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-327-0	01	1	1409-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-328-0	01	1	1409-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-314-0	01	1	1401-1408
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-314-0	01	1	1409-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-315-0	01	1	1401-1408
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-315-0	01	1	1409-
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-316-0	01	1	1401-1408
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-316-0	01	1	1409-
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-317-0	01	1	1401-1408
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-317-0	01	1	1409-
7	NUT; FRT COMB LAMP M6 FLANGE	0-91180-106-0	04	1	1401-1408
7	NUT; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91180-106-0	04	1	1409-
16	BRACKET; HEADLAMP	8-98013-015-2	01	1	1401-1408
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-98013-015-2	01	1	1409-
16	BRACKET; HEADLAMP	8-98013-016-2	01	1	1401-1408
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-98013-016-2	01	1	1409-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1409-
28	BOLT; HEADLAMP M10X25 FLANGE	0-28651-025-0	04	1	1401-1408
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> M10X25 FLANGE	0-28651-025-0	04	1	1409-
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-630-0	01	1	1401-1408
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98238-630-0	01	1	1409-
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-631-0	01	1	1401-1408
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98238-631-0	01	1	1409-
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-632-0	01	1	1401-1408
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	8-98238-632-0	01	1	1409-
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-633-0	01	1	1401-1408
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	8-98238-633-0	01	1	1409-
75	SCREW; FRT COMB LAMP FOG LAMP<T96> (A)	8-98074-439-0	02	1	1401-1408
75	SCREW; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> (A)	8-98074-439-0	02	1	1409-
75	SCREW; FRT COMB LAMP (B) M6X16 FLANGE	0-28650-616-0	04	1	1401-1408
75	SCREW; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (B) M6X16 FLANGE	0-28650-616-0	04	1	1409-
75	SCREW; FRT COMB LAMP (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	06	1	1401-1408
75	SCREW; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	06	1	1409-
140	NUT M10 FLANGE	0-91180-210-0	04	1	1401-1408
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91180-210-0	04	1	1409-
162	RUBBER; CUSHION UPR	1-82117-086-0	08	1	1401-1408
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-086-0	08	1	1409-
175	NUT; BRKT CUSHION RUBBER M8 FLANGE	0-91180-108-0	16	1	1401-1408
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91180-108-0	16	1	1409-
272	BRACKET; FRT COMB LAMP (A)	8-98051-934-0	01	1	1401-1408
272	BRACKET; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (A)	8-98051-934-0	01	1	1409-
272	BRACKET; FRT COMB LAMP (A)	8-98051-935-0	01	1	1401-1408
272	BRACKET; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (A)	8-98051-935-0	01	1	1409-
272	BRACKET; FRT COMB LAMP (B)	8-98051-937-0	01	1	1401-1408
272	BRACKET; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (B)	8-98051-937-0	01	1	1409-
272	BRACKET; FRT COMB LAMP (B)	8-98051-938-0	01	1	1401-1408
272	BRACKET; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (B)	8-98051-938-0	01	1	1409-

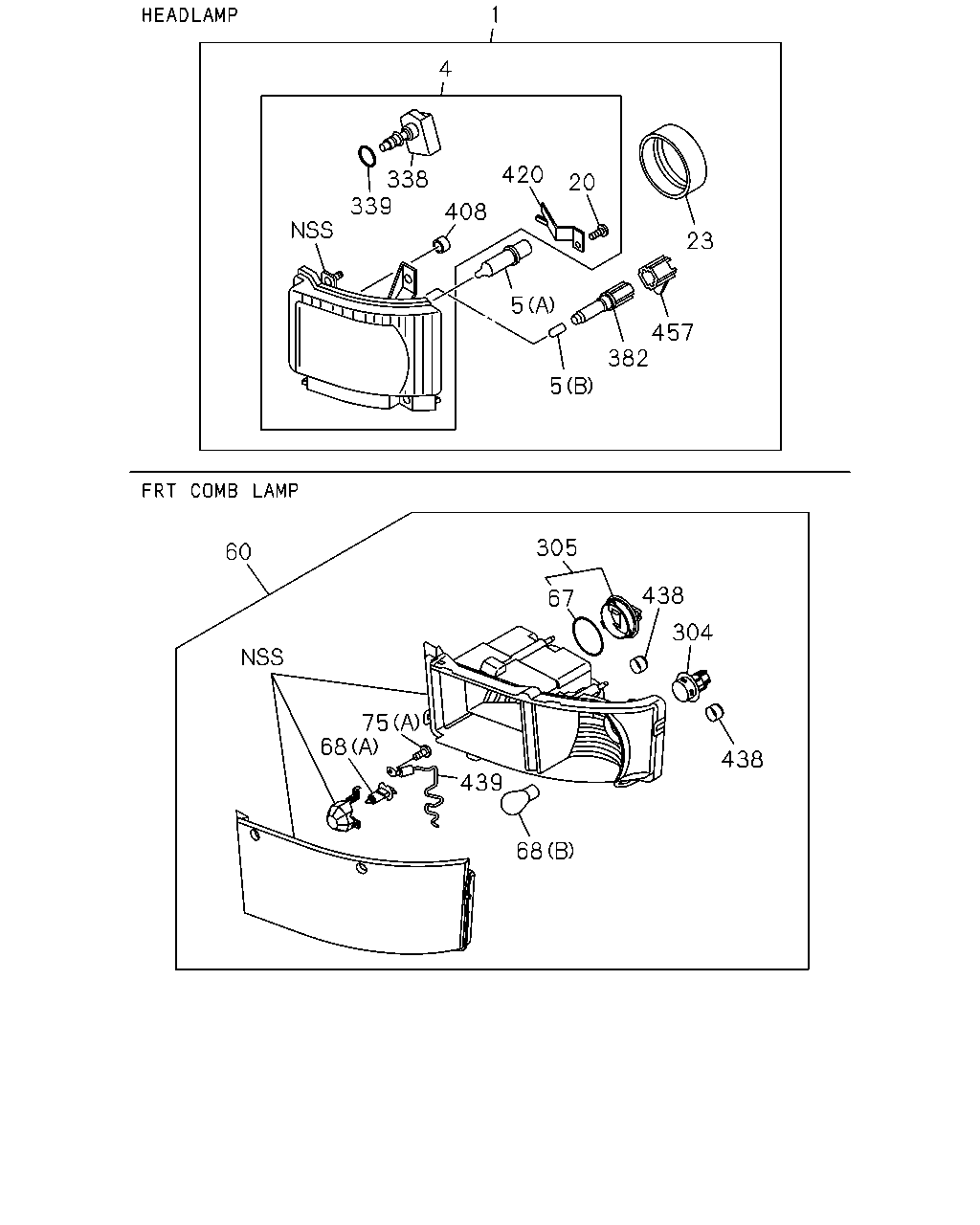

1 4 338 339 408 420 20 23 457 382 5 5 60 68 75 439 68 438 304 438 305 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98241-323-0	01	1	1409-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98241-324-0	01	1	1409-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-327-0	01	1	1409-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-328-0	01	1	1409-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-314-0	01	1	1401-1408
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-314-0	01	1	1409-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-315-0	01	1	1401-1408
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-315-0	01	1	1409-
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-316-0	01	1	1401-1408
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-316-0	01	1	1409-
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-317-0	01	1	1401-1408
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-317-0	01	1	1409-
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98226-184-0	01	1	1409-
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. BUMPER W/HEADLAMPS<SLB>	8-98226-185-0	01	1	1409-
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-188-0	01	1	1409-
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-189-0	01	1	1409-
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-568-0	01	1	1401-1408
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-568-0	01	1	1409-
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-569-0	01	1	1401-1408
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-569-0	01	1	1409-
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-570-0	01	1	1401-1408
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-570-0	01	1	1409-
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-571-0	01	1	1401-1408
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-571-0	01	1	1409-
5	BULB; HEADLAMP (B) 24V 5W	1-82194-042-0	02	1	1401-
5	BULB; HEADLAMP (A) 24V 75/70W	1-82194-063-0	02	1	1401-
20	SCREW; HEADLAMP	8-97378-871-0	06	1	1401-
23	COVER; BULB,HEADLAMP	8-97232-491-0	02	1	1401-
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-630-0	01	1	1401-1408
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98238-630-0	01	1	1409-
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-631-0	01	1	1401-1408
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98238-631-0	01	1	1409-
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-632-0	01	1	1401-1408
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	8-98238-632-0	01	1	1409-
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-633-0	01	1	1401-1408
60	LAMP ASM; FRT COMB BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	8-98238-633-0	01	1	1409-
67	GASKET; FRT COMB LAMP	8-98238-656-0	02	1	1401-1408
67	GASKET; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB>	8-98238-656-0	02	1	1409-
68	BULB; FRT COMB LAMP FOG LAMP<T96> (A) 24V 70W	1-82194-106-0	02	1	1401-1408
68	BULB; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> (A) 24V 70W	1-82194-106-0	02	1	1409-
68	BULB; FRT COMB LAMP (B) 24V 21W	8-98051-495-0	02	1	1401-1408
68	BULB; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (B) 24V 21W	8-98051-495-0	02	1	1409-
75	SCREW; FRT COMB LAMP FOG LAMP<T96> (A)	8-98074-439-0	02	1	1401-1408
75	SCREW; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> (A)	8-98074-439-0	02	1	1409-
75	SCREW; FRT COMB LAMP (B) M6X16 FLANGE	0-28650-616-0	04	1	1401-1408
75	SCREW; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (B) M6X16 FLANGE	0-28650-616-0	04	1	1409-
75	SCREW; FRT COMB LAMP (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	06	1	1401-1408
75	SCREW; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	06	1	1409-
304	PLUG; SOCKET,FRT COMB LAMP	8-98051-390-0	02	1	1401-1408
304	PLUG; SOCKET,FRT COMB LAMP BUMPER W/HEADLAMPS<SLB>	8-98051-390-0	02	1	1409-
305	COVER; FRT COMB LAMP FOG LAMP<T96>	8-98240-559-0	02	1	1401-1408
305	COVER; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98240-559-0	02	1	1409-
305	COVER; FRT COMB LAMP EXC. FOG LAMP<T96>	8-98240-560-0	02	1	1401-1408
305	COVER; FRT COMB LAMP BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96>	8-98240-560-0	02	1	1409-
338	LEVELING; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98010-256-0	02	1	1401-
339	GASKET; LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-86830-158-0	02	1	1401-
382	PLUG; SOCKET,HEADLAMP	8-98225-685-0	02	1	1401-
408	CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	1401-
420	SPRING; BULB,HEADLAMP	8-98218-601-0	02	1	1401-
438	CAP; BREATHER,FRT COMB LAMP	8-97378-874-0	02	1	1401-1408
438	CAP; BREATHER,FRT COMB LAMP BUMPER W/HEADLAMPS<SLB>	8-97378-874-0	02	1	1409-
439	SPRING SET; COMB LAMP FOG LAMP<T96>	8-98075-644-0	02	1	1401-1408
439	SPRING SET; COMB LAMP BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96>	8-98075-644-0	02	1	1409-
457	GRIP; HEADLAMP	8-98241-354-0	02	1	1401-

32 15 44 47 49 448 36 331 357 431 399 355 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BULB; FOG LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> 24V 70W	1-82194-106-0	02	1	1409-
32	LAMP ASM; FOG FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98232-058-1	01	1	1409-
32	LAMP ASM; FOG FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98232-059-1	01	1	1409-
36	CORD; FOG LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	1-82118-015-0	01	1	1409-
36	CORD; FOG LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	1-82118-016-0	01	1	1409-
44	NUT; FOG LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB> M6	8-98217-430-0	02	1	1409-
47	WASHER; PL,FOG LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98217-429-0	02	1	1409-
49	BRACKET; LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98051-435-0	01	1	1409-
49	BRACKET; LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-98051-436-0	01	1	1409-
331	LAMP; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB>	8-98155-458-0	01	1	1409-
331	LAMP; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB>	8-98155-459-0	01	1	1409-
355	SCREW; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB>	8-98051-428-0	04	1	1409-
357	BULB; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB> 24V 21W AMBER	8-97323-806-0	02	1	1409-
399	SOCKET; TURN SIGNAL EXC. BUMPER W/HEADLAMPS<SLB>	8-98051-387-0	02	1	1409-
431	CAP; TURN SIGNAL,LAMP EXC. BUMPER W/HEADLAMPS<SLB>	8-97378-874-0	02	1	1409-
432	FASTENER; TURN SIGNAL,LAMP EXC. BUMPER W/HEADLAMPS<SLB>	8-98051-431-0	04	1	1409-
448	CAP ASM; LAMP FOG LAMP<T96> EXC. BUMPER W/HEADLAMPS<SLB>	8-97378-874-0	02	1	1409-

427 437 327 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	1401-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	1401-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	1401-
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1401-1408
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	1409-
427	NUT; TURN SIGNAL LAMP EXC. BUMPER W/HEADLAMPS<SLB> M6 FLANGE	0-91180-106-0	02	1	1409-
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	1401-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
