0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#13275) — 86 parça
çizim 22470
76 76 73 18 18 21 18 73 21 21 21 21 21 28 9 18 76 18 12 23 73 24 100 13 99 99 101 21 18 18 24 81 22 28 12 23 9 18 18
BalonParca AdiParca NoAdetTipApplied Date A B
9 CLIP; BATTERY CABLE
(A) ID=18 L=28 		1-09701-067-0 02 1 0110- ● ●
9 CLIP; BATTERY CABLE
(B) ID=19 L=28 		9-09525-856-0 01 1 0110- ● ●
12 NUT; BATTERY CABLE CLIP
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ●
12 NUT; BATTERY CABLE CLIP
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (B) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
12 NUT; BATTERY CABLE CLIP
(A) M8 FLANGE 		0-91150-108-0 03 1 0105-0602 ● ●
12 NUT; BATTERY CABLE CLIP
(A) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0105- ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 0105- ● ●
18 CLIP; BATTERY CABLE
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) ID=18 L=28 		1-09701-067-0 01 1 0105-0109 ●
18 CLIP; BATTERY CABLE
ZF M/T<X9E> W-SERIES ENG<1A2> (D) ID=19 L=60 		9-09525-896-0 01 1 0110- ● ●
18 CLIP; BATTERY CABLE
(B) ID=18 L=28 		1-09701-067-0 02 1 0105-0109 ● ●
18 CLIP; BATTERY CABLE
(C) ID=19 L=28 		9-09525-856-0 02 1 0105-0109 ● ●
18 CLIP; BATTERY CABLE
ZF M/T<X9E> W-SERIES ENG<1A2> (D) ID=19 L=28 		9-09525-856-0 01 1 0110- ● ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A>,FULLER M/T<X9B> (D) ID=19 L=28 		9-09525-856-0 01 1 0105-0109 ● ●
18 CLIP; BATTERY CABLE
ISUZU M/T<X9A>,FULLER M/T<X9B> (D) ID=19 L=28 		9-09525-856-0 02 1 0110- ● ●
18 CLIP; BATTERY CABLE
ZF M/T<X9E> (E) ID=19 L=60 		9-09525-896-0 01 1 0105-0109 ● ●
18 CLIP; BATTERY CABLE
ZF M/T<X9E> PE-SERIES ENG<1A0> (E) ID=19 L=60 		9-09525-896-0 02 1 0110- ● ●
21 BOLT; CLIP CABLE
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0512 ●
21 BOLT; CLIP CABLE
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
21 BOLT; CLIP CABLE
(B) M8X20 FLANGE 		0-28680-820-0 05 1 0105-0512 ● ●
21 BOLT; CLIP CABLE
(B) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ●
22 CLIP; BATTERY CABLE
ID=18 H=23 L=28 		1-09701-070-0 02 1 0105- ● ●
23 BRACKET; CABLE CLIP TO FRAME
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) L=120 		1-82699-465-0 01 1 0105-0106 ●
23 BRACKET; CABLE CLIP TO FRAME
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) L=145 		1-47475-655-0 01 1 0107- ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=95 		1-82699-085-0 03 1 0105- ● ●
24 BOLT; BRKT TO FRAME
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0512 ●
24 BOLT; BRKT TO FRAME
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) M8X30 FLANGE 		0-28650-830-0 01 1 0601- ●
24 BOLT; BRKT TO FRAME
(B) M8X30 FLANGE 		0-28680-830-0 03 1 0105-0512 ● ●
24 BOLT; BRKT TO FRAME
(B) M8X30 FLANGE 		0-28650-830-0 03 1 0601- ● ●
28 NUT; BRKT TO FRAME
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ●
28 NUT; BRKT TO FRAME
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(SEQ) (A) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
28 NUT; BRKT TO FRAME
(B) M8 FLANGE 		0-91150-108-0 03 1 0105-0602 ● ●
28 NUT; BRKT TO FRAME
(B) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
73 BRACKET; BATTERY CABLE
FULLER M/T<X9B> W-SERIES ENG<1A2> (B) 		1-82699-104-0 01 1 0105- ● ●
73 BRACKET; BATTERY CABLE
ISUZU M/T<X9A>,FULLER M/T<X9B> PE-SERIES ENG<1A0> (C) 		1-82698-139-0 01 1 0105- ● ●
73 BRACKET; BATTERY CABLE
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5TM/T(Y1K),MJD7R M/T(Y2X) W-SERIES ENG<1A2> (A) 		1-82699-493-0 01 1 0105-0106 ● ●
73 BRACKET; BATTERY CABLE
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5TM/T(Y1K),MJD7R M/T(Y2X),MJD7S M/T(Y2Y) W-SERIES ENG<1A2> (A) 		1-82699-493-0 01 1 0107- ● ●
76 NUT; BATTERY CABLE
FULLER M/T<X9B> W-SERIES ENG<1A2> M10 FLANGE 		0-91150-210-0 01 1 0105-0602 ● ●
76 NUT; BATTERY CABLE
FULLER M/T<X9B> W-SERIES ENG<1A2> M10 FLANGE 		0-91180-210-0 01 1 0603- ● ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A>,FULLER M/T<X9B> PE-SERIES ENG<1A0> M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> W-SERIES ENG<1A2> M10 FLANGE 		0-91150-210-0 02 1 0105-0602 ● ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A>,FULLER M/T<X9B> PE-SERIES ENG<1A0> M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
76 NUT; BATTERY CABLE
ISUZU M/T<X9A> W-SERIES ENG<1A2> M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ●
81 BOLT; BATTERY CABLE
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
99 CLIP; BATTERY CABLE
(A) ID=18 H=23 L=28 		1-09701-070-0 01 1 0105- ● ●
99 CLIP; BATTERY CABLE
(B) ID=20 L=50 		9-09917-430-0 02 1 0105- ● ●
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0512 ● ●
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0105-0602 ● ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●

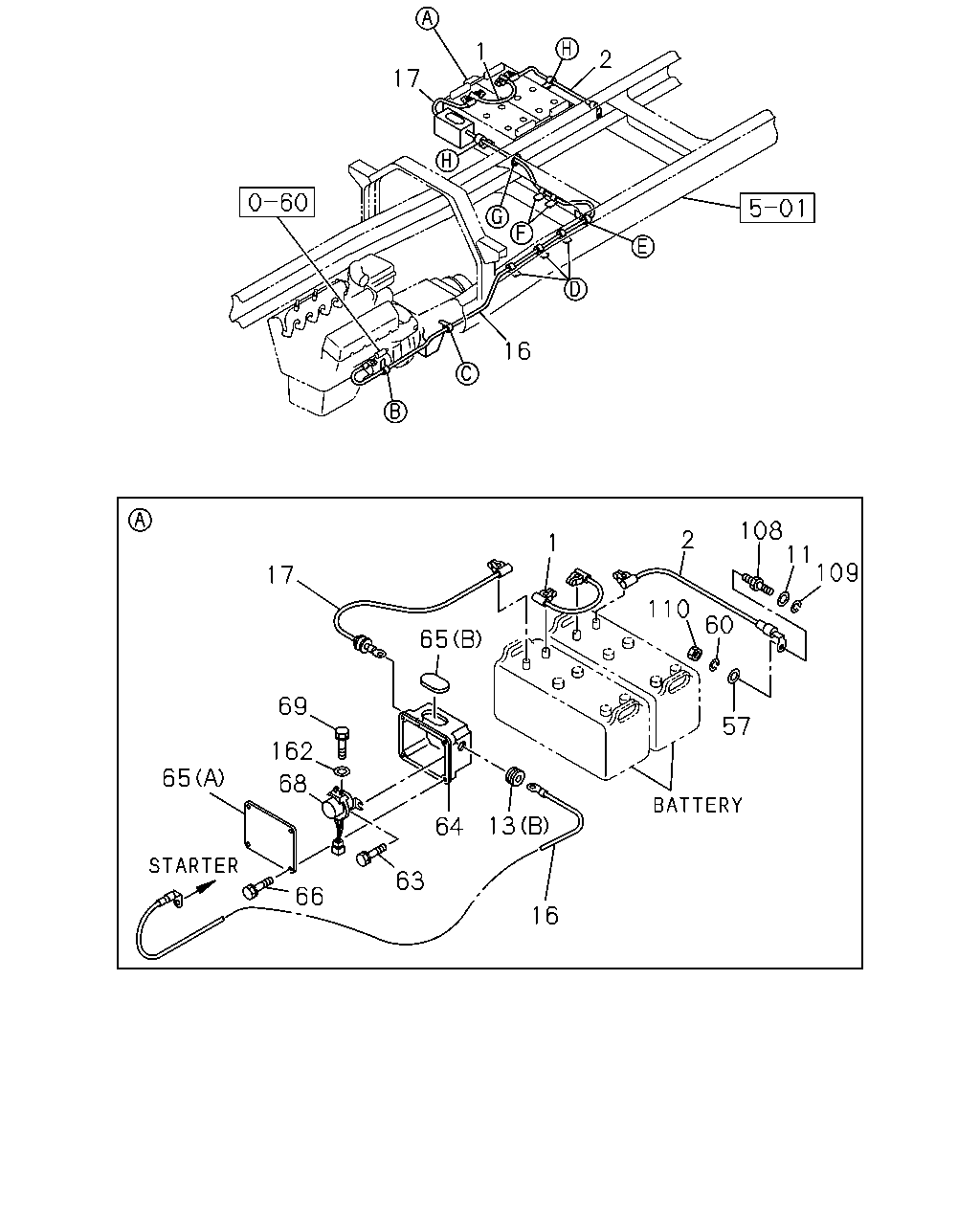

çizim 81368
1 2 17 16 108 11 109 2 1 17 110 60 65 69 57 162 65 68 13 64 63 66 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> <+> TO <-> L=450 		1-82650-281-2 01 1 0105- ● ●
1 CABLE; BATTERY
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> <+> TO <-> L=180 		1-82650-280-2 01 1 0105- ● ●
2 CABLE; BATTERY
<-> TO FRAME L=690 		1-82650-147-0 01 1 0105- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=8.4 OD=22 		9-09164-708-0 01 1 0105- ● ●
13 GROMMET; BATTERY CABLE
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0105- ● ●
13 GROMMET; BATTERY CABLE
(B) ID=26 		1-09333-140-0 01 1 0105- ● ●
16 CABLE; STARTER TO RELAY
ZF M/T<X9E> PE-SERIES ENG<1A0> L=3630 		1-82652-770-1 01 1 0110- ● ●
16 CABLE; STARTER TO RELAY
MIXER TRUCK<RA2> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. CAB UP +110MM<TGG> L=3300 		1-82652-778-0 01 1 0112- ● ●
16 CABLE; STARTER TO RELAY
CAB UP +110MM<TGG> ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> L=3350 		1-82652-757-0 01 1 0112-0201 ● ●
16 CABLE; STARTER TO RELAY
MJA7U M/T(X6G),MJA6A M/T(X6V),MAG6W M/T(X8B), MAL5TM/T(Y1K),MJD7R M/T(Y2X),MJD7S M/T(Y2Y) CAB UP +110MM<TGG> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2> L=3350 		1-82652-757-0 01 1 0202- ● ●
16 CABLE; STARTER TO RELAY
ISUZU M/T<X9A> W-SERIES ENG<1A2> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> L=3400 		1-82652-777-0 01 1 0112- ● ●
16 CABLE; STARTER TO RELAY
FULLER M/T<X9B> L=3200 		1-82652-779-0 01 1 0112- ● ●
16 CABLE; STARTER TO RELAY
PE-SERIES ENG<1A0> L=3450 		1-82652-742-3 01 1 0105-0109 ● ●
16 CABLE; STARTER TO RELAY
ISUZU M/T<X9A> PE-SERIES ENG<1A0> L=3450 		1-82652-742-4 01 1 0110- ● ●
16 CABLE; STARTER TO RELAY
W-SERIES ENG<1A2> L=3350 		1-82652-743-2 01 1 0105-0111 ● ●
16 CABLE; STARTER TO RELAY
TRANSMISSION-ZF 16S151 OD(Y2N) W-SERIES ENG<1A2> L=3350 		1-82652-743-2 01 1 0112- ● ●
16 CABLE; STARTER TO RELAY
MIXER TRUCK<RA2> CAB UP +110MM<TGG> ISUZU M/T<X9A> W-SERIES ENG<1A2> L=3350 		1-82652-743-2 01 1 0112- ● ●
17 CABLE; BATTERY (+) TO RELAY
L=390 		1-82652-531-0 01 1 0105- ● ●
57 WASHER; PL,BATTERY CABLE
ID=6.4 		9-09164-506-0 01 1 0106- ● ●
60 WASHER; LK,BATTERY CABLE
ID=6.1 		9-09150-606-0 01 1 0106-0603 ● ●
60 WASHER; LK,BATTERY CABLE
ID=6.1 		0-91510-606-0 01 1 0604- ● ●
63 BOLT; RELAY BATTERY
M8X35 W/LK&PL WASHER 		1-09030-025-0 02 1 0105- ● ●
64 BOX; BATTERY RELAY 1-82699-947-0 01 1 0105- ● ●
65 COVER; BATTERY RELAY
(A) 		1-82699-353-1 01 1 0105- ● ●
65 COVER; BATTERY RELAY
(B) 		1-82699-980-0 01 1 0105- ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 0105-0512 ● ●
66 BOLT; COVER,BATTERY RELAY
M6X16 W/LK&PL WASHER 		0-50640-616-0 04 1 0601- ● ●
68 RELAY; BATTERY 1-82550-282-0 01 1 0105- ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0105-0512 ● ●
69 BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0601- ● ●
108 STUD; EARTH BATTERY CABLE
M6X14,M8X17 L=42 		5-09309-006-1 01 1 0105- ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		9-09150-808-0 01 1 0105-0603 ● ●
109 WASHER; LK,EARTH BATTERY CABLE
ID=8.2 		0-91510-808-0 01 1 0604- ● ●
110 NUT; HARNESS TO BATTERY EARTH
M6 FLANGE 		5-09440-004-0 01 1 0105- ● ●
162 WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18 		9-09164-608-0 02 1 0105- ● ●
