◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11570 - FVZ(MIDDLE EAST)EU2 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#132748) — 11 parça
çizim 401762
35 160 49 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> CAUTIONS ARABIAN<WJ7> 		8-98082-441-0 01 1 1401-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. CAUTIONS ARABIAN<WJ7> 		8-98082-437-0 01 1 1401-
35 PLATE; CAUTION,CAB
CAUTIONS ARABIAN<WJ7> 		8-98070-107-0 01 1 1401-
35 PLATE; CAUTION,CAB
EXC. CAUTIONS ARABIAN<WJ7> 		8-98065-363-0 01 1 1401-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		8-98127-559-0 01 1 1401-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7> 		8-98122-354-0 01 1 1401-
160 PLATE; CAUTION,TOWING
CAUTIONS ARABIAN<WJ7> 		8-98252-676-0 01 1 1401-
160 PLATE; CAUTION,TOWING
EXC. CAUTIONS ARABIAN<WJ7> 		1-85888-737-1 01 1 1401-

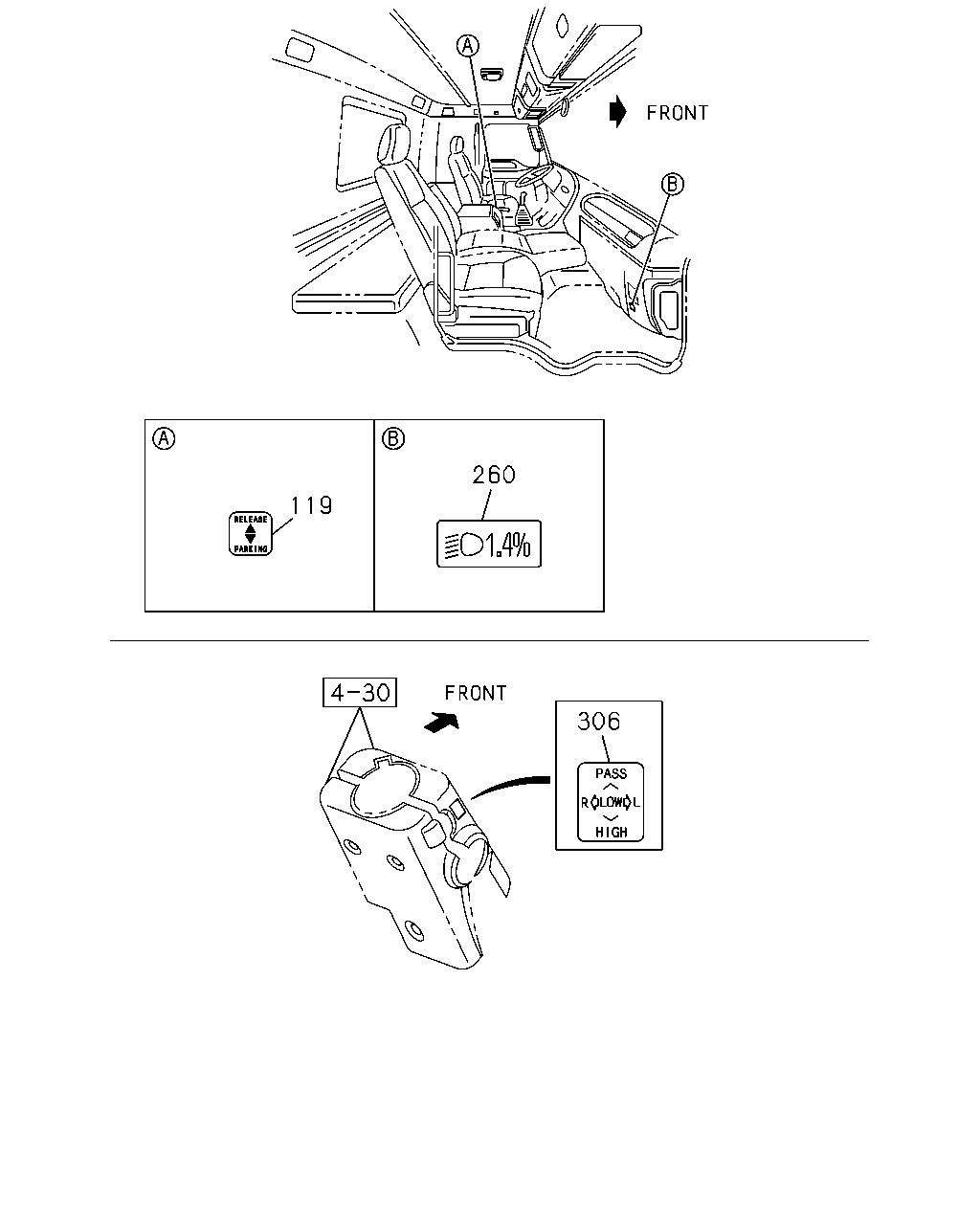

çizim 402260
260 119 306
BalonParca AdiParca NoAdetTipApplied Date
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 1401-
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1401-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1401-
