0-60 — ENGINE ELECTRICAL CONTROL PARTS (#13274) — 262 parça

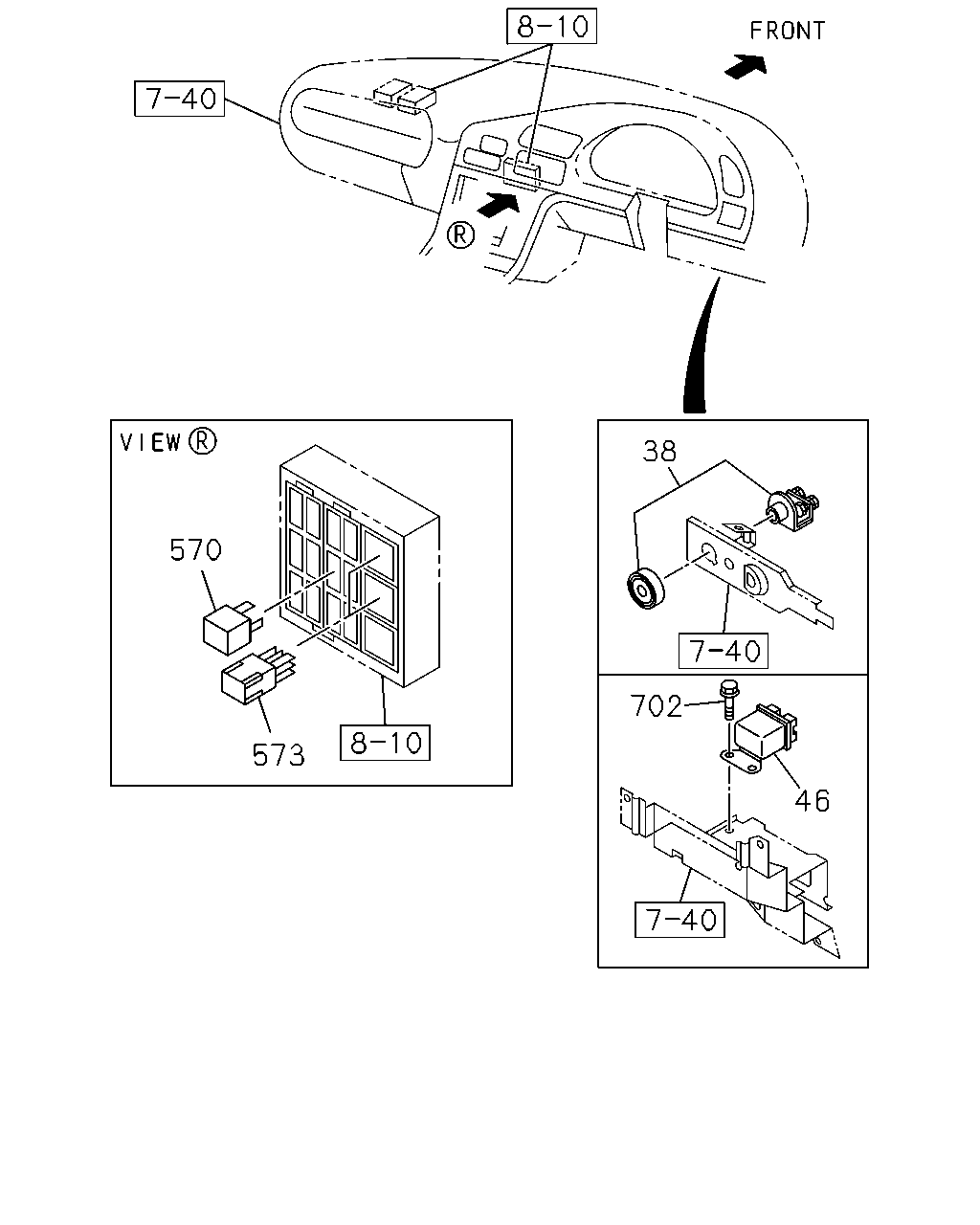

38 570 702 573 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	RESISTOR; CONT,GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-81402-008-0	01	1	0105-	●
46	RELAY; GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	8-94258-014-0	01	1	0105-	●
570	RELAY; EXH SHUTTER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) 24V 10A PANASONIC	8-97173-035-1	01	1	0105-	●	●
573	RELAY; ELEC GOV ELECTRONIC GOV RED4(Q4F) EXC. EURO3 SPECIFICATION<NJX> 24V 12.5A PANASONIC	8-97262-933-0	01	1	0301-	●	●
573	RELAY; ELEC GOV ELECTRONIC GOV RED4(Q4F) 24V 12.5A MITUBA	8-97062-815-1	02	1	0105-0106		●
573	RELAY; ELEC GOV ELECTRONIC GOV RED4(Q4F) 24V 12.5A MITUBA	8-97062-815-1	02	1	0107-0111	●	●
573	RELAY; ELEC GOV ELECTRONIC GOV RED4(Q4F) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0112-0212	●	●
573	RELAY; ELEC GOV EURO3 SPECIFICATION<NJX> ELECTRONIC GOV RED4(Q4F) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0301-	●	●
702	BOLT; RELAY GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0106-	●
702	BOLT; RELAY GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-	●

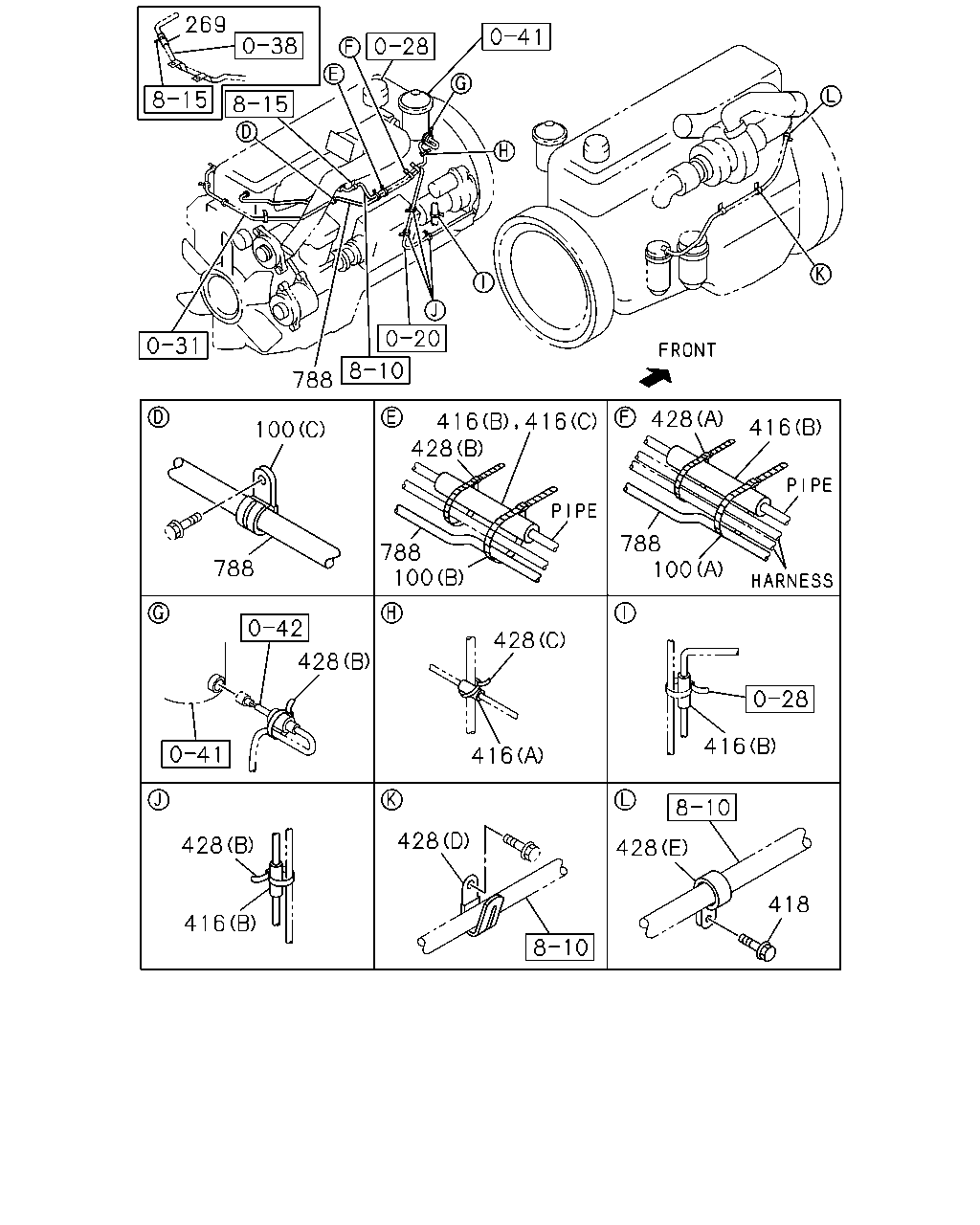

269 788 428 428 416 100 788 100 788 100 788 428 428 416 416 428 428 428 418 416 416 416

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	CLIP; HARNESS 6WF1 TC-C(1B8) (C) ID=11 L=20	9-09525-035-0	01	1	0105-0106		●
100	CLIP; HARNESS 6WF1 TC-C(1B8),6WF1 TC(84L) (C) ID=11 L=20	9-09525-035-0	01	1	0107-		●
100	CLIP; HARNESS 6WF1 TC(84L) (C) ID=11 L=20	9-09525-035-0	01	1	0107-	●
100	CLIP; HARNESS W-SERIES ENG<1A2> (A) L=180	1-09707-162-1	01	1	0105-	●	●
100	CLIP; HARNESS 6WF1 TC-C(1B8) (B) L=140	5-09707-031-1	01	1	0105-0106		●
100	CLIP; HARNESS 6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) (B) L=140	5-09707-031-1	01	1	0105-0106	●
100	CLIP; HARNESS 6WG1 TC-C(72L) (B) L=140	5-09707-031-1	01	1	0105-0106	●
100	CLIP; HARNESS 6WF1 TC-C(1B8),6WF1 TC(84L) (B) L=140	5-09707-031-1	01	1	0107-		●
100	CLIP; HARNESS 6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) (B) L=140	5-09707-031-1	01	1	0107-	●
100	CLIP; HARNESS 6WG1 TC-C(72L),6WF1 TC(84L) (B) L=140	5-09707-031-1	01	1	0107-	●
100	CLIP; HARNESS 6WA1 TC-C(55L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) (C) ID=11 L=30	1-09700-511-0	01	1	0105-	●
269	SLEEVE; RUBBER,CABLE 6WF1 TC-C(1B8),6WA1 TC-C(55L),6WG1 TC-C(72L) ID=18 OD=22 L=25	8-94412-773-0	01	1	0111-	●	●
416	SLEEVE; RUBBER 6WF1 TC-C(1B8) (A) ID=6 L=30	5-09360-352-0	01	1	0105-0106		●
416	SLEEVE; RUBBER 6WF1 TC-C(1B8),6WF1 TC(84L) (A) ID=6 L=30	5-09360-352-0	01	1	0107-		●
416	SLEEVE; RUBBER 6WF1 TC(84L) (A) ID=6 L=30	5-09360-352-0	01	1	0107-	●
416	SLEEVE; RUBBER 6WF1 TC-C(1B8) (B) ID=10 OD=14 L=30	9-09956-682-0	07	1	0105-0106		●
416	SLEEVE; RUBBER 6WF1 TC-C(1B8),6WF1 TC(84L) (B) ID=10 OD=14 L=30	9-09956-682-0	07	1	0107-		●
416	SLEEVE; RUBBER 6WF1 TC(84L) (B) ID=10 OD=14 L=30	9-09956-682-0	07	1	0107-	●
416	SLEEVE; RUBBER 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	0105-	●	●
416	SLEEVE; RUBBER 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B) ID=10 OD=14 L=30	9-09956-682-0	06	1	0105-	●	●
416	SLEEVE; RUBBER 6WG1 TC-C(72L) (C) ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-	●
418	BOLT; CLIP W-SERIES ENG<1A2> M10X16 FLANGE	0-28181-016-0	01	1	0105-0512	●	●
418	BOLT; CLIP W-SERIES ENG<1A2> M10X16 FLANGE	0-28151-016-0	01	1	0601-	●	●
428	CLIP; HARNESS EXC. CAB UP +110MM<TGG> (H) ID=32 L=35	1-09701-244-0	01	1	0212-	●	●
428	CLIP; HARNESS (I)	1-82698-392-0	01	1	0112-0112		●
428	CLIP; HARNESS (I)	1-82698-392-0	01	1	0201-	●	●
428	CLIP; HARNESS 6WF1 TC-C(1B8) (C) L=100	5-09707-036-1	01	1	0105-0106		●
428	CLIP; HARNESS 6WF1 TC-C(1B8),6WF1 TC(84L) (C) L=100	5-09707-036-1	01	1	0107-		●
428	CLIP; HARNESS 6WF1 TC(84L) (C) L=100	5-09707-036-1	01	1	0107-	●
428	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0105-	●	●
428	CLIP; HARNESS (F) ID=26 L=26	1-09701-236-0	01	1	0105-	●	●
428	CLIP; HARNESS (H) ID=32 L=35	1-09701-244-0	01	1	0105-0211	●	●
428	CLIP; HARNESS CAB UP +110MM<TGG> (H) ID=32 L=35	1-09701-244-0	02	1	0212-	●	●
428	CLIP; HARNESS W-SERIES ENG<1A2> (A) L=250	5-09707-030-1	02	1	0105-	●	●
428	CLIP; HARNESS W-SERIES ENG<1A2> (B) L=140	5-09707-031-1	05	1	0105-	●	●
428	CLIP; HARNESS W-SERIES ENG<1A2> (D) L=36	8-94224-891-1	01	1	0105-	●	●
428	CLIP; HARNESS W-SERIES ENG<1A2> (E) ID=11 L=28	9-09917-544-0	01	1	0105-	●	●
788	HARNESS; EXT,WATER TEMP SENSOR 6WA1 TC-C(55L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5)	1-82641-186-0	02	1	0105-0303	●
788	HARNESS; EXT,WATER TEMP SENSOR 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8)	1-82641-186-0	02	1	0304-	●	●
788	HARNESS; EXT,WATER TEMP SENSOR 6WF1 TC-C(1B8)	1-82641-183-0	01	1	0105-0106		●
788	HARNESS; EXT,WATER TEMP SENSOR 6WF1 TC-C(1B8),6WF1 TC(84L)	1-82641-183-0	01	1	0107-		●
788	HARNESS; EXT,WATER TEMP SENSOR 6WF1 TC(84L)	1-82641-183-0	01	1	0107-	●

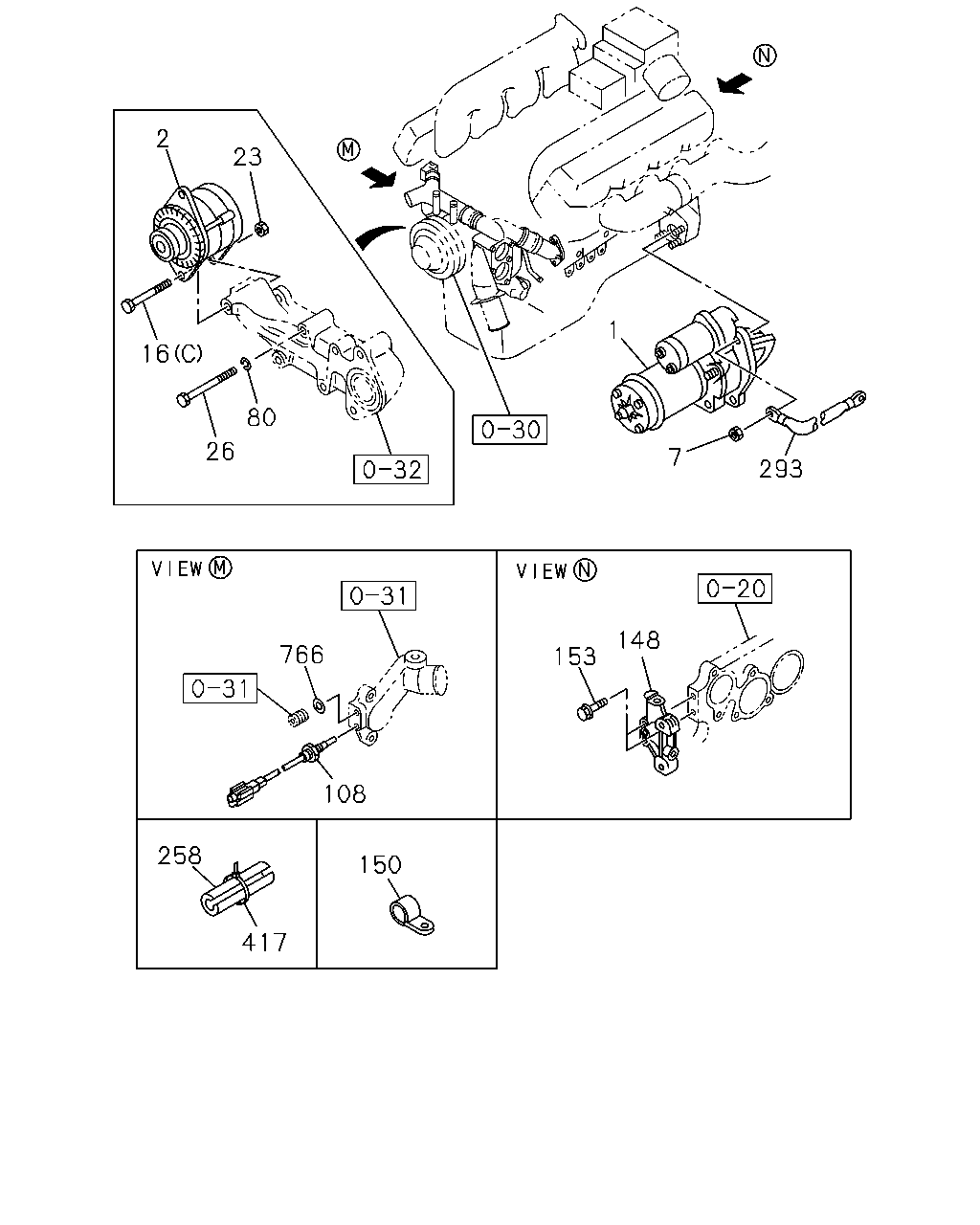

2 23 1 16 80 26 7 293 148 766 153 108 258 150 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 10PE1S(60L),10PE1N(61L),10PE1H(68L) 24V 7.0KW MITSUBISHI	1-81100-345-3	01	1	0105-0304	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 10PE1S(60L),10PE1N(61L),10PE1H(68L) 24V 6.0KW NIKKO	1-81100-334-1	01	1	0305-	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L) ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-352-1	01	1	0105-0106	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L),6WF1 TC(84L) ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-352-3	01	1	0107-	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L) EXC. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-341-1	01	1	0105-0106	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WF1 TC-C(1B8),6WG1 TC-C(72L) 24V 7.0KW MITSUBISHI	1-81100-341-1	01	1	0105-0106	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L),6WF1 TC(84L) EXC. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-341-3	01	1	0107-	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WF1 TC-C(1B8),6WG1 TC-C(72L) 24V 7.0KW MITSUBISHI	1-81100-341-3	01	1	0107-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WF1 TC-C(1B8) GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI	1-81200-572-6	01	1	0105-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WF1 TC-C(1B8) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A MITSUBISHI	1-81200-484-4	01	1	0105-0106		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WF1 TC(84L) 24V 50A MITSUBISHI	1-81200-484-7	01	1	0107-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WF1 TC-C(1B8) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A MITSUBISHI	1-81200-484-7	01	1	0107-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 10PE1S(60L),10PE1N(61L),10PE1H(68L) 24V 50A MITSUBISHI	1-81200-522-5	01	1	0105-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A MITSUBISHI	1-81200-517-2	01	1	0105-	●	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	0105-	●	●
16	BOLT; GEN 6WF1 TC-C(1B8) (B) M12X40 FLANGE	0-28081-240-0	01	1	0105-0106		●
16	BOLT; GEN 6WG1 TC-C(72L) (B) M12X40 FLANGE	0-28081-240-0	01	1	0105-0106	●
16	BOLT; GEN 6WF1 TC-C(1B8),6WF1 TC(84L) (B) M12X40 FLANGE	0-28081-240-0	01	1	0107-0512		●
16	BOLT; GEN 6WG1 TC-C(72L),6WF1 TC(84L) (B) M12X40 FLANGE	0-28081-240-0	01	1	0107-0512	●
16	BOLT; GEN 6WF1 TC-C(1B8),6WF1 TC(84L) (B) M12X40 FLANGE	0-28051-240-0	01	1	0601-		●
16	BOLT; GEN 6WG1 TC-C(72L),6WF1 TC(84L) (B) M12X40 FLANGE	0-28051-240-0	01	1	0601-	●
16	BOLT; GEN W-SERIES ENG<1A2> (A) M14X123	1-09040-105-0	01	1	0105-	●	●
16	BOLT; GEN 10PE1S(60L),10PE1N(61L),10PE1H(68L) (C) M14X123	9-09801-204-1	01	1	0105-	●	●
23	NUT; GEN W-SERIES ENG<1A2> M14 W/BRKT	1-19711-029-0	01	1	0105-	●	●
23	NUT; GEN 10PE1S(60L),10PE1N(61L),10PE1H(68L) M14 FLANGE	0-91150-114-0	01	1	0105-	●	●
26	BOLT; GEN BRKT W-SERIES ENG<1A2> M10X60 FLANGE	0-28181-060-0	02	1	0105-0512	●	●
26	BOLT; GEN BRKT W-SERIES ENG<1A2> M10X60 FLANGE	0-28151-060-0	02	1	0601-	●	●
26	BOLT; GEN BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) M10X70	9-01661-070-0	03	1	0105-0512	●	●
26	BOLT; GEN BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) M10X70	0-16961-070-0	03	1	0601-	●	●
80	WASHER; LK,DUCT & BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ID=10.2	9-09150-610-0	03	1	0105-0603	●	●
80	WASHER; LK,DUCT & BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) ID=10.2	0-91510-610-0	03	1	0604-	●	●
108	SWITCH; THERMO 10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-83161-031-1	01	1	0105-	●	●
148	BRACKET; SOLENOID VLV 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ENGINE REAR PTO(SV1)	1-81919-028-0	01	1	0105-	●	●
150	CLIP; HARNESS,SOLENOID VLV 10PE1S(60L),10PE1N(61L),10PE1H(68L) ID=11 L=16	9-09525-025-0	01	1	0105-	●	●
153	BOLT; BRKT FIX 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ENGINE REAR PTO(SV1) M10X40 FLANGE	0-28181-040-0	02	1	0105-0512	●	●
153	BOLT; BRKT FIX 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. ENGINE REAR PTO(SV1) M10X40 FLANGE	0-28151-040-0	02	1	0601-	●	●
258	SLEEVE; RUBBER OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) ID=6 L=30	5-09360-352-0	01	1	0105-	●	●
258	SLEEVE; RUBBER OIL PIPE 10PE1S(60L),10PE1N(61L),10PE1H(68L) ID=10 OD=14 L=30	9-09956-682-0	01	1	0105-	●	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	0105-	●	●
417	CLIP 10PE1S(60L),10PE1N(61L),10PE1H(68L) L=140	5-09707-031-1	02	1	0105-	●	●
766	GASKET; SENSOR 10PE1S(60L),10PE1N(61L),10PE1H(68L) ID=12.2	1-09630-084-0	01	1	0105-	●	●

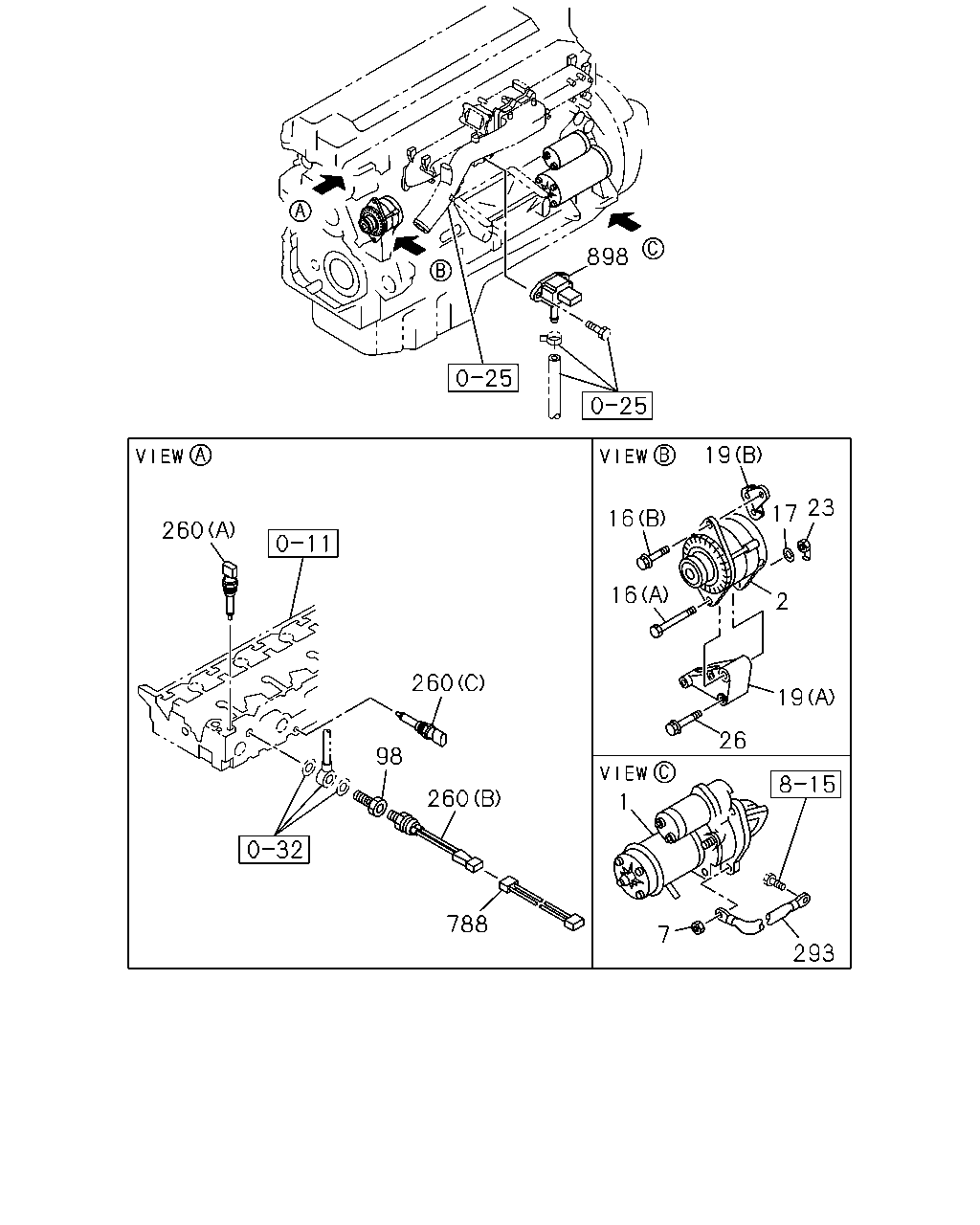

898 19 23 17 2 16 16 26 19 1 7 293 260 260 788 98 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 10PE1S(60L),10PE1N(61L),10PE1H(68L) 24V 7.0KW MITSUBISHI	1-81100-345-3	01	1	0105-0304	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 10PE1S(60L),10PE1N(61L),10PE1H(68L) 24V 6.0KW NIKKO	1-81100-334-1	01	1	0305-	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L) ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-352-1	01	1	0105-0106	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L),6WF1 TC(84L) ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-352-3	01	1	0107-	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L) EXC. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-341-1	01	1	0105-0106	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WF1 TC-C(1B8),6WG1 TC-C(72L) 24V 7.0KW MITSUBISHI	1-81100-341-1	01	1	0105-0106	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WA1 TC-C(55L),6WF1 TC(84L) EXC. ENGINE REAR PTO(SV1) 24V 7.0KW MITSUBISHI	1-81100-341-3	01	1	0107-	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6WF1 TC-C(1B8),6WG1 TC-C(72L) 24V 7.0KW MITSUBISHI	1-81100-341-3	01	1	0107-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WF1 TC-C(1B8) GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 60A MITSUBISHI	1-81200-572-6	01	1	0105-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WF1 TC-C(1B8) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A MITSUBISHI	1-81200-484-4	01	1	0105-0106		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WF1 TC(84L) 24V 50A MITSUBISHI	1-81200-484-7	01	1	0107-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WF1 TC-C(1B8) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A MITSUBISHI	1-81200-484-7	01	1	0107-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 10PE1S(60L),10PE1N(61L),10PE1H(68L) 24V 50A MITSUBISHI	1-81200-522-5	01	1	0105-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) 24V 50A MITSUBISHI	1-81200-517-2	01	1	0105-	●	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	0105-	●	●
16	BOLT; GEN 6WF1 TC-C(1B8) (B) M12X40 FLANGE	0-28081-240-0	01	1	0105-0106		●
16	BOLT; GEN 6WG1 TC-C(72L) (B) M12X40 FLANGE	0-28081-240-0	01	1	0105-0106	●
16	BOLT; GEN 6WF1 TC-C(1B8),6WF1 TC(84L) (B) M12X40 FLANGE	0-28081-240-0	01	1	0107-0512		●
16	BOLT; GEN 6WG1 TC-C(72L),6WF1 TC(84L) (B) M12X40 FLANGE	0-28081-240-0	01	1	0107-0512	●
16	BOLT; GEN 6WF1 TC-C(1B8),6WF1 TC(84L) (B) M12X40 FLANGE	0-28051-240-0	01	1	0601-		●
16	BOLT; GEN 6WG1 TC-C(72L),6WF1 TC(84L) (B) M12X40 FLANGE	0-28051-240-0	01	1	0601-	●
16	BOLT; GEN W-SERIES ENG<1A2> (A) M14X123	1-09040-105-0	01	1	0105-	●	●
16	BOLT; GEN 10PE1S(60L),10PE1N(61L),10PE1H(68L) (C) M14X123	9-09801-204-1	01	1	0105-	●	●
17	WASHER; PL,GEN W-SERIES ENG<1A2> ID=15	9-09160-514-0	01	1	0105-	●	●
19	BRACKET; GEN 6WF1 TC-C(1B8) (B)	1-19711-101-0	01	1	0105-0106		●
19	BRACKET; GEN 6WF1 TC-C(1B8),6WF1 TC(84L) (B)	1-19711-101-0	01	1	0107-0502		●
19	BRACKET; GEN 6WF1 TC(84L) (B)	1-19711-101-0	01	1	0107-0502	●
19	BRACKET; GEN 6WF1 TC-C(1B8),6WF1 TC(84L) (B)	8-97606-317-0	01	1	0503-		●
19	BRACKET; GEN 6WF1 TC(84L) (B)	8-97606-317-0	01	1	0503-	●
19	BRACKET; GEN 6WF1 TC-C(1B8) (A)	1-19711-143-0	01	1	0105-0106		●
19	BRACKET; GEN 6WF1 TC-C(1B8),6WF1 TC(84L) (A)	1-19711-143-0	01	1	0107-0502		●
19	BRACKET; GEN 6WF1 TC(84L) (A)	1-19711-143-0	01	1	0107-0502	●
19	BRACKET; GEN 6WF1 TC-C(1B8),6WF1 TC(84L) (A)	8-97604-177-0	01	1	0503-		●
19	BRACKET; GEN 6WF1 TC(84L) (A)	8-97604-177-0	01	1	0503-	●
19	BRACKET; GEN 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) (A)	1-19711-144-0	01	1	0105-	●	●
19	BRACKET; GEN 6WG1 TC-C(72L) (B)	1-19711-082-0	01	1	0105-	●
23	NUT; GEN W-SERIES ENG<1A2> M14 W/BRKT	1-19711-029-0	01	1	0105-	●	●
23	NUT; GEN 10PE1S(60L),10PE1N(61L),10PE1H(68L) M14 FLANGE	0-91150-114-0	01	1	0105-	●	●
26	BOLT; GEN BRKT W-SERIES ENG<1A2> M10X60 FLANGE	0-28181-060-0	02	1	0105-0512	●	●
26	BOLT; GEN BRKT W-SERIES ENG<1A2> M10X60 FLANGE	0-28151-060-0	02	1	0601-	●	●
26	BOLT; GEN BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) M10X70	9-01661-070-0	03	1	0105-0512	●	●
26	BOLT; GEN BRKT 10PE1S(60L),10PE1N(61L),10PE1H(68L) M10X70	0-16961-070-0	03	1	0601-	●	●
98	ADAPTER; TEMP SENSOR W-SERIES ENG<1A2>	1-09675-236-0	01	1	0105-	●	●
260	SENSOR; WATER TEMP 6WF1 TC-C(1B8) (C)	1-80210-005-0	01	1	0105-0106		●
260	SENSOR; WATER TEMP 6WF1 TC-C(1B8),6WF1 TC(84L) (C)	1-80210-005-1	01	1	0107-		●
260	SENSOR; WATER TEMP 6WF1 TC(84L) (C)	1-80210-005-1	01	1	0107-	●
260	SENSOR; WATER TEMP 6WF1 TC-C(1B8) (B)	1-83161-040-0	01	1	0105-0106		●
260	SENSOR; WATER TEMP 6WF1 TC-C(1B8),6WF1 TC(84L) (B)	1-83161-040-0	01	1	0107-		●
260	SENSOR; WATER TEMP 6WF1 TC(84L) (B)	1-83161-040-0	01	1	0107-	●
260	SENSOR; WATER TEMP 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) (A)	1-80210-004-0	01	1	0105-	●	●
260	SENSOR; WATER TEMP 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8) (B)	1-83161-038-0	01	1	0105-	●	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	0105-	●	●
788	HARNESS; EXT,WATER TEMP SENSOR 6WA1 TC-C(55L),6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5)	1-82641-186-0	02	1	0105-0303	●
788	HARNESS; EXT,WATER TEMP SENSOR 6WA1 TC-C(55L),6WG1 TC-C(72L) EXC. GENERATOR NIKKO 24V-60A 1.5KW(SC8)	1-82641-186-0	02	1	0304-	●	●
788	HARNESS; EXT,WATER TEMP SENSOR 6WF1 TC-C(1B8)	1-82641-183-0	01	1	0105-0106		●
788	HARNESS; EXT,WATER TEMP SENSOR 6WF1 TC-C(1B8),6WF1 TC(84L)	1-82641-183-0	01	1	0107-		●
788	HARNESS; EXT,WATER TEMP SENSOR 6WF1 TC(84L)	1-82641-183-0	01	1	0107-	●
898	SENSOR; BOOST 6WF1 TC-C(1B8)	1-80220-014-0	01	1	0105-0106		●
898	SENSOR; BOOST 6WF1 TC-C(1B8),6WF1 TC(84L)	1-80220-014-0	01	1	0107-		●
898	SENSOR; BOOST 6WF1 TC(84L)	1-80220-014-0	01	1	0107-	●

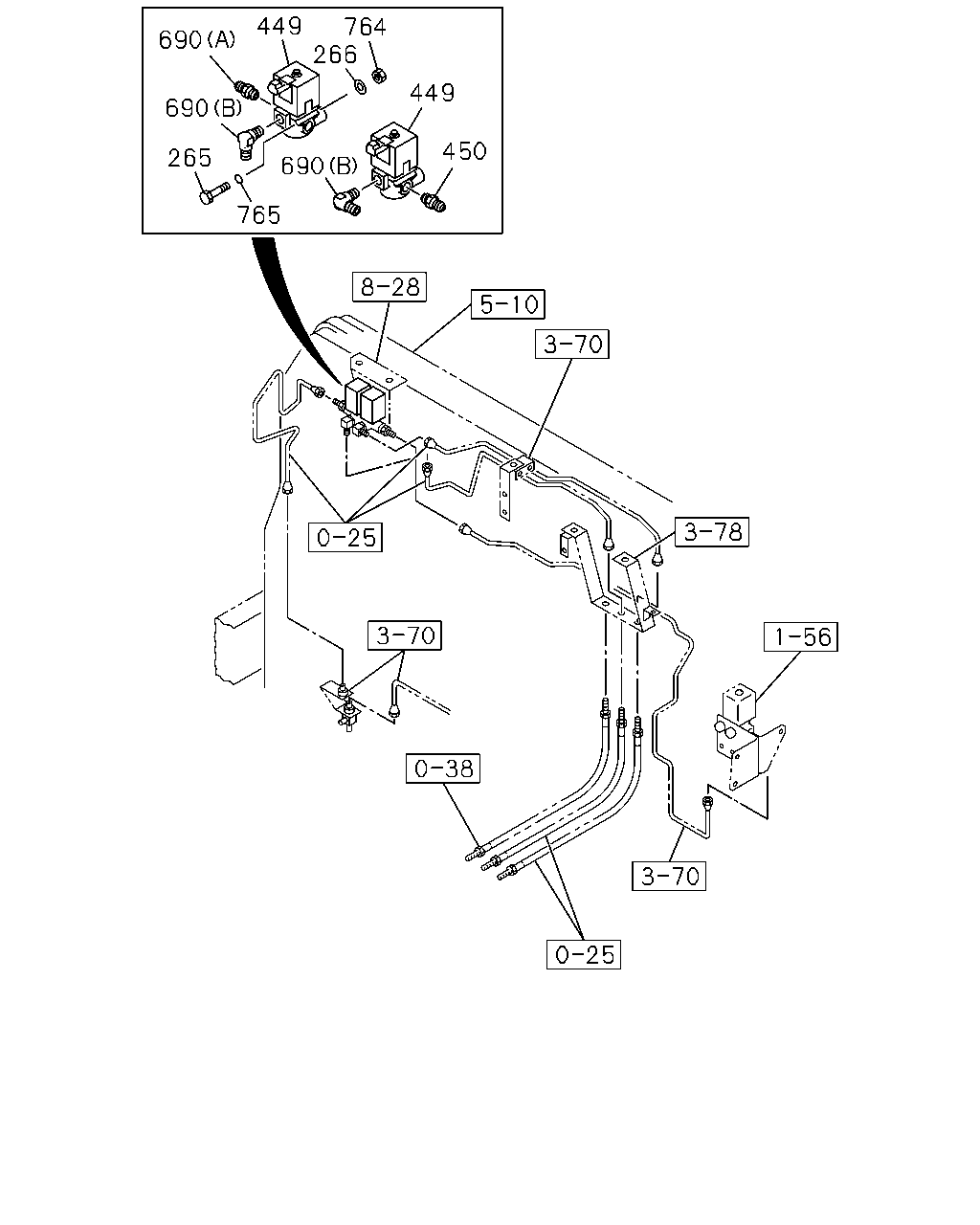

449 764 266 690 449 690 450 265 690 765

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	BOLT; MAG VLV FIX 6WG1 TC-C(72L) M6X50 FLANGE	0-28080-650-0	01	1	0105-0512	●
265	BOLT; MAG VLV FIX 6WG1 TC-C(72L) M6X50 FLANGE	0-28050-650-0	01	1	0601-	●
266	WASHER; PL,MAG VLV FIX 6WG1 TC-C(72L)	1-82569-266-0	02	1	0105-	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WA1 TC-C(55L)	1-82563-871-2	01	1	0105-	●	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WG1 TC-C(72L)	1-82563-871-2	02	1	0105-	●
450	CONNECTOR; MAG VLV,INL PORT 6WA1 TC-C(55L) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-		●
450	CONNECTOR; MAG VLV,INL PORT 6WA1 TC-C(55L),6WG1 TC-C(72L) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●
690	CONNECTOR 6WA1 TC-C(55L) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-		●
690	CONNECTOR 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●
690	CONNECTOR 6WA1 TC-C(55L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
690	CONNECTOR 6WG1 TC-C(72L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0105-	●
764	NUT; MAG VLV 6WG1 TC-C(72L) M6 FLANGE	0-91150-106-0	01	1	0105-0602	●
764	NUT; MAG VLV 6WG1 TC-C(72L) M6 FLANGE	0-91180-106-0	01	1	0603-	●
765	GASKET; MAG VLV 6WG1 TC-C(72L) ID=16.8	9-09565-117-0	01	1	0105-	●

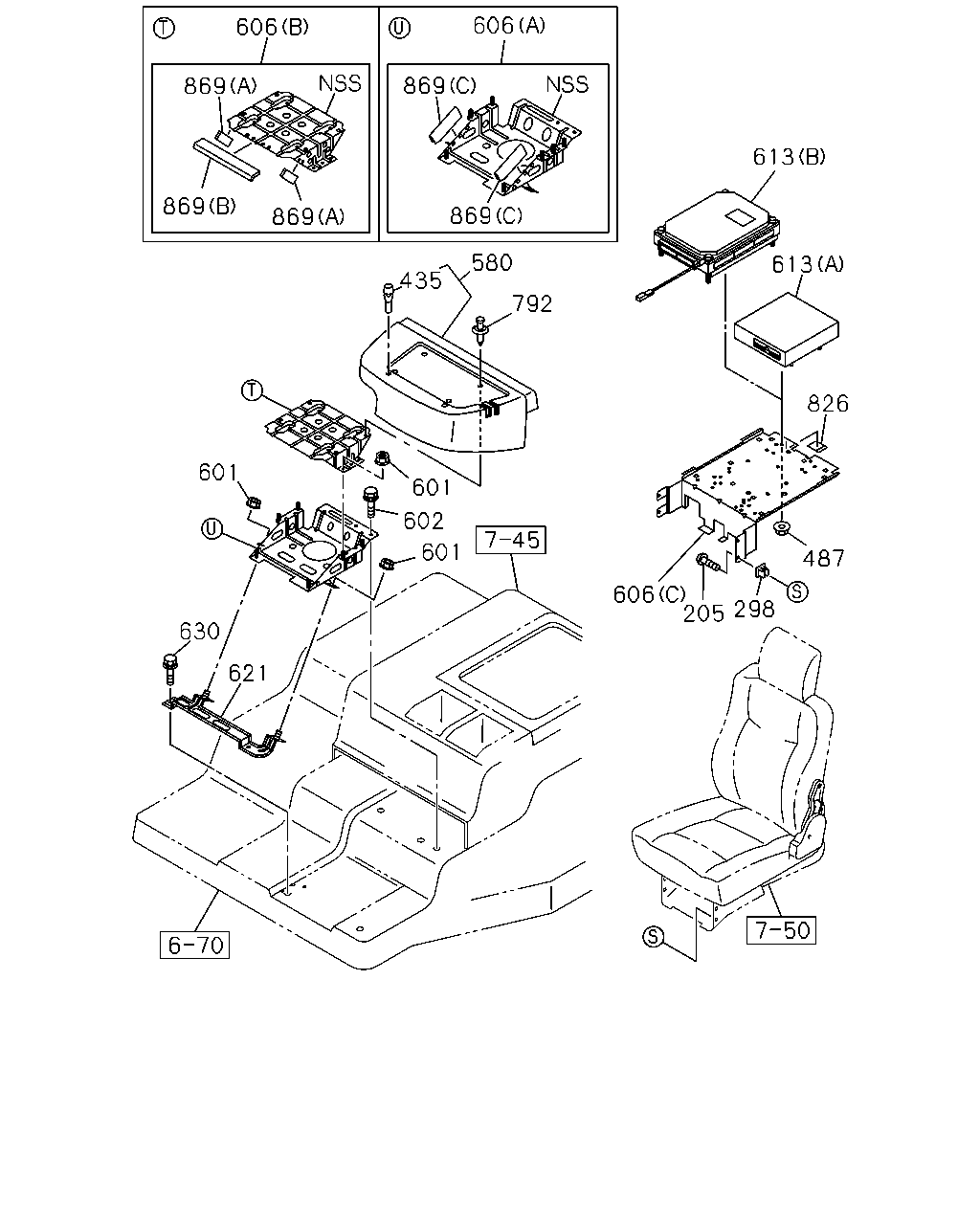

606 606 869 869 613 869 869 869 580 613 435 792 826 601 601 602 601 487 606 298 205 630 621

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
205	SCREW; BRKT M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0105-	●	●
298	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	0105-	●	●
435	RUBBER; CUSHION CENTER SEAT DELETE(SP9)	1-72537-138-0	02	1	0105-	●	●
487	NUT M6 FLANGE	0-91150-106-0	04	1	0105-0602	●	●
487	NUT M6 FLANGE	0-91180-106-0	04	1	0603-	●	●
580	COVER; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-191-0	01	1	0105-0404	●	●
580	COVER; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-243-1	01	1	0405-0507	●	●
580	COVER; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-279-2	01	1	0508-	●	●
601	NUT; UNIT CENTER SEAT DELETE(SP9) M6 FLANGE	0-91150-106-0	06	1	0105-0602	●	●
601	NUT; UNIT CENTER SEAT DELETE(SP9) M6 FLANGE	0-91180-106-0	06	1	0603-	●	●
602	BOLT; BRKT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-	●	●
606	BRACKET; CONT UNIT (C)	1-75558-598-3	01	1	0105-	●	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (A)	1-72537-195-2	01	1	0105-	●	●
606	BRACKET; CONT UNIT CENTER SEAT DELETE(SP9) (B)	1-72537-205-2	01	1	0105-	●	●
613	CONTROL UNIT; ENG 6WF1 TC-C(1B8) ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	1-80110-759-1	01	1	0105-		●
613	CONTROL UNIT; ENG 6WF1 TC-C(1B8) ELECTRONIC GOV RED4(Q4F) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) (A)	1-80110-761-1	01	1	0105-		●
613	CONTROL UNIT; ENG 6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET STD(T1B) (A)	1-80110-480-0	01	1	0105-	●	●
613	CONTROL UNIT; ENG 6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) EURO2 SPECIFICATION<THN> INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	1-80110-666-0	01	1	0105-	●	●
613	CONTROL UNIT; ENG 6WA1 TC-C(55L) RLD GOVERNOR(SD7) EURO2 SPECIFICATION<THN> (B)	1-80110-440-0	01	1	0105-	●	●
613	CONTROL UNIT; ENG 6WF1 TC(84L) EURO3 SPECIFICATION<NJX> ELECTRONIC GOV RED4(Q4F) INJ PUMP Q SET SPECIAL +5%Q(T1A) (B)	1-80110-765-1	01	1	0107-	●	●
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	1-80110-439-0	01	1	0105-	●
613	CONTROL UNIT; ENG 6WG1 TC-C(72L) ELECTRONIC GOV RED3(KG5) INJ PUMP Q SET STD(T1B) (A)	1-80110-622-0	01	1	0105-	●
621	SUPPORT; CONT UNIT CENTER SEAT DELETE(SP9)	1-72537-097-1	01	1	0105-	●	●
630	SCREW; UNIT CENTER SEAT DELETE(SP9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0105-	●	●
792	FASTENER CENTER SEAT DELETE(SP9) D8X13.5	1-09987-270-0	04	1	0105-0404	●	●
792	FASTENER CENTER SEAT DELETE(SP9) D8X13.5	1-09987-270-0	05	1	0405-0507	●	●
792	FASTENER CENTER SEAT DELETE(SP9) D8X13.5	1-09987-270-0	04	1	0508-	●	●
826	SEAL; NOISE INSULATION 30X30	8-97866-626-0	03	1	0105-0309	●	●
826	SEAL; NOISE INSULATION 30X30	1-74998-128-0	03	1	0310-	●	●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (A) L=65 SERVICED BY L=880	1-73948-003-0	02	1	0105-	●	●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (B) L=200 SERVICED BY L=880	1-73948-003-0	01	1	0105-	●	●
869	FINISHER; BRKT CENTER SEAT DELETE(SP9) (C) L=100 SERVICED BY L=880	1-73948-003-0	02	1	0105-	●	●

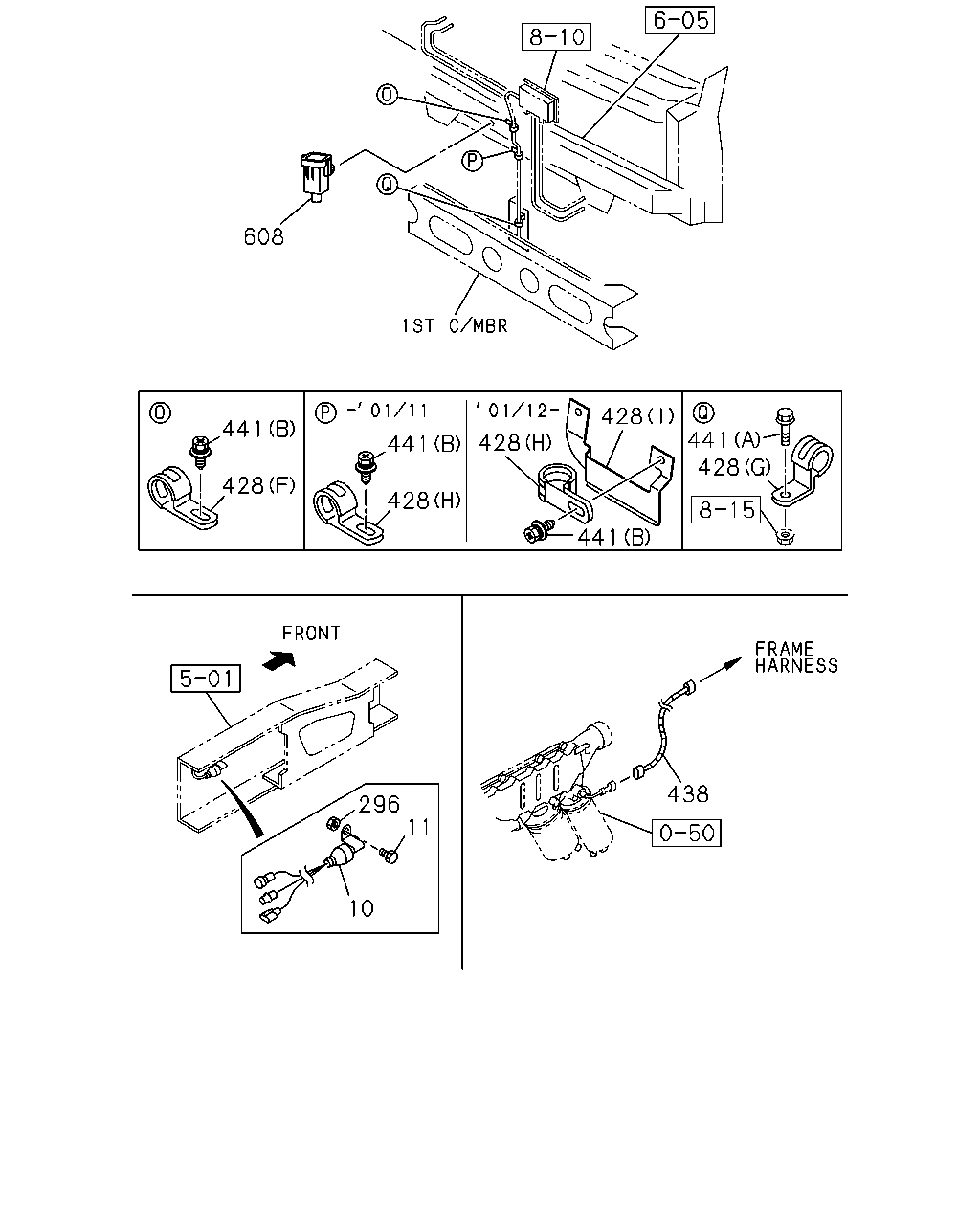

608 428 441 441 428 428 441 428 428 441 438 296 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER PE-SERIES ENG<1A0> NIKKO	1-81171-075-1	01	1	0305-	●	●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	0105-0304	●	●
10	RELAY; STARTER W-SERIES ENG<1A2> HITACHI	1-81171-087-0	01	1	0305-	●	●
11	BOLT; RELAY STARTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28680-830-0	02	1	0105-0512	●	●
11	BOLT; RELAY STARTER FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X30 FLANGE	0-28650-830-0	02	1	0601-	●	●
11	BOLT; RELAY STARTER EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●
11	BOLT; RELAY STARTER EXC. FRAME EQUIPMENT HEAVY DUTY VAR1<F03> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
428	CLIP; HARNESS EXC. CAB UP +110MM<TGG> (H) ID=32 L=35	1-09701-244-0	01	1	0212-	●	●
428	CLIP; HARNESS (I)	1-82698-392-0	01	1	0112-0112		●
428	CLIP; HARNESS (I)	1-82698-392-0	01	1	0201-	●	●
428	CLIP; HARNESS 6WF1 TC-C(1B8) (C) L=100	5-09707-036-1	01	1	0105-0106		●
428	CLIP; HARNESS 6WF1 TC-C(1B8),6WF1 TC(84L) (C) L=100	5-09707-036-1	01	1	0107-		●
428	CLIP; HARNESS 6WF1 TC(84L) (C) L=100	5-09707-036-1	01	1	0107-	●
428	CLIP; HARNESS (G) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0105-	●	●
428	CLIP; HARNESS (F) ID=26 L=26	1-09701-236-0	01	1	0105-	●	●
428	CLIP; HARNESS (H) ID=32 L=35	1-09701-244-0	01	1	0105-0211	●	●
428	CLIP; HARNESS CAB UP +110MM<TGG> (H) ID=32 L=35	1-09701-244-0	02	1	0212-	●	●
428	CLIP; HARNESS W-SERIES ENG<1A2> (A) L=250	5-09707-030-1	02	1	0105-	●	●
428	CLIP; HARNESS W-SERIES ENG<1A2> (B) L=140	5-09707-031-1	05	1	0105-	●	●
428	CLIP; HARNESS W-SERIES ENG<1A2> (D) L=36	8-94224-891-1	01	1	0105-	●	●
428	CLIP; HARNESS W-SERIES ENG<1A2> (E) ID=11 L=28	9-09917-544-0	01	1	0105-	●	●
438	CABLE; OIL FILTER SW PE-SERIES ENG<1A0>	1-82657-062-1	01	1	0105-	●	●
441	BOLT; HARNESS TO FRAME EXC. CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	01	1	0212-0512	●	●
441	BOLT; HARNESS TO FRAME EXC. CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28080-820-0	01	1	0105-0112	●	●
441	BOLT; HARNESS TO FRAME (A) M8X25 FLANGE	0-28680-825-0	01	1	0201-0211	●	●
441	BOLT; HARNESS TO FRAME CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	02	1	0212-0512	●	●
441	BOLT; HARNESS TO FRAME CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0105-0111	●	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0112-	●	●
608	SENSOR; AIR TEMP ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	8-97177-549-0	01	1	0105-	●	●

449 450 690 690

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WA1 TC-C(55L)	1-82563-871-2	01	1	0105-	●	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM 6WG1 TC-C(72L)	1-82563-871-2	02	1	0105-	●
450	CONNECTOR; MAG VLV,INL PORT 6WA1 TC-C(55L) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-		●
450	CONNECTOR; MAG VLV,INL PORT 6WA1 TC-C(55L),6WG1 TC-C(72L) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●
690	CONNECTOR 6WA1 TC-C(55L) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-		●
690	CONNECTOR 6WA1 TC-C(55L),6WG1 TC-C(72L) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0105-	●
690	CONNECTOR 6WA1 TC-C(55L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0105-	●	●
690	CONNECTOR 6WG1 TC-C(72L) (B) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0105-	●

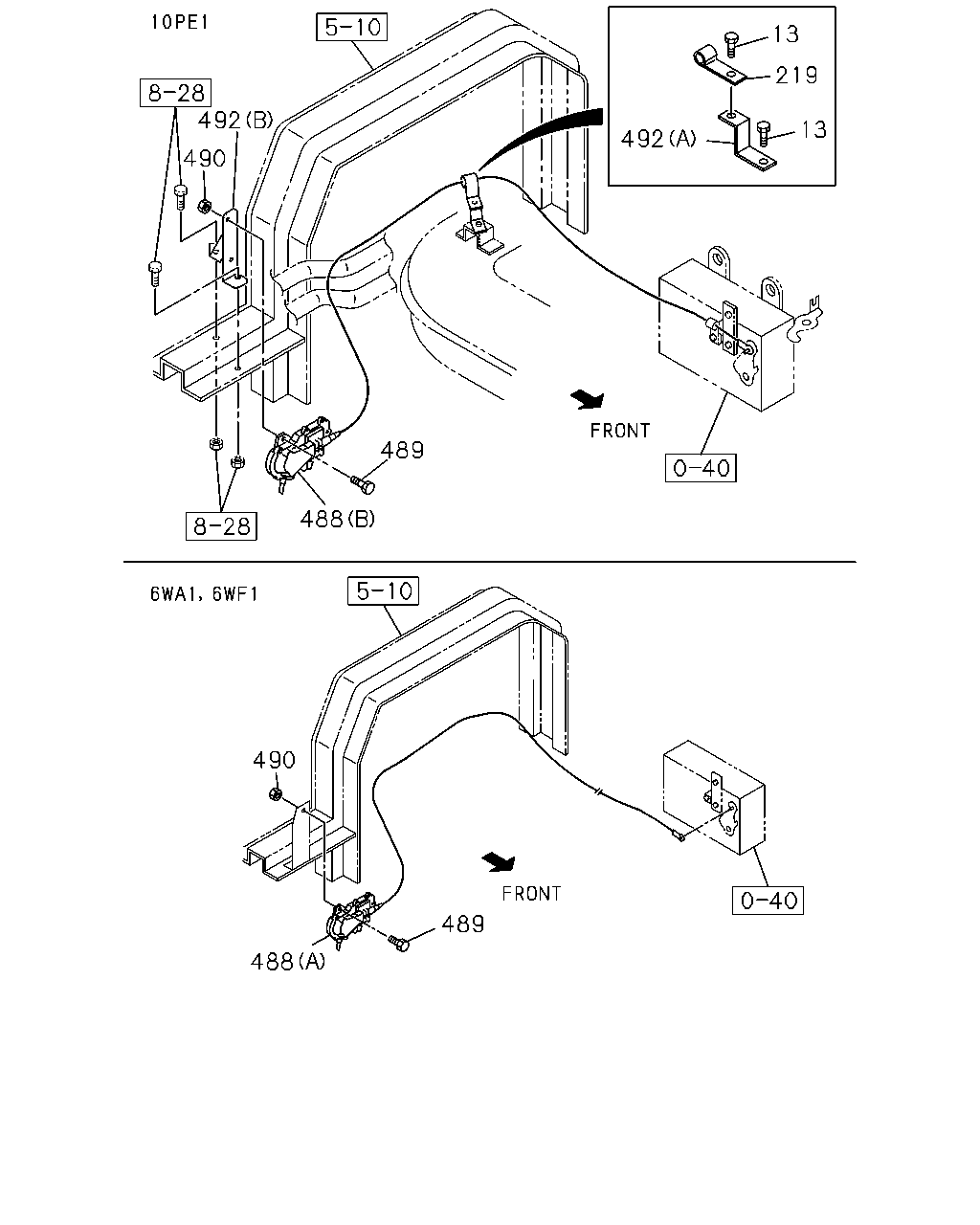

13 219 492 13 492 490 489 488 490 489 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; BRKT PE-SERIES ENG<1A0> EXC. RLD GOVERNOR(SD7) M8X25 FLANGE	0-28690-825-0	02	1	0105-0512	●	●
13	BOLT; BRKT PE-SERIES ENG<1A0> EXC. RLD GOVERNOR(SD7) M8X25 FLANGE	0-28660-825-0	02	1	0601-	●	●
219	CLIP; ENG STOP CABLE PE-SERIES ENG<1A0> ID=7 L=40	9-09524-675-0	01	1	0105-	●	●
488	STOPPER; ENG 10PE1S(60L),10PE1N(61L),10PE1H(68L) RLD GOVERNOR(SD7) (B)	1-82840-133-2	01	1	0105-	●	●
488	STOPPER; ENG 10PE1S(60L),10PE1N(61L),10PE1H(68L) EXC. RLD GOVERNOR(SD7) (B)	1-82840-151-1	01	1	0105-	●	●
488	STOPPER; ENG 6WA1 TC-C(55L) CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (A)	1-82840-161-0	01	1	0105-	●	●
488	STOPPER; ENG 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (A)	1-82840-145-1	01	1	0105-	●	●
489	BOLT; ENG STOPPER PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	02	1	0105-0410	●	●
489	BOLT; ENG STOPPER W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	0105-0410	●	●
489	BOLT; ENG STOPPER 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	0411-0512	●	●
489	BOLT; ENG STOPPER PE-SERIES ENG<1A0> M8X25 FLANGE	0-28680-825-0	02	1	0411-0512	●	●
489	BOLT; ENG STOPPER 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
489	BOLT; ENG STOPPER PE-SERIES ENG<1A0> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
490	NUT; ENG STOP PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0105-0410	●	●
490	NUT; ENG STOP W-SERIES ENG<1A2> EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0105-0410	●	●
490	NUT; ENG STOP 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	0411-0602	●	●
490	NUT; ENG STOP PE-SERIES ENG<1A0> M8 FLANGE	0-91150-108-0	02	1	0411-0602	●	●
490	NUT; ENG STOP 6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
490	NUT; ENG STOP PE-SERIES ENG<1A0> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
492	BRACKET; ENG STOPPER PE-SERIES ENG<1A0> (A)	1-47477-415-0	01	1	0105-	●	●
492	BRACKET; ENG STOPPER PE-SERIES ENG<1A0> EXC. RLD GOVERNOR(SD7) (B)	1-47475-654-2	01	1	0105-0112	●	●
492	BRACKET; ENG STOPPER PE-SERIES ENG<1A0> (B)	1-47475-654-2	01	1	0201-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
