◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11570 - FVZ(MIDDLE EAST)EU2 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#132739) — 63 parça

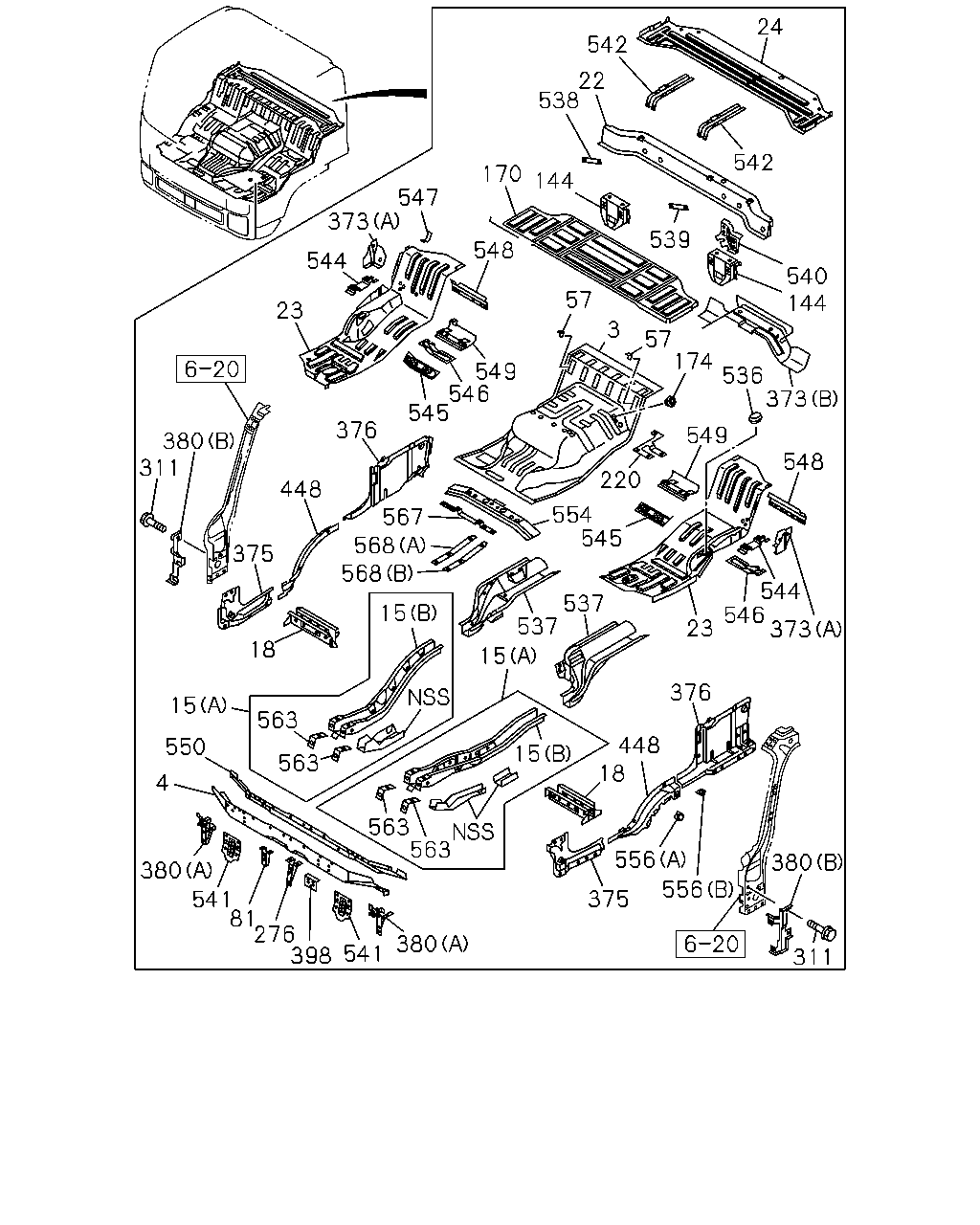

çizim 401776
380 541 398 276 81 541 380 4 550 15 563 563 563 563 18 375 311 380 448 376 567 568 15 15 15 18 556 375 556 311 380 448 376 537 537 568 23 544 373 547 548 549 546 545 554 545 23 373 546 544 548 549 220 373 536 174 57 3 57 170 144 539 144 540 542 538 22 542 24
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG 8-98036-244-5 01 1 1401-
4 FRAME; FLOOR,FRT 8-98077-807-1 01 1 1401-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1401-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1401-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1401-
15 FRAME; UNDER
(A) 		8-97584-412-7 01 1 1401-
18 FRAME; FLOOR,CENTER SIDE 8-98017-381-1 01 1 1401-
18 FRAME; FLOOR,CENTER SIDE 8-98017-387-1 01 1 1401-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1401-
23 PANEL; FLOOR,SIDE 8-98017-359-4 01 1 1401-
23 PANEL; FLOOR,SIDE 8-98080-739-0 01 1 1401-
24 PANEL; BED PAN 8-97584-378-6 01 1 1401-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1401-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1401-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1401-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1401-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1401-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1401-
220 PATCH 8-97589-704-0 01 1 1401-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1401-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1401-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1401-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1401-
373 REINFORCEMENT; SEAT BELT
(B) 		8-98017-308-4 01 1 1401-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1401-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1401-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1401-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1401-
380 BRACKET; HEAD LAMP
(A) 		8-97589-707-1 01 1 1401-
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 1401-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1401-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1401-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1401-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1401-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1401-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1401-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1401-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1401-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1401-
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> 		8-98131-661-0 01 1 1409-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1401-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1401-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1401-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1401-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1401-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1401-
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 1401-
545 BRACKET; SEAT FRT 8-97589-706-0 01 1 1401-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1401-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1401-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1401-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1401-
549 BRACKET; SEAT RR 8-98017-363-1 01 1 1401-
549 BRACKET; SEAT RR 8-98017-370-1 01 1 1401-
550 CLOSING ASM; MTG,FRT 8-97589-710-3 01 1 1401-
554 REINFORCEMENT; FLOOR CENTER 8-98017-330-1 01 1 1401-
556 BRACKET; TILT HANDLE
(A) 		8-98077-605-1 01 1 1401-
556 BRACKET; TILT HANDLE
(B) 		8-98077-606-1 01 1 1401-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1401-
567 REINFORCEMENT; CONT LEVER 8-98046-522-3 01 1 1401-
568 BRACKET; ACCEL STOPPER
(A) 		8-98089-177-0 01 1 1401-
568 BRACKET; ACCEL STOPPER
(B) 		8-98089-178-0 01 1 1401-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
