Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11570 - FVZ(MIDDLE EAST)EU2
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶
5-30 — SPARE TIRE CARRIER AND COVER
(#132724) — 14 parça
◀
[530A] NO.1 (9 parça)
[530A] NO.2 (5 parça)
▶

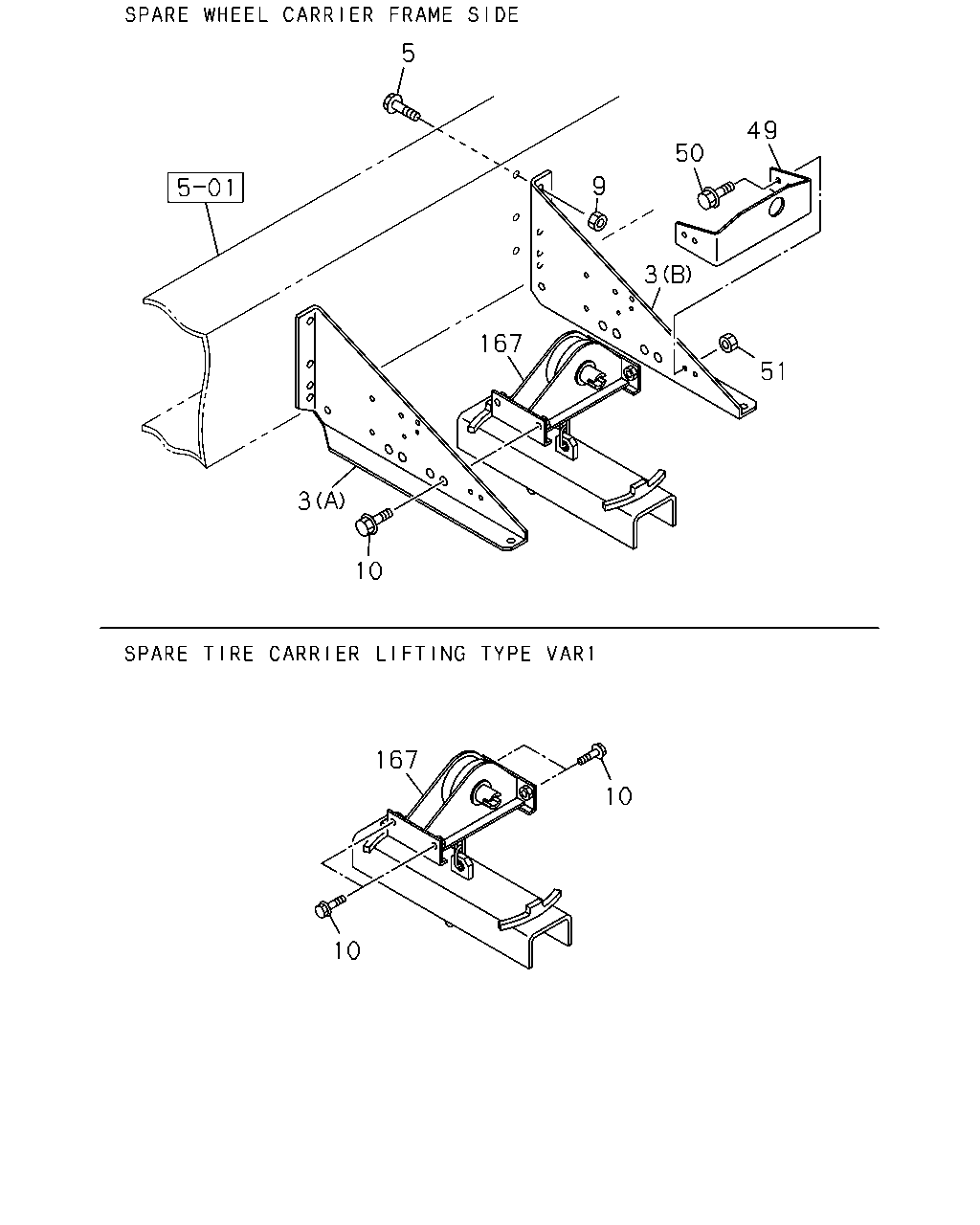

5
9
50
49
3
167
3
10
51
10
167
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B)
8-98106-690-0
01
1
1401-
3
BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A)
8-98106-691-0
01
1
1401-
5
BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE
0-28051-245-0
06
1
1401-
9
NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12
0-91110-512-0
06
1
1401-
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE
0-28651-230-0
04
1
1401-
49
STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13>
1-53631-466-1
01
1
1401-
50
BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE
0-28650-830-0
04
1
1401-
51
NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE
0-91180-108-0
04
1
1401-
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>
1-53630-210-4
01
1
1401-

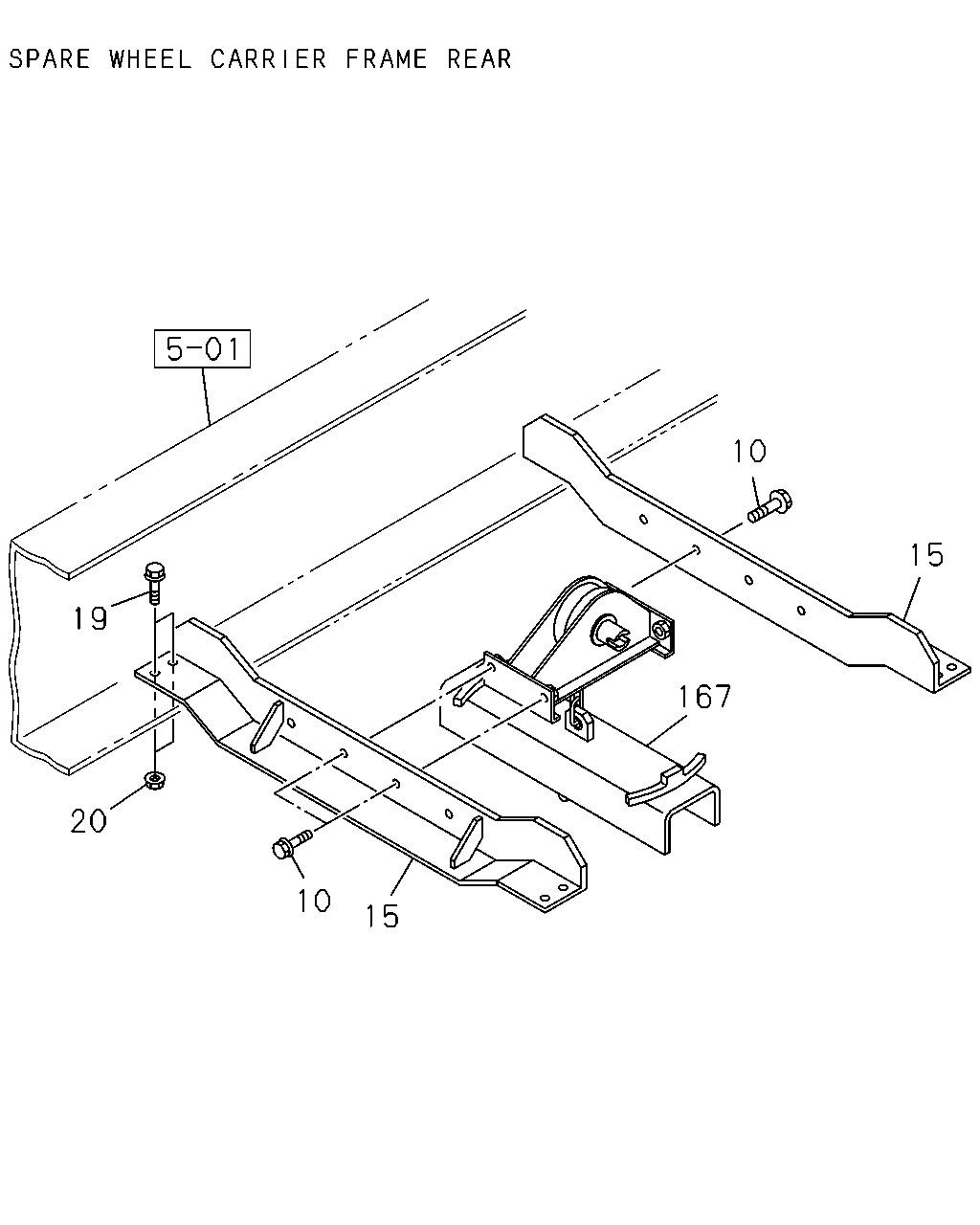

10
15
167
15
10
20
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE
0-28651-230-0
04
1
1401-
15
MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>
8-97608-196-1
02
1
1401-
19
BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X40 FLANGE
0-28051-040-0
08
1
1401-
20
NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE
0-91180-210-0
08
1
1401-
167
HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>
1-53630-210-4
01
1
1401-
