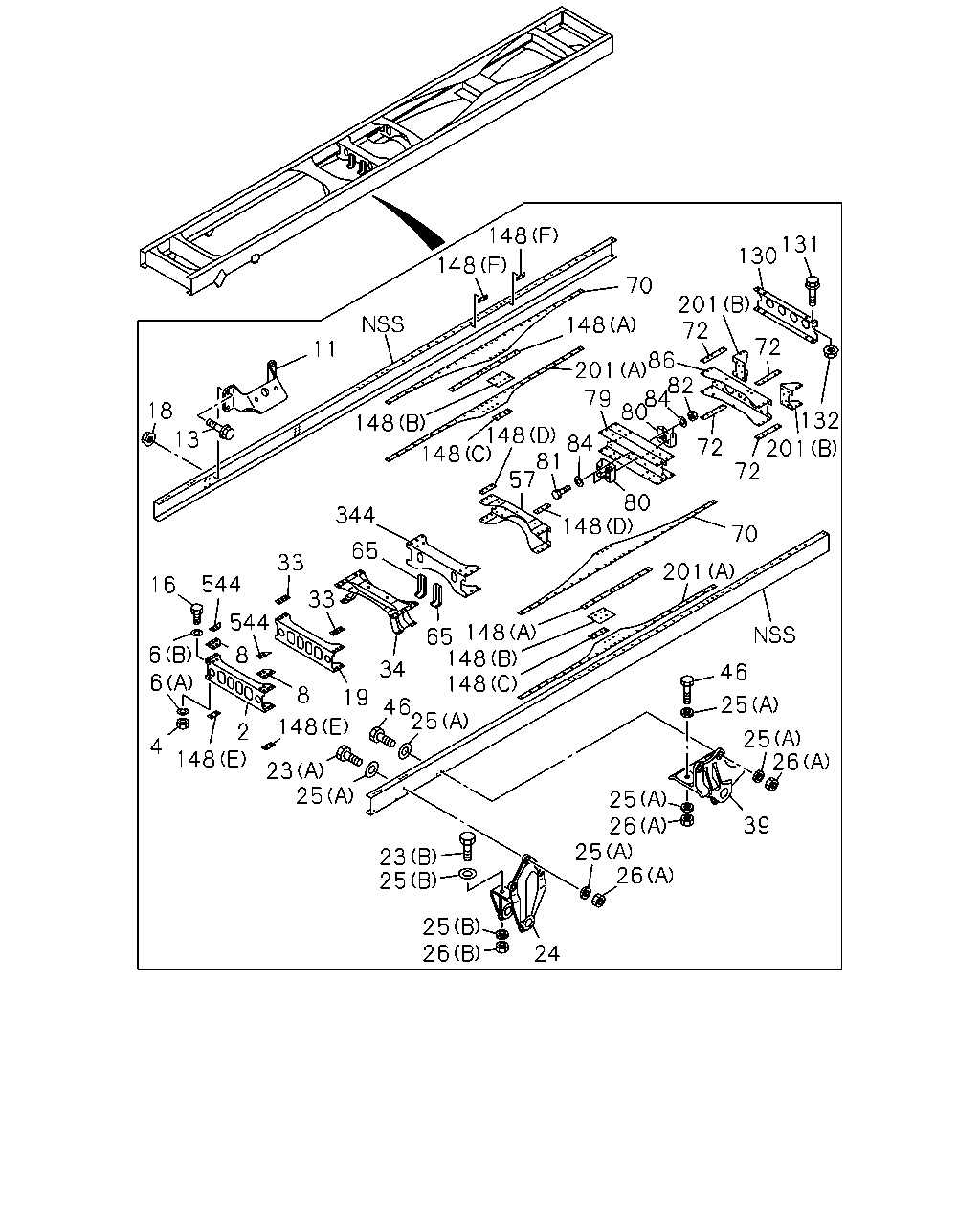

5-01 — FRAME AND OTHER PARTS
(#132720) — 48 parça
Tümü
A - WHEEL BASE 5000MM
B - WHEEL BASE 5800MM
24
26
25
25
23
25
26
26
25
39
26
25
25
46
201
70
148
148
148
25
46
25
23
148
4
2
148
8
19
34
65
6
6
16
544
544
8
33
33
65
344
148
80
72
72
201
132
72
131
130
201
72
86
82
84
80
79
201
148
70
148
148
11
18
13
148
148
57
81
84
148
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
MEMBER; CROSS,1ST
8-97610-852-7
01
1
1401-
●
●
4
NUT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M14
0-91110-514-0
02
1
1409-
●
●
6
WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> (A) ID=14.2
0-91510-814-0
02
1
1409-
●
●
6
WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=15
8-98010-627-1
02
1
1409-
●
●
8
GUSSET; 1ST C/MBR
8-97611-027-0
02
1
1401-
●
●
11
BRACKET; ENG MTG
8-97619-550-0
02
1
1401-
●
●
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1401-
●
●
16
BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB> M14X40
0-20851-440-0
02
1
1409-
●
●
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
1401-
●
●
19
MEMBER; CROSS,2ND
8-97623-239-3
01
1
1401-
●
●
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
1401-
●
●
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
1401-
●
●
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
1401-
●
●
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
1401-
●
●
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1401-
●
●
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
1401-
●
●
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
14
1
1401-
●
●
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1401-
●
●
33
SPACER; 2ND C/MBR,UPR
8-97611-040-0
02
1
1401-
●
●
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
1401-
●
●
39
BRACKET; FRT SPR,RR
8-98043-648-0
01
1
1401-
●
●
39
BRACKET; FRT SPR,RR
8-98043-649-0
01
1
1401-
●
●
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
1401-
●
●
57
MEMBER; CROSS,RR SUSP FRT
8-97612-103-1
01
1
1401-
●
●
65
BRACKET; CENTER BRG
8-97614-150-0
02
1
1401-
●
65
BRACKET; CENTER BRG
8-97614-126-0
02
1
1401-
●
70
GUSSET; TRUNNION,UPR
8-97612-106-0
02
1
1401-
●
●
72
SPACER; TRUNNION
8-97612-110-0
04
1
1401-
●
●
79
MEMBER; CROSS,TRUNNION ASM
8-97612-484-1
01
1
1401-
●
●
80
BRACKET; C/MBR
1-53363-068-0
02
1
1401-
●
●
81
BOLT; BRKT
M14X50
0-10956-450-0
02
1
1401-
●
●
82
NUT; BRKT
M14
0-91110-514-0
02
1
1401-
●
●
84
WASHER; PL,BRKT
ID=15
8-98010-627-1
04
1
1401-
●
●
86
MEMBER; CROSS,RR SUSP RR
8-97612-105-4
01
1
1401-
●
●
130
MEMBER; CROSS,END
8-97610-869-1
01
1
1401-
●
●
131
BOLT; END C/MBR
M12X30 W/LK WASHER
0-50541-230-0
04
1
1401-
●
●
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
1401-
●
●
148
SPACER; C/MBR
(E)
8-97611-039-0
02
1
1401-
●
●
148
SPACER; C/MBR
(D)
8-97612-109-0
02
1
1401-
●
●
148
SPACER; C/MBR
(F)
8-97612-111-0
04
1
1401-
●
●
148
SPACER; C/MBR
(A)
8-97612-112-0
02
1
1401-
●
●
148
SPACER; C/MBR
(B)
8-97612-113-0
02
1
1401-
●
●
148
SPACER; C/MBR
(C)
8-97612-115-0
02
1
1401-
●
●
201
GUSSET; C/MBR
(B)
8-97612-108-2
02
1
1401-
●
●
201
GUSSET; C/MBR
(A)
8-98147-357-1
02
1
1401-
●
201
GUSSET; C/MBR
(A)
8-97618-438-2
02
1
1401-
●
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
1401-
●
●
544
PLATE; CAB FRT MTG
8-97615-598-0
02
1
1401-
●
●
