Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11570 - FVZ(MIDDLE EAST)EU2
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶
4-50 — FRONT SUSPENSION
(#132715) — 34 parça
◀
[450A] FRONT STABILIZER SHAFT (4 parça)

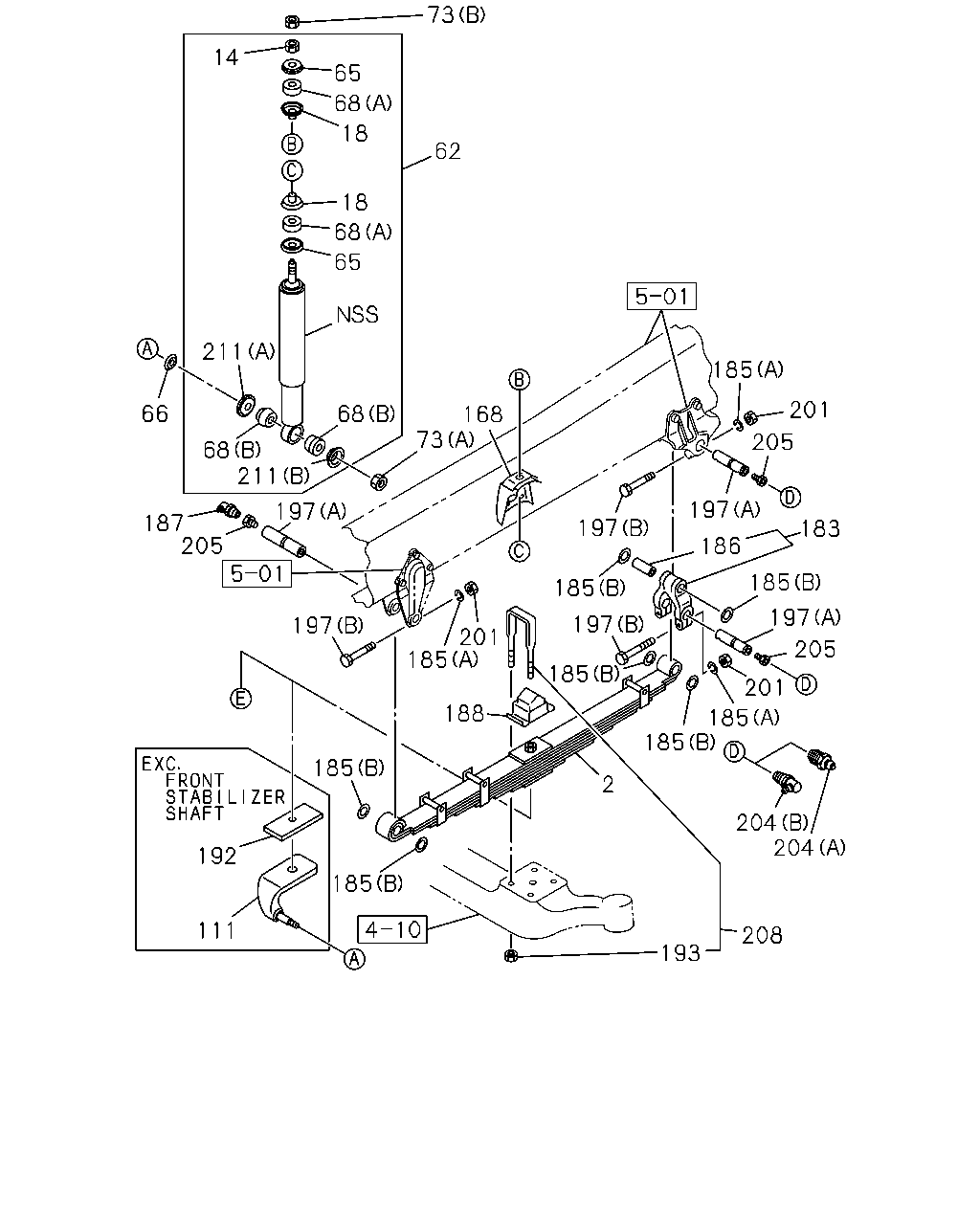

[450A] LEAF SPRING AND SHOCK ABSORBER (30 parça)
▶
138
377
140
377
137
377
140
377
138
137
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
137
BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59>
8-98128-356-1
02
1
1401-
138
NUT; BRKT
FRONT STABILIZER SHAFT<F59> M14
0-91110-514-0
06
1
1401-
140
BOLT; BRKT
FRONT STABILIZER SHAFT<F59> M14X45
9-92061-445-0
06
1
1401-
377
WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15
8-98010-627-1
12
1
1401-
73
14
65
68
62
18
68
65
211
66
68
211
68
168
73
197
187
205
18
197
192
111
185
185
185
188
201
185
197
185
197
2
193
208
204
204
185
185
201
205
197
185
186
183
197
205
201
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-98167-308-0
02
1
1401-
14
NUT; S/ABS,UPR
M14
9-99111-414-0
02
1
1401-
18
WASHER; CENTERING,S/ABS
ID=20.8
9-51631-041-0
04
1
1401-
62
ABSORBER ASM; SHOCK,FRT
8-98029-372-0
02
1
1401-
65
WASHER; S/ABS
ID=16.5
9-51631-040-0
04
1
1401-
66
WASHER; LK,S/ABS SETTING
ID=21
0-91610-520-0
02
1
1401-
68
BUSHING; S/ABS
(B)
9-51631-026-0
04
1
1401-
68
BUSHING; S/ABS
(A)
9-51631-039-0
04
1
1401-
73
NUT; BRKT,SHOCK
(A) M20
0-91110-520-0
02
1
1401-
73
NUT; BRKT,SHOCK
(B) M14
0-91111-514-0
02
1
1401-
111
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59>
8-98121-193-0
01
1
1401-
111
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59>
8-98121-195-0
01
1
1401-
168
BRACKET; S/ABS,FRT SUSP
1-51681-616-0
02
1
1401-
183
SHACKLE; FRT SUSP
1-51162-029-5
02
1
1401-
185
WASHER; LK,PIN
(A) ID=12.2
0-91510-612-0
12
1
1401-
185
WASHER; LK,PIN
(B) ID=32.4
1-51169-018-0
12
1
1401-
186
BUSHING; SHACKLE
OD=38
8-98081-829-0
02
1
1401-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
0-90301-610-0
02
1
1401-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
1-51172-125-1
02
1
1401-
192
PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5
1-51177-284-1
AR
1
1401-
193
NUT; U BOLT
M22
8-98179-318-0
08
1
1401-
197
PIN; FRT SPR,FRT
(B) M12X80
0-10856-280-0
12
1
1401-
197
PIN; FRT SPR,FRT
(A)
1-51161-031-0
06
1
1401-
201
NUT; PIN LK
M12
0-91110-512-0
12
1
1401-
204
NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT
0-90301-410-0
02
1
1401-
204
NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
1401-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
1401-
208
U-BOLT SET; FRT SPRING
L=230
1-87870-493-0
04
1
1401-
211
WASHER; BRKT,SHOCK
(A) ID=27
9-51631-027-0
02
1
1401-
211
WASHER; BRKT,SHOCK
(B) ID=21
9-51631-028-0
02
1
1401-
