Sayfa 0-52A - Isuzu EPC

0-52A — OIL AND VACUUM PIPING; ENGINE (#13271) — 374 parça

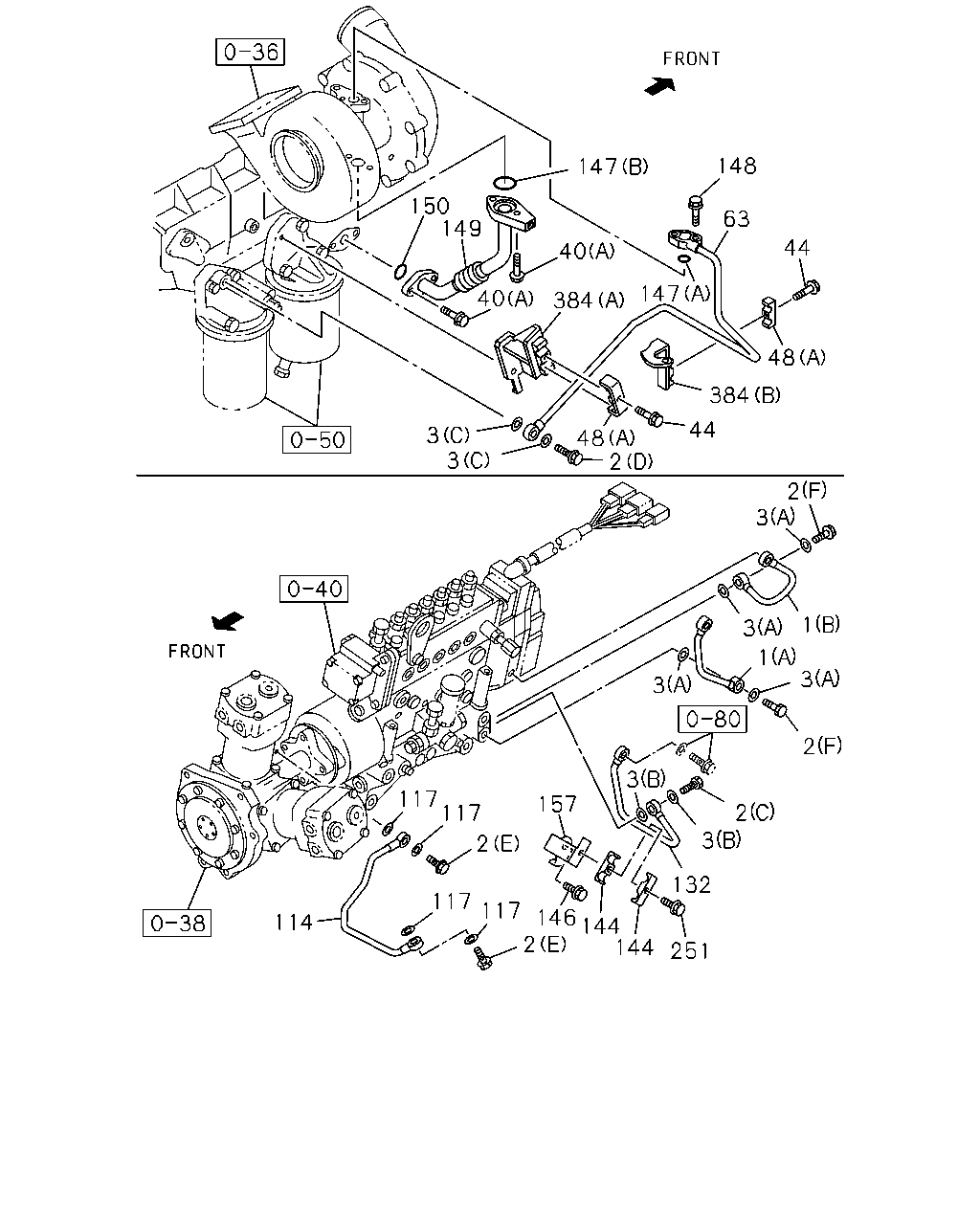

148 147 150 149 63 44 40 147 384 40 48 384 48 44 2 3 3 2 3 3 1 3 3 2 3 117 117 117 2 117 2 2 3 132 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; OIL,INJ PUMP TO C/BL ELECTRONIC GOV RED3(KG5) (A)	1-13313-449-0	01	1	0105-	●
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-449-0	01	1	0105-		●
1	PIPE; OIL,INJ PUMP TO C/BL ELECTRONIC GOV RED3(KG5) (B)	1-13313-450-0	01	1	0105-	●
1	PIPE; OIL,INJ PUMP TO C/BL (B)	1-13313-450-0	01	1	0105-		●
1	PIPE; OIL,INJ PUMP TO C/BL RLD GOVERNOR(SD7) (C)	1-13313-645-0	01	1	0105-	●
1	PIPE; OIL,INJ PUMP TO C/BL (D)	1-13313-750-1	01	1	0105-0106			●
1	PIPE; OIL,INJ PUMP TO C/BL (D)	1-13313-750-1	01	1	0107-			●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	01	1	0105-0311	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	01	1	0312-	●			●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0105-0106	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0105-0106			●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0107-0311	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0107-0311			●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0312-	●			●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0312-			●	●
2	BOLT; EYE,OIL PIPE (E) M10X21 FLANGE	1-09675-077-0	02	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (F) M14X27 FLANGE	1-09675-086-0	02	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (G) M10X21 FLANGE	1-09675-077-0	03	1	0105-0106			●
2	BOLT; EYE,OIL PIPE (G) M10X21 FLANGE	1-09675-077-0	03	1	0107-			●	●
2	BOLT; EYE,OIL PIPE (H) M12X27 FLANGE	1-09675-160-0	02	1	0105-0106			●
2	BOLT; EYE,OIL PIPE (H) M12X27 FLANGE	1-09675-160-0	02	1	0107-			●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	01	1	0107-				●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0107-				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	0105-0106	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	0107-	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	0105-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-0106			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0107-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=25	1-09630-141-0	02	1	0105-0106			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=25	1-09630-141-0	02	1	0107-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F) ID=12.2	9-09571-412-0	02	1	0105-0106			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F) ID=12.2	9-09571-412-0	02	1	0107-			●	●
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28181-030-0	04	1	0105-0512	●	●
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28151-030-0	04	1	0601-	●	●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28181-025-0	02	1	0105-0106			●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28181-025-0	02	1	0107-0512			●	●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28151-025-0	02	1	0601-			●	●
40	BOLT; OIL PIPE (C) M8X35 FLANGE	0-28680-835-0	02	1	0105-0106			●
40	BOLT; OIL PIPE (C) M8X35 FLANGE	0-28680-835-0	02	1	0107-0512			●	●
40	BOLT; OIL PIPE (C) M8X35 FLANGE	0-28650-835-0	02	1	0601-			●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	0105-0106	●	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	0107-0512	●	●	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28050-630-0	02	1	0601-	●	●	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (B)	1-09701-132-1	06	1	0105-	●
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-2	02	1	0105-	●	●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-0	01	1	0105-0106			●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-2	01	1	0107-			●	●
48	CLIP; OIL PIPE (D) ID=9 & 11 L=28	1-09701-265-0	01	1	0105-0106			●
48	CLIP; OIL PIPE (D) ID=9 & 11 L=28	1-09701-265-1	01	1	0107-			●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (E)	1-09701-132-1	04	1	0107-				●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	0105-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-978-0	01	1	0105-0106			●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-978-0	01	1	0107-			●	●
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-643-0	01	1	0105-0107	●
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	0105-0107		●
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-643-0	01	1	0108-	●		●
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	0108-		●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-642-0	01	1	0105-	●
114	PIPE ASM; OIL,BODY	1-13313-788-0	01	1	0105-0106			●
114	PIPE ASM; OIL,BODY	1-13313-788-0	01	1	0107-0107			●	●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-788-0	01	1	0108-0205			●
114	PIPE ASM; OIL,BODY	1-13313-788-0	01	1	0108-0205				●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13314-027-0	01	1	0206-			●
114	PIPE ASM; OIL,BODY	1-13314-027-0	01	1	0206-				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0105-0106	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0107-	●	●	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	0105-	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-851-0	01	1	0105-0106			●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-851-0	01	1	0107-			●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	0105-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	0105-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22.1	8-94399-399-0	01	1	0105-0106			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22.1	8-94399-399-0	01	1	0107-			●	●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28181-035-0	02	1	0105-0512	●	●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28151-035-0	02	1	0601-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-1	01	1	0105-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-980-0	01	1	0105-0106			●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-980-0	01	1	0107-			●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	0105-0106	●	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	0107-	●	●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	0105-0106	●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	0107-	●	●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-192-0	01	1	0105-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-213-0	01	1	0105-0106			●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-213-0	01	1	0107-			●	●

148 147 150 149 63 44 40 147 384 48 384 44 3 3 48 2 2 3 1 3 1 3 3 2 3 117 117 157 2 3 2 132 117 117 146 144 2 144 114 251 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; OIL,INJ PUMP TO C/BL ELECTRONIC GOV RED3(KG5) (A)	1-13313-449-0	01	1	0105-	●
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-449-0	01	1	0105-		●
1	PIPE; OIL,INJ PUMP TO C/BL ELECTRONIC GOV RED3(KG5) (B)	1-13313-450-0	01	1	0105-	●
1	PIPE; OIL,INJ PUMP TO C/BL (B)	1-13313-450-0	01	1	0105-		●
1	PIPE; OIL,INJ PUMP TO C/BL RLD GOVERNOR(SD7) (C)	1-13313-645-0	01	1	0105-	●
1	PIPE; OIL,INJ PUMP TO C/BL (D)	1-13313-750-1	01	1	0105-0106			●
1	PIPE; OIL,INJ PUMP TO C/BL (D)	1-13313-750-1	01	1	0107-			●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	01	1	0105-0311	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	01	1	0312-	●			●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0105-0106	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0105-0106			●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0107-0311	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0107-0311			●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0312-	●			●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0312-			●	●
2	BOLT; EYE,OIL PIPE (E) M10X21 FLANGE	1-09675-077-0	02	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (F) M14X27 FLANGE	1-09675-086-0	02	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (G) M10X21 FLANGE	1-09675-077-0	03	1	0105-0106			●
2	BOLT; EYE,OIL PIPE (G) M10X21 FLANGE	1-09675-077-0	03	1	0107-			●	●
2	BOLT; EYE,OIL PIPE (H) M12X27 FLANGE	1-09675-160-0	02	1	0105-0106			●
2	BOLT; EYE,OIL PIPE (H) M12X27 FLANGE	1-09675-160-0	02	1	0107-			●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	01	1	0107-				●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0107-				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	0105-0106	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	0107-	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	0105-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-0106			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0107-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=25	1-09630-141-0	02	1	0105-0106			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=25	1-09630-141-0	02	1	0107-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F) ID=12.2	9-09571-412-0	02	1	0105-0106			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F) ID=12.2	9-09571-412-0	02	1	0107-			●	●
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28181-030-0	04	1	0105-0512	●	●
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28151-030-0	04	1	0601-	●	●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28181-025-0	02	1	0105-0106			●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28181-025-0	02	1	0107-0512			●	●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28151-025-0	02	1	0601-			●	●
40	BOLT; OIL PIPE (C) M8X35 FLANGE	0-28680-835-0	02	1	0105-0106			●
40	BOLT; OIL PIPE (C) M8X35 FLANGE	0-28680-835-0	02	1	0107-0512			●	●
40	BOLT; OIL PIPE (C) M8X35 FLANGE	0-28650-835-0	02	1	0601-			●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	0105-0106	●	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	0107-0512	●	●	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28050-630-0	02	1	0601-	●	●	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (B)	1-09701-132-1	06	1	0105-	●
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-2	02	1	0105-	●	●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-0	01	1	0105-0106			●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-2	01	1	0107-			●	●
48	CLIP; OIL PIPE (D) ID=9 & 11 L=28	1-09701-265-0	01	1	0105-0106			●
48	CLIP; OIL PIPE (D) ID=9 & 11 L=28	1-09701-265-1	01	1	0107-			●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (E)	1-09701-132-1	04	1	0107-				●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	0105-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-978-0	01	1	0105-0106			●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-978-0	01	1	0107-			●	●
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-643-0	01	1	0105-0107	●
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	0105-0107		●
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-643-0	01	1	0108-	●		●
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	0108-		●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-642-0	01	1	0105-	●
114	PIPE ASM; OIL,BODY	1-13313-788-0	01	1	0105-0106			●
114	PIPE ASM; OIL,BODY	1-13313-788-0	01	1	0107-0107			●	●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-788-0	01	1	0108-0205			●
114	PIPE ASM; OIL,BODY	1-13313-788-0	01	1	0108-0205				●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13314-027-0	01	1	0206-			●
114	PIPE ASM; OIL,BODY	1-13314-027-0	01	1	0206-				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0105-0106	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0107-	●	●	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	0105-	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-851-0	01	1	0105-0106			●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-851-0	01	1	0107-			●	●
144	CLIP; OIL PIPE,INJ PUMP	1-09701-132-1	02	1	0105-		●
146	BOLT; BRKT M10X16 FLANGE	0-28181-016-0	01	1	0105-0512		●
146	BOLT; BRKT M10X16 FLANGE	0-28151-016-0	01	1	0601-		●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	0105-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	0105-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22.1	8-94399-399-0	01	1	0105-0106			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22.1	8-94399-399-0	01	1	0107-			●	●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28181-035-0	02	1	0105-0512	●	●
148	BOLT; FLANGE & BRKT M10X35 FLANGE	0-28151-035-0	02	1	0601-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-1	01	1	0105-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-980-0	01	1	0105-0106			●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-980-0	01	1	0107-			●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	0105-0106	●	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	0107-	●	●	●	●
157	BRACKET; OIL PIPE	1-13345-188-0	01	1	0105-		●
251	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28680-635-0	01	1	0105-0512		●
251	BOLT; CLIP,OIL PIPE M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	0105-0106	●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	0107-	●	●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-192-0	01	1	0105-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-213-0	01	1	0105-0106			●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-213-0	01	1	0107-			●	●

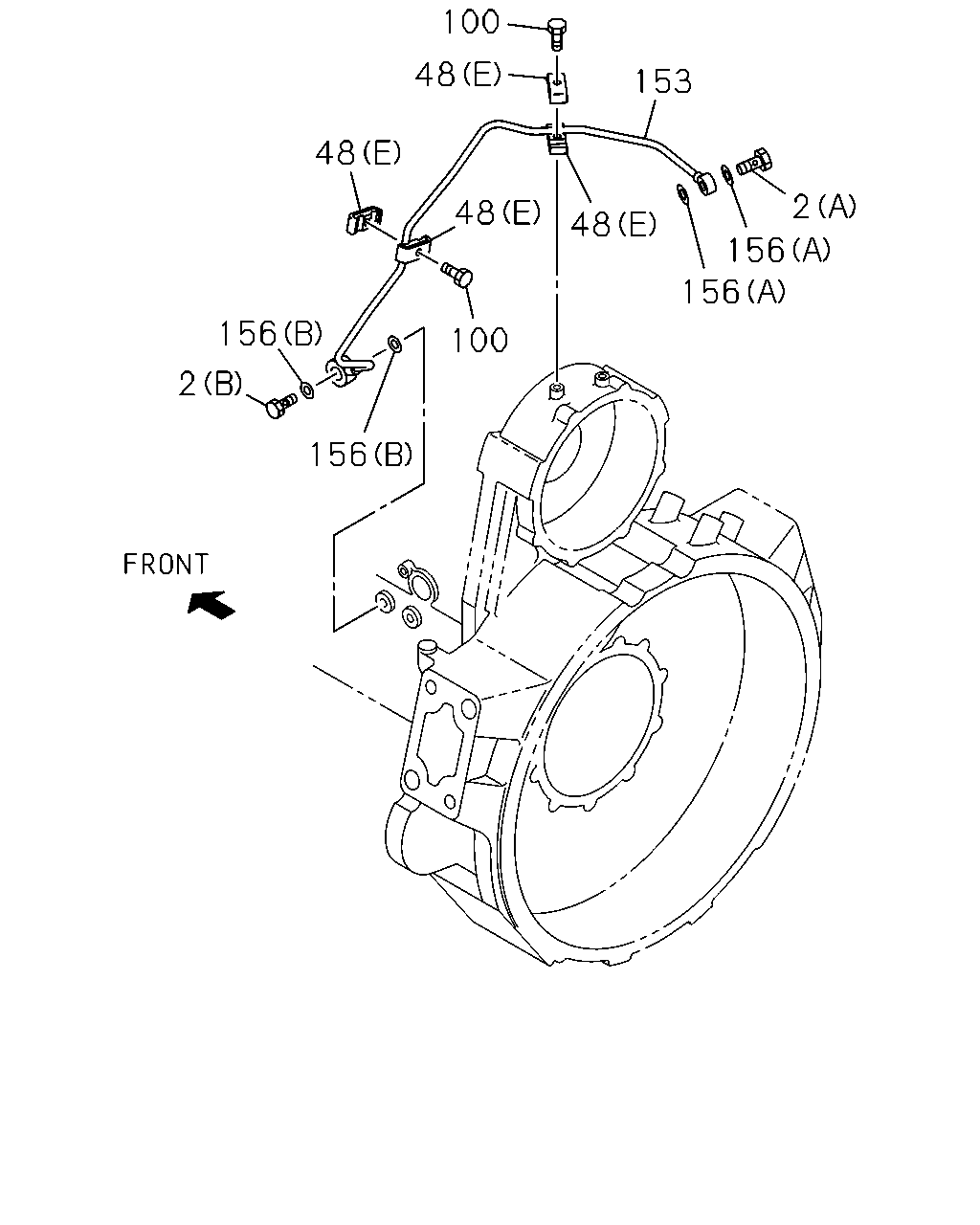

100 48 153 48 2 48 48 156 156 156 100 2 156

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	01	1	0105-0311	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	01	1	0312-	●			●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0105-0106	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0105-0106			●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0107-0311	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0107-0311			●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0312-	●			●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0312-			●	●
2	BOLT; EYE,OIL PIPE (E) M10X21 FLANGE	1-09675-077-0	02	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (F) M14X27 FLANGE	1-09675-086-0	02	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (G) M10X21 FLANGE	1-09675-077-0	03	1	0105-0106			●
2	BOLT; EYE,OIL PIPE (G) M10X21 FLANGE	1-09675-077-0	03	1	0107-			●	●
2	BOLT; EYE,OIL PIPE (H) M12X27 FLANGE	1-09675-160-0	02	1	0105-0106			●
2	BOLT; EYE,OIL PIPE (H) M12X27 FLANGE	1-09675-160-0	02	1	0107-			●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	01	1	0107-				●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0107-				●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (B)	1-09701-132-1	06	1	0105-	●
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-2	02	1	0105-	●	●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-0	01	1	0105-0106			●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-2	01	1	0107-			●	●
48	CLIP; OIL PIPE (D) ID=9 & 11 L=28	1-09701-265-0	01	1	0105-0106			●
48	CLIP; OIL PIPE (D) ID=9 & 11 L=28	1-09701-265-1	01	1	0107-			●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (E)	1-09701-132-1	04	1	0107-				●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28680-630-0	03	1	0105-0512	●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28650-630-0	03	1	0601-	●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28680-630-0	02	1	0107-0512				●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28650-630-0	02	1	0601-				●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	1-13313-672-0	01	1	0105-	●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	1-13313-969-0	01	1	0107-				●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-0311	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0312-	●			●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-0311	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0312-	●			●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0107-				●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-				●

147 2 150 149 3 3 63 40 44 48 384 384 40 48 44 3 3 2 3 1 3 2 132 204 117 117 2 204 205 117 117 3 3 2 114 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; OIL,INJ PUMP TO C/BL ELECTRONIC GOV RED3(KG5) (A)	1-13313-449-0	01	1	0105-	●
1	PIPE; OIL,INJ PUMP TO C/BL (A)	1-13313-449-0	01	1	0105-		●
1	PIPE; OIL,INJ PUMP TO C/BL ELECTRONIC GOV RED3(KG5) (B)	1-13313-450-0	01	1	0105-	●
1	PIPE; OIL,INJ PUMP TO C/BL (B)	1-13313-450-0	01	1	0105-		●
1	PIPE; OIL,INJ PUMP TO C/BL RLD GOVERNOR(SD7) (C)	1-13313-645-0	01	1	0105-	●
1	PIPE; OIL,INJ PUMP TO C/BL (D)	1-13313-750-1	01	1	0105-0106			●
1	PIPE; OIL,INJ PUMP TO C/BL (D)	1-13313-750-1	01	1	0107-			●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	01	1	0105-0311	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	01	1	0312-	●			●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0105-0106	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0105-0106			●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0107-0311	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0107-0311			●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0312-	●			●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0312-			●	●
2	BOLT; EYE,OIL PIPE (E) M10X21 FLANGE	1-09675-077-0	02	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (F) M14X27 FLANGE	1-09675-086-0	02	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (G) M10X21 FLANGE	1-09675-077-0	03	1	0105-0106			●
2	BOLT; EYE,OIL PIPE (G) M10X21 FLANGE	1-09675-077-0	03	1	0107-			●	●
2	BOLT; EYE,OIL PIPE (H) M12X27 FLANGE	1-09675-160-0	02	1	0105-0106			●
2	BOLT; EYE,OIL PIPE (H) M12X27 FLANGE	1-09675-160-0	02	1	0107-			●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	01	1	0107-				●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0107-				●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	0105-0106	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	0107-	●	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=18.2 OD=24.4	1-09630-087-0	02	1	0105-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-0106			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0107-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=25	1-09630-141-0	02	1	0105-0106			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=14.2 OD=25	1-09630-141-0	02	1	0107-			●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F) ID=12.2	9-09571-412-0	02	1	0105-0106			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F) ID=12.2	9-09571-412-0	02	1	0107-			●	●
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28181-030-0	04	1	0105-0512	●	●
40	BOLT; OIL PIPE (A) M10X30 FLANGE	0-28151-030-0	04	1	0601-	●	●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28181-025-0	02	1	0105-0106			●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28181-025-0	02	1	0107-0512			●	●
40	BOLT; OIL PIPE (B) M10X25 FLANGE	0-28151-025-0	02	1	0601-			●	●
40	BOLT; OIL PIPE (C) M8X35 FLANGE	0-28680-835-0	02	1	0105-0106			●
40	BOLT; OIL PIPE (C) M8X35 FLANGE	0-28680-835-0	02	1	0107-0512			●	●
40	BOLT; OIL PIPE (C) M8X35 FLANGE	0-28650-835-0	02	1	0601-			●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	0105-0106	●	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28080-630-0	02	1	0107-0512	●	●	●	●
44	BOLT; CLIP,OIL PIPE M6X30 FLANGE	0-28050-630-0	02	1	0601-	●	●	●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (B)	1-09701-132-1	06	1	0105-	●
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-2	02	1	0105-	●	●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-0	01	1	0105-0106			●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-2	01	1	0107-			●	●
48	CLIP; OIL PIPE (D) ID=9 & 11 L=28	1-09701-265-0	01	1	0105-0106			●
48	CLIP; OIL PIPE (D) ID=9 & 11 L=28	1-09701-265-1	01	1	0107-			●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (E)	1-09701-132-1	04	1	0107-				●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-866-0	01	1	0105-	●	●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-978-0	01	1	0105-0106			●
63	PIPE; OIL,TURBOCHARGER FEED	1-13313-978-0	01	1	0107-			●	●
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-643-0	01	1	0105-0107	●
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	0105-0107		●
114	PIPE ASM; OIL,BODY AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-643-0	01	1	0108-	●		●
114	PIPE ASM; OIL,BODY	1-13313-643-0	01	1	0108-		●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-642-0	01	1	0105-	●
114	PIPE ASM; OIL,BODY	1-13313-788-0	01	1	0105-0106			●
114	PIPE ASM; OIL,BODY	1-13313-788-0	01	1	0107-0107			●	●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13313-788-0	01	1	0108-0205			●
114	PIPE ASM; OIL,BODY	1-13313-788-0	01	1	0108-0205				●
114	PIPE ASM; OIL,BODY EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13314-027-0	01	1	0206-			●
114	PIPE ASM; OIL,BODY	1-13314-027-0	01	1	0206-				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0105-0106	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0107-	●	●	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-665-0	01	1	0105-	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-851-0	01	1	0105-0106			●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-851-0	01	1	0107-			●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.8	1-09623-274-0	01	1	0105-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=27.7	1-09623-450-0	01	1	0105-	●	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22.1	8-94399-399-0	01	1	0105-0106			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=22.1	8-94399-399-0	01	1	0107-			●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-319-1	01	1	0105-	●	●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-980-0	01	1	0105-0106			●
149	PIPE; OIL RETURN,TURBOCHARGER	1-13313-980-0	01	1	0107-			●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	0105-0106	●	●	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	1-09623-450-0	01	1	0107-	●	●	●	●
204	CLIP; OIL PIPE	1-09701-132-0	02	1	0105-0106			●
204	CLIP; OIL PIPE	1-09701-132-1	02	1	0107-			●	●
205	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	0105-0106			●
205	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	0107-0512			●	●
205	BOLT; CLIP M6X30 FLANGE	0-28050-630-0	01	1	0601-			●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	0105-0106	●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (A)	1-13345-191-0	01	1	0107-	●	●	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-192-0	01	1	0105-	●	●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-213-0	01	1	0105-0106			●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER (B)	1-13345-213-0	01	1	0107-			●	●

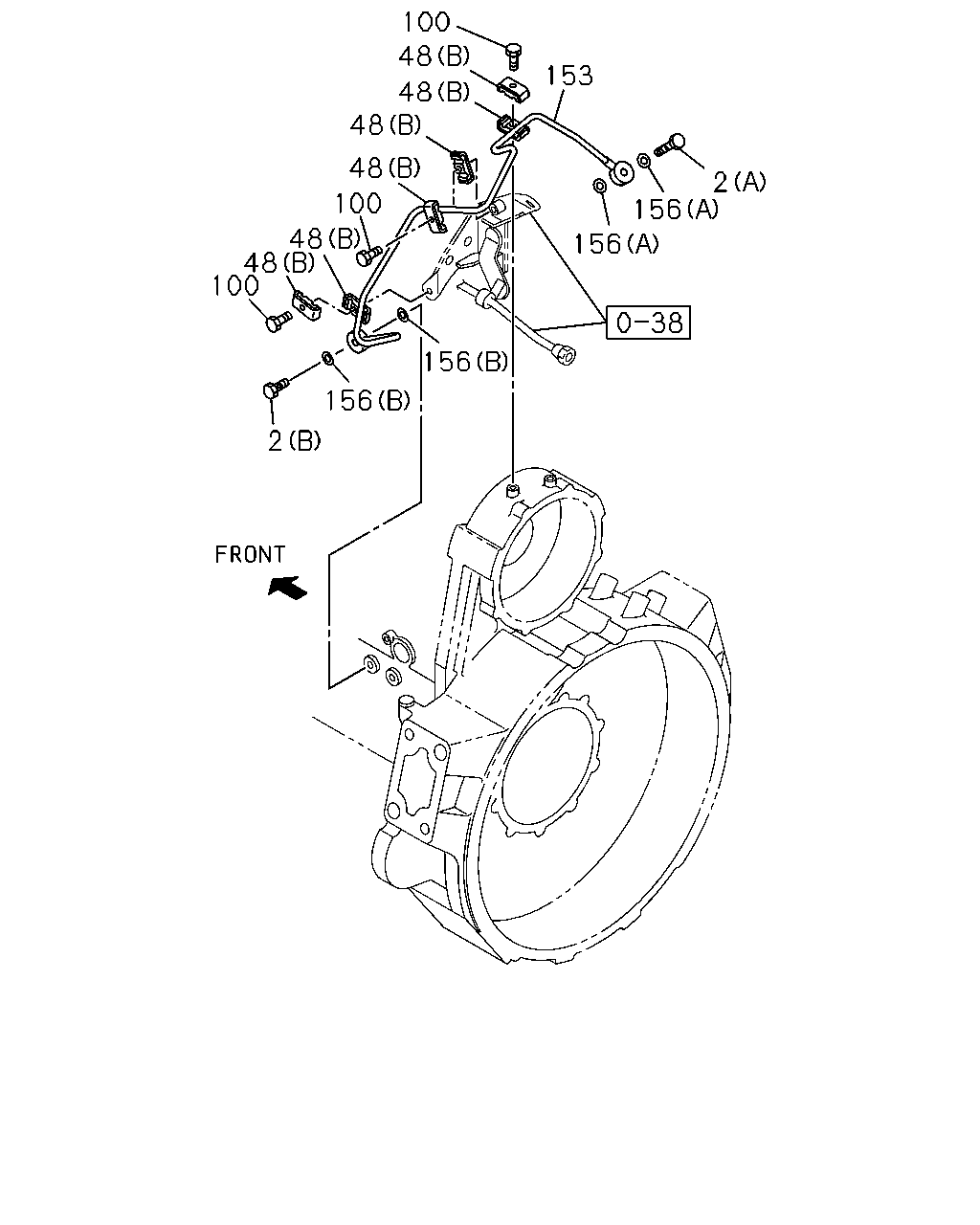

100 48 48 48 153 48 100 48 48 100 2 156 156 156 156 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	01	1	0105-0311	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	01	1	0312-	●			●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0105-0106	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0105-0106			●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0107-0311	●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0107-0311			●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0312-	●			●
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0312-			●	●
2	BOLT; EYE,OIL PIPE (E) M10X21 FLANGE	1-09675-077-0	02	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (F) M14X27 FLANGE	1-09675-086-0	02	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (C) M18X26	1-09675-120-0	01	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-160-0	01	1	0105-	●	●
2	BOLT; EYE,OIL PIPE (G) M10X21 FLANGE	1-09675-077-0	03	1	0105-0106			●
2	BOLT; EYE,OIL PIPE (G) M10X21 FLANGE	1-09675-077-0	03	1	0107-			●	●
2	BOLT; EYE,OIL PIPE (H) M12X27 FLANGE	1-09675-160-0	02	1	0105-0106			●
2	BOLT; EYE,OIL PIPE (H) M12X27 FLANGE	1-09675-160-0	02	1	0107-			●	●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (A) M10X21 FLANGE	1-09675-077-0	01	1	0107-				●
2	BOLT; EYE,OIL PIPE ENGINE REAR PTO(SV1) (B) M14X27 FLANGE	1-09675-086-0	01	1	0107-				●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (B)	1-09701-132-1	06	1	0105-	●
48	CLIP; OIL PIPE (A) ID=9 & 9 L=25	1-09701-212-2	02	1	0105-	●	●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-0	01	1	0105-0106			●
48	CLIP; OIL PIPE (C) ID=9 & 9 L=25	1-09701-212-2	01	1	0107-			●	●
48	CLIP; OIL PIPE (D) ID=9 & 11 L=28	1-09701-265-0	01	1	0105-0106			●
48	CLIP; OIL PIPE (D) ID=9 & 11 L=28	1-09701-265-1	01	1	0107-			●	●
48	CLIP; OIL PIPE ENGINE REAR PTO(SV1) (E)	1-09701-132-1	04	1	0107-				●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28680-630-0	03	1	0105-0512	●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28650-630-0	03	1	0601-	●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28680-630-0	02	1	0107-0512				●
100	BOLT; CLIP ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28650-630-0	02	1	0601-				●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	1-13313-672-0	01	1	0105-	●
153	PIPE; OIL,C/BL TO PTO ENGINE REAR PTO(SV1)	1-13313-969-0	01	1	0107-				●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-0311	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0312-	●			●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0105-0311	●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0312-	●			●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0107-				●
156	GASKET; EYE JOINT,OIL PIPE ENGINE REAR PTO(SV1) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0107-				●

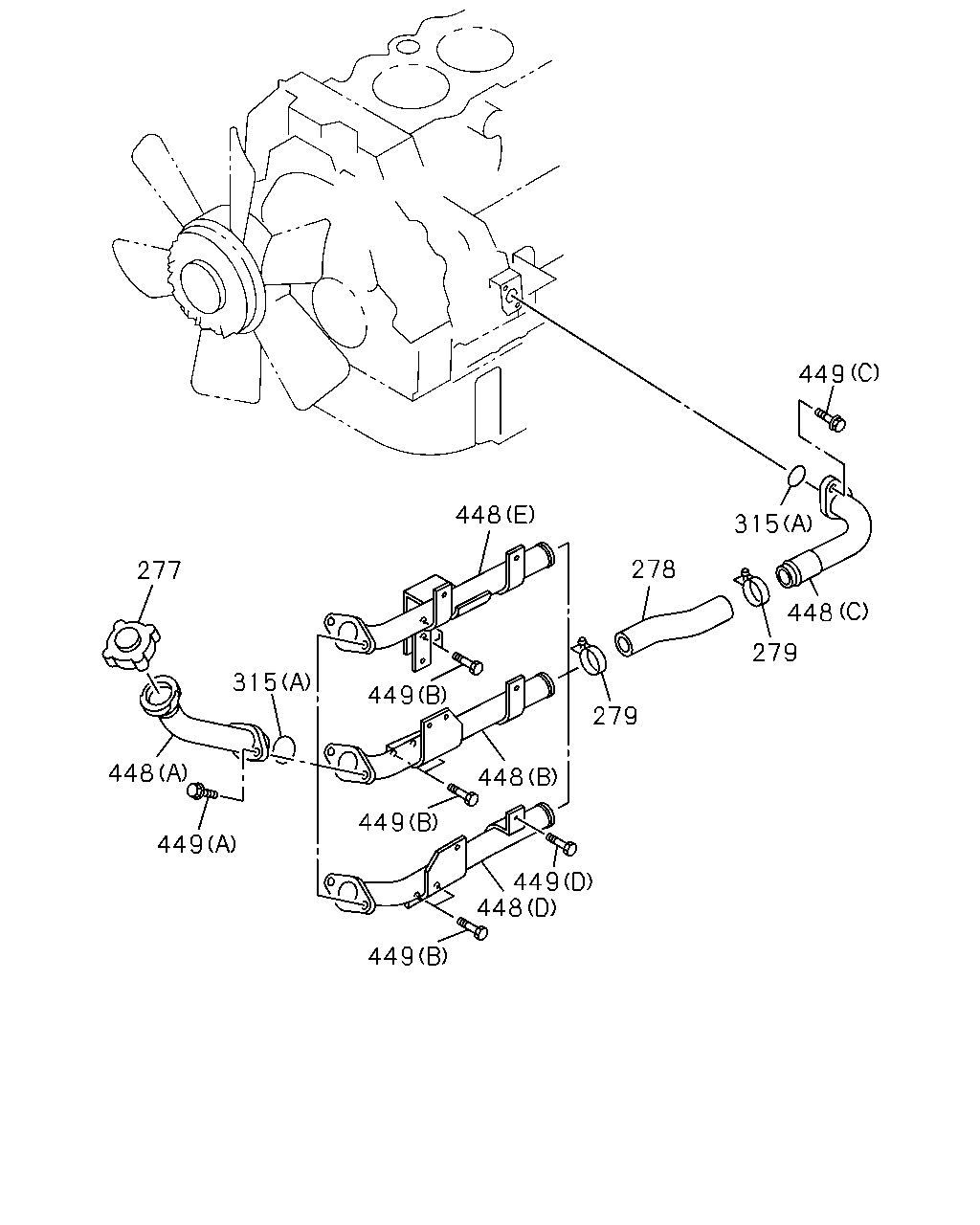

449 448 315 278 277 448 279 315 449 279 448 448 449 449 449 448 449

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
277	CAP; OIL FILLER	1-11750-020-0	01	1	0105-	●	●	●	●
278	HOSE; RUBBER,OIL FILLER CAB UP +110MM<TGG>	1-11749-154-0	01	1	0105-	●
278	HOSE; RUBBER,OIL FILLER	1-11749-154-0	01	1	0105-		●	●	●
278	HOSE; RUBBER,OIL FILLER EXC. CAB UP +110MM<TGG>	1-11749-148-1	01	1	0105-	●
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	0105-	●	●	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	0105-0106	●	●	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7	1-09623-299-0	01	1	0105-0106	●	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-299-0	01	1	0107-	●	●	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7	1-09623-299-0	01	1	0107-	●	●	●	●
448	FILLER; OIL CAB UP +110MM<TGG> (E)	1-11741-218-0	01	1	0105-	●
448	FILLER; OIL (E)	1-11741-218-0	01	1	0105-		●
448	FILLER; OIL EXC. CAB UP +110MM<TGG> (B)	1-11741-178-2	01	1	0105-	●
448	FILLER; OIL (C)	1-11740-227-1	01	1	0105-0106	●	●	●
448	FILLER; OIL (C)	1-11740-227-2	01	1	0107-	●	●	●	●
448	FILLER; OIL (A)	1-11741-175-4	01	1	0105-	●	●	●	●
448	FILLER; OIL (D)	1-11741-277-0	01	1	0105-0106			●
448	FILLER; OIL (D)	1-11741-277-0	01	1	0107-			●	●
449	BOLT; OIL FILLER (C) M8X16 FLANGE	0-28080-816-0	02	1	0105-0106	●	●	●
449	BOLT; OIL FILLER (C) M8X16 FLANGE	0-28080-816-0	02	1	0107-0512	●	●	●	●
449	BOLT; OIL FILLER (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●	●
449	BOLT; OIL FILLER (A) M8X20 FLANGE	0-28680-820-0	02	1	0105-0512	●	●	●	●
449	BOLT; OIL FILLER (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
449	BOLT; OIL FILLER (B) M8X25 FLANGE	0-28680-825-0	02	1	0105-0512	●	●	●	●
449	BOLT; OIL FILLER (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
449	BOLT; OIL FILLER (D) M8X16 FLANGE	0-28080-816-0	01	1	0105-0106			●
449	BOLT; OIL FILLER (D) M8X16 FLANGE	0-28080-816-0	01	1	0107-0512			●	●
449	BOLT; OIL FILLER (D) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
