3-78 — FIXING PARTS; AIR PIPING (#132702) — 81 parça

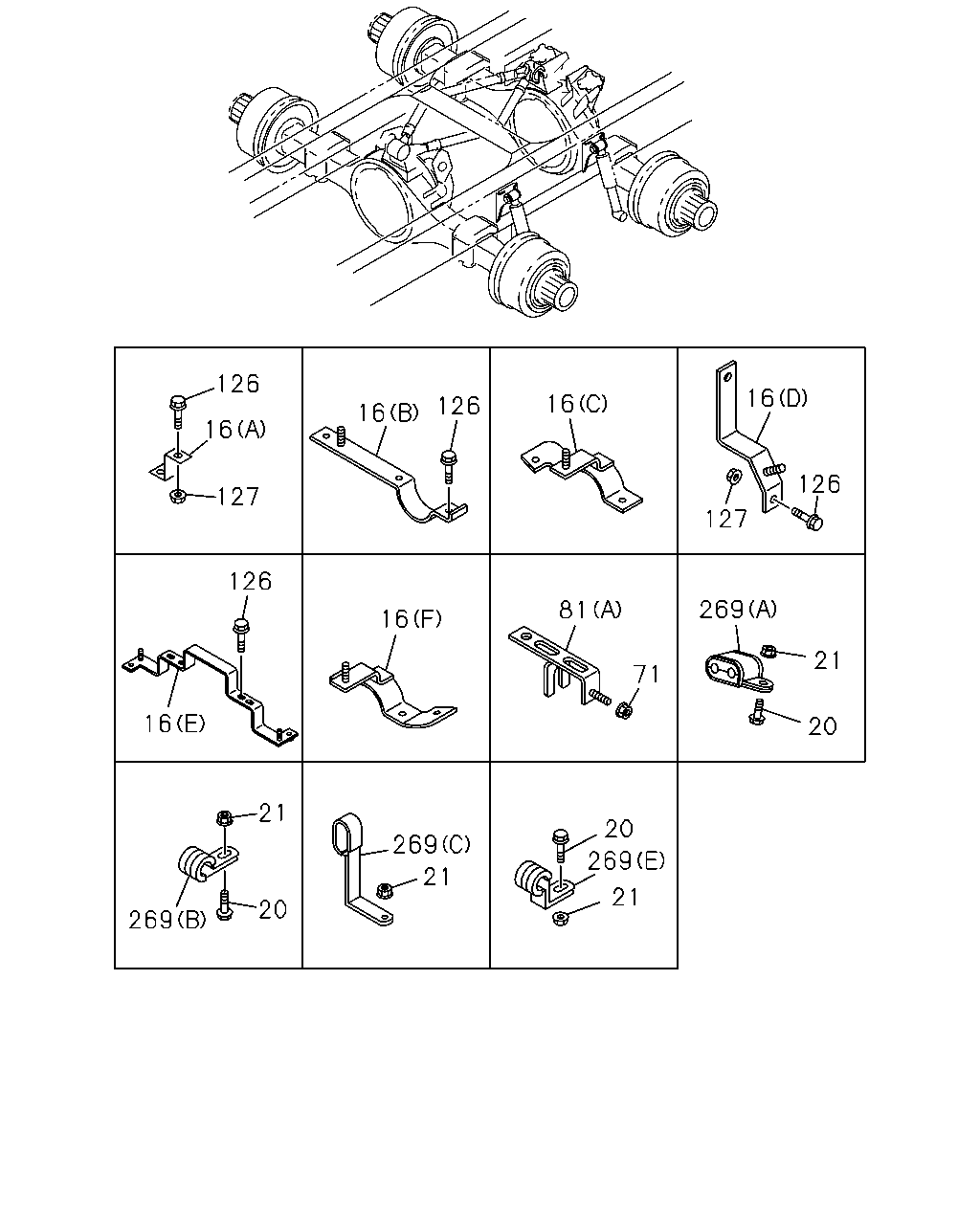

çizim 401531
126 16 127 126 16 21 20 269 16 126 16 269 21 16 81 71 20 269 21 16 126 127 269 21 20
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(A) 		1-47475-868-0 01 1 1401-
16 BRACKET; PIPE CLIP
(D) 		1-47479-815-0 01 1 1401-
16 BRACKET; PIPE CLIP
(B) 		1-47479-856-0 02 1 1401-
16 BRACKET; PIPE CLIP
(F) 		1-47479-857-0 01 1 1401-
16 BRACKET; PIPE CLIP
(E) 		1-47479-898-0 02 1 1401-
16 BRACKET; PIPE CLIP
(C) 		8-98137-090-0 01 1 1401-
20 BOLT; CLIP
M8X10 FLANGE 		0-28050-810-0 02 1 1401-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1401-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1401-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1401-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1401-
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1401-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1401-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1401-
81 BRACKET; CLIP
(F) L=65 B=25 		8-98135-584-0 01 1 1401-
81 BRACKET; CLIP
(A) 		8-98177-873-0 04 1 1401-
81 BRACKET; CLIP
(E) 		8-98186-380-0 01 1 1401-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1401-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1401-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1401-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1401-
126 BOLT; CLIP BRKT
M10X35 FLANGE 		0-28651-035-0 01 1 1401-
126 BOLT; CLIP BRKT
M8X10 FLANGE 		0-28050-810-0 02 1 1401-
126 BOLT; CLIP BRKT
M8X10 FLANGE 		0-28050-810-0 02 1 1401-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1401-
127 NUT; CLIP BRKT
M10 FLANGE 		0-91180-210-0 01 1 1401-
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> (F) ID=12 & 15 		1-09709-281-1 01 1 1401-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=20 		0-95325-035-0 01 1 1401-
269 CLIP; BAND,NYLON TUBE
(C) ID=11X2 H=35 L=20 		1-09700-847-0 01 1 1401-
269 CLIP; BAND,NYLON TUBE
(E) ID=39 H=40 L=32 		1-09701-267-0 02 1 1401-
269 CLIP; BAND,NYLON TUBE
(D) L=350 		1-09707-183-0 02 1 1401-
269 CLIP; BAND,NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 04 1 1401-
269 CLIP; BAND,NYLON TUBE
EXC. AIR DRYER<PS7> (F) ID=15 & 15 		1-09709-282-1 01 1 1401-

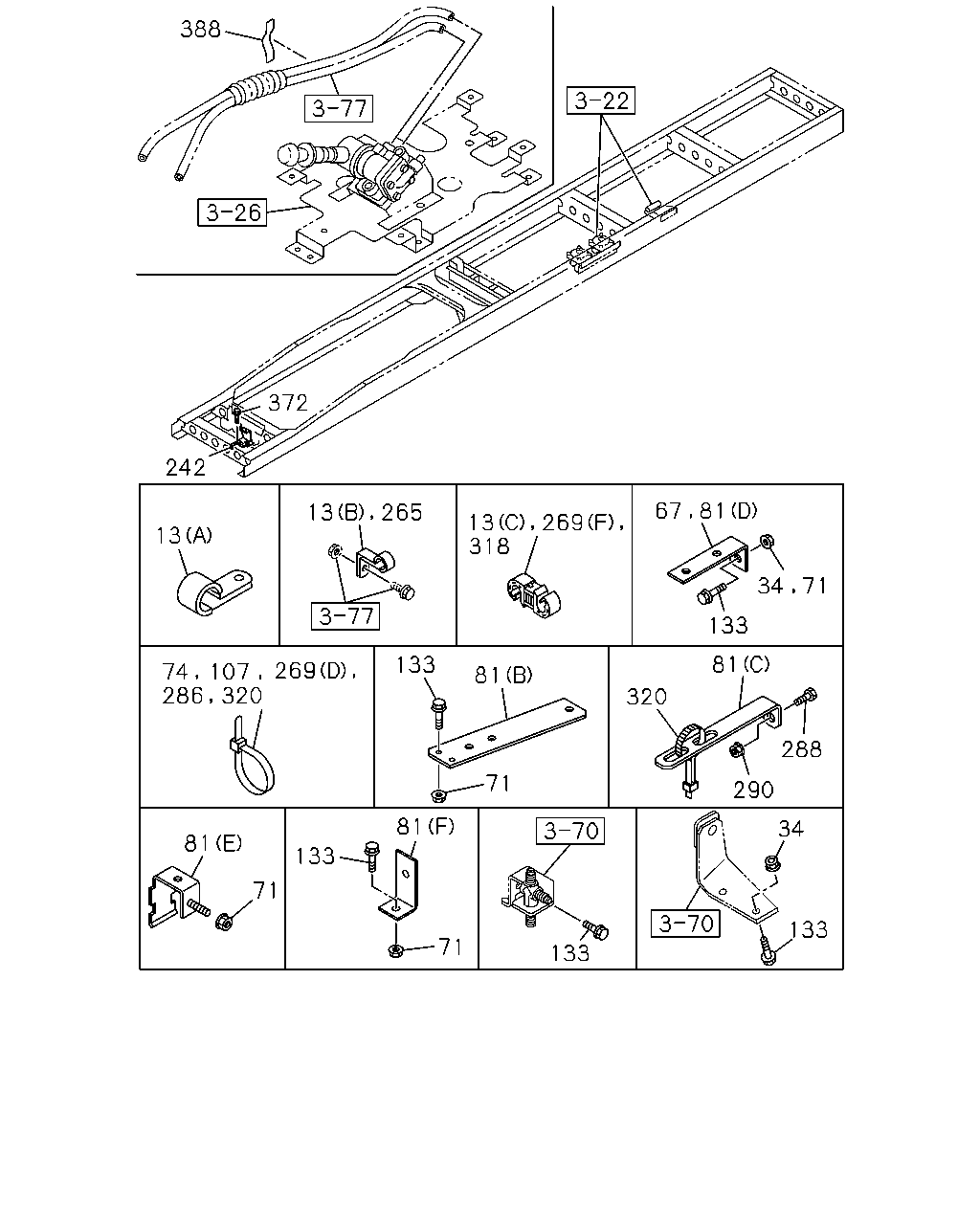

çizim 401924
388 372 242 13 74 107 269 286 320 81 71 133 81 71 133 133 34 290 288 81 320 71 81 133 13 265 13 269 318 67 81 34 71 133
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; AIR PIPE
AIR DRYER<PS7> (C) ID=6.35 & 6.35 		1-09709-273-1 02 1 1401-
13 CLIP; AIR PIPE
AIR DRYER<PS7> (C) ID=6.35 & 15 		1-09709-276-1 03 1 1401-
13 CLIP; AIR PIPE
(A) ID=7 L=16 		0-95234-625-0 01 1 1401-
13 CLIP; AIR PIPE
(B) ID=6 H=20 L=20 		1-09700-603-0 01 1 1401-
13 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> (C) ID=6.35 & 6.35 		1-09709-273-1 03 1 1401-
13 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> (C) ID=6.35 & 15 		1-09709-276-1 02 1 1401-
34 NUT; BRKT
WHEEL BASE 5800MM(58W) M8 FLANGE 		0-91180-108-0 01 1 1401-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1401-
67 BRACKET; CLIP
WHEEL BASE 5800MM(58W) L=60 H=30 		1-47477-716-1 01 1 1401-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 1401-
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1401-
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) L=350 		1-09707-183-0 02 1 1401-
74 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) L=350 		1-09707-183-0 08 1 1401-
74 CLIP; NYLON TUBE
WHEEL BASE 5800MM(58W) L=350 		1-09707-183-0 06 1 1401-
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 03 1 1401-
74 CLIP; NYLON TUBE
WHEEL BASE 5800MM(58W) L=350 		1-09707-183-0 03 1 1401-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 1401-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 1401-
81 BRACKET; CLIP
(F) L=65 B=25 		8-98135-584-0 01 1 1401-
81 BRACKET; CLIP
(A) 		8-98177-873-0 04 1 1401-
81 BRACKET; CLIP
(E) 		8-98186-380-0 01 1 1401-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1401-
81 BRACKET; CLIP
(C) L=150 H=30 		1-47477-629-2 01 1 1401-
107 CLIP; NYLON TUBE
WHEEL BASE 5000MM(50W) L=350 		1-09707-183-0 45 1 1401-
107 CLIP; NYLON TUBE
WHEEL BASE 5800MM(58W) L=350 		1-09707-183-0 48 1 1401-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1401-
133 BOLT; BRKT
WHEEL BASE 5800MM(58W) M8X30 FLANGE 		0-28650-830-0 01 1 1401-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1401-
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 03 1 1401-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1401-
242 BRACKET; PIPE CLIP 8-98158-602-0 01 1 1401-
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 1401-
269 CLIP; BAND,NYLON TUBE
AIR DRYER<PS7> (F) ID=12 & 15 		1-09709-281-1 01 1 1401-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=20 		0-95325-035-0 01 1 1401-
269 CLIP; BAND,NYLON TUBE
(C) ID=11X2 H=35 L=20 		1-09700-847-0 01 1 1401-
269 CLIP; BAND,NYLON TUBE
(E) ID=39 H=40 L=32 		1-09701-267-0 02 1 1401-
269 CLIP; BAND,NYLON TUBE
(D) L=350 		1-09707-183-0 02 1 1401-
269 CLIP; BAND,NYLON TUBE
(B) ID=39 L=33 		8-98009-359-0 04 1 1401-
269 CLIP; BAND,NYLON TUBE
EXC. AIR DRYER<PS7> (F) ID=15 & 15 		1-09709-282-1 01 1 1401-
286 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 1401-
288 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 1401-
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 1401-
318 CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 03 1 1401-
318 CLIP; AIR PIPE
EXC. AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 02 1 1401-
320 CLIP; BAND,FLEX FIX
L=250 		5-09707-030-1 01 1 1401-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1401-
388 SEAL
100X40 		1-72498-022-1 03 1 1401-
