◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-85 - REAR WIPER AND WASHER ▶
8-85 — REAR WIPER AND WASHER (#132698) — 13 parça

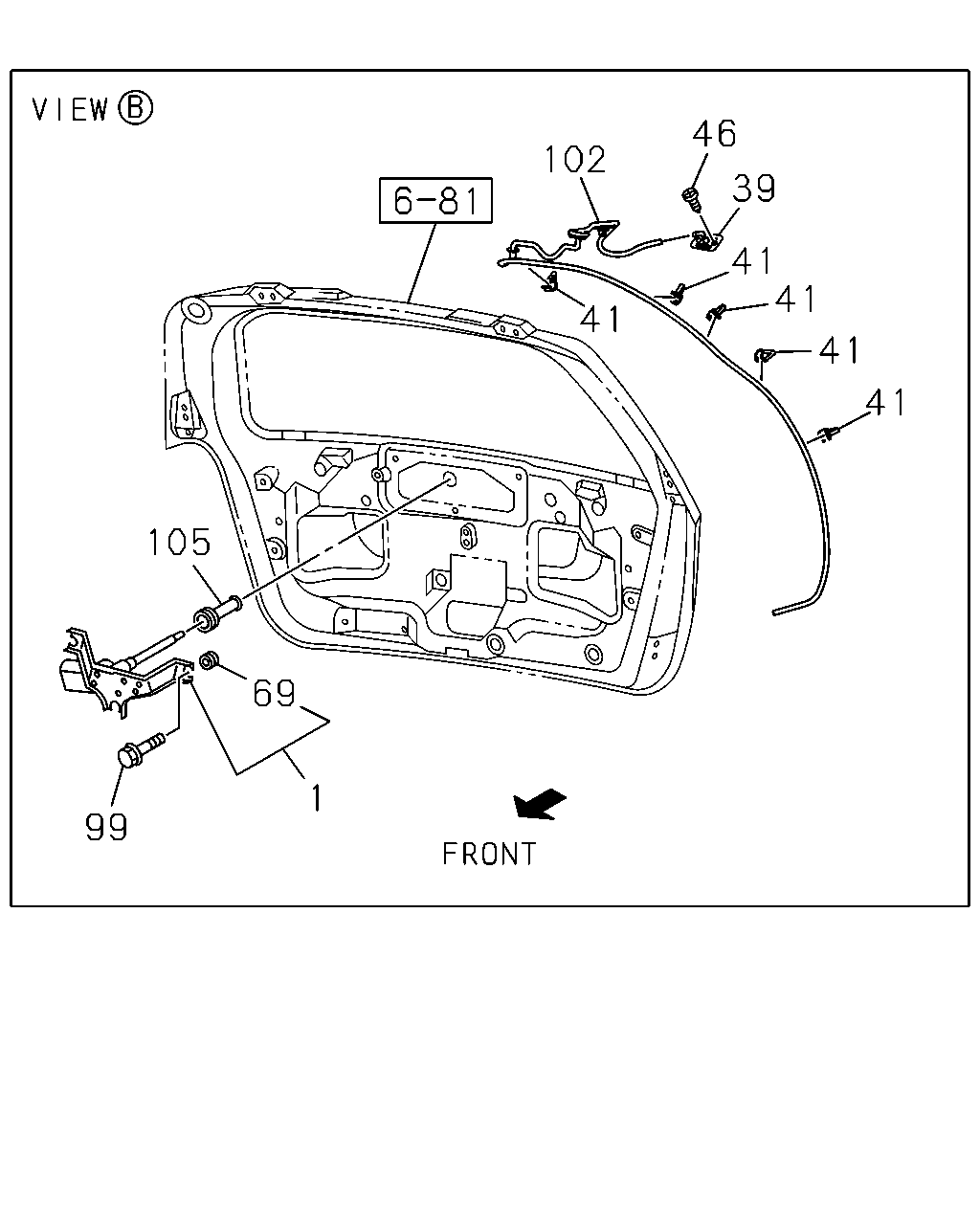

çizim 402436
102 46 41 41 41 41 39 41 105 69 99 1
BalonParca AdiParca NoAdetTipApplied Date
1 MOTOR ASM; RR WIPER 8-97364-082-1 01 1 1312-
39 NOZZLE; RR WINDSHIELD,WASHER 8-97364-009-1 01 1 1312-
41 CLIP; RR WASHER TANK HOSE
ID=7 		8-97014-713-0 05 1 1312-
46 SCREW; NOZZLE,RR WASHER 0-71260-510-0 02 1 1312-
69 RUBBER; CUSHION,RR,WIPER 8-97373-513-0 03 1 1312-
99 BOLT; WIPER MOTOR
M6X22 W/PL WASHER IMA 		8-98136-167-0 03 1 1312-
102 HOSE; REAR WASHER 8-97372-439-1 01 1 1312-
105 GROMMET; RR WIPER MOTOR 8-97364-085-1 01 1 1312-

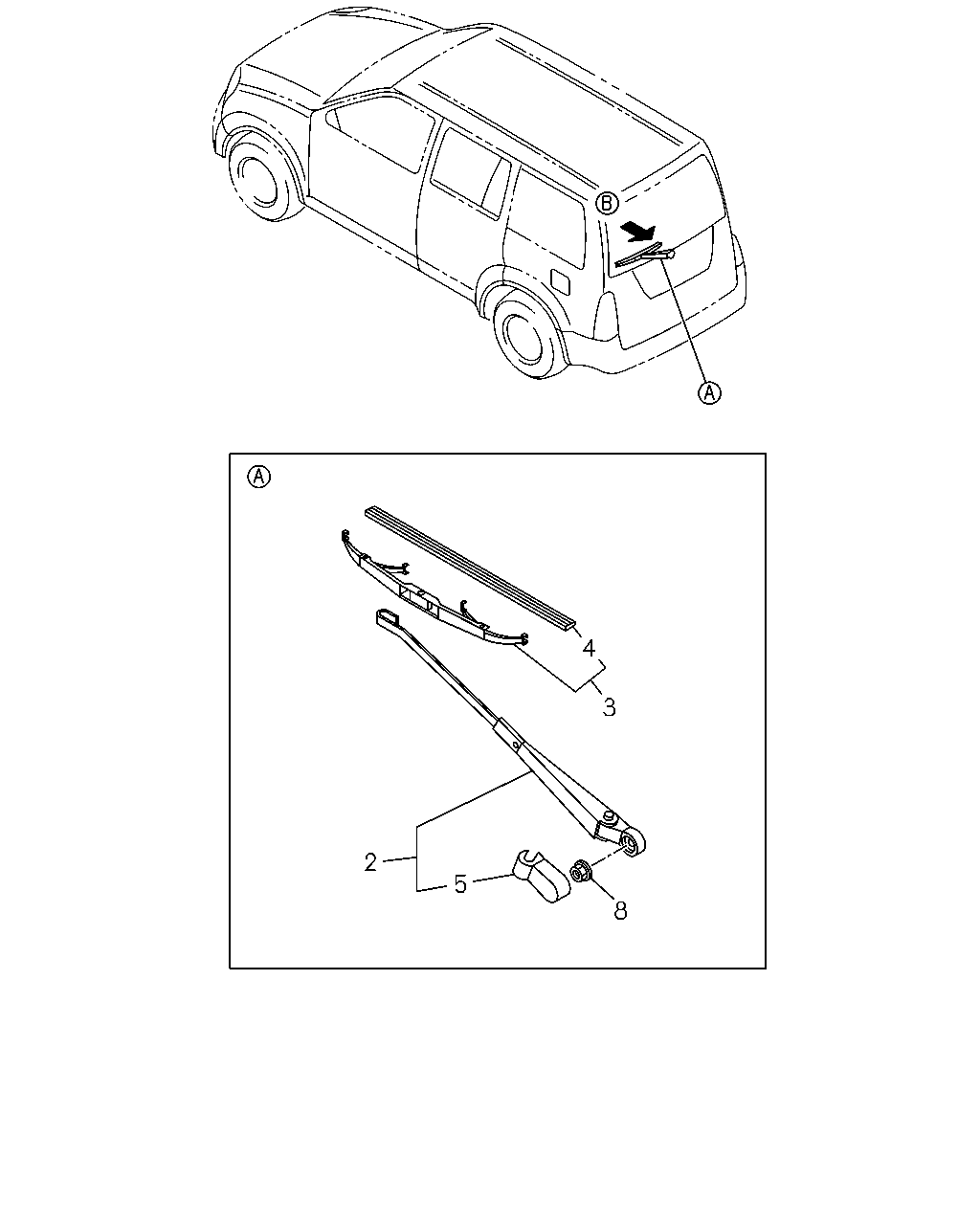

çizim 402640
4 3 8 5 2
BalonParca AdiParca NoAdetTipApplied Date
2 ARM ASM; REAR WIPER 8-98000-869-0 01 1 1312-
3 BLADE ASM; REAR WIPER 8-98000-871-0 01 1 1312-
4 RUBBER; BLADE,RR WIPER 8-98000-872-0 01 1 1312-
5 COVER; REAR WIPER ARM 8-98000-870-0 01 1 1312-
8 NUT; RR WIPER ARM TO WIPER MOTOR
M6 		0-91111-506-0 01 1 1312-
