8-80 — WINDSHIELD WIPER AND WASHER (#132697) — 42 parça

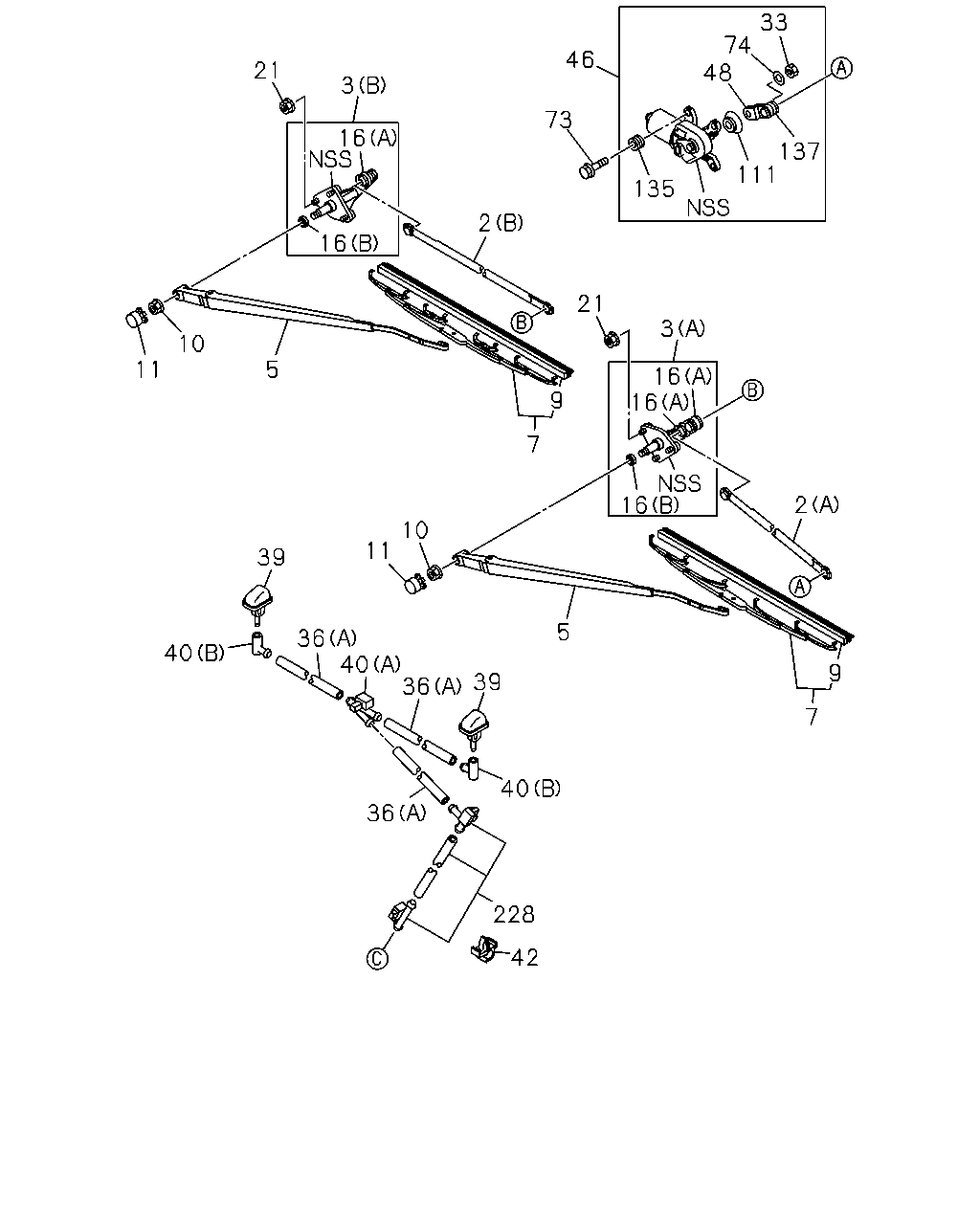

çizim 401786
21 16 3 16 2 11 10 39 40 36 40 36 36 228 42 40 39 11 5 10 5 7 9 21 16 16 16 2 9 7 111 135 73 46 33 74 137 48 3
BalonParca AdiParca NoAdetTipApplied Date
2 LINK; FRT WIPER
(A) 		8-97349-892-0 01 1 1312-
2 LINK; FRT WIPER
(B) 		8-97349-893-0 01 1 1312-
3 PIVOT ASM; FRT WIPER
(A) 		8-98057-712-0 01 1 1312-
3 PIVOT ASM; FRT WIPER
(B) 		8-98057-714-0 01 1 1312-
5 ARM; WIPER 8-97349-899-0 01 1 1312-
5 ARM; WIPER 8-97349-902-0 01 1 1312-
7 BLADE; WIPER
L=550 IMA 		8-97349-900-0 01 1 1312-
7 BLADE; WIPER
L=475 		8-97349-903-0 01 1 1312-
9 RUBBER; FRT WIPER BLADE
L=550 IMA 		8-97349-901-0 01 1 1312-
9 RUBBER; FRT WIPER BLADE
L=475 		8-97349-904-0 01 1 1312-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE IMA 		8-98049-367-0 02 1 1312-
11 COVER; WIPER ARM 8-94367-999-0 02 1 1312-
16 SEAL; BALL JOINT
(A) 		8-97025-889-0 03 1 1312-
16 SEAL; BALL JOINT
(B) 		8-97349-894-0 02 1 1312-
21 NUT; WIPER LINK PIVOT
M6 FLANGE IMA 		0-91180-106-0 06 1 1312-
33 NUT; MOTOR TO ARM 8-97349-898-0 01 1 1312-
36 HOSE; WASHER
(B) 		8-97364-086-1 01 1 1312-
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-97349-607-0 01 1 1312-
39 NOZZLE; WINDSHIELD WASHER 8-98008-112-0 02 1 1312-
40 JOINT; WASHER HOSE
(B) 		8-97178-847-0 02 1 1312-
40 JOINT; WASHER HOSE
(A) 		8-97215-337-0 01 1 1312-
42 CLIP; WASHER HOSE
ID=5.8 L=8 		8-94155-681-0 03 1 1312-
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98057-621-0 01 1 1312-
48 ARM; WIPER MOTOR 8-98057-654-0 01 1 1312-
73 BOLT
M6X33 W/PL WASHER IMA 		8-98048-997-0 04 1 1312-
74 WASHER; ARM TO MOTOR 8-97349-897-0 01 1 1312-
111 SEAL; FRT WIPER MOTOR TO BRKT 8-97349-896-0 01 1 1312-
135 RUBBER; CUSHION,WIPER MOTOR 8-98057-655-0 04 1 1312-
137 SEAL; JOINT,WIPER MOTOR 8-97025-889-0 01 1 1312-
228 HOSE ASM; WASHER 8-98115-892-0 01 1 1312-

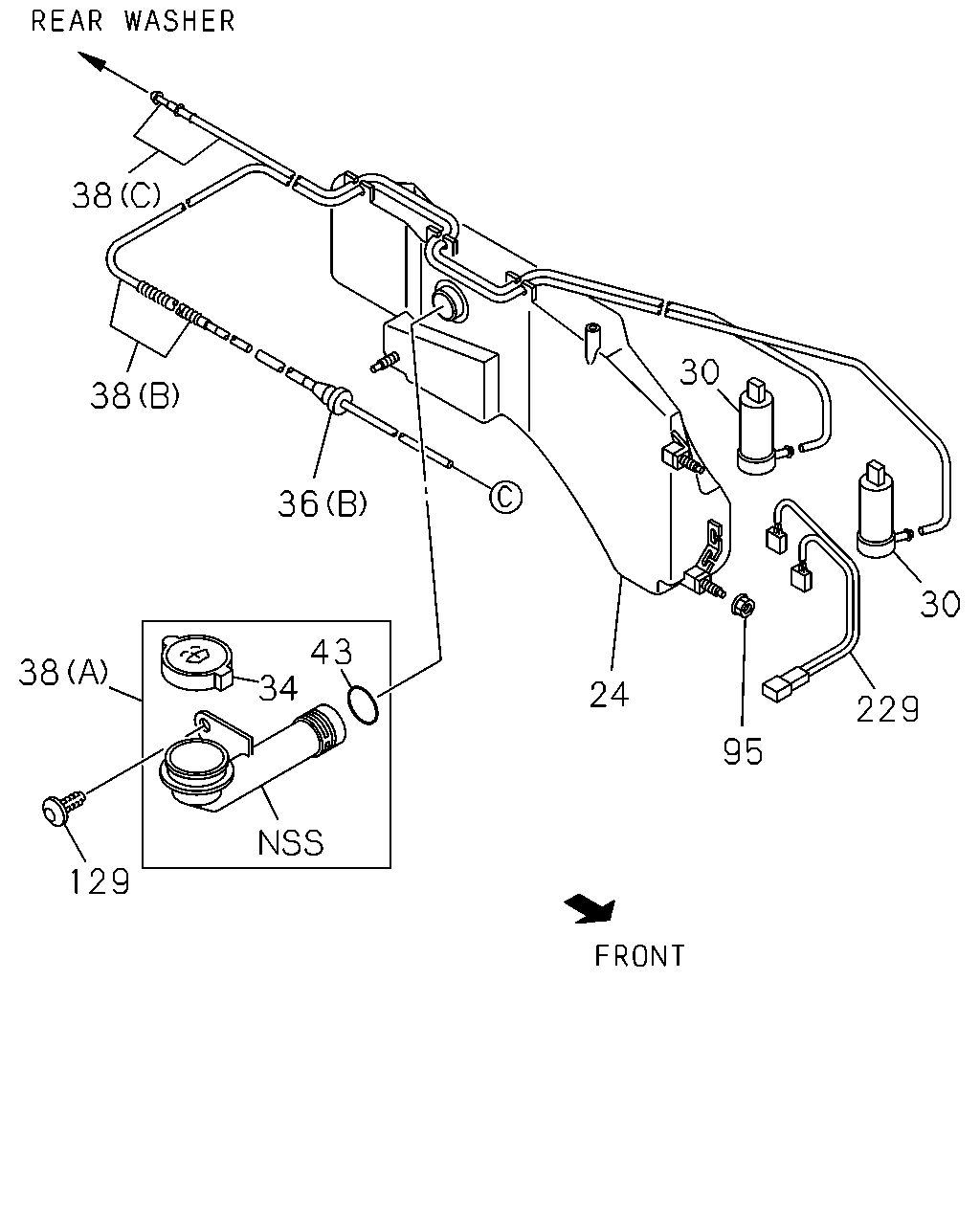

çizim 402639
38 38 36 38 129 34 30 43 24 95 229 30
BalonParca AdiParca NoAdetTipApplied Date
24 TANK ASM; WASHER 8-97373-636-0 01 1 1312-
30 MOTOR ASM; FRT WASHER TANK 8-97373-838-0 02 1 1312-
34 CAP; WASHER TANK 8-97349-905-0 01 1 1312-
36 HOSE; WASHER
(B) 		8-97364-086-1 01 1 1312-
36 HOSE; WASHER
(A) SERVICED BY L=10000 		8-97349-607-0 01 1 1312-
38 HOSE; JOINT,TANK
(A) 		8-97310-064-1 01 1 1312-
38 HOSE; JOINT,TANK
(B) 		8-97373-840-0 01 1 1312-
38 HOSE; JOINT,TANK
(C) 		8-97373-841-0 01 1 1312-
43 RUBBER; GASKET,TANK 8-97349-906-0 01 1 1312-
95 NUT; WASHER TANK
M6 W/DISHED WASHER IMA 		8-98049-368-0 03 1 1312-
129 CLIP; JOINT HOSE
L=19 BLACK 		8-94363-776-0 01 1 1312-
229 HARNESS; WASHER TANK 8-97373-839-0 01 1 1312-
