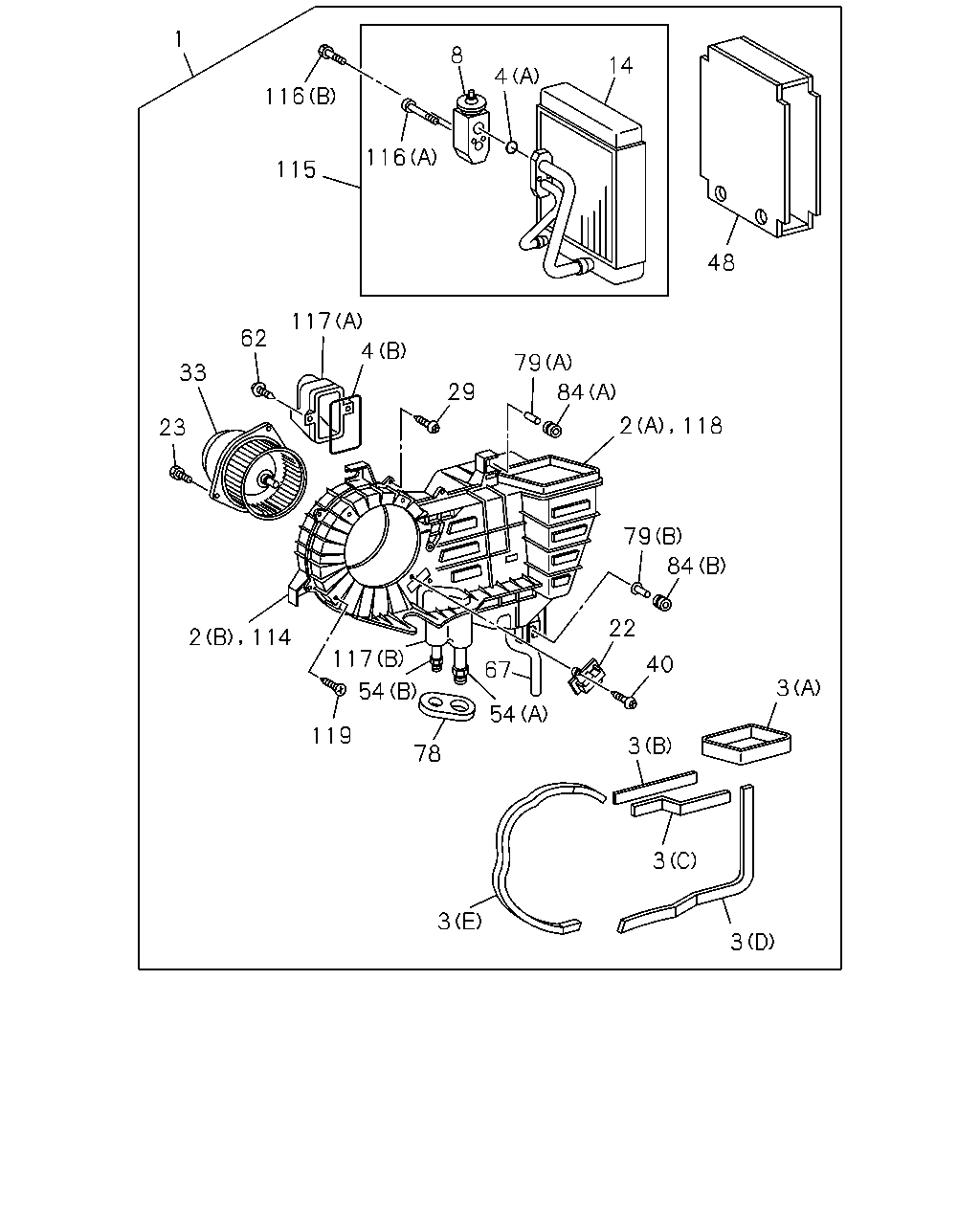

8-72 — COOLER UNIT (#132693) — 42 parça

1 116 116 8 4 14 48 115 23 33 62 117 29 4 79 2 84 118 79 84 3 3 3 3 40 22 67 54 117 78 3 119 114 2 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COOLING UNIT; RR REAR COOLER WO/HEATER<C69>	8-98072-391-0	01	1	1312-
2	CASE; RR COOLER REAR COOLER WO/HEATER<C69> (A)	8-97385-848-0	01	1	1312-
2	CASE; RR COOLER REAR COOLER WO/HEATER<C69> (B)	8-97385-852-0	01	1	1312-
3	LINING; CASE REAR COOLER WO/HEATER<C69> (A)	8-97387-162-0	01	1	1312-
3	LINING; CASE REAR COOLER WO/HEATER<C69> (B)	8-97387-164-0	01	1	1312-
3	LINING; CASE REAR COOLER WO/HEATER<C69> (C)	8-97387-165-0	01	1	1312-
3	LINING; CASE REAR COOLER WO/HEATER<C69> (D)	8-97387-166-0	01	1	1312-
3	LINING; CASE REAR COOLER WO/HEATER<C69> (E)	8-97387-167-0	01	1	1312-
4	GASKET; VLV TO PIPE REAR COOLER WO/HEATER<C69> (B)	8-97321-154-0	01	1	1312-
4	GASKET; VLV TO PIPE REAR COOLER WO/HEATER<C69> (A)	8-97321-155-0	01	1	1312-
8	VALVE; EXPANSION REAR COOLER WO/HEATER<C69>	8-98073-310-0	01	1	1312-
14	EVAPORATOR; RR COOLER REAR COOLER WO/HEATER<C69>	8-97387-110-0	01	1	1312-
22	RESISTOR; RR COOLER REAR COOLER WO/HEATER<C69>	8-97321-273-0	01	1	1312-
23	SCREW; CASE TO MOTOR REAR COOLER WO/HEATER<C69>	8-98070-134-0	03	1	1312-
29	SCREW; CASE REAR COOLER WO/HEATER<C69>	8-98070-135-0	14	1	1312-
33	BLOWER; COOLER UNIT REAR COOLER WO/HEATER<C69>	8-97385-853-0	01	1	1312-
40	SCREW; RESISTOR FIX,COOLER UNIT REAR COOLER WO/HEATER<C69>	8-98070-135-0	02	1	1312-
48	SEAL; EVAP,COOLER UNIT REAR COOLER WO/HEATER<C69>	8-97387-112-0	01	1	1312-
54	PIPE; COOLER UNIT REAR COOLER WO/HEATER<C69> (A)	8-97387-123-0	01	1	1312-
54	PIPE; COOLER UNIT REAR COOLER WO/HEATER<C69> (B)	8-97387-125-0	01	1	1312-
62	SCREW; COVER REAR COOLER WO/HEATER<C69>	8-98070-135-0	06	1	1312-
67	HOSE; DRAIN REAR COOLER WO/HEATER<C69>	8-97387-122-0	01	1	1312-
78	GROMMET; COOLER UNIT REAR COOLER WO/HEATER<C69>	8-97387-149-0	01	1	1312-
79	COLLAR; COOLER UNIT REAR COOLER WO/HEATER<C69> (B)	8-97387-103-0	02	1	1312-
79	COLLAR; COOLER UNIT REAR COOLER WO/HEATER<C69> (A)	8-98072-393-0	02	1	1312-
84	RUBBER REAR COOLER WO/HEATER<C69> (A)	8-97387-100-0	02	1	1312-
84	RUBBER REAR COOLER WO/HEATER<C69> (B)	8-97387-102-0	02	1	1312-
114	SEAL; CASE REAR COOLER WO/HEATER<C69>	8-97387-108-0	01	1	1312-
115	EVAPORATOR ASM; COOLING UNIT REAR COOLER WO/HEATER<C69>	8-97387-109-0	01	1	1312-
116	BOLT; EXPANSION VALVE REAR COOLER WO/HEATER<C69> (B) M6X20 W/LK&PL WASHER	0-50640-620-0	01	1	1312-
116	BOLT; EXPANSION VALVE REAR COOLER WO/HEATER<C69> (A)	8-98072-395-0	02	1	1312-
117	COVER; PIPE REAR COOLER WO/HEATER<C69> (A)	8-97387-116-0	01	1	1312-
117	COVER; PIPE REAR COOLER WO/HEATER<C69> (B)	8-97387-117-0	01	1	1312-
118	GUIDE; AIR REAR COOLER WO/HEATER<C69>	8-97387-163-0	01	1	1312-
119	SCREW; AIR GUIDE REAR COOLER WO/HEATER<C69>	8-98070-135-0	07	1	1312-

81 85 81 81 85 85 85 43 58 1 85

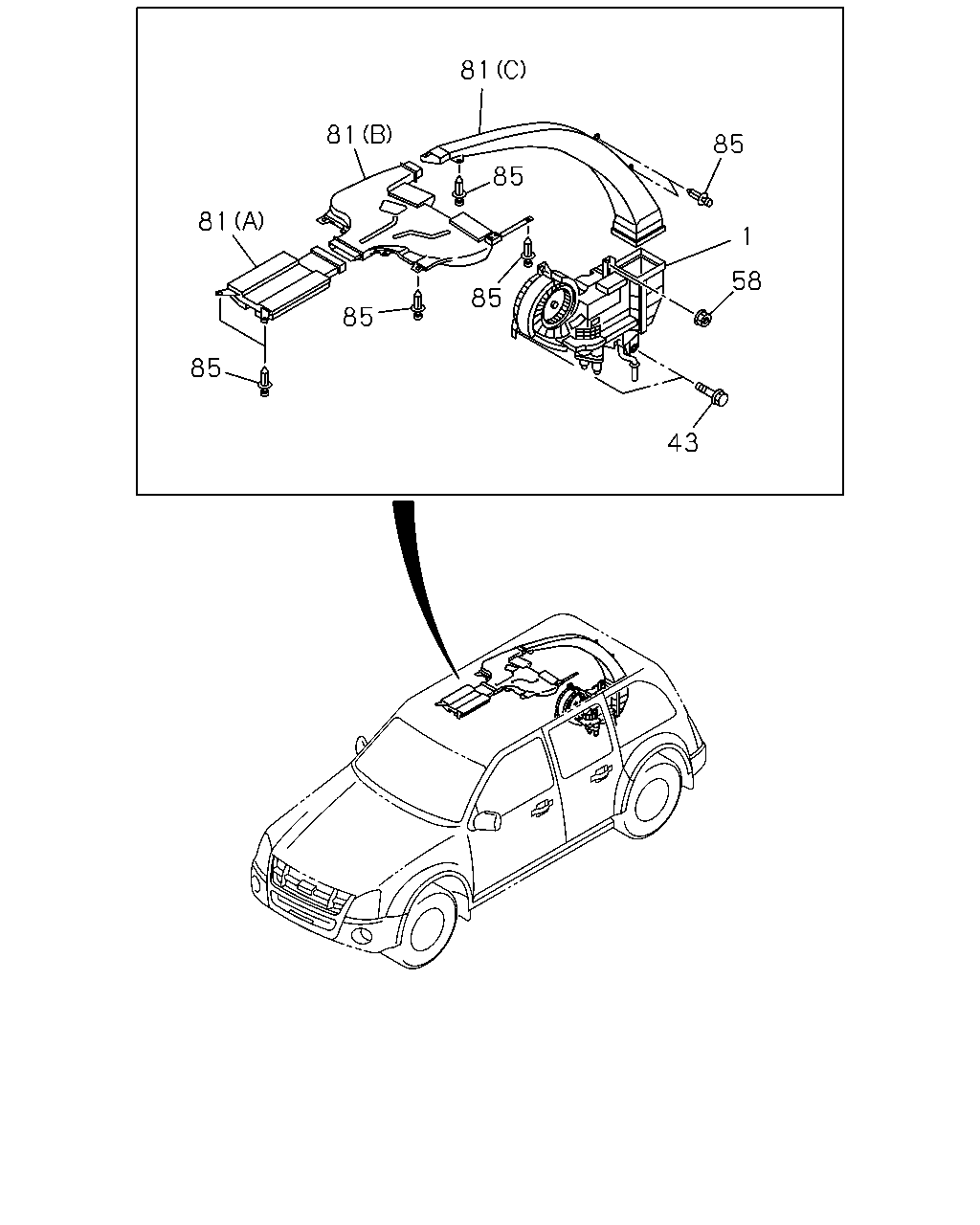

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COOLING UNIT; RR REAR COOLER WO/HEATER<C69>	8-98072-391-0	01	1	1312-
43	BOLT; COOLER UNIT REAR COOLER WO/HEATER<C69> M6X25 FLANGE	0-28450-625-0	03	1	1312-
58	NUT; CASE REAR COOLER WO/HEATER<C69> M6 FLANGE IMA	8-98055-704-0	01	1	1312-
81	DUCT; RR COOLER REAR COOLER WO/HEATER<C69> (A)	8-97363-895-1	01	1	1312-
81	DUCT; RR COOLER REAR COOLER WO/HEATER<C69> (B)	8-97363-898-1	01	1	1312-
81	DUCT; RR COOLER REAR COOLER WO/HEATER<C69> (C)	8-97363-899-1	01	1	1312-
85	CLIP; DUCT REAR COOLER WO/HEATER<C69> IND	8-97327-315-0	12	1	1312-
