◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#132692) — 8 parça

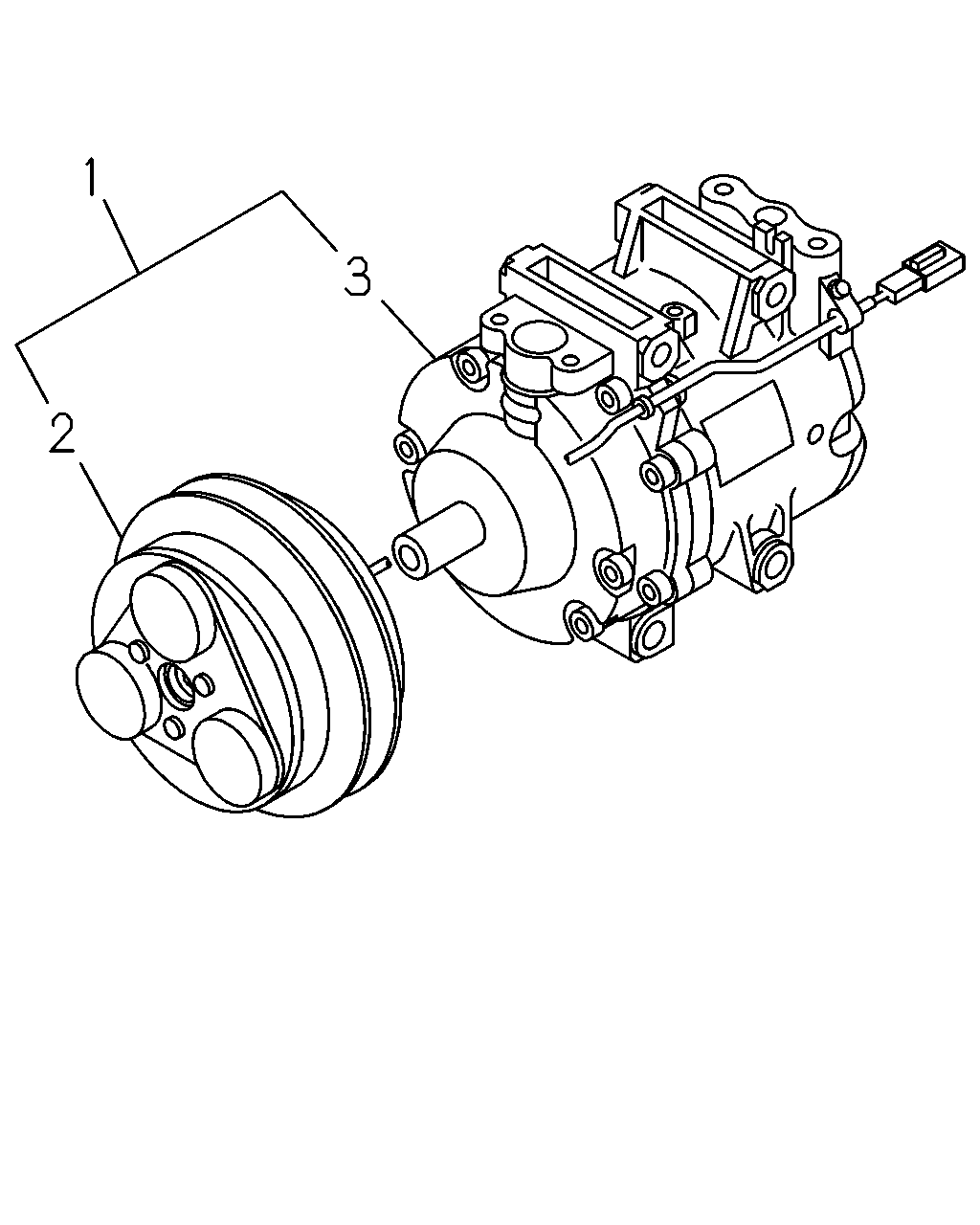

çizim 402606
1 2 3
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; A/C
REAR COOLER WO/HEATER<C69> 		8-98199-294-1 01 1 1312-
1 COMPRESSOR ASM; A/C
EXC. REAR COOLER WO/HEATER<C69> 		8-98199-292-1 01 1 1312-
2 CLUTCH; MAGNET,A/C 8-97372-920-0 01 1 1312-1402
2 CLUTCH; MAGNET,A/C 8-98252-777-0 01 1 1403-
3 COMPRESSOR ASM; A/C
REAR COOLER WO/HEATER<C69> 		8-98204-875-0 01 1 1312-1402
3 COMPRESSOR ASM; A/C
REAR COOLER WO/HEATER<C69> 		8-98258-535-0 01 1 1403-
3 COMPRESSOR ASM; A/C
EXC. REAR COOLER WO/HEATER<C69> 		8-98204-874-0 01 1 1312-1402
3 COMPRESSOR ASM; A/C
EXC. REAR COOLER WO/HEATER<C69> 		8-98258-533-0 01 1 1403-
