8-65 — CONTROL LEVER; HEATER AND AIR CON (#132691) — 14 parça

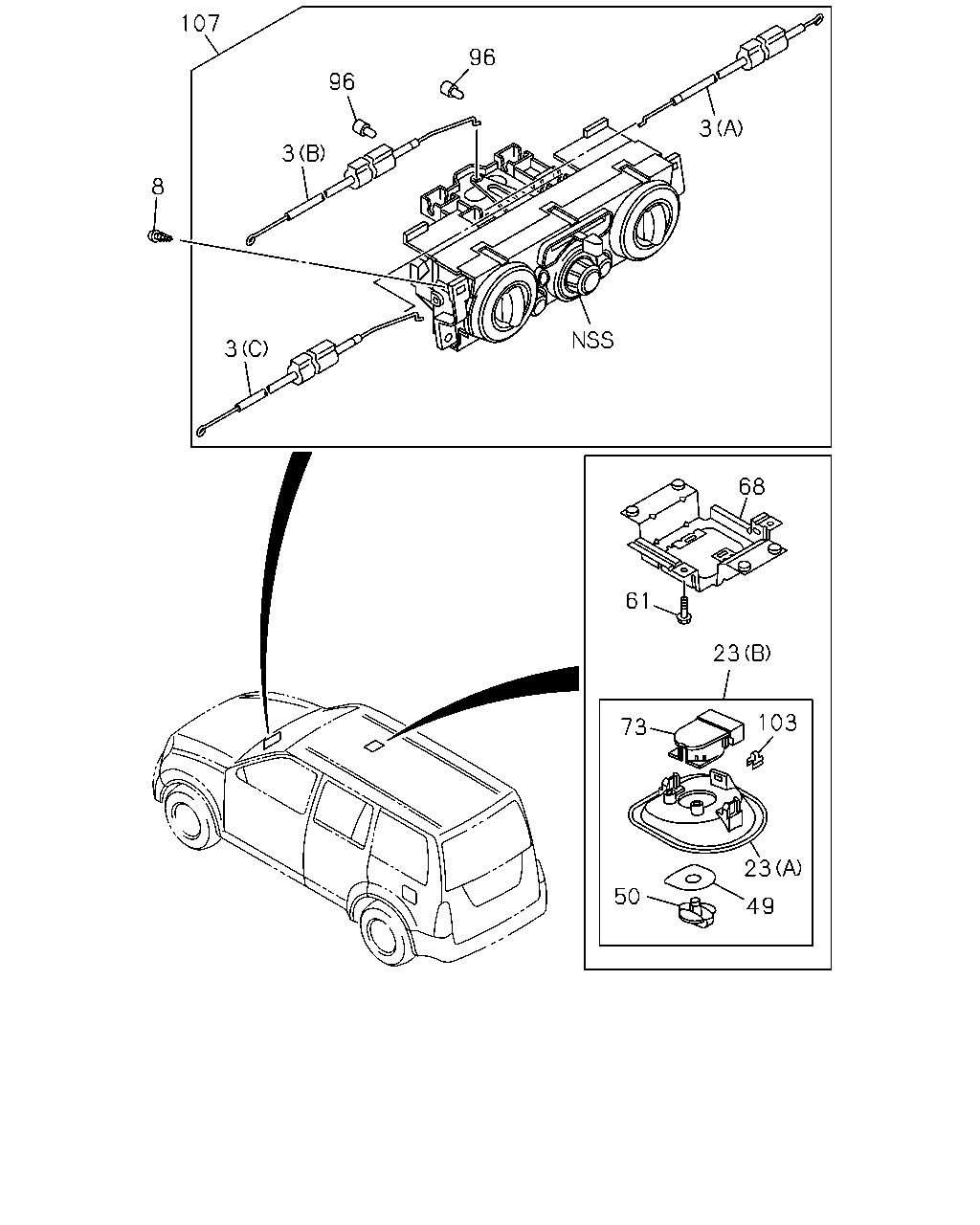

çizim 402589
107 96 96 3 8 3 3 68 61 23 73 103 23 50 49
BalonParca AdiParca NoAdetTipApplied Date
3 CABLE; HTR CONT LVR
(A) MODE 		8-98029-143-0 01 1 1312-
3 CABLE; HTR CONT LVR
(C) TEMP 		8-98029-144-0 01 1 1312-
3 CABLE; HTR CONT LVR
(B) INTAKE 		8-98029-145-0 01 1 1312-
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING IMA 		8-98167-449-0 02 1 1312-
23 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (B) 		8-98039-692-0 01 1 1312-
23 BEZEL; CONT LEVER
REAR COOLER WO/HEATER<C69> (A) 		8-98044-513-0 01 1 1312-
49 PANEL; CONT
REAR COOLER WO/HEATER<C69> 		8-98044-515-0 01 1 1312-
50 KNOB; CONT PANEL
REAR COOLER WO/HEATER<C69> 		8-98044-514-0 01 1 1312-
61 BOLT; CONT LEVER
M6X12 FLANGE IMA 		0-28050-612-0 02 1 1312-
68 BRACKET; BEZEL 8-98072-792-0 01 1 1312-
73 SWITCH; FAN,CONT PANEL
REAR COOLER WO/HEATER<C69> 		8-97386-830-0 01 1 1312-
96 BULB ASM; BEZEL 8-98159-721-0 02 1 1312-
103 CLIP
REAR COOLER WO/HEATER<C69> 		8-97386-832-0 02 1 1312-
107 CONTROL ASM; HTR & A/C 8-98231-441-0 01 1 1312-
