Isuzu WW
▶
SUV
▶
UCR
▶
51506 - UCR RHD (INDIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-60 - HEATER UNIT; FRONT
▶

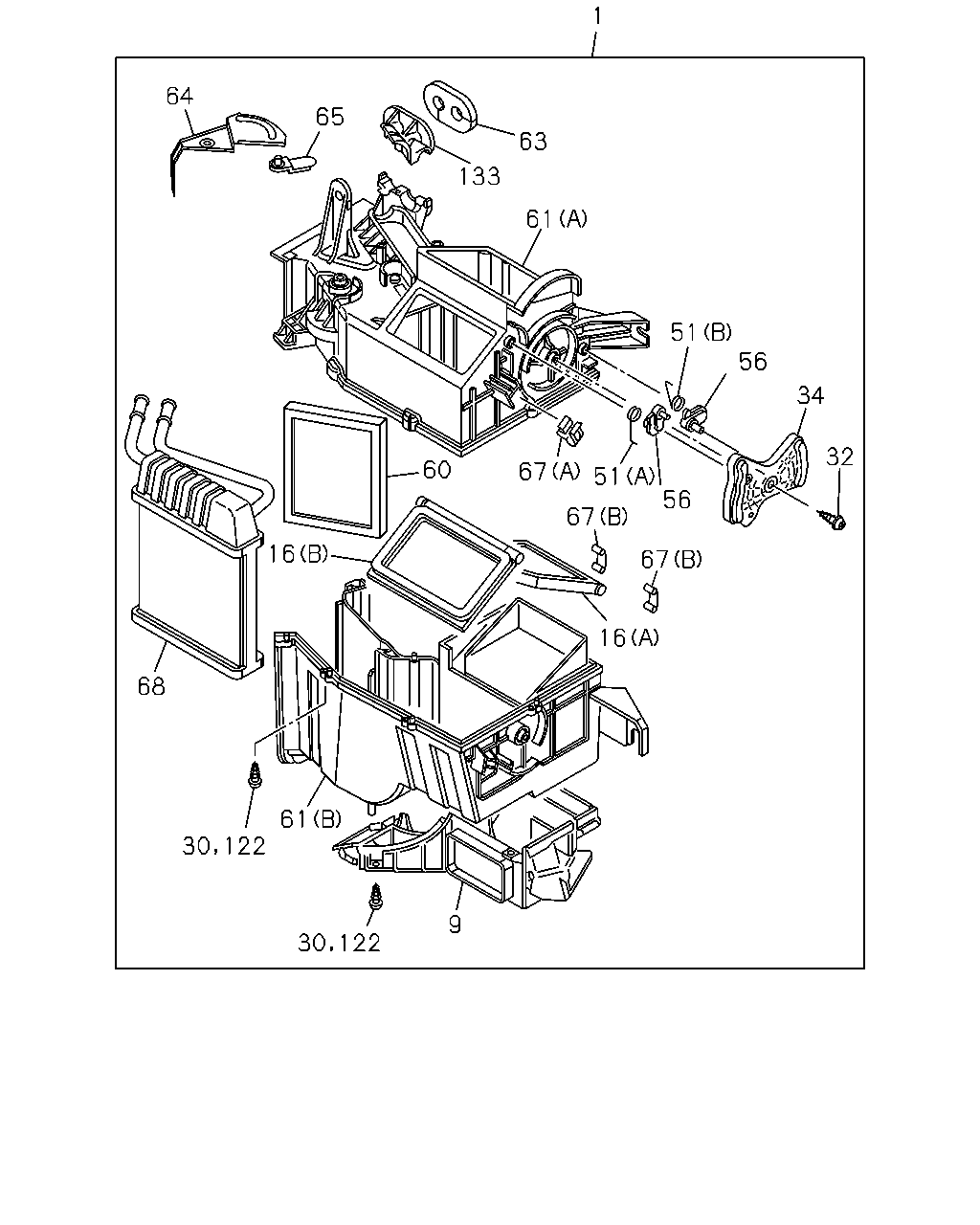

8-60 — HEATER UNIT; FRONT
(#132690) — 21 parça
1
64
65
63
133
61
51
34
56
32
67
60
16
68
67
16
67
51
9
56
122
30
122
30
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HEATER UNIT
8-98086-150-0
01
1
1312-
9
DUCT; HTR UNIT
8-97321-338-0
01
1
1312-
16
SHUTTER; HTR UNIT,CENTER UPR
(B)
8-97321-340-0
01
1
1312-
16
SHUTTER; HTR UNIT,CENTER UPR
(A)
8-97321-342-0
01
1
1312-
30
SCREW; HTR UNIT
8-98071-323-0
08
1
1312-
32
SCREW; HTR UNIT
8-98071-324-0
02
1
1312-
34
LEVER; SHUTTER,HTR UNIT
8-97321-343-0
01
1
1312-
51
SPRING; HTR UNIT
(A)
8-97321-368-0
01
1
1312-
51
SPRING; HTR UNIT
(B)
8-97321-369-0
01
1
1312-
56
LEVER; SHUTTER,HTR UNIT
8-97321-341-0
02
1
1312-
60
DOOR; MIX,HTR UNIT
8-97333-330-0
01
1
1312-
61
CASE; HTR UNIT
(A)
8-97333-326-0
01
1
1312-
61
CASE; HTR UNIT
(B)
8-97333-327-0
01
1
1312-
63
LINING; HTR UNIT
8-97333-328-0
01
1
1312-
64
LEVER; MIX,DOOR
8-98072-806-0
01
1
1312-
65
LEVER; MIX,DOOR
8-97333-331-0
01
1
1312-
67
CLIP; HTR UNIT
(B)
8-97321-274-0
02
1
1312-
67
CLIP; HTR UNIT
(A)
8-98088-089-0
01
1
1312-
68
CORE; HTR UNIT
8-97333-329-0
01
1
1312-
122
SCREW; DUCT
8-98071-323-0
02
1
1312-
133
CLIP; PIPE
8-97321-366-0
01
1
1312-
