8-52 — PIPING; AIR CONDITIONING (#132689) — 69 parça

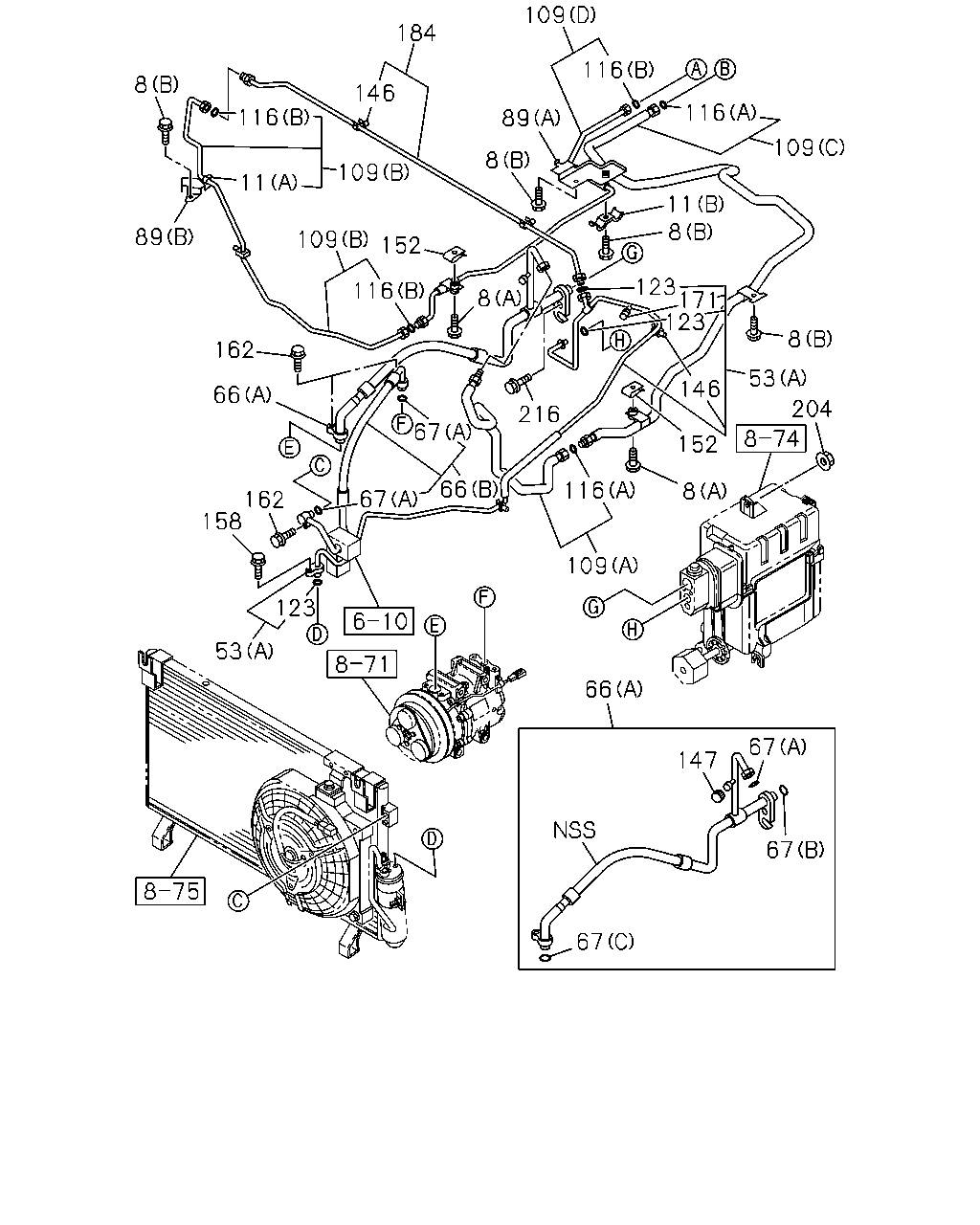

8 89 162 66 162 158 53 123 67 67 116 11 109 146 184 109 89 8 109 116 8 216 116 123 123 171 8 11 116 116 109 8 53 146 8 152 204 109 67 147 67 67 66 152 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; CLIP REAR COOLER WO/HEATER<C69> (B) M6X16 FLANGE IMA	0-28650-616-0	01	1	1312-
8	BOLT; CLIP REAR COOLER WO/HEATER<C69> (B) M6X16 FLANGE IMA	0-28650-616-0	08	1	1312-
8	BOLT; CLIP REAR COOLER WO/HEATER<C69> (A)	8-97383-407-0	02	1	1312-
11	CLIP; COOLER PIPE REAR COOLER WO/HEATER<C69> (A)	8-97354-058-0	01	1	1312-
11	CLIP; COOLER PIPE REAR COOLER WO/HEATER<C69> (B)	8-97375-867-0	01	1	1312-
53	PIPE; RECEIVER TANK TO EVAP REAR COOLER WO/HEATER<C69> (A)	8-98088-791-0	01	1	1312-
53	PIPE; RECEIVER TANK TO EVAP EXC. REAR COOLER WO/HEATER<C69> (B)	8-98088-792-0	01	1	1312-
66	HOSE; FLEX,A/C REAR COOLER WO/HEATER<C69> (A)	8-98018-881-0	01	1	1312-
66	HOSE; FLEX,A/C (B)	8-97363-903-0	01	1	1312-
66	HOSE; FLEX,A/C EXC. REAR COOLER WO/HEATER<C69> (C)	8-98007-108-1	01	1	1312-
67	GASKET; FLEX HOSE REAR COOLER WO/HEATER<C69> (A)	8-97321-353-0	01	1	1312-
67	GASKET; FLEX HOSE (B)	8-97321-351-0	01	1	1312-
67	GASKET; FLEX HOSE (C)	8-97321-352-0	01	1	1312-
67	GASKET; FLEX HOSE (A)	8-97321-353-0	02	1	1312-
89	BRACKET; A/C PIPE REAR COOLER WO/HEATER<C69> (A)	8-97363-892-0	01	1	1312-
89	BRACKET; A/C PIPE REAR COOLER WO/HEATER<C69> (B)	8-97369-405-0	01	1	1312-
109	PIPE; PIPE TO PIPE REAR COOLER WO/HEATER<C69> (B)	8-97363-885-1	01	1	1312-
109	PIPE; PIPE TO PIPE REAR COOLER WO/HEATER<C69> (C)	8-97363-886-1	01	1	1312-
109	PIPE; PIPE TO PIPE REAR COOLER WO/HEATER<C69> (D)	8-97363-887-2	01	1	1312-
109	PIPE; PIPE TO PIPE REAR COOLER WO/HEATER<C69> (A)	8-98027-845-0	01	1	1312-
116	GASKET; PIPE REAR COOLER WO/HEATER<C69> (A)	8-97321-353-0	01	1	1312-
116	GASKET; PIPE REAR COOLER WO/HEATER<C69> (A)	8-97321-353-0	03	1	1312-
116	GASKET; PIPE REAR COOLER WO/HEATER<C69> (B) SCAL	8-97919-270-0	02	1	1312-
116	GASKET; PIPE REAR COOLER WO/HEATER<C69> (B) SCAL	8-97919-270-0	04	1	1312-
123	GASKET; RECEIVER PIPE REAR COOLER WO/HEATER<C69> SCAL	8-97919-270-0	03	1	1312-
123	GASKET; RECEIVER PIPE EXC. REAR COOLER WO/HEATER<C69> SCAL	8-97919-270-0	02	1	1312-
146	CLIP; RECEIVER PIPE REAR COOLER WO/HEATER<C69>	8-97354-058-0	04	1	1312-
146	CLIP; RECEIVER PIPE EXC. REAR COOLER WO/HEATER<C69>	8-97354-058-0	02	1	1312-
147	CAP; FLEX HOSE	8-97386-623-0	01	1	1312-
152	NUT; CLIP REAR COOLER WO/HEATER<C69>	8-94334-769-0	02	1	1312-
158	BOLT; PIPE FIX M6X25 FLANGE IMA	0-28650-625-0	01	1	1312-
162	BOLT; FLEX HOSE M8X25 FLANGE IMA	0-28650-825-0	03	1	1312-
171	CAP; PIPE	8-97376-622-0	01	1	1312-
184	PIPE; PIPE TO EVAP REAR COOLER WO/HEATER<C69>	8-98018-755-0	01	1	1312-
204	NUT M6 FLANGE IMA	8-98055-704-0	02	1	1312-
216	BOLT; HOSE FIX M6X20 FLANGE IMA	0-28650-620-0	01	1	1312-

185 116 8 116 189 185 116 8 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; CLIP REAR COOLER WO/HEATER<C69> (B) M6X16 FLANGE IMA	0-28650-616-0	01	1	1312-
8	BOLT; CLIP REAR COOLER WO/HEATER<C69> (B) M6X16 FLANGE IMA	0-28650-616-0	08	1	1312-
8	BOLT; CLIP REAR COOLER WO/HEATER<C69> (A)	8-97383-407-0	02	1	1312-
116	GASKET; PIPE REAR COOLER WO/HEATER<C69> (A)	8-97321-353-0	01	1	1312-
116	GASKET; PIPE REAR COOLER WO/HEATER<C69> (A)	8-97321-353-0	03	1	1312-
116	GASKET; PIPE REAR COOLER WO/HEATER<C69> (B) SCAL	8-97919-270-0	02	1	1312-
116	GASKET; PIPE REAR COOLER WO/HEATER<C69> (B) SCAL	8-97919-270-0	04	1	1312-
185	PIPE; EVAP TO FLEX HOSE,PRESS LO REAR COOLER WO/HEATER<C69> (A)	8-97363-889-0	01	1	1312-
185	PIPE; EVAP TO FLEX HOSE,PRESS LO REAR COOLER WO/HEATER<C69> (B)	8-97363-891-1	01	1	1312-
189	GROMMET REAR COOLER WO/HEATER<C69> (A)	8-97382-968-0	01	1	1312-
189	GROMMET EXC. REAR COOLER WO/HEATER<C69> (B) OD=30 IMA	8-94107-655-0	01	1	1312-
189	GROMMET EXC. REAR COOLER WO/HEATER<C69> (C)	8-97363-901-0	01	1	1312-

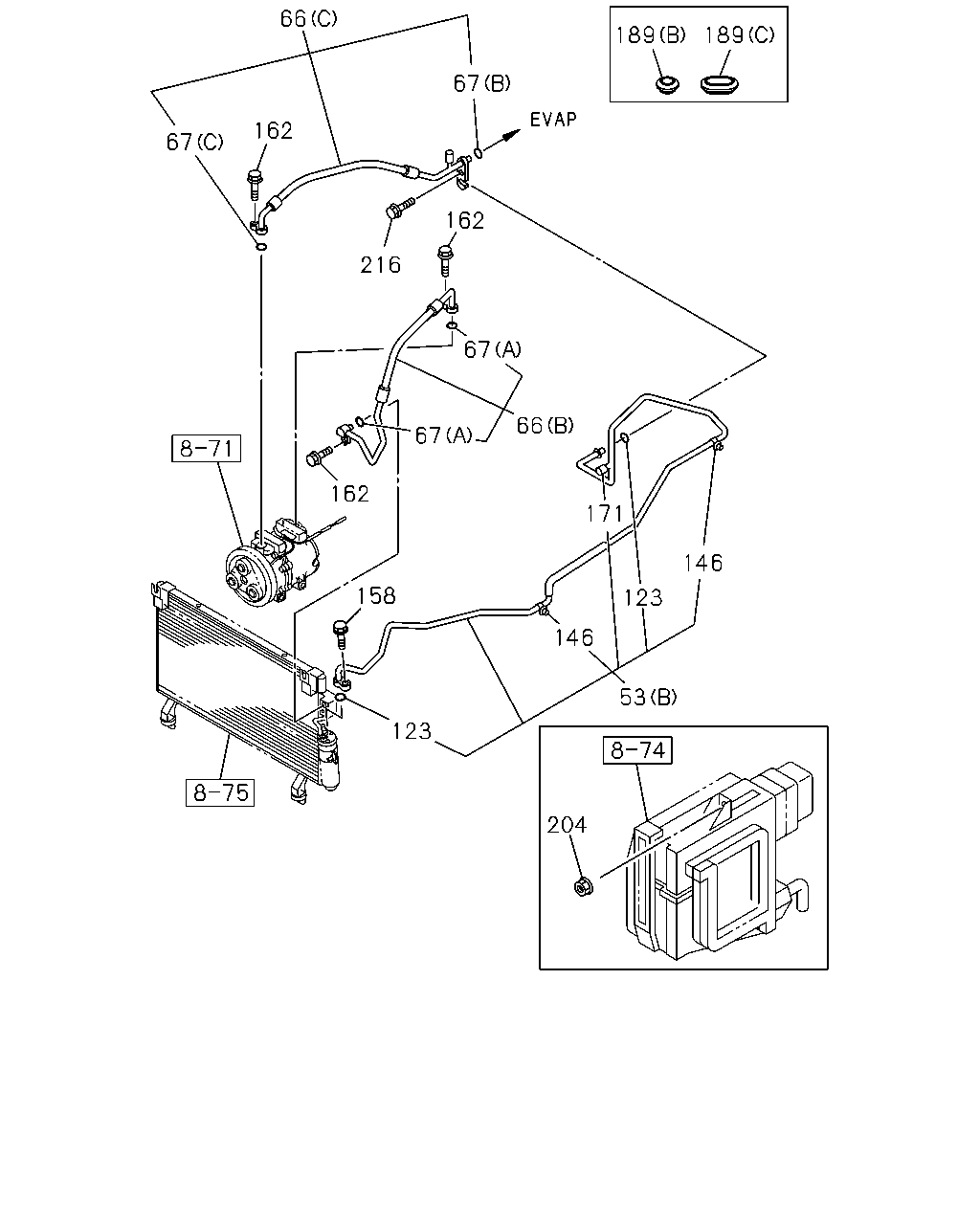

66 67 67 162 216 67 67 162 123 146 171 123 53 204 146 189 189 162 158 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	PIPE; RECEIVER TANK TO EVAP REAR COOLER WO/HEATER<C69> (A)	8-98088-791-0	01	1	1312-
53	PIPE; RECEIVER TANK TO EVAP EXC. REAR COOLER WO/HEATER<C69> (B)	8-98088-792-0	01	1	1312-
66	HOSE; FLEX,A/C REAR COOLER WO/HEATER<C69> (A)	8-98018-881-0	01	1	1312-
66	HOSE; FLEX,A/C (B)	8-97363-903-0	01	1	1312-
66	HOSE; FLEX,A/C EXC. REAR COOLER WO/HEATER<C69> (C)	8-98007-108-1	01	1	1312-
67	GASKET; FLEX HOSE REAR COOLER WO/HEATER<C69> (A)	8-97321-353-0	01	1	1312-
67	GASKET; FLEX HOSE (B)	8-97321-351-0	01	1	1312-
67	GASKET; FLEX HOSE (C)	8-97321-352-0	01	1	1312-
67	GASKET; FLEX HOSE (A)	8-97321-353-0	02	1	1312-
123	GASKET; RECEIVER PIPE REAR COOLER WO/HEATER<C69> SCAL	8-97919-270-0	03	1	1312-
123	GASKET; RECEIVER PIPE EXC. REAR COOLER WO/HEATER<C69> SCAL	8-97919-270-0	02	1	1312-
146	CLIP; RECEIVER PIPE REAR COOLER WO/HEATER<C69>	8-97354-058-0	04	1	1312-
146	CLIP; RECEIVER PIPE EXC. REAR COOLER WO/HEATER<C69>	8-97354-058-0	02	1	1312-
158	BOLT; PIPE FIX M6X25 FLANGE IMA	0-28650-625-0	01	1	1312-
162	BOLT; FLEX HOSE M8X25 FLANGE IMA	0-28650-825-0	03	1	1312-
171	CAP; PIPE	8-97376-622-0	01	1	1312-
189	GROMMET REAR COOLER WO/HEATER<C69> (A)	8-97382-968-0	01	1	1312-
189	GROMMET EXC. REAR COOLER WO/HEATER<C69> (B) OD=30 IMA	8-94107-655-0	01	1	1312-
189	GROMMET EXC. REAR COOLER WO/HEATER<C69> (C)	8-97363-901-0	01	1	1312-
204	NUT M6 FLANGE IMA	8-98055-704-0	02	1	1312-
216	BOLT; HOSE FIX M6X20 FLANGE IMA	0-28650-620-0	01	1	1312-
