◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51506 - UCR RHD (INDIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#132687) — 19 parça
çizim 402449
13 13 25 27 13 18 13 13
BalonParca AdiParca NoAdetTipApplied Date
13 CLIP; HTR HOSE
(A) ID=21.7 		8-97203-074-0 02 1 1312-
13 CLIP; HTR HOSE
(B) 		8-98063-683-0 01 1 1312-
13 CLIP; HTR HOSE
(C) ID=22 IMA 		8-97359-141-0 01 1 1312-
13 CLIP; HTR HOSE
(C) ID=22 IMA 		8-97359-141-0 01 1 1312-
18 BOLT; WATER HOSE
M8X12 FLANGE IMA 		0-28050-812-0 01 1 1312-
25 HOSE; WATER,ENG TO HTR UNIT 8-98007-112-2 01 1 1312-
27 HOSE; WATER,HTR UNIT TO WATER PIPE 8-98007-110-2 01 1 1312-

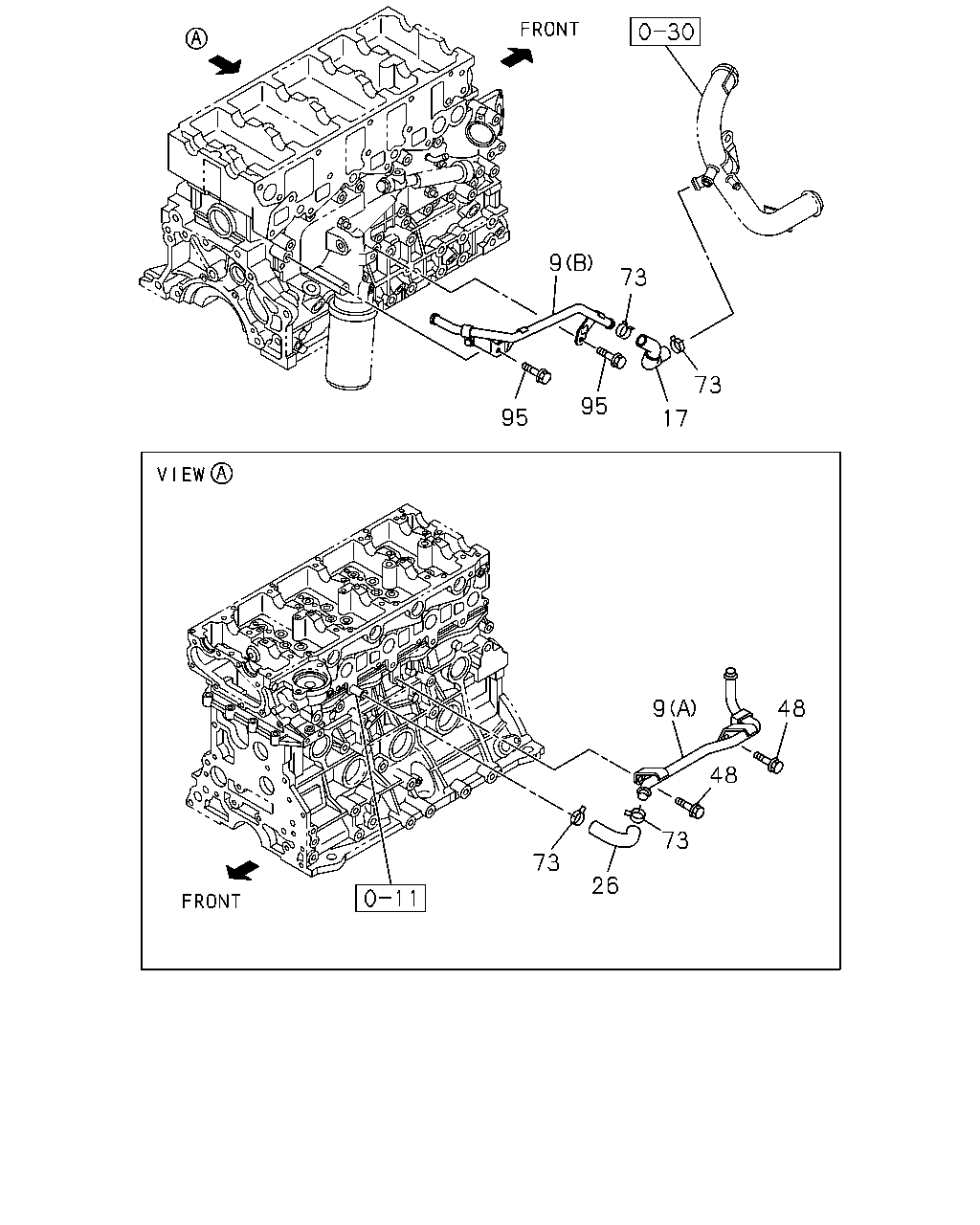

çizim 402637
9 95 95 73 73 17 9 48 48 73 73 26
BalonParca AdiParca NoAdetTipApplied Date
9 PIPE; HTR
(B) 		8-98011-513-1 01 1 1312-1505
9 PIPE; HTR
A/T AISIN(RMD) EURO4 SPECIFICATION(NT4) (B) 		8-98011-513-1 01 1 1506-
9 PIPE; HTR
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-98011-513-1 01 1 1506-
9 PIPE; HTR
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION(NT3) (A) 		8-98011-492-1 01 1 1312-
17 HOSE; WATER,BYPASS 8-98031-860-0 01 1 1312-
26 HOSE; HTR 8-98011-630-0 01 1 1312-1505
26 HOSE; HTR
A/T AISIN(RMD) EURO4 SPECIFICATION(NT4) 		8-98011-630-0 01 1 1506-
26 HOSE; HTR
M/T MUX 5 SPEED 5S(MZJ) 		8-98011-630-0 01 1 1506-
48 BOLT; CLIP FIX
M8X12 FLANGE IMA 		0-28050-812-0 02 1 1312-
73 CLIP; HTR HOSE
ID=20.8 IMA 		8-97944-127-0 04 1 1312-
95 BOLT; BYPASS PIPE
M/T MUX 5 SPEED 5S(MZJ) EURO3 SPECIFICATION(NT3) M8X16 FLANGE IMA 		0-28050-816-0 02 1 1312-1505
95 BOLT; BYPASS PIPE
EURO3 SPECIFICATION(NT3) M8X16 FLANGE IMA 		0-28050-816-0 02 1 1506-
